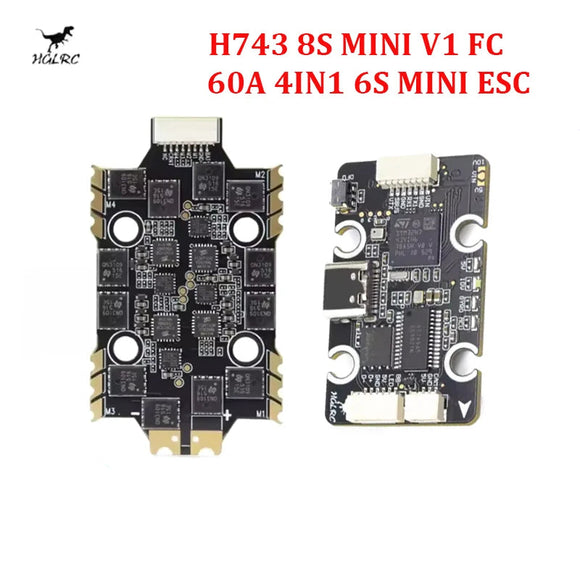

HGLRC H743 8S MINI V1 60A 4IN1 6S 8bit FPV ESC MINI Flight Controller Dual-BEC Modular With Gyro 20x20mm DIY FPV Drone For Adult

$52.64 $75.20 Save $22.56

Prices include VAT and any applicable duties

All prices include import tax & VAT

In stock!

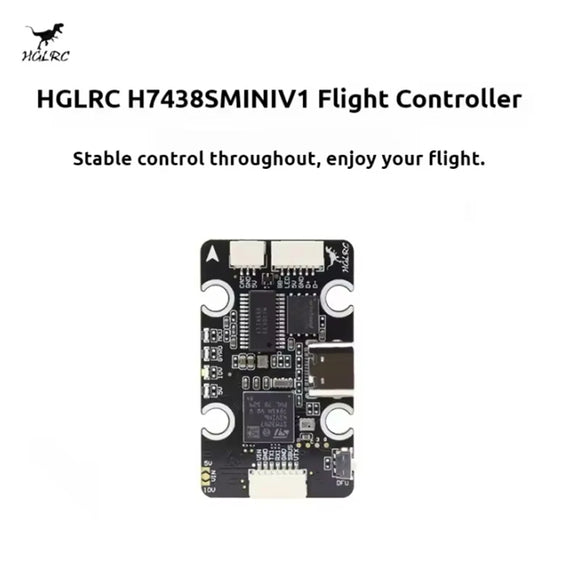

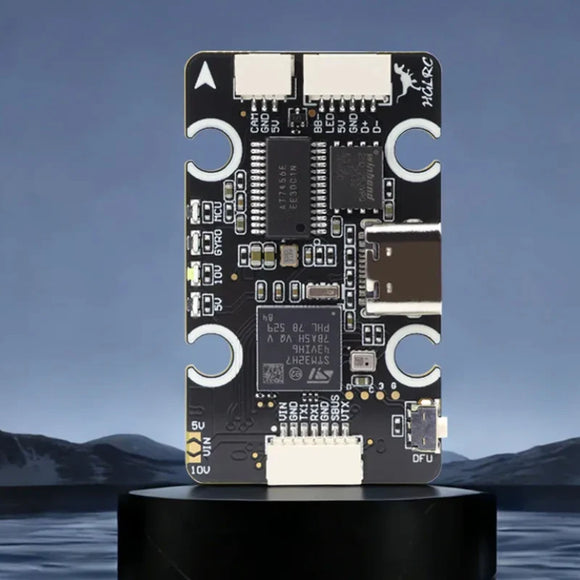

Model: H743 8S MINI V1 FC

Usually ships within 3 business days

Add $29.00 more for FREE shipping!
Description Compatibility & Notes Returns & Warranty

Key Features

  1. Equipped with the high-performance STM32H743 MCU, delivering powerful computing and rapid response.

  2. Chose ICM42688P gyroscope for the FC to enhance the stability.

  3. Includes a 16MB large-capacity Blackbox for comprehensive flight data logging.

  4. Supports 8S high-voltage input for power output to keep fast response and stable control.

  5. Fully modular plug-and-play design with direct connectors, eliminating the need for soldering.

  6. Ultra-narrow size and dual BEC design greatly save installation space, making it compatible with small frames.

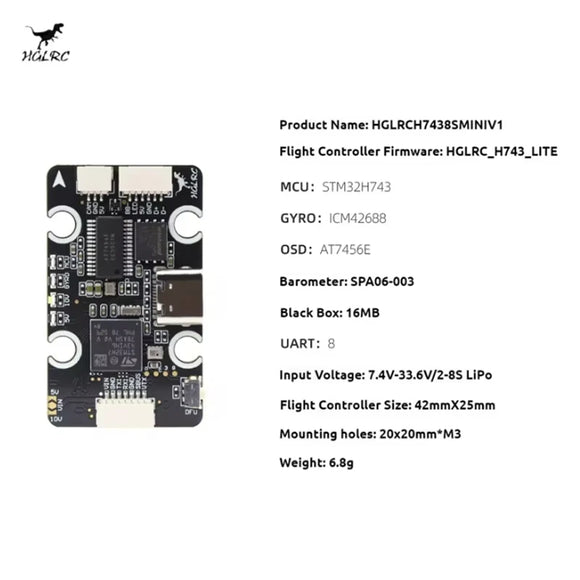

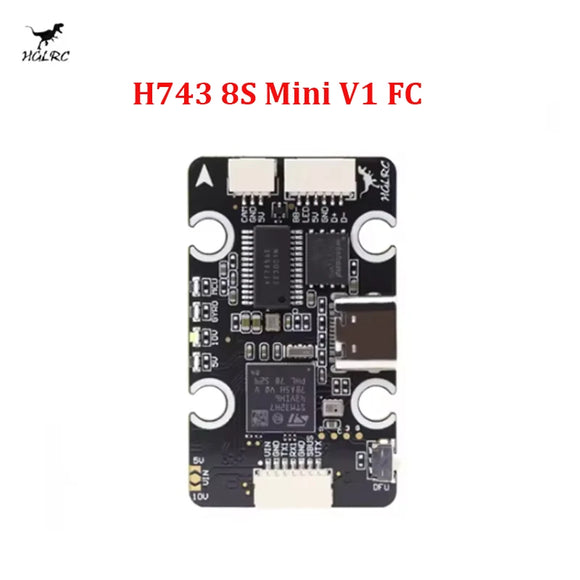

Specifications
Model Name:HGLRC H743 8S MINI V1
FC Firmware:HGLRC_H743_LITE
MCU:STM32H743
GYRO:ICM42688
OSD: AT7456E
Barometer:SPA06-003
Blackbox:16MB
UART:8
Input Voltage:7.4V-33.6V/2-8SLIPO
Dimensions:42mmx25mm
Mounting Holes:20x20mm，M3
Weight:6.8g



Package Contents：
1x HGLRC H743 8S MINI V1 FC
1x 30AWG 25mm Double-ended SH1.0-8P Cable 1x 30AWG,100mm Double-ended SH1.0-4P Receiver Cable 1x 30AWG,50mm Single SH1.0-3P / Single SH1.25-3P Camera Cable
1x 30AWG 70MM Single GH1.25-6P / Single SH1.0-7P DJI Cable

1x 30AWG 70MM Single SH1.0-7P / Single 1.0-6P VTX Cable
1x 30AWG，120mm total length, Double-ended SH1.0-6P GPS Cable
4x 3*8 Vibration Damping Standoffs
4x 3*6.6 Vibration Damping Standoffs
1x HGLRC Sticker
1x QR Code Card

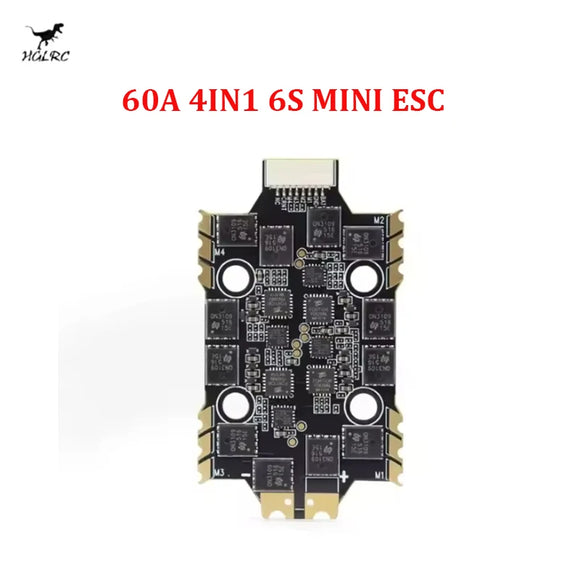

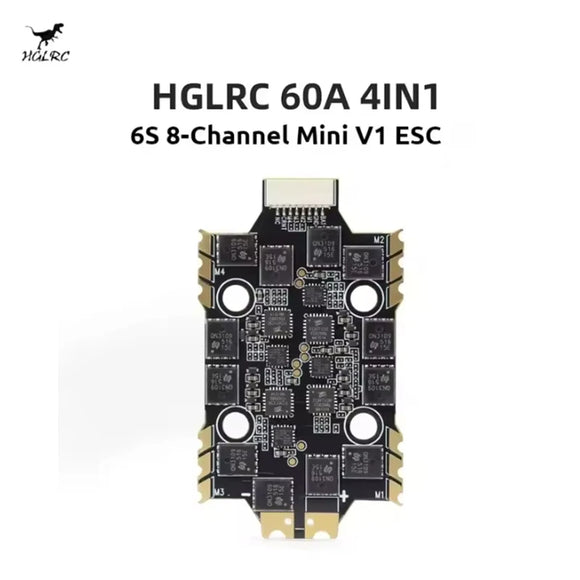

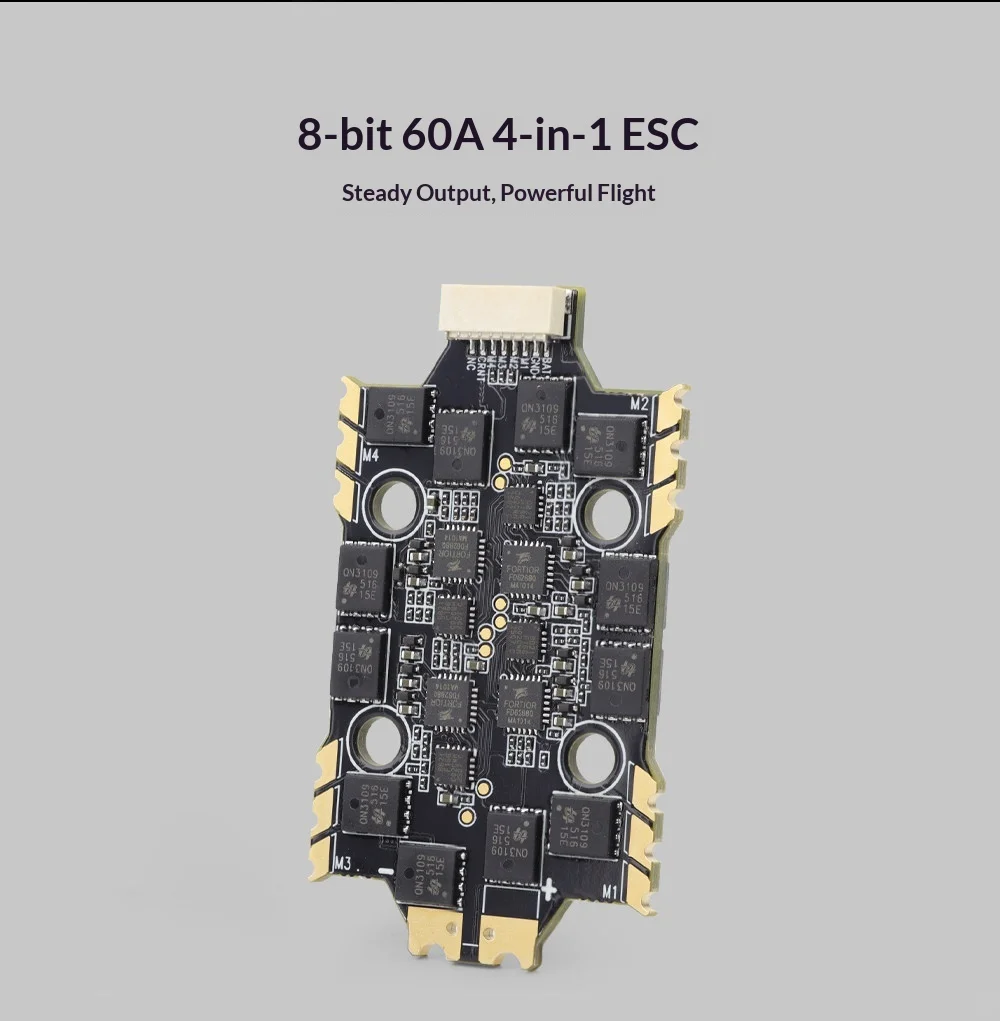

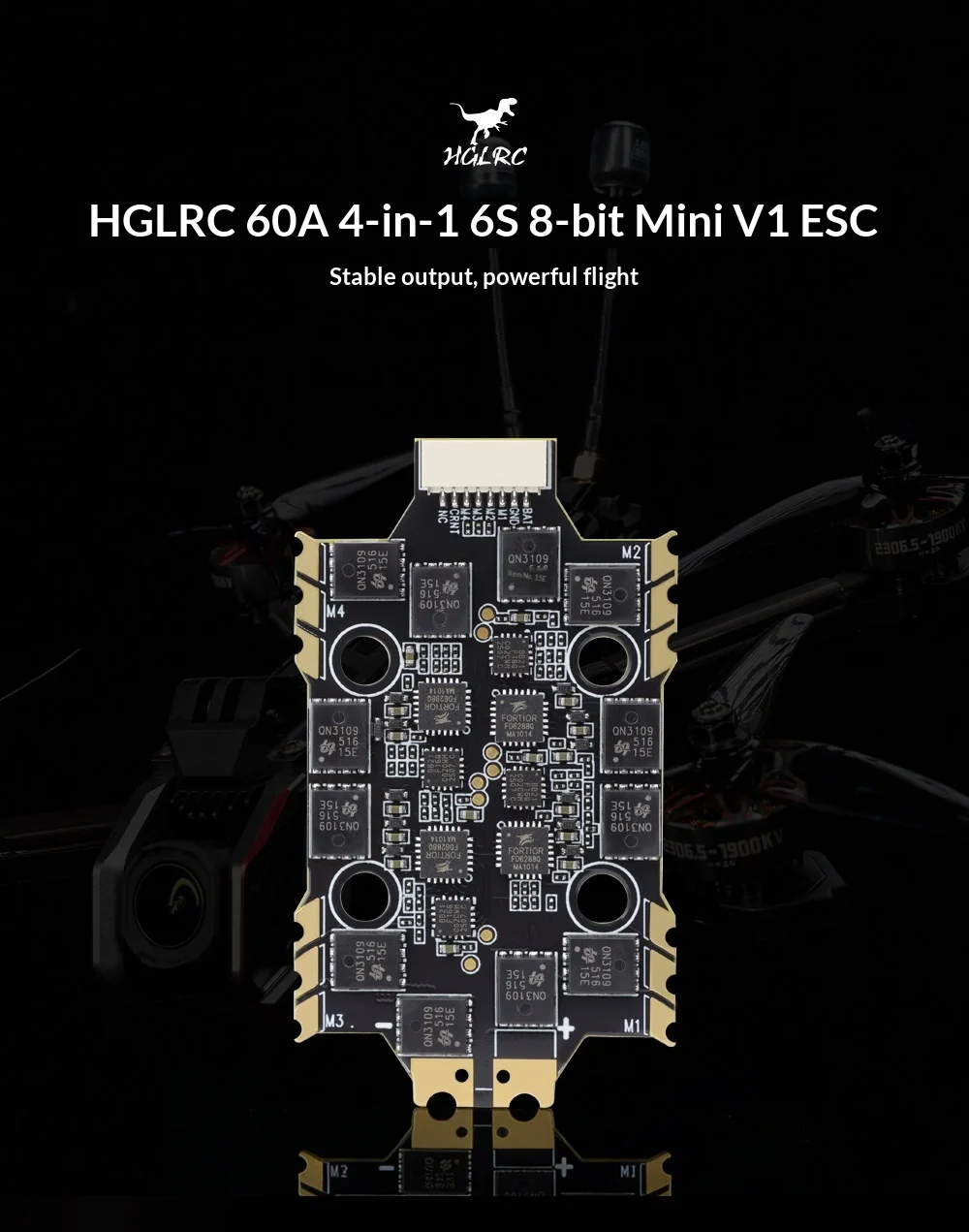

HGLRC 60A 4-in-1 6S 8-bit Mini V1 ESC

Features:

1. 8-channel 60A quad-blade ESC, stable output, powerful flight.

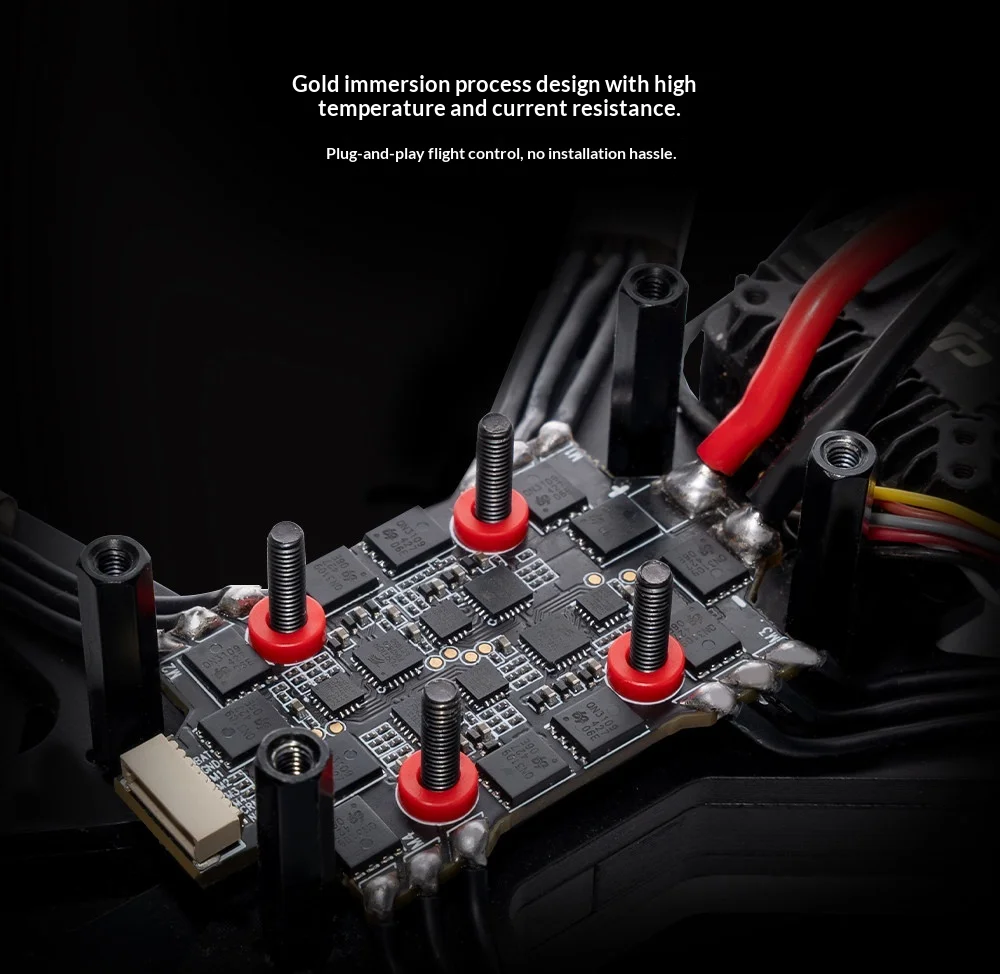

2.Immersion gold process,high temperature and current resistance, direct flight controller plug-in,easy installation

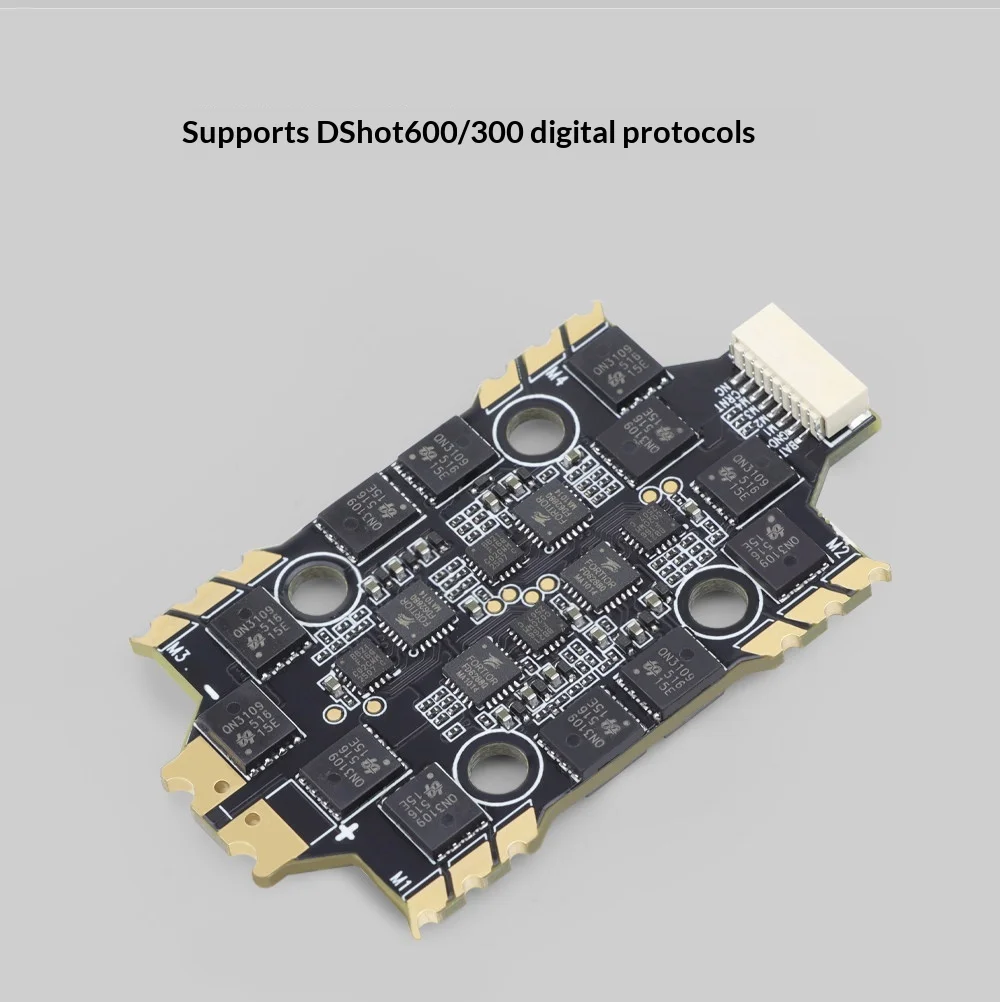

3. Supports digital protocols DShot600/300.

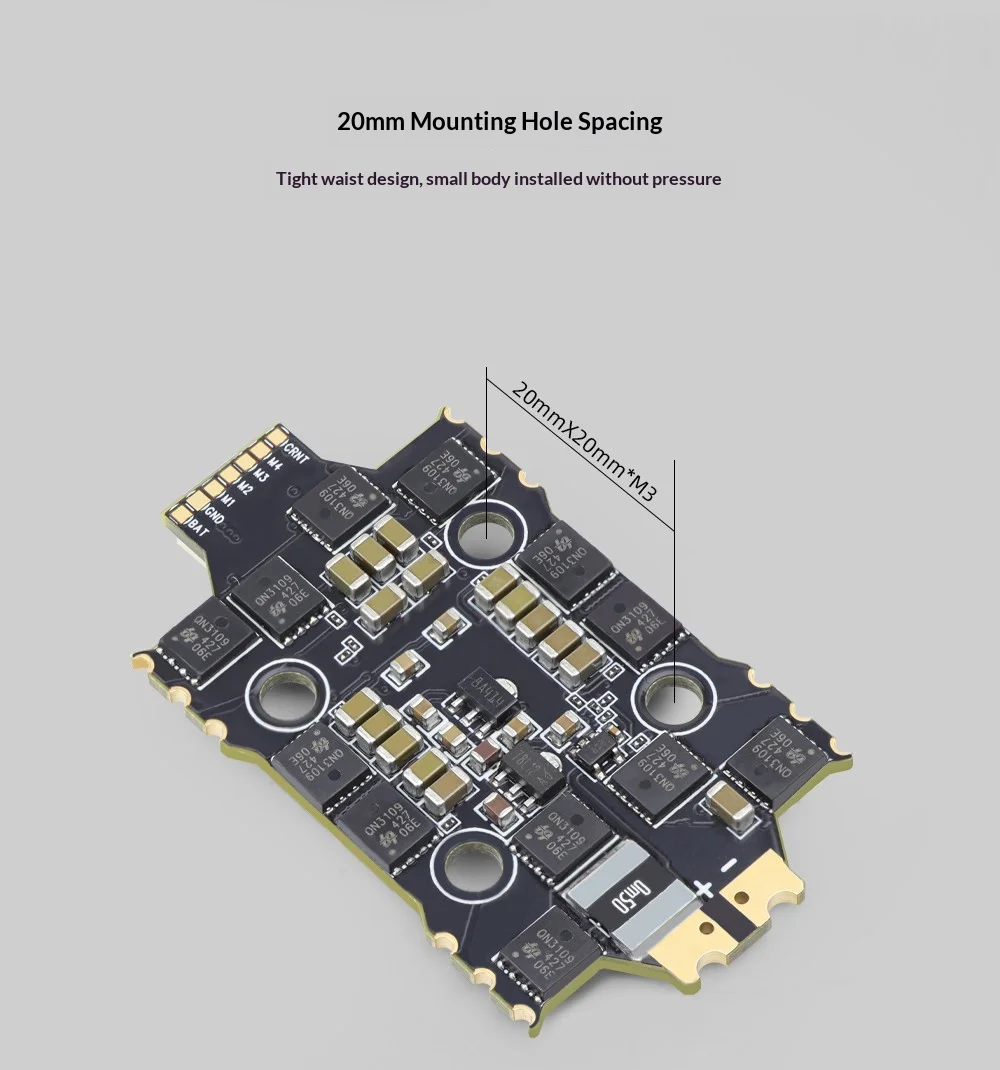

4. 20mm mounting holes, waisted design, no pressure for small body installation.

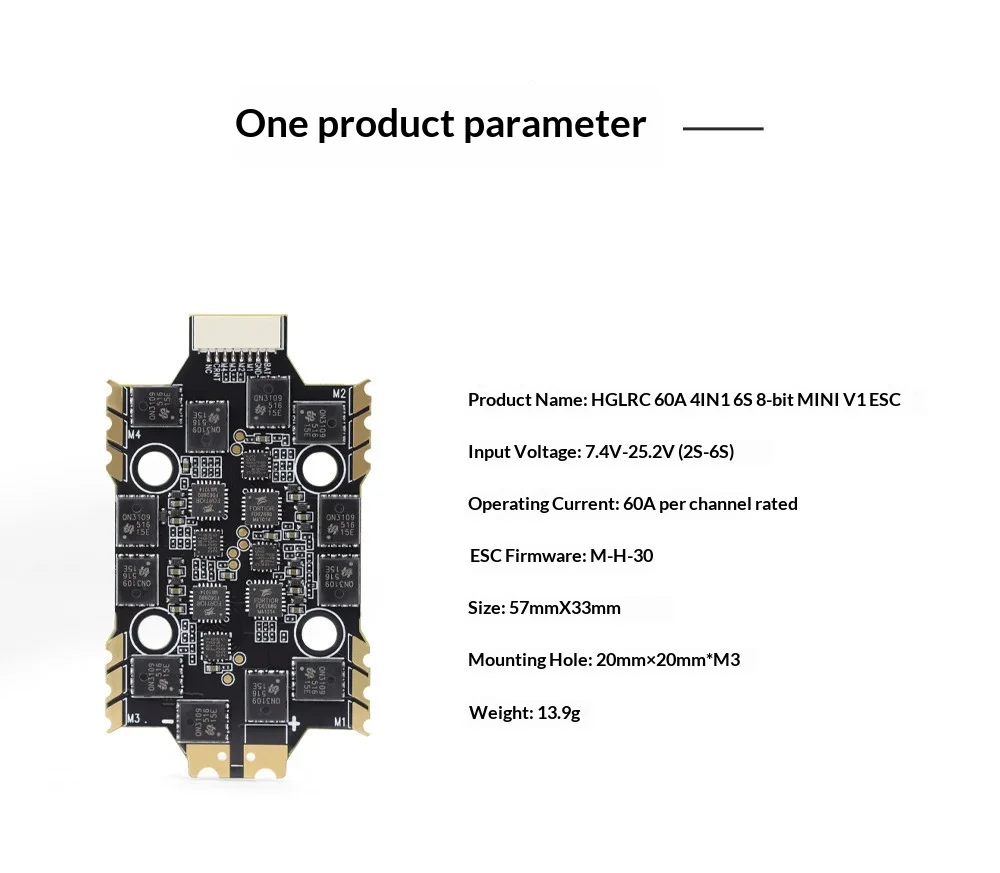

Product Name: HGLRC 60A 4IN1 6S 8-bit MINI V1 ESC

Input Voltage:7.4V-25.2V (2S-6S)

Operating Current:60A per channel rated

ESC Firmware:M-H-30

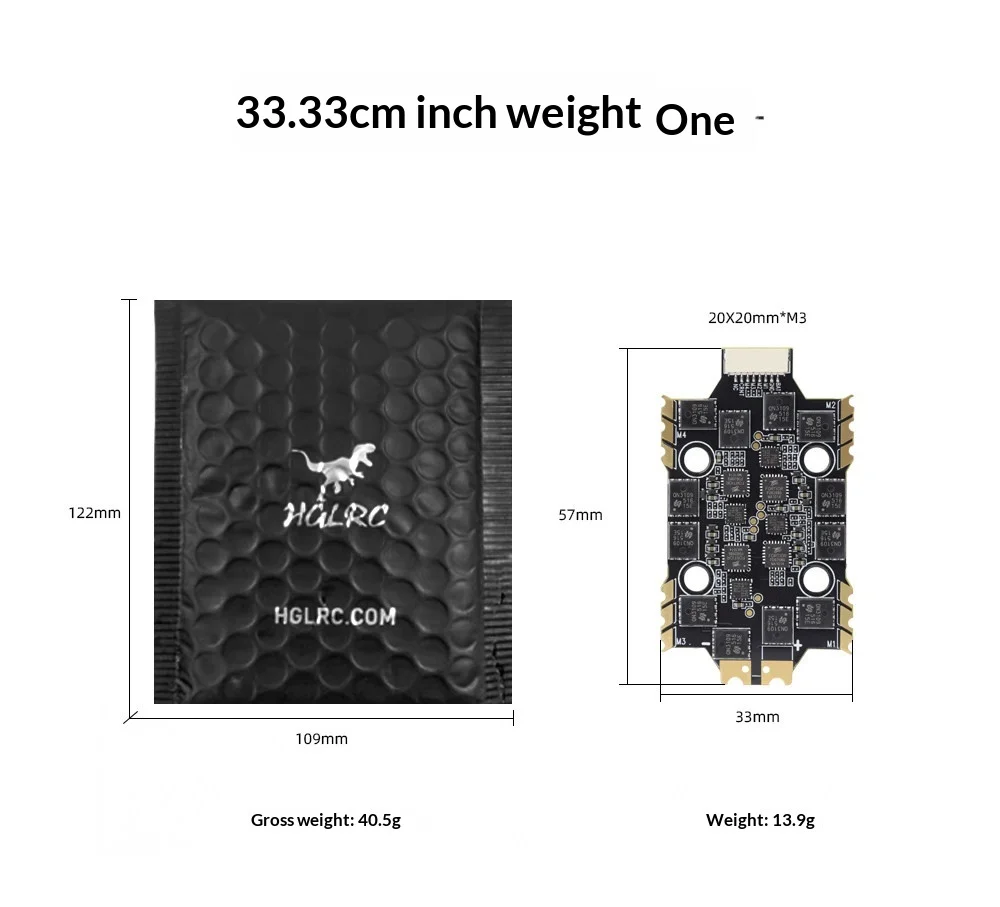

Dimensions:57mmx33mm

Mounting Holes:20mmx20mm,M3

Weight:13.9g

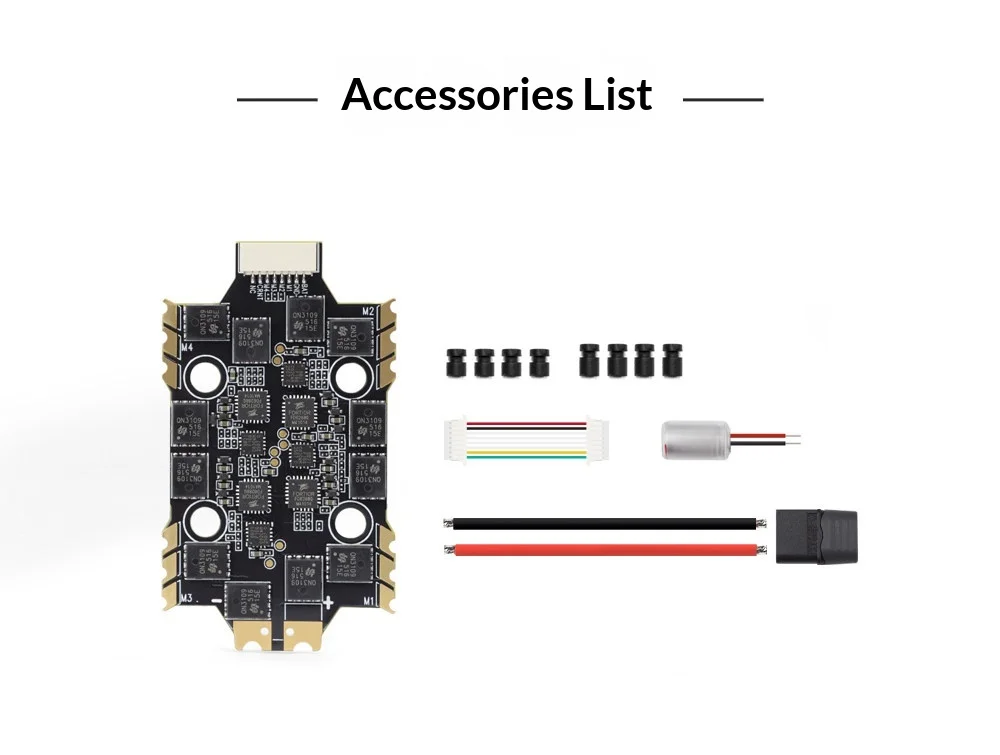

Shipping List:

1x HGLRC 60A 4-in-1 16S 8-bit Mini V1 ESC

1x 30AWG 25mm Dual-End SH1.0-8P Cable

1x12AWG 100mm Power Cable(Black/Red)

1x XT60H-M Black Male Connector

1x35V 1000UF Solid Capacitor4x3*8 Shock-Absorbing Pillars

4x 3*6.6 shock absorber column

1x "Huagulong"2025 Model Small Sticker

1x QR Code Card
