DIATONE MAMBA F405 MK2 V2 (ICM42688P) Flight Controller W/ BLHELI_S F55_BLS 4in1 ESC Dshot 300/600 3-6S for RC FPV Racing Drone

$33.73 $48.18 Save $14.45

Prices include VAT and any applicable duties

All prices include import tax & VAT

In stock!
Model: MAMBA F405MK2 V2 FC

Usually ships within 3 business days

Add $29.00 more for FREE shipping!
Description Compatibility & Notes Returns & Warranty

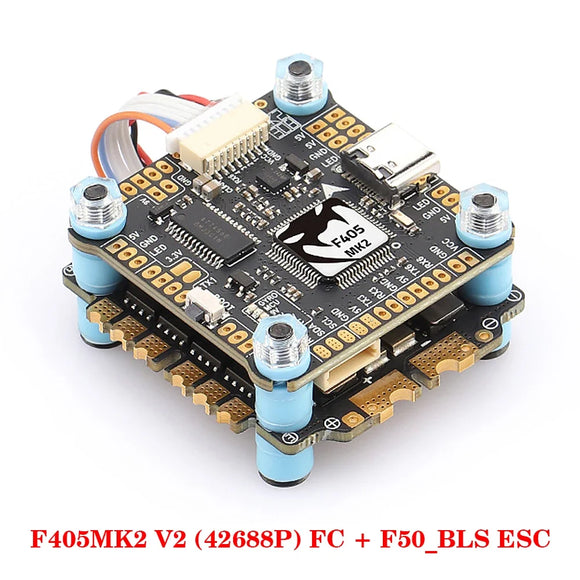

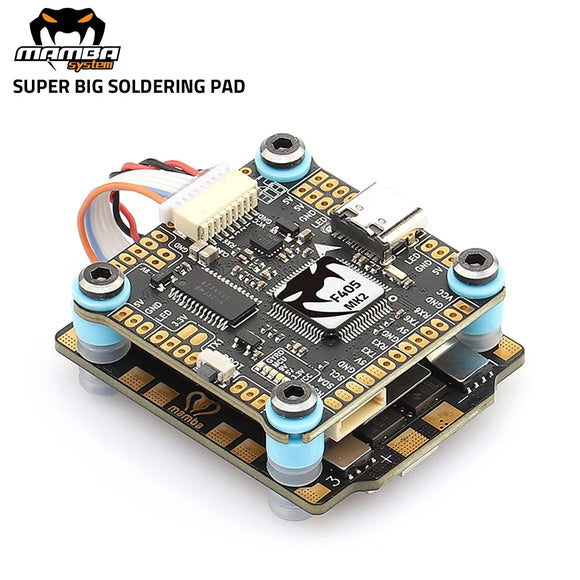

DIATONE MAMBA F405 MK2 V2 (ICM42688P) Flight Controller W/ BLHELI_S F55_BLS 4in1 ESC Dshot 300/600 3-6S for RC FPV Racing Drone

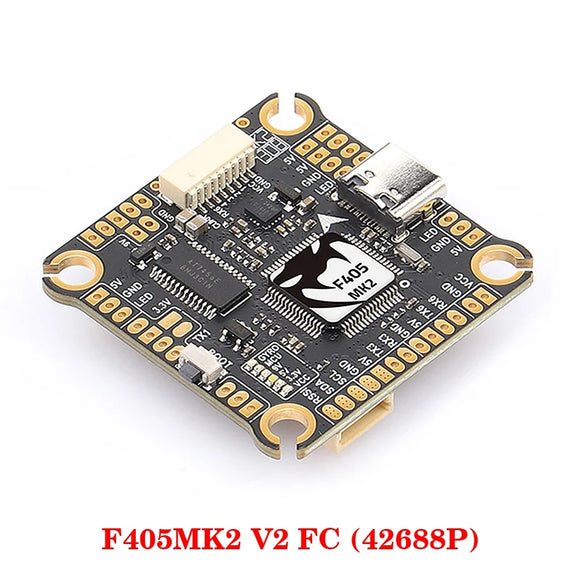

MAMBA F405MK2 V2 FC (ICM42688P)

  • Firmware: Furyf4osd

  • Main control: 168MHz STM32F405

  • Gyroscope: ICM-42688-P

  • OSD: Support

  • Black box: 16M Flash Memory

  • Ben: NO

  • Serial port: 3SET

  • I2C signal: support

  • F.Port signal: NO

  • RSSI signal: support

  • Bee Narrator: Support

  • Electric output: 6 set

  • Electrical Agreement: DSHOT300/600

  • Electrochemical return: support

  • Status indicator: Yes

  • LED output: BF LED

  • Sky end interface: support

  • Wifi tuning: NO

  • VTX power control: NO

  • BEC protection: yes

  • Receiving machine protection: yes

  • TVS Power Protection: Yes

  • BEC output: 3.3V 0.5A & 5V 2A & 9V2A

  • Working voltage: 3 ~ 6S Lipo (12.6 ~ 25.2V)

  • Installation size: 30.5mm/m3

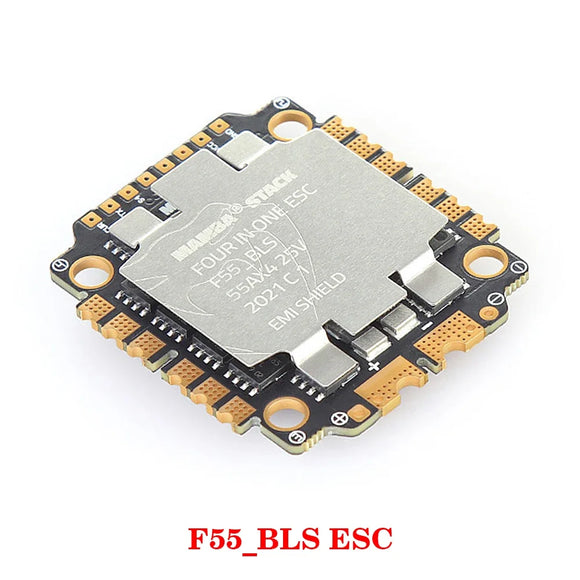

MAMBA F55 BLS ESC

  • Input voltage: 4 ~ 6s Lipo (12.6V ~ 25.2V)

  • Rating current: 55A × 4

  • Peak current: 60A (10S)

  • BEC: NO program: DSHOT300/600

  • Firmware: BLHELI_S CH40

  • TVS Power Protection: Yes

  • Install holes: 30.5mm/m3

  • Size: 44.5 × 40 × 6.8mm

  • Shipping: 8pin SH1.0 × 2

  • AMASS Original XT60 × 1

  • High -frequency capacitor 470UF/35V × 1
