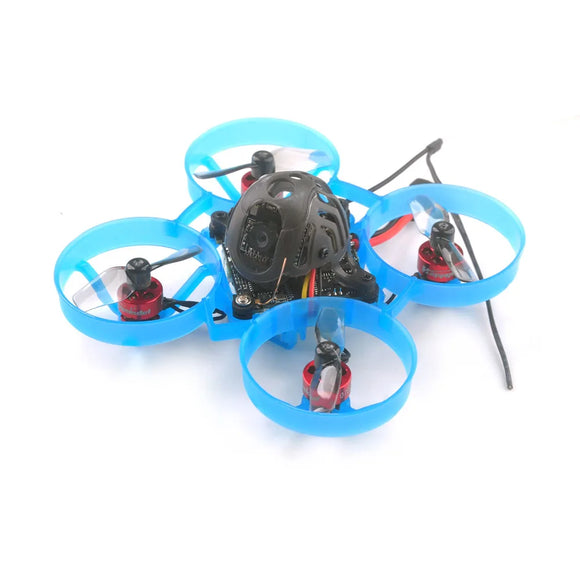

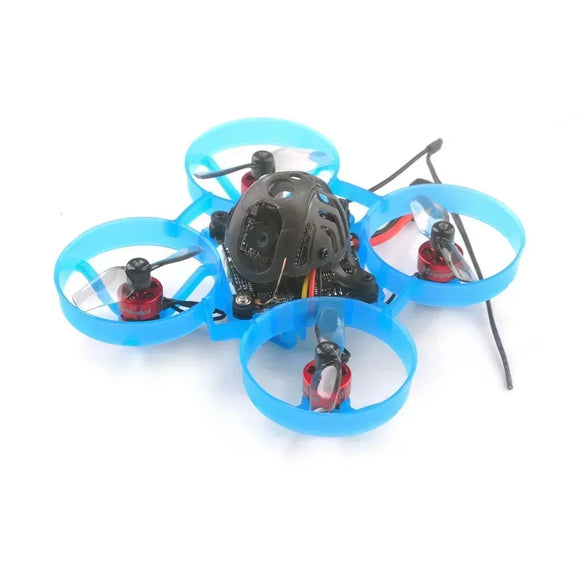

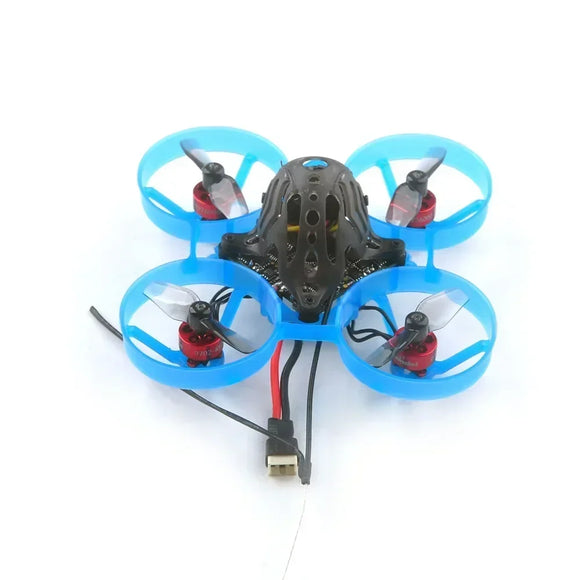

HappyModel Mobula6 ELRS - 65mm TinyWhoop Quadcopter FPV Drone ELRS F4 2G4 Runcam Nano3 200mW 0702 26000KV 1S

HappyModel Mobula6 ELRS - 65mm TinyWhoop Quadcopter FPV Drone ELRS F4 2G4 Runcam Nano3 200mW 0702 26000KV 1S-1

HappyModel Mobula6 ELRS - 65mm TinyWhoop Quadcopter FPV Drone ELRS F4 2G4 Runcam Nano3 200mW 0702 26000KV 1S-2

HappyModel Mobula6 ELRS - 65mm TinyWhoop Quadcopter FPV Drone ELRS F4 2G4 Runcam Nano3 200mW 0702 26000KV 1S

$132.34 $264.68 Save $132.34

Prices include VAT and any applicable duties

All prices include import tax & VAT

In stock!

Usually ships within 3 business days

Add $29.00 more for FREE shipping!

Description Compatibility & Notes Returns & Warranty

Update log:
Mobula6 ELRS 2.4Ghz version comes with Updated ELRSF4 2G4 V3.1 flight controller since 25th Feb
V3.1 Version flight controller Updated
MPU6000 changed to ICM20689 because of MPU6000 discontinued
Onboard VTX changed to OPENVTX support 0mw~400mw
Pre-install Betaflight firmware which support ELRS V2.0 TX firmware

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We're sure this would be a good option for you in the Tiny Whoop Season.

Features:
AIO Flight controller with ELRS Receiver and 5.8G VTX

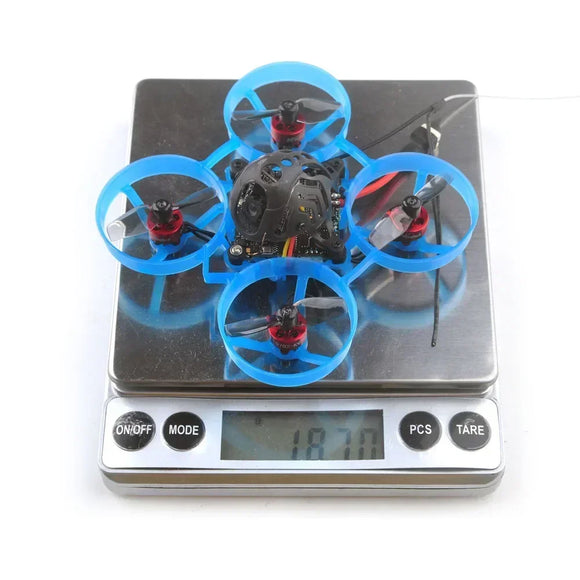

Super light 1S 65mm Brushless whoop only 18.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV

Specifications:
Brand Name: Happymodel
Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm
Weight: 18.7g

Receiver option:

2.4GHz ExpressLRS SPI receiver

915MHz ExpressLRS Serial-based receiver

868MHz ExpressLRS Serial-based receiver

	Mobula6 ELRS 2.4G	Mobula6 ELRS 915MHz	Mobula6 ELRS 868MHz
Flight controller	ELRS F4 2G4	CrazyF4 ELRS	CrazyF4 ELRS
Firmware target	CRAZYBEEF4SX1280	CRAZYBEEF4DX	CRAZYBEEF4DX
Built-in ExpressLRS receiver	SPI 2.4GHz	Serial-base 915MHz	Serial-base 868MHz
Built-in Dshot ESC	5A	5A	5A
Receiver antenna plug	SMD ceramic antenna	IPEX MHF3	IPEX MHF3
Onboard VTX power	25mw~200mw	25mw~200mw	25mw~200mw
Brushless Motor	0702 KV26000	0702 KV26000	0702 KV26000
Propeller	HQPROP 31mm Bi-blade	HQPROP 31mm Bi-blade	HQPROP 31mm Bi-blade
Battery	1s 300mah Lipo battery	1s 300mah Lipo battery	1s 300mah Lipo battery

Package includes:

Item Name	Qty
Mobula6 1S 65mm whoop Drone Frame	1
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver	1
CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver
CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver
SE0702 KV26000 brushless motor	4
HQPROP 31mm bi-blade propellers(4cw+4ccw)	1
Runcam Nano3 1/3 CMOS 800TVL camera	1
Onboard 5.8G 25mw~200mw VTX	1
1S 300mah 30C LiHV Battery	4
1S Lipo/LIHV USB Charger	1
Propeller disassemble tool	1

Spare parts specifications:

Motor	Mode: SE0702 KV26000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ9.5mm14mm Weight(g):1.46g No.of Cells(Lipo):1S only
Propellers	HQprop31mmx2 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.2g
Flight controller	ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in ExpressLRS 2.4G/915MHz/868MHz receiver Built-in 5V 1A BEC Built-in voltage detection
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible
Onboard Serial-based ELRS Receiver	Operation current: ~100Ma Rx To FC protocol: CSRF RF Frequency optional: 915mhz or 868mhz(EU) Antenna connector: IPEX4 Telemetry output Power: <17dBm Firmware target: Happymodel_RX_ES915RX Receiver protocol: CRSF Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware) Firmware flash via Betaflight pass-through
Onboard 5.8g VTX	Output power: 25mw~200mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready
Runcam Nano3	Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mmW14mmH9mm
Lipo Battery	Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 30C Size: 57mmx12mmx7mm Weight: 8g Connector: PH2.0
