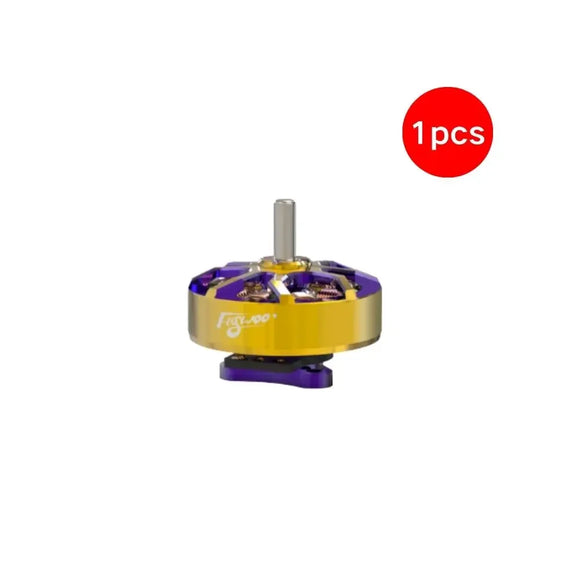

Description:

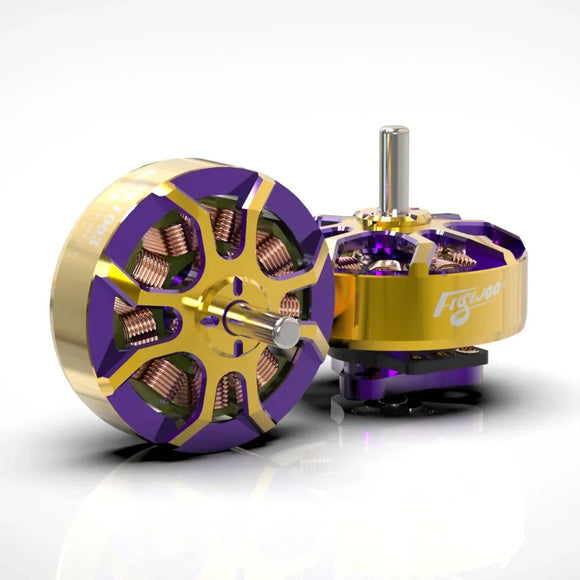

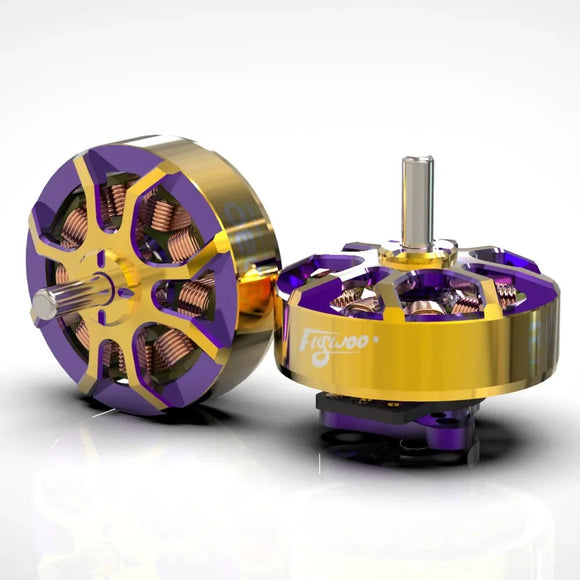

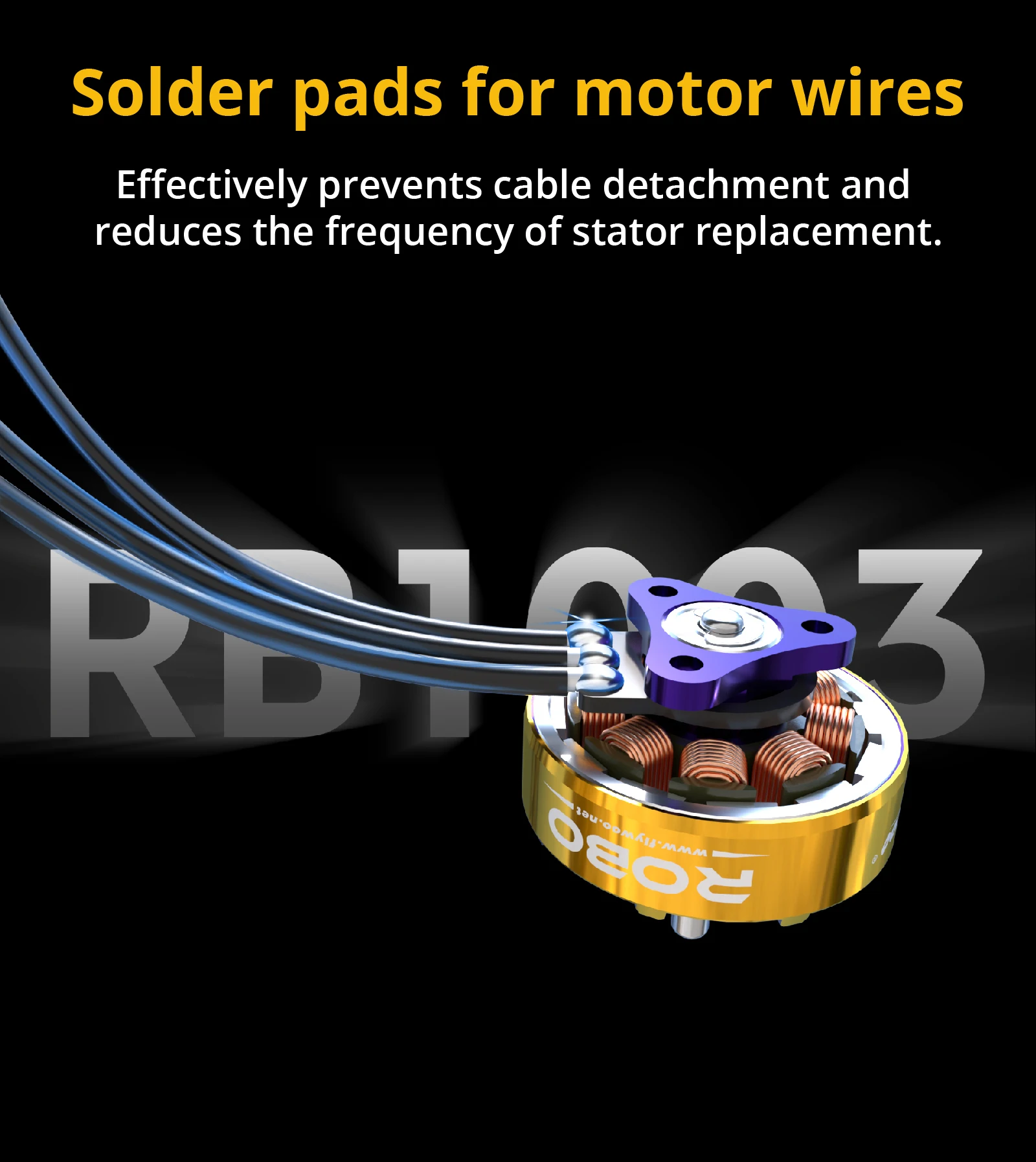

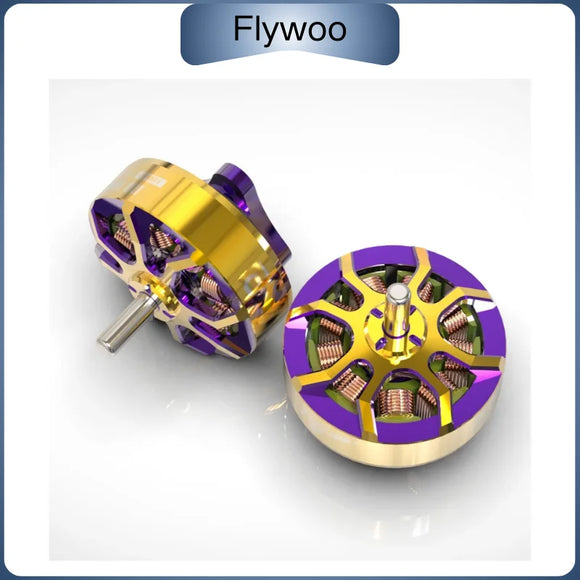

The FLYWOO RB1003 motor adopts a new structural design with a dual bearing design. This dual bearing design enables better control of shaft movement, reducing noise and vibration. It enhances stability and is more power-efficient. The motor is made of 7075 aviation aluminum material, features a high-efficiency magnetic circuit design, has a dual-color oxidation appearance, a wire soldering pad design, weighs only 3.3g, offers efficient power, smooth operation, and stable control. It is very suitable for whoop and toothpick models.

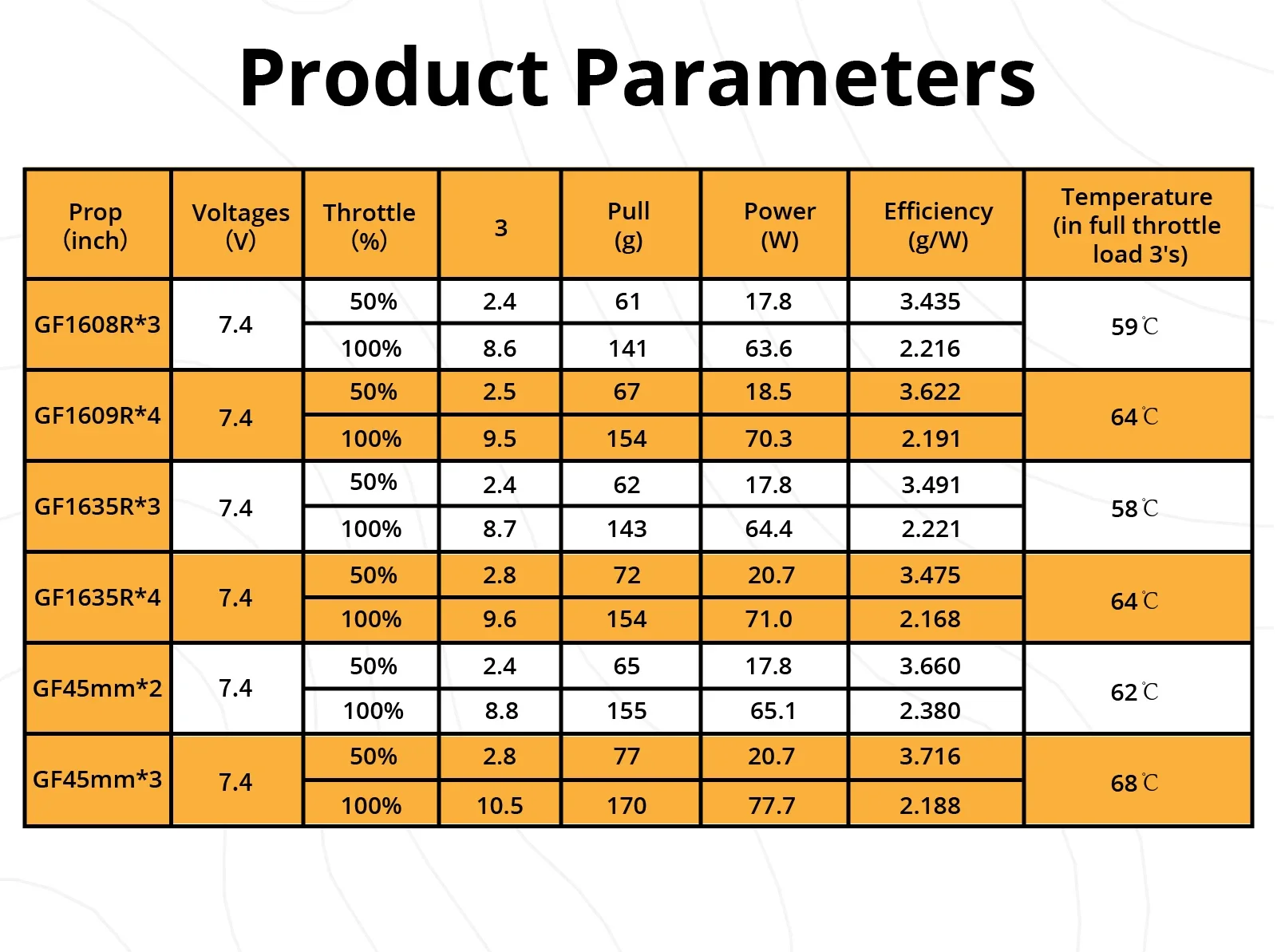

Product Parameters:
Brand: FLYWOO
Model: RB1003 Brushless Motor
Configuration: 9N12P
Magnet: N52H
Stator Diameter: 10MM
Stator Height: 3MM

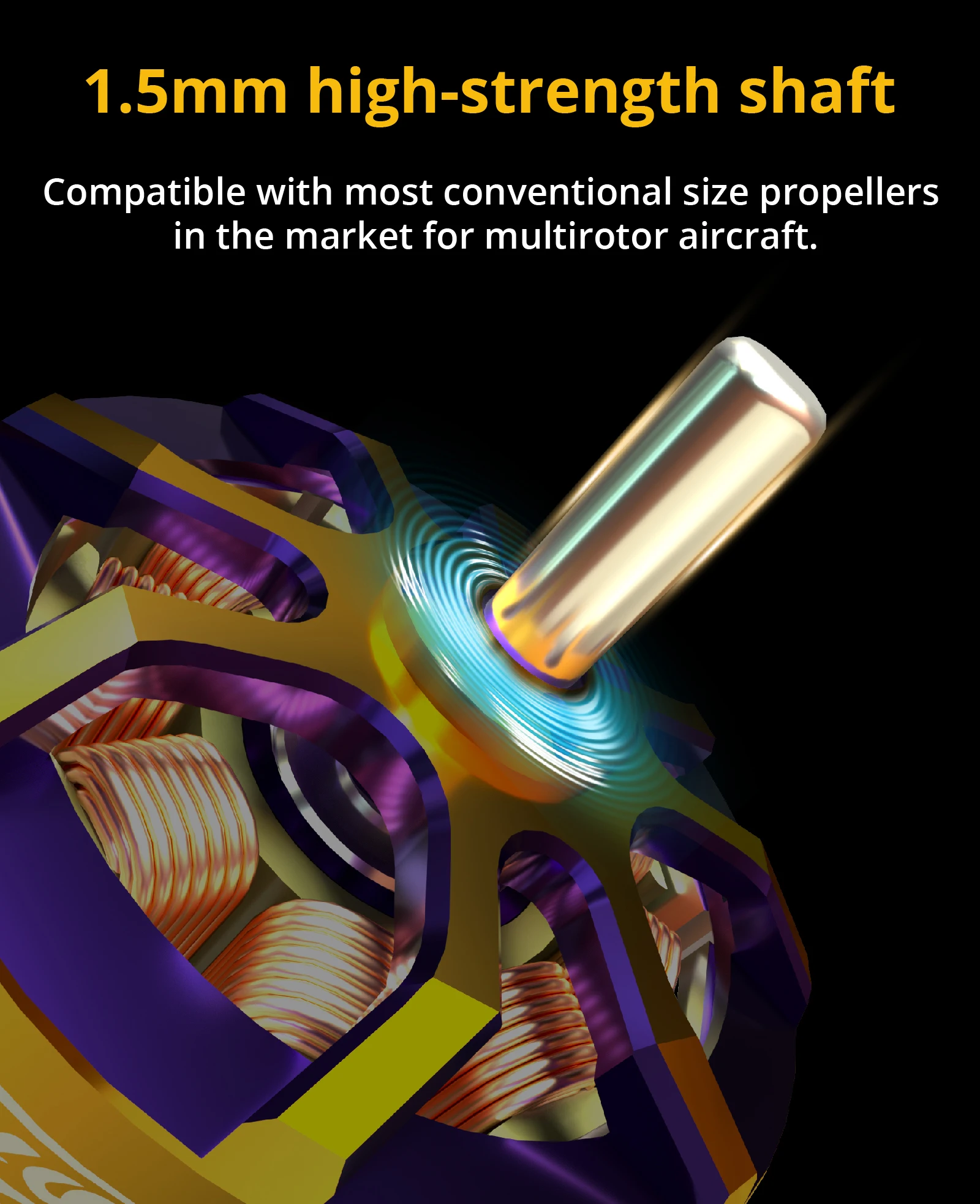

Output Shaft Diameter: 1.50MM

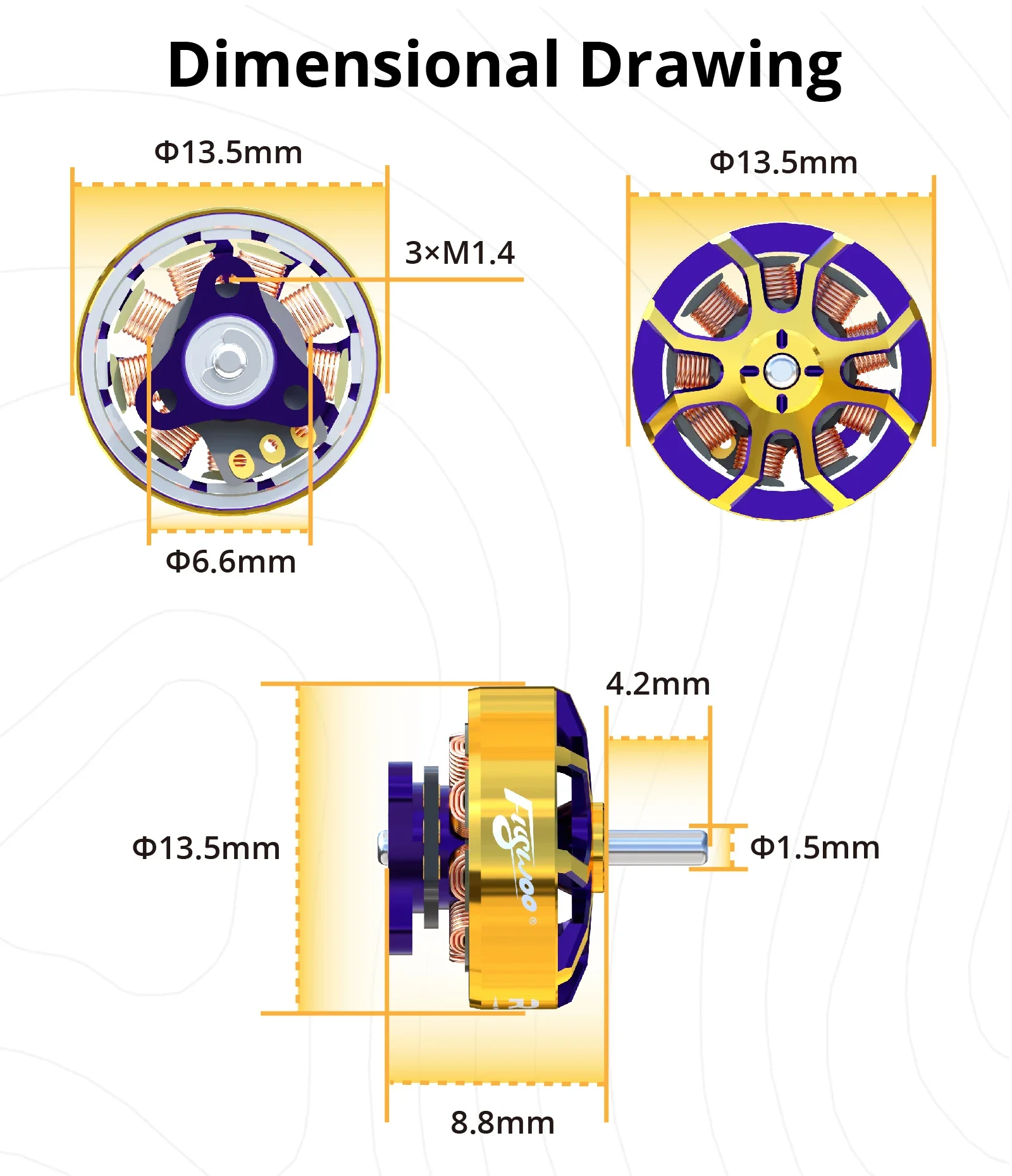

Dimensions: 13.5mm x 9.2mm
Rated Voltage: 1-2S
Mounting Hole: 3*M1.4-D6.6

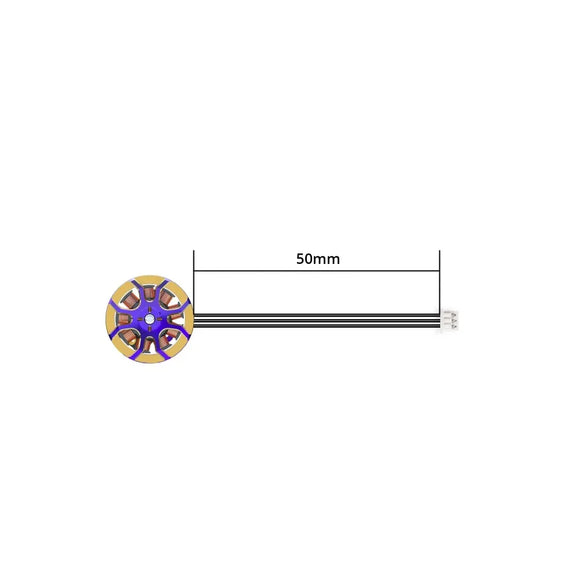

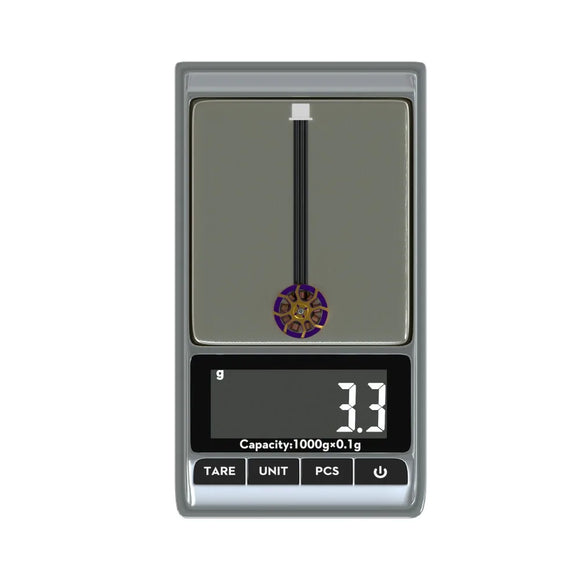

Weight: 3.3g (with 4cm wire)
Features:
1: New appearance with dual-color oxidation

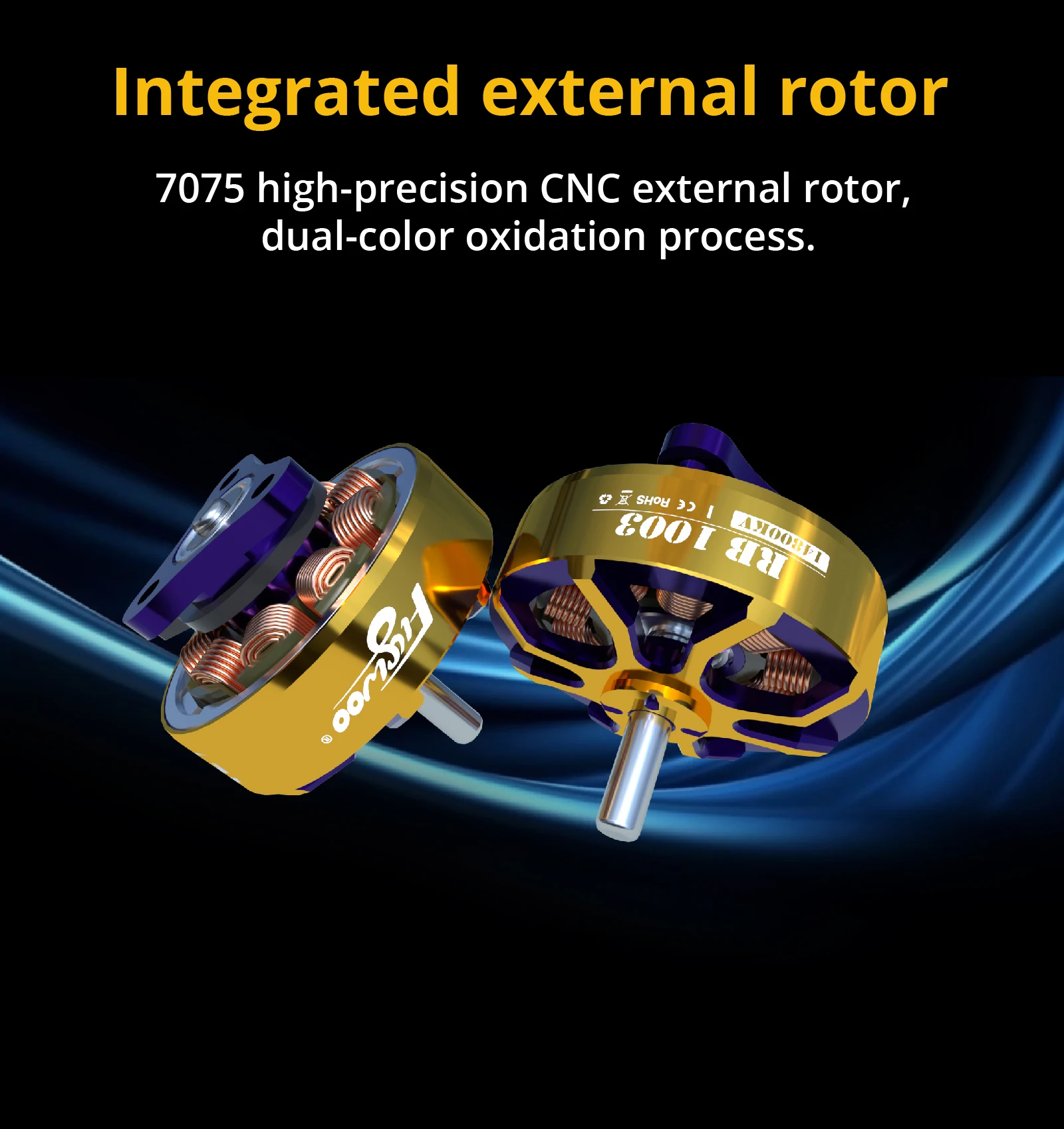

2: 7075 aviation aluminum, high-strength rotor

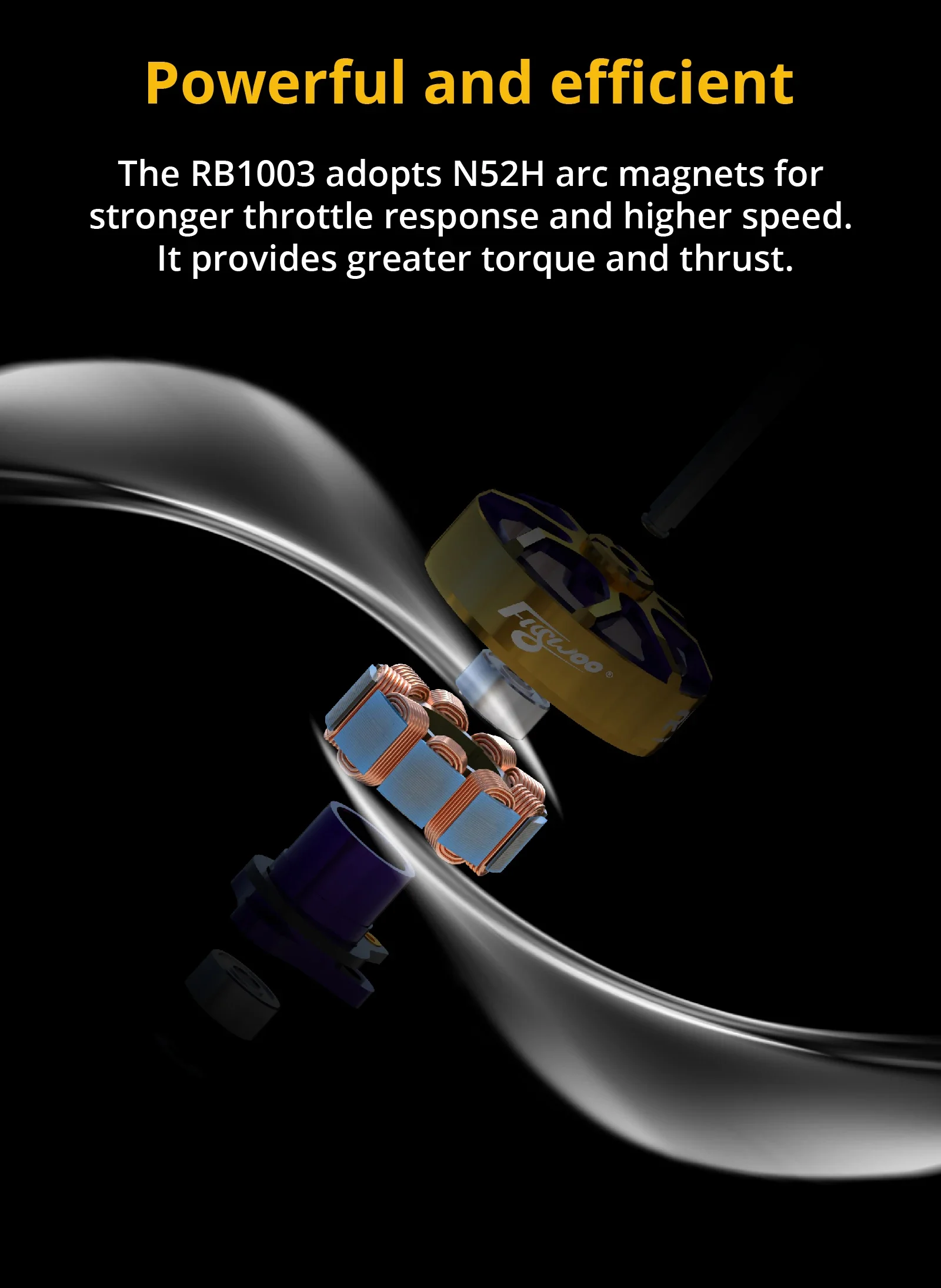

3: Customized N52H arc-shaped strong magnet

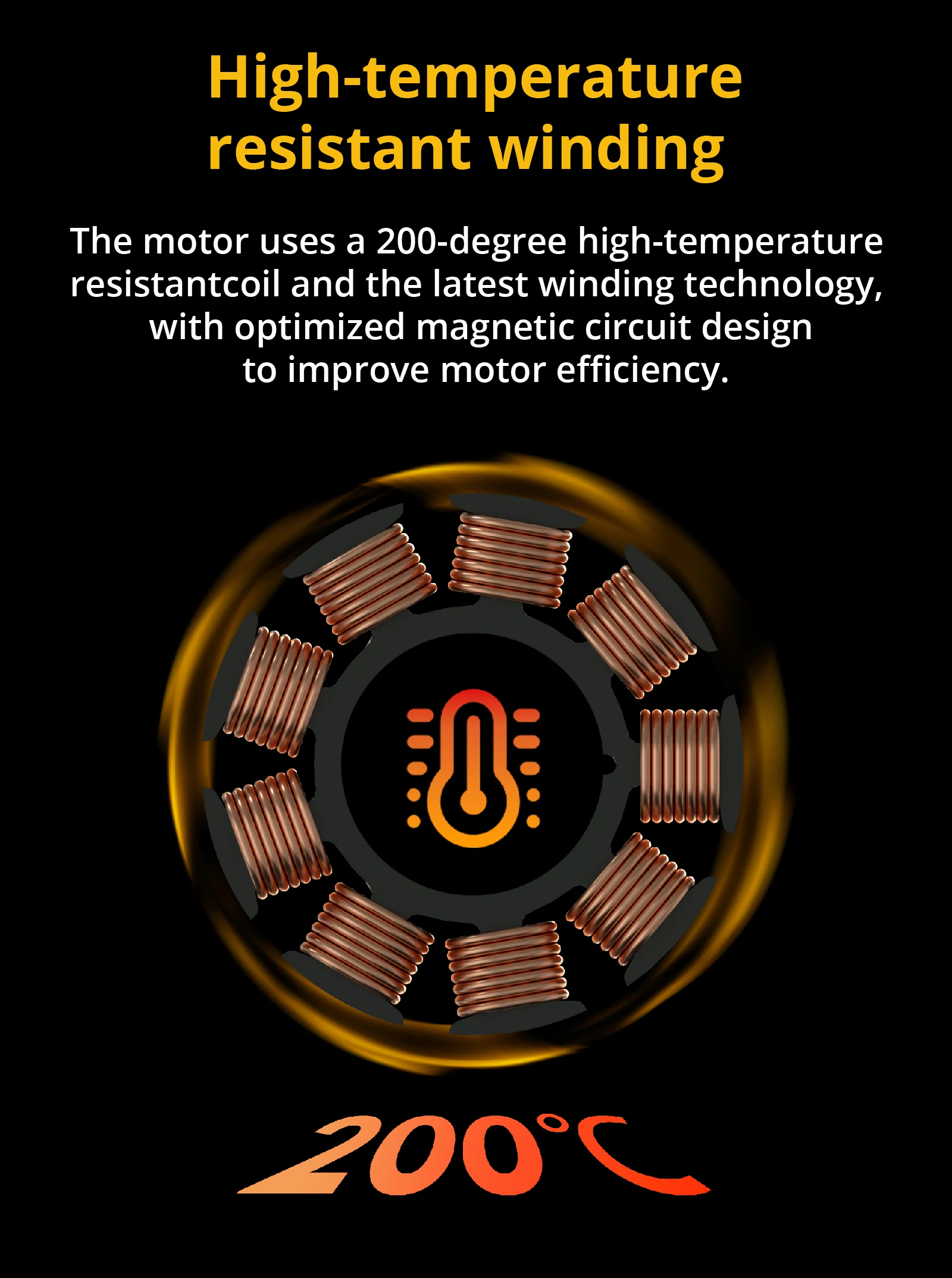

4: High-temperature resistant 200°C copper wire
5: Imported Kawasaki silicon steel sheet

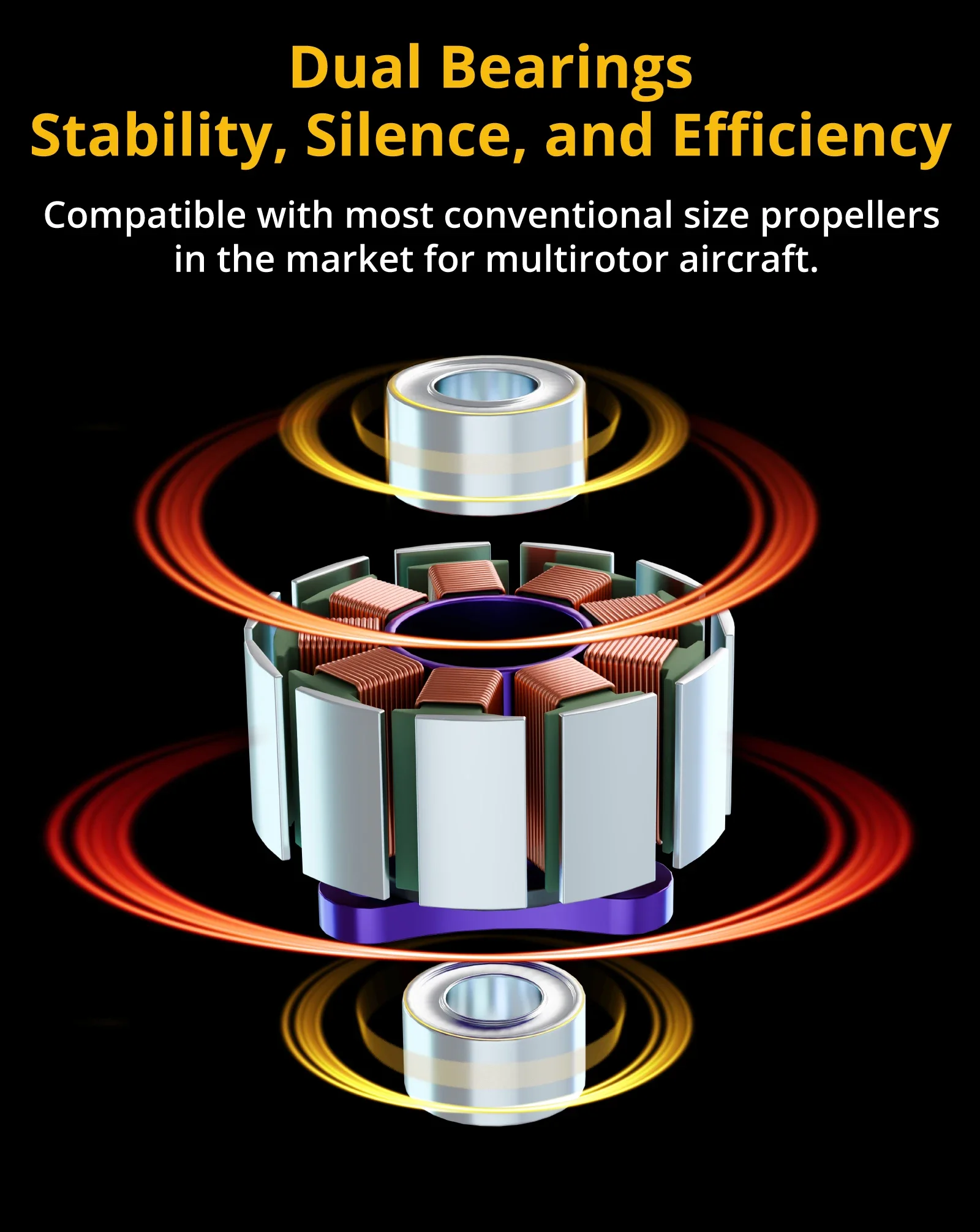

6: Dual bearing design
Package List:
1 * Motor
1 * Screw package
