Please note that this product has two versions: one is the 3.3G version (with a frequency bandwidth of 3GHz-3.5GHz), and the other is the 5.8G version (4.9GHz-6GHz). Please select the correct version according to your needs.

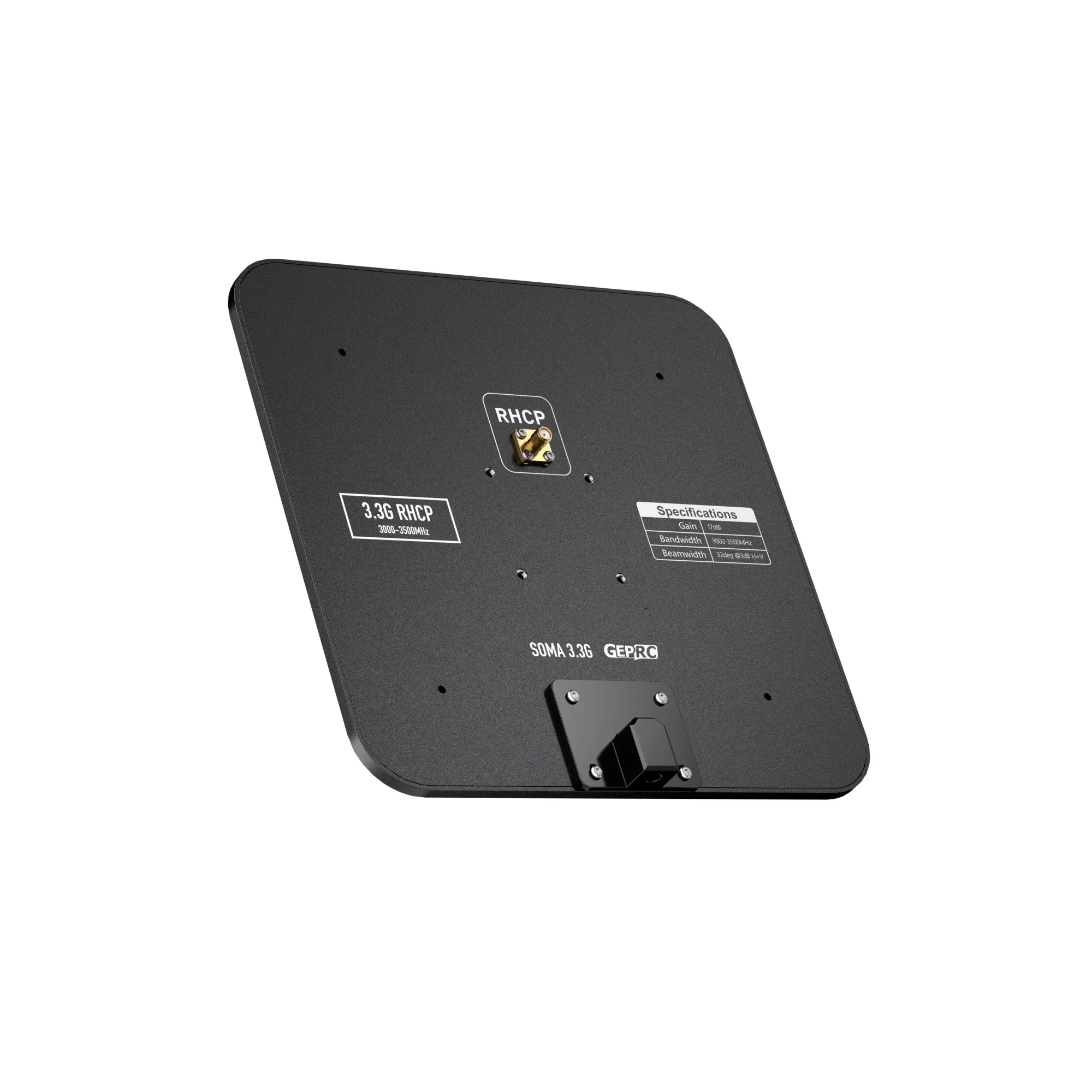

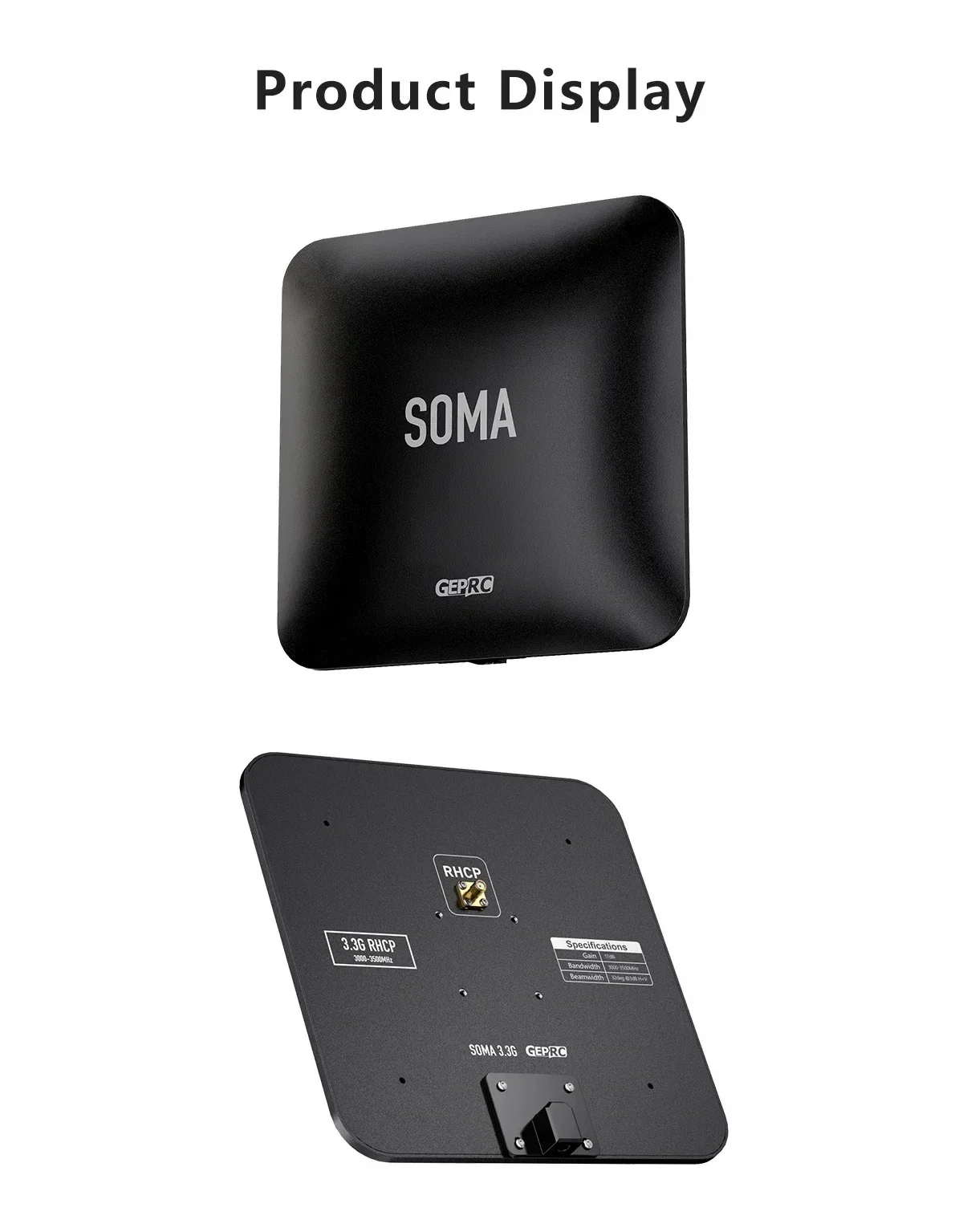

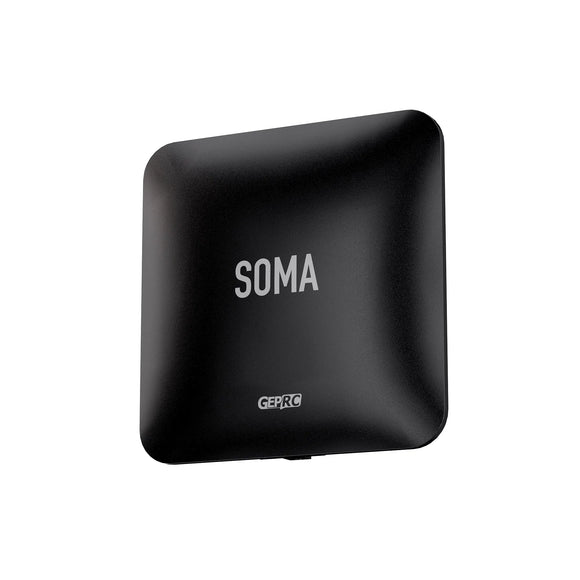

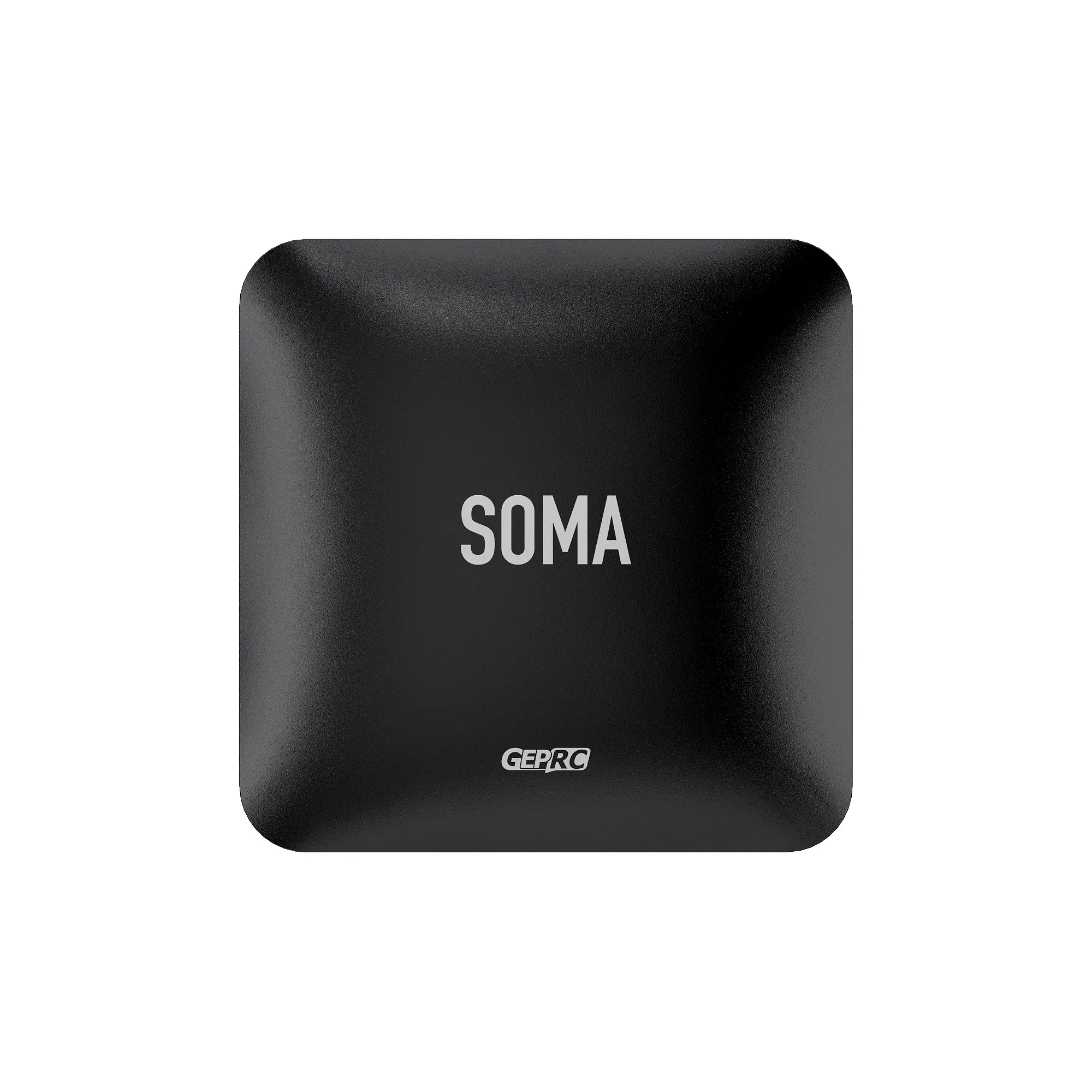

GEPRC SOMA 3.3G Directional Patch Antenna
Summary

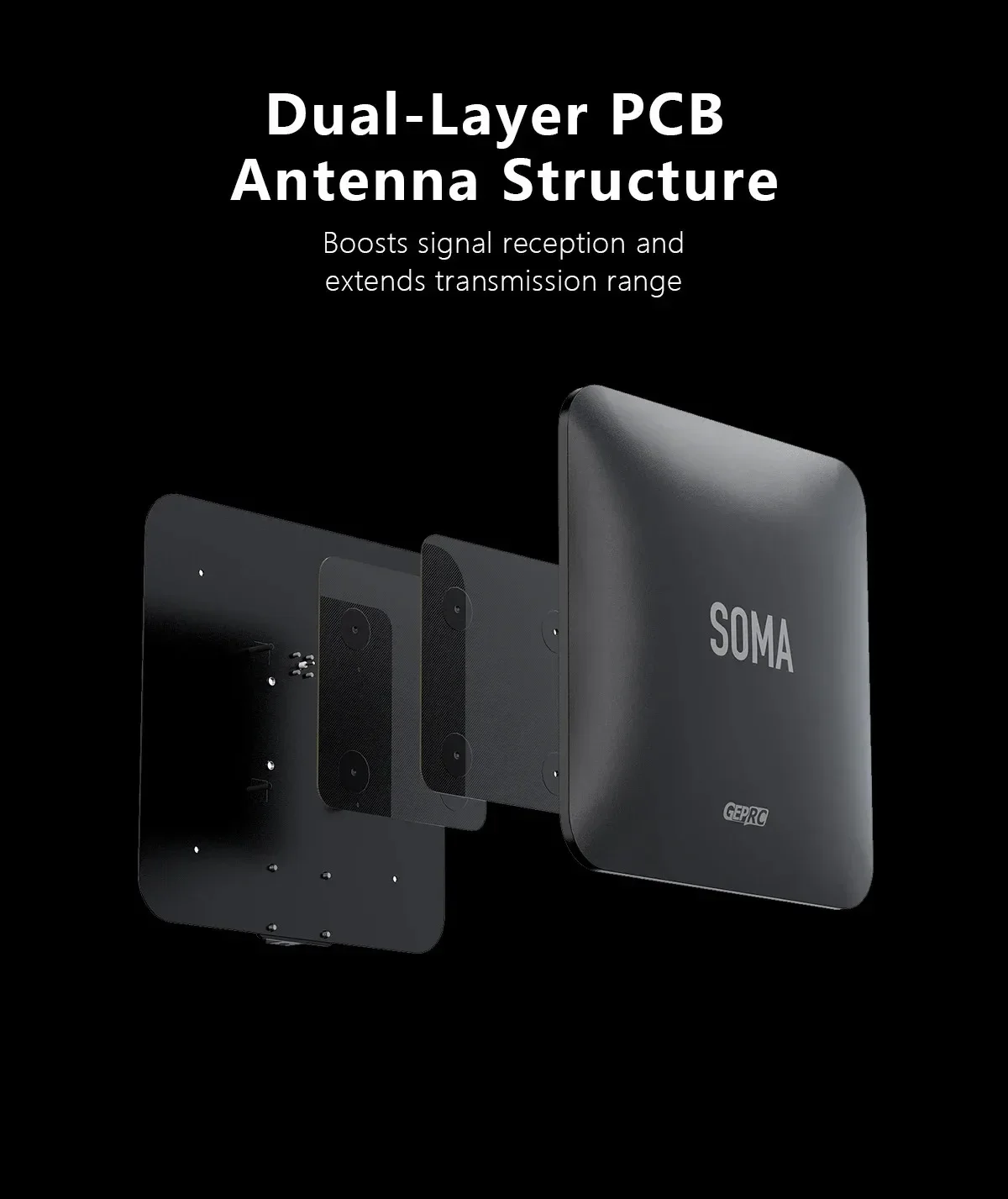

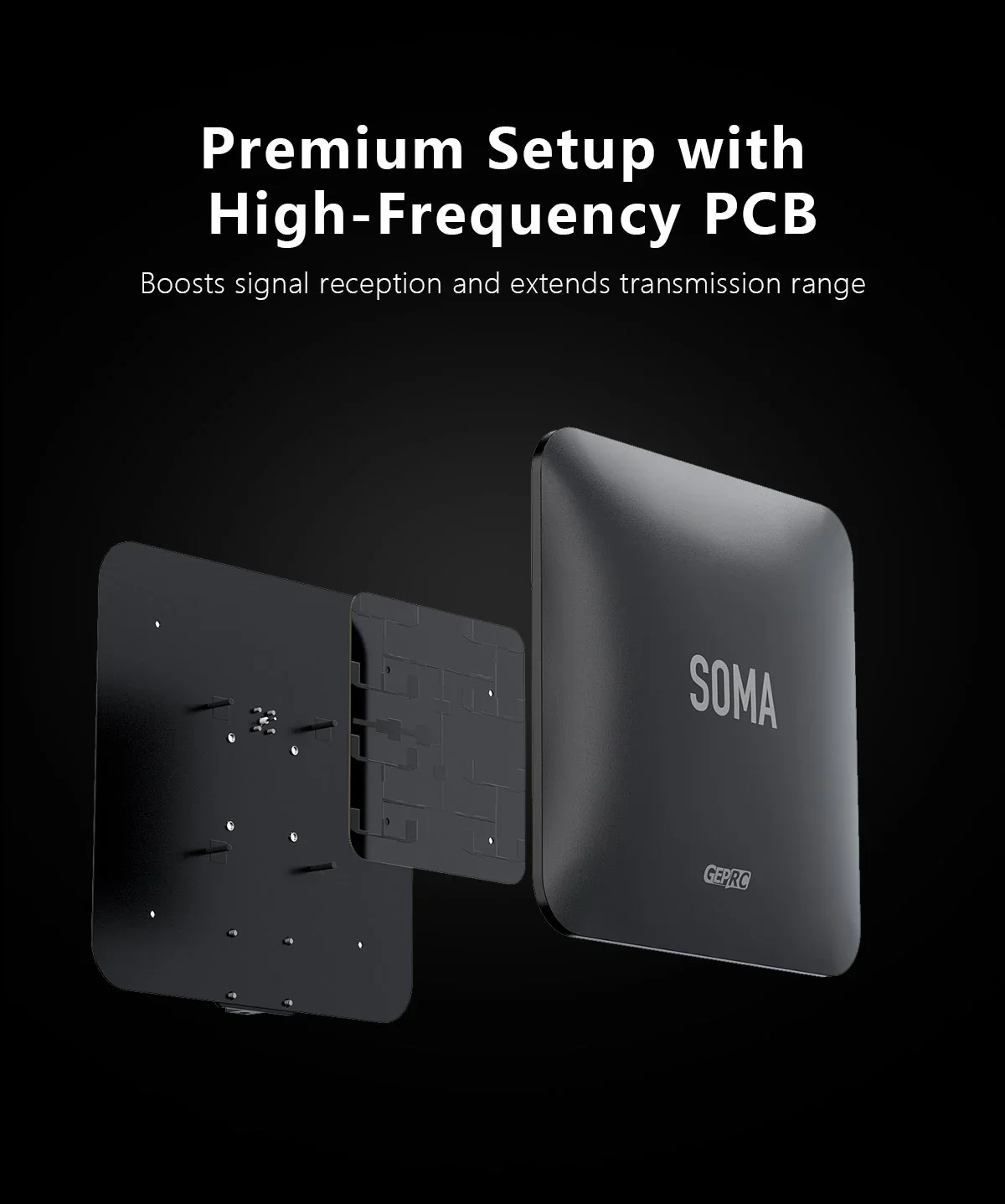

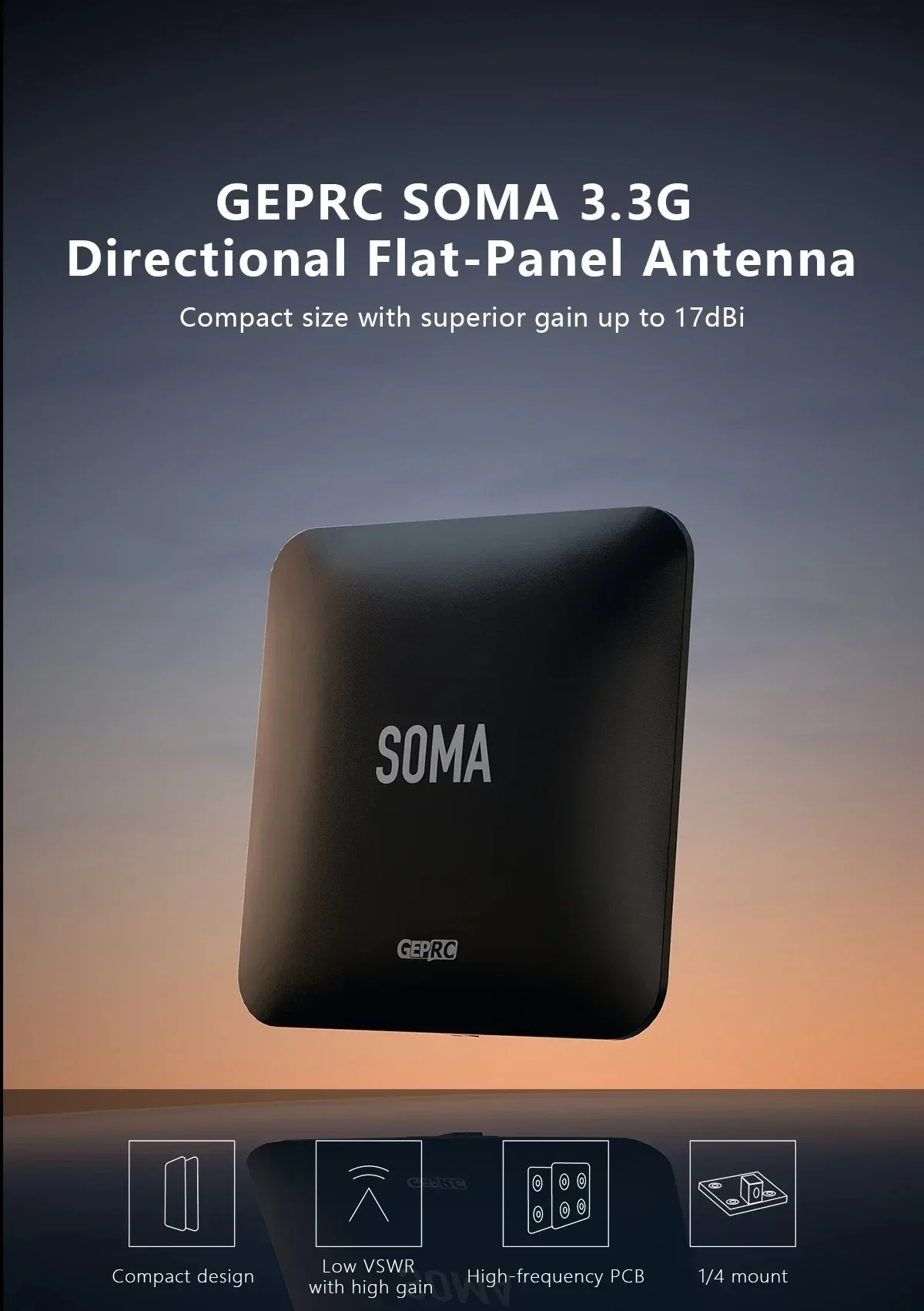

The GEPRC SOMA 3.3G Directional Flat-Panel Antenna features a dual-layer PCB RF design, offering a high gain of up to 17dBi and a low average VSWR of 1.47, ensuring excellent signal reception.
It's compatible with various brackets and is built with a durable 1/4 aluminum alloy base.The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity

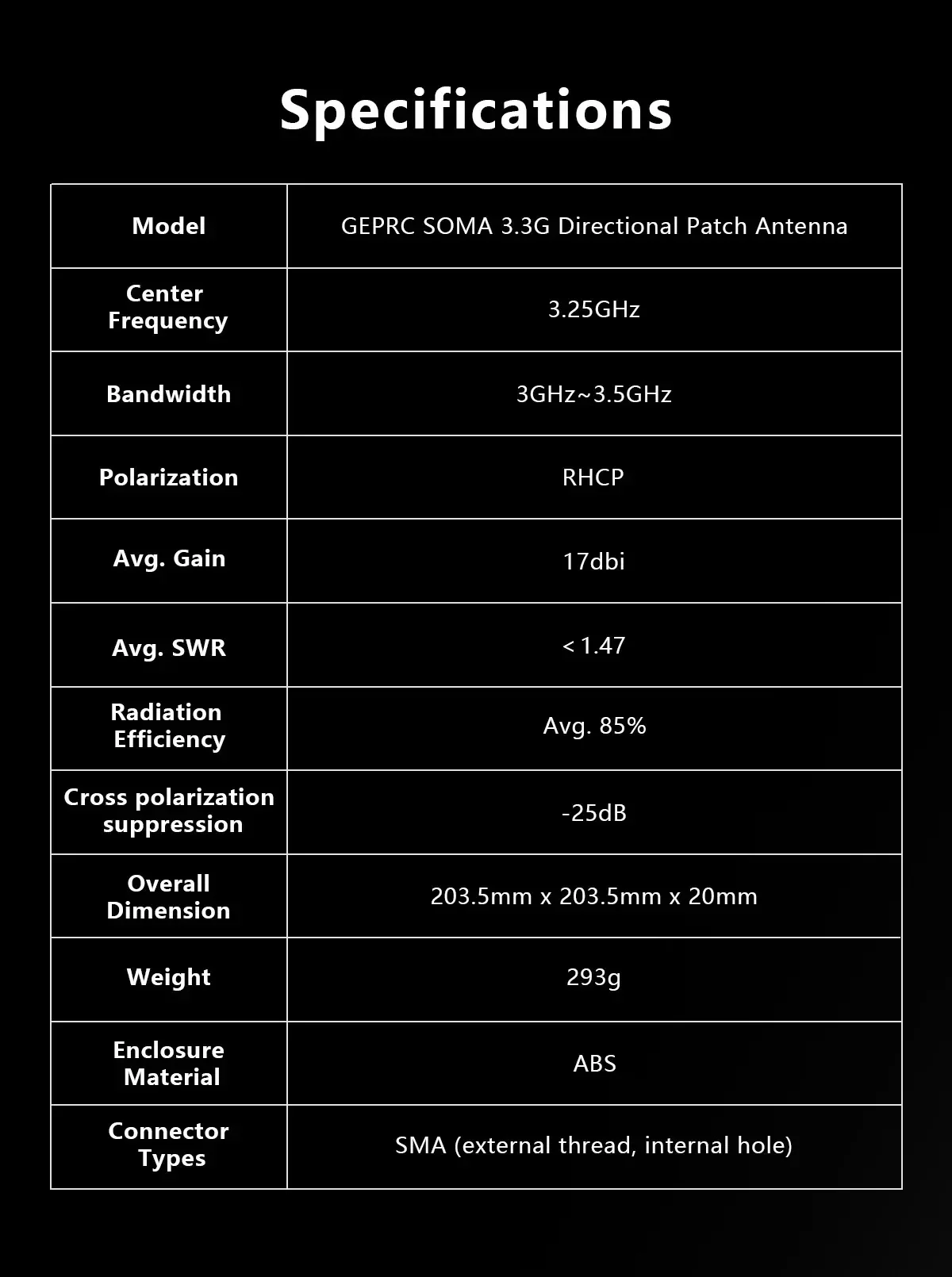

Specifications:
Model: GEPRC SOMA 3.3G Directional Patch Antenna
Center Frequency: 3.3GHz
Bandwidth: 3.0GHz~3.5GHz
Polarization: RHCP
Gain: 17dBi
Axial Ratio: ≤3

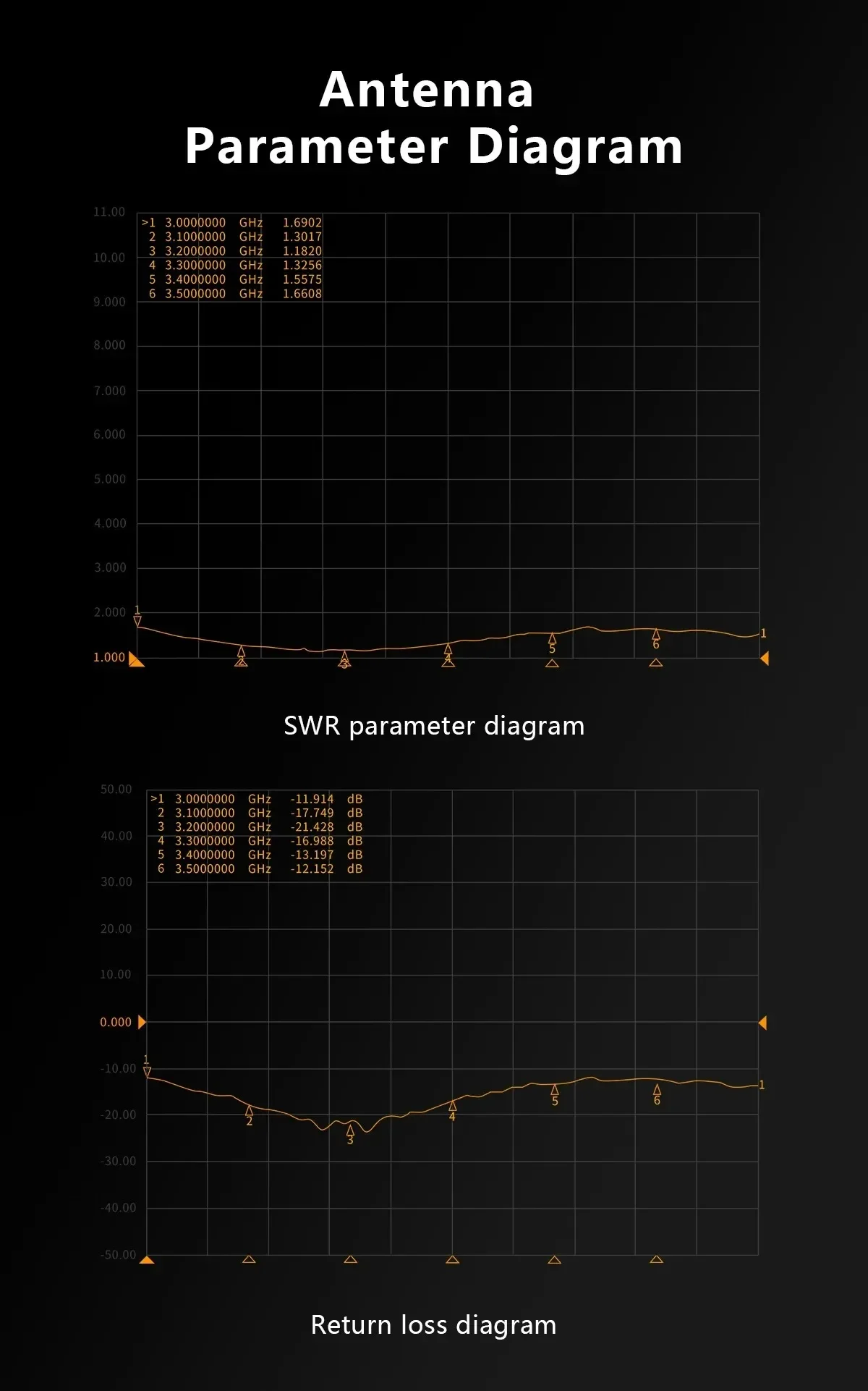

SWR：≤1.47
Radiation Efficiency: 86%
Cross polarization suppression: -25dB

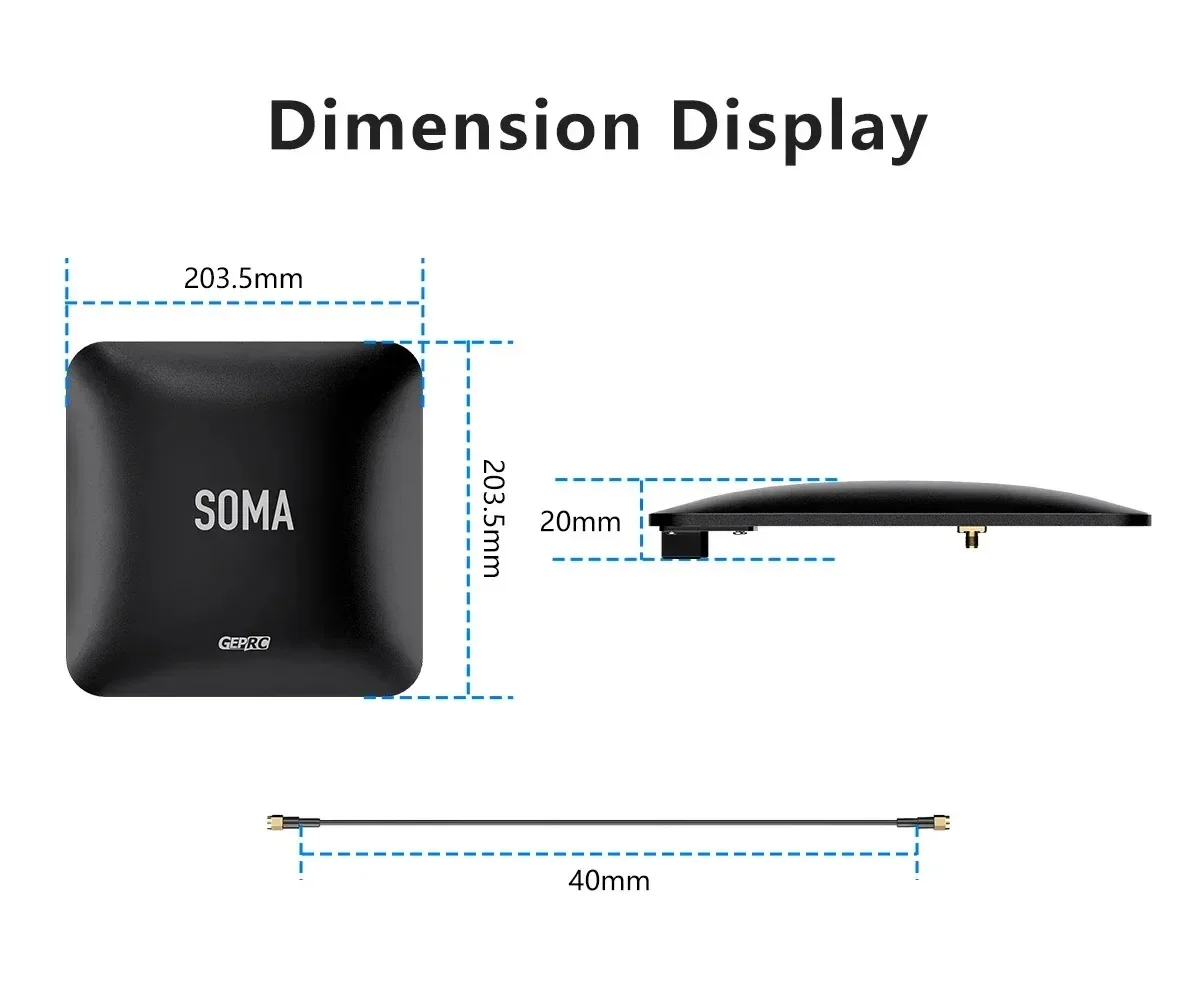

Overall Dimension: 203.5mm x 203.5mm x 20mm
Antenna Weight: 293g
Enclosure Material: ABS
Connector Type: SMA (external thread, internal hole）
Includes

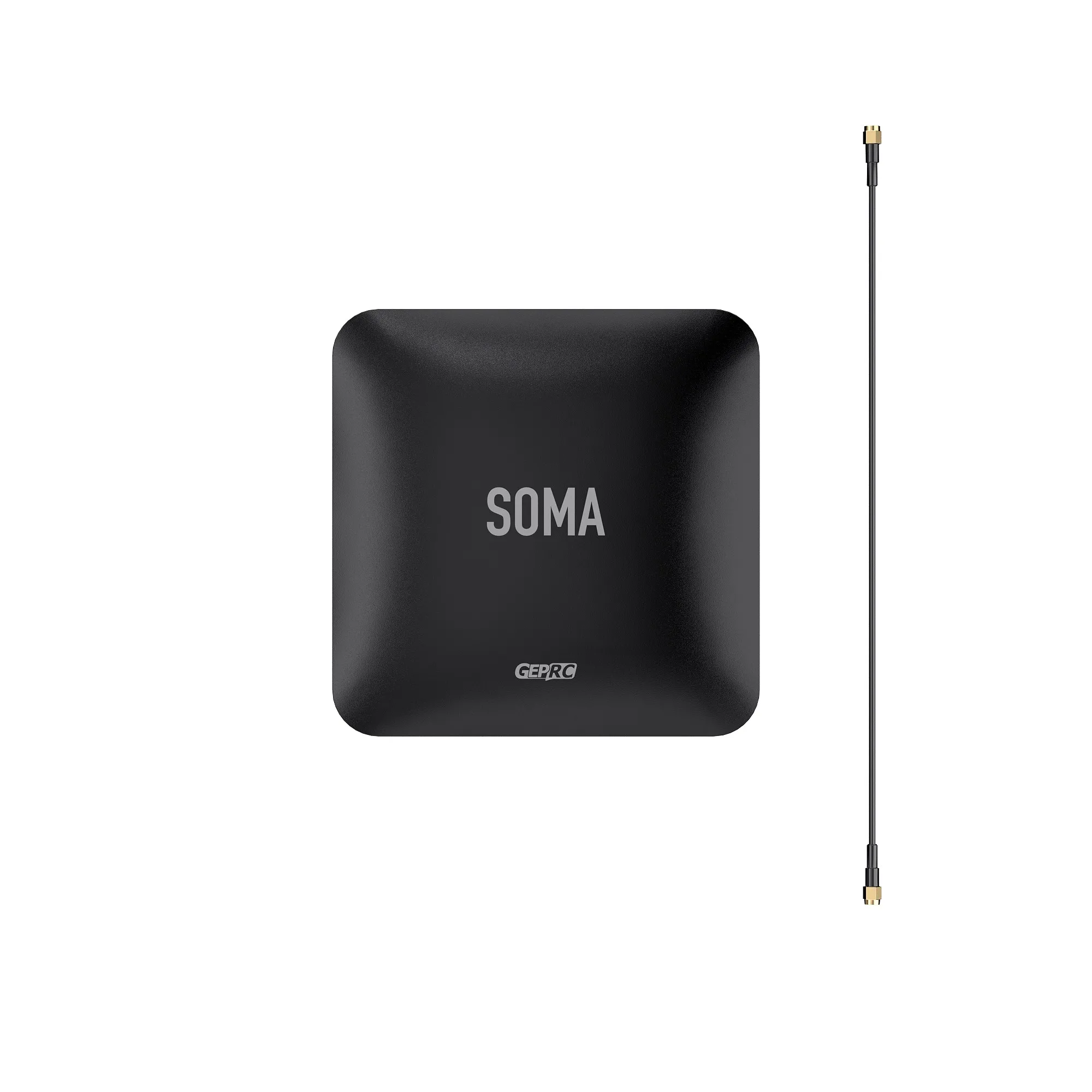

1 x SOMA 3.3G Directional Patch Antenna

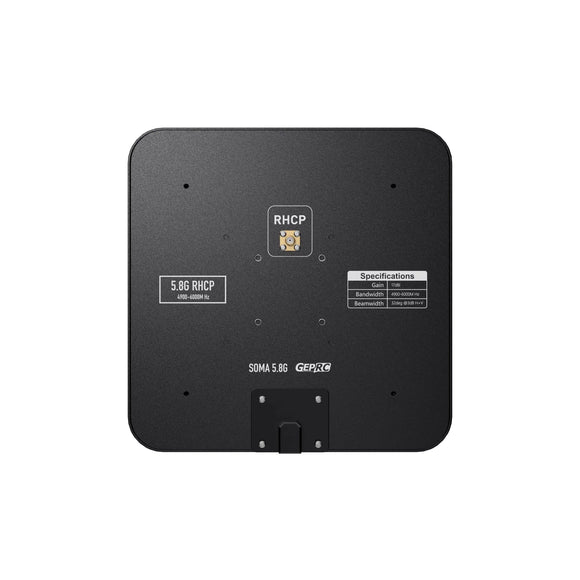

GEPRC SOMA 5.8GHz Directional Patch FPV Antenna (SMA)
Features:
Smooth, ultra-thin design.
Low VSWR, high gain directional antenna, up to 17dBi.
1/4 aluminum alloy base, compatible with various brackets.
High-quality SMA connector for lower impedance and better transmission efficiency.
Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

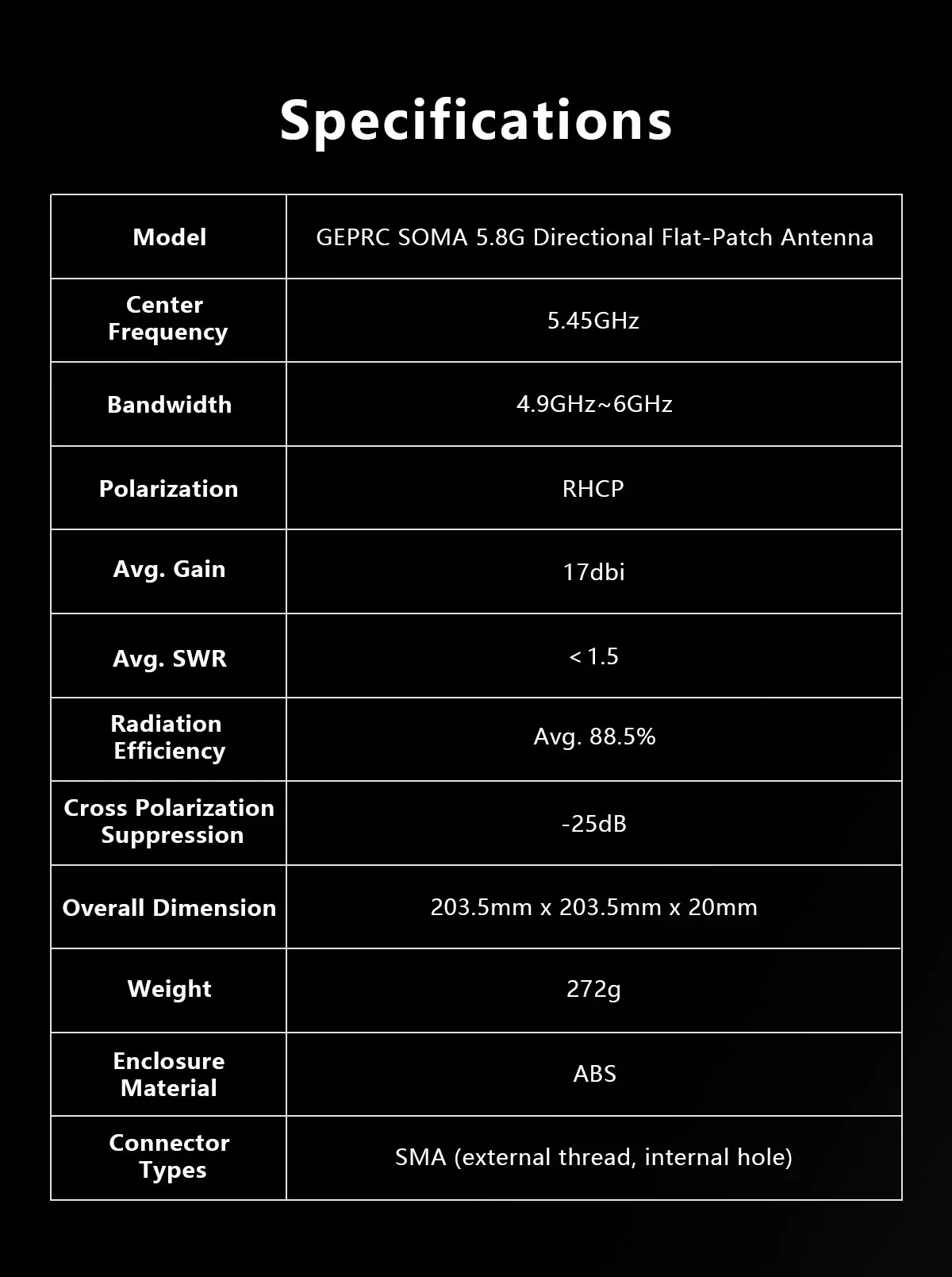

Specifications:
Model: GEPRC SOMA 5.8G Directional Patch Antenna
Center Frequency: 5.45GHz
Bandwidth: 4.9GHz~6GHz
Polarization: RHCP
Gain: 17dBi
Axial Ratio: ≤3

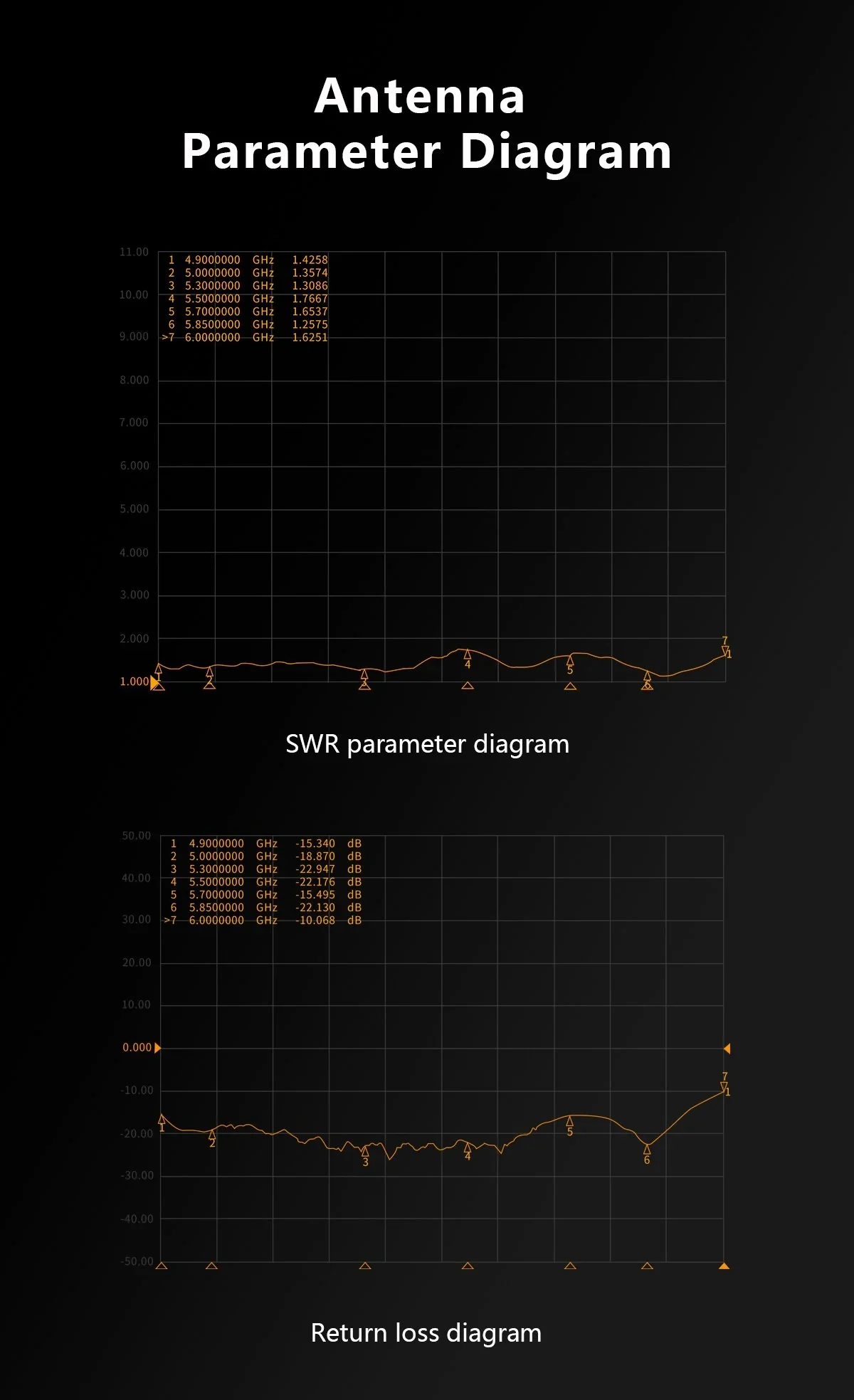

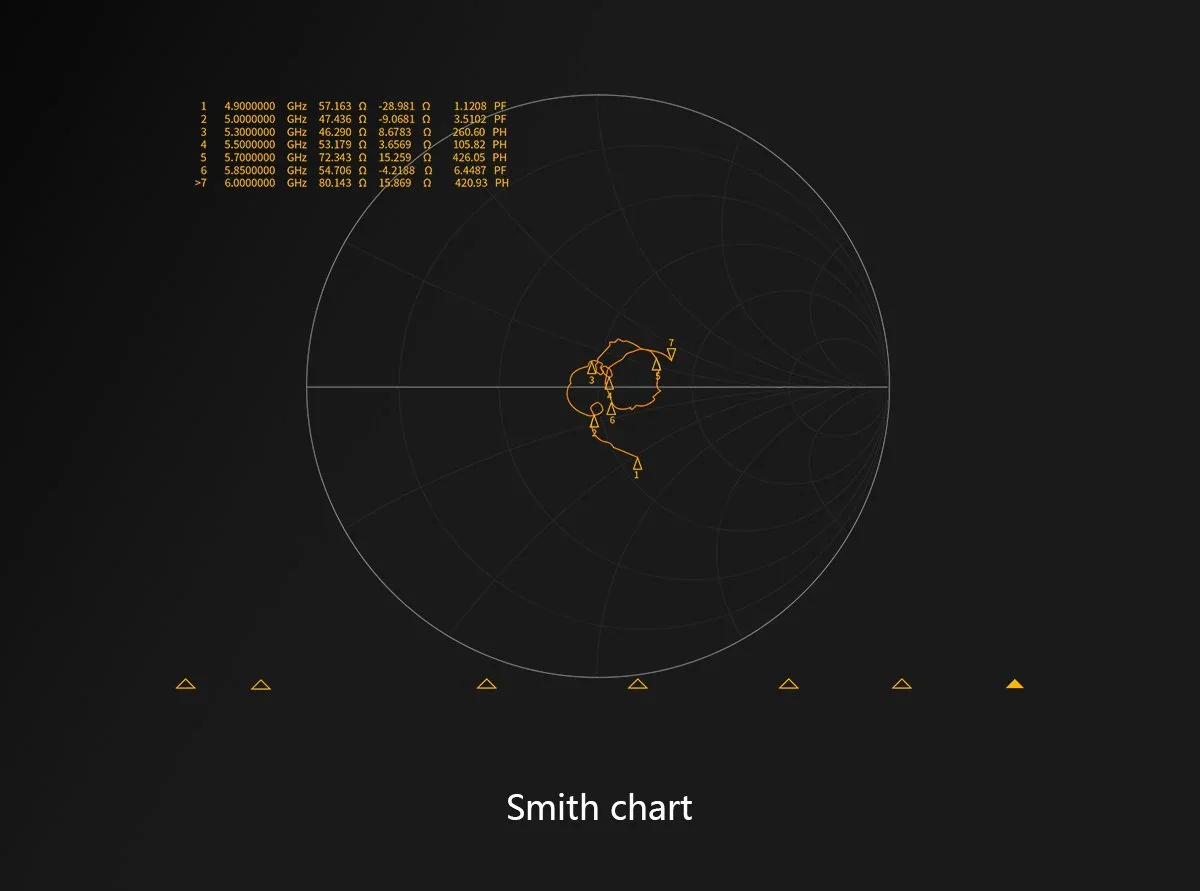

SWR：≤1.5
Radiation Efficiency: 88.5%
Cross polarization suppression: -25dB
Overall Dimension: 203.5mm x 203.5mm x 20mm
Antenna Weight: 272g
Enclosure Material: ABS
Connector Type: SMA (external thread, internal hole）
Package Includes:
1 x GEPRC SOMA 5.8GHz Directional Patch FPV Antenna (SMA)
