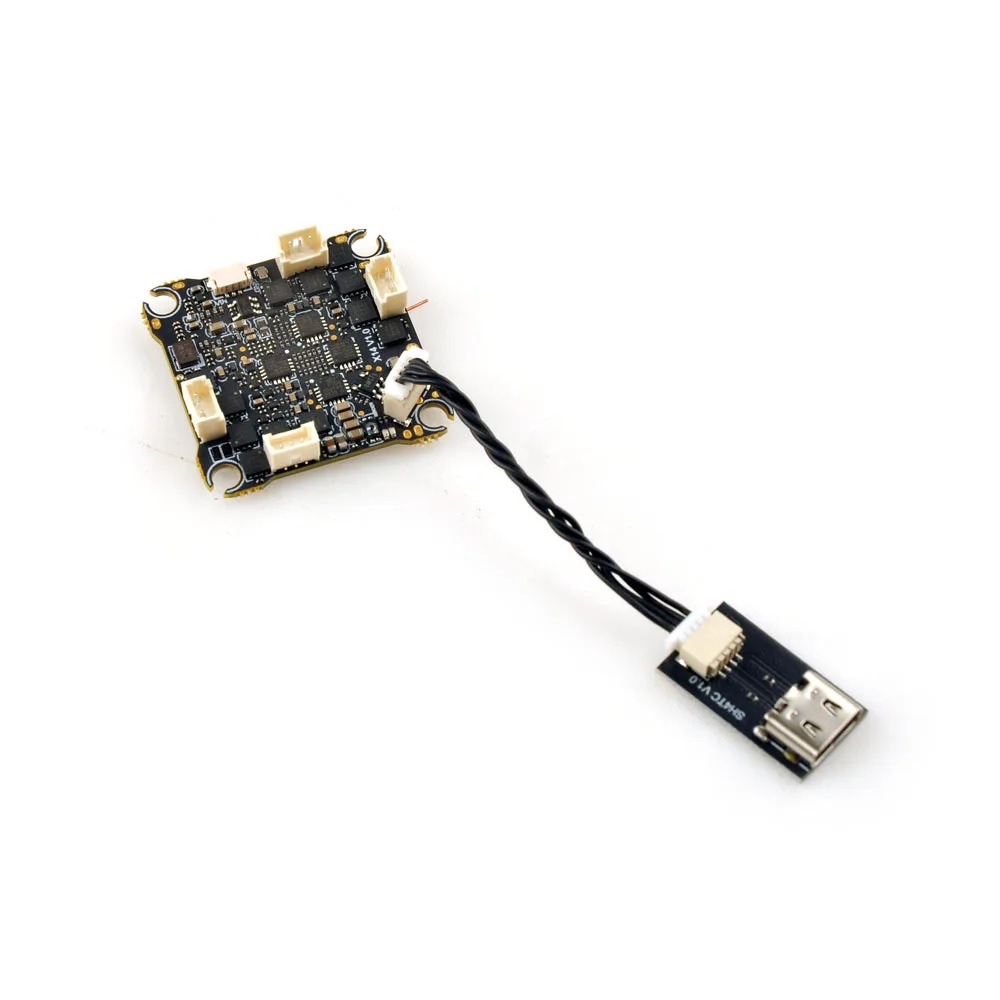

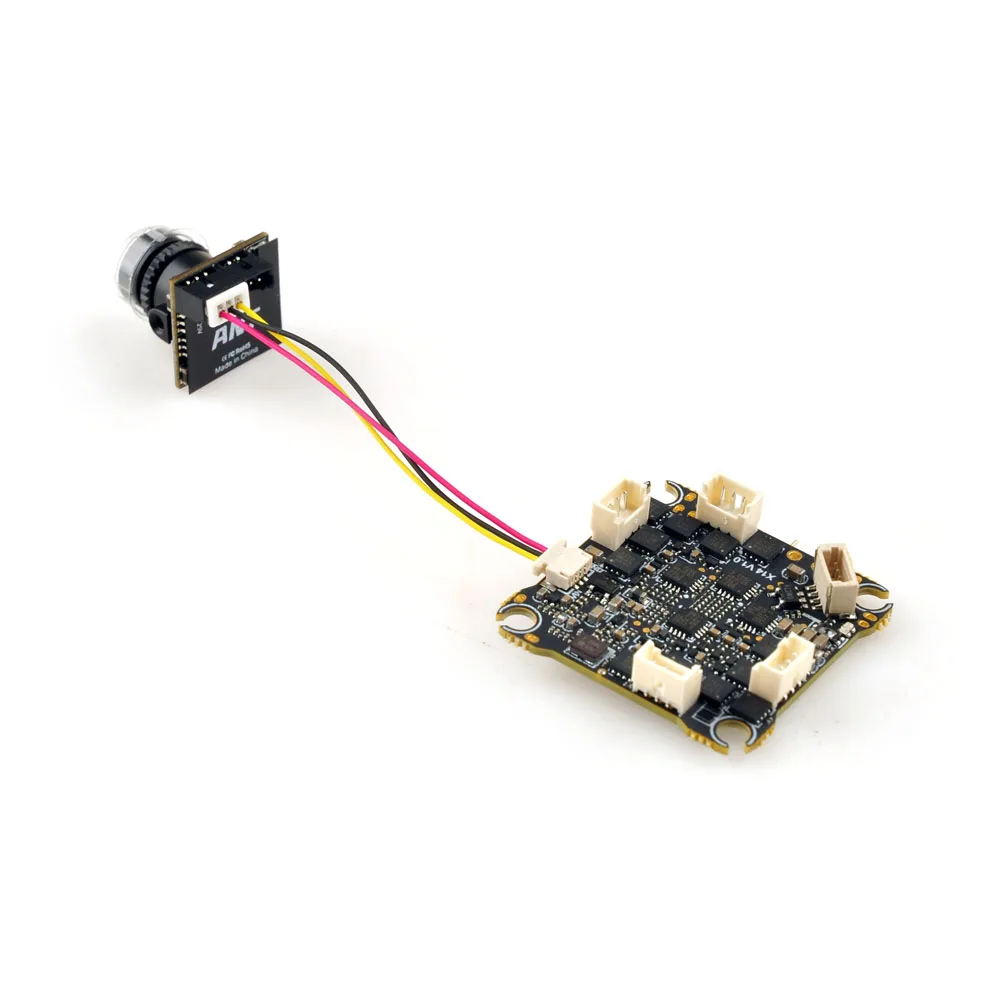

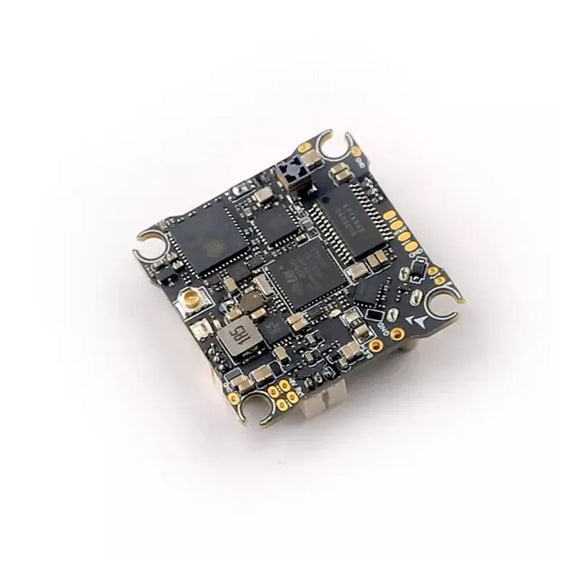

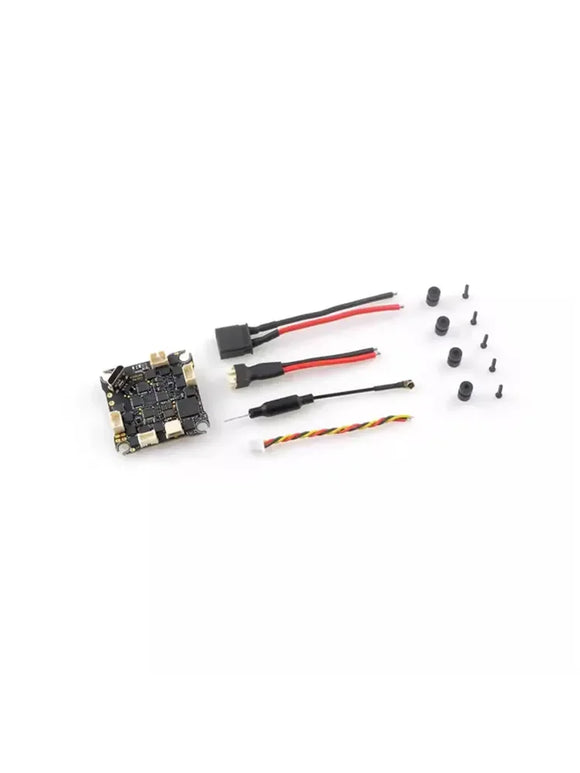

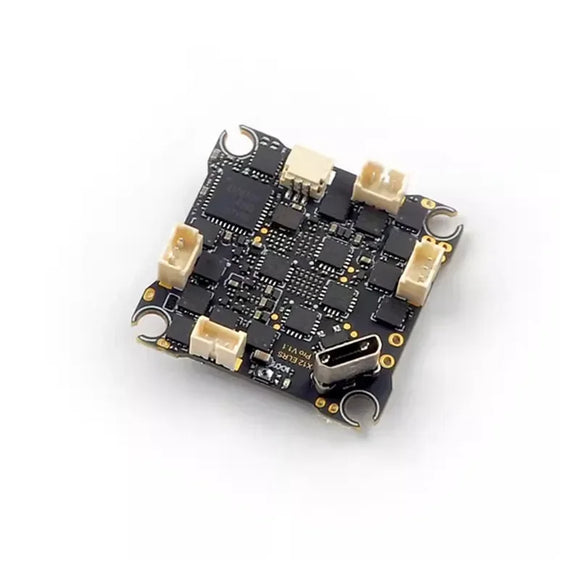

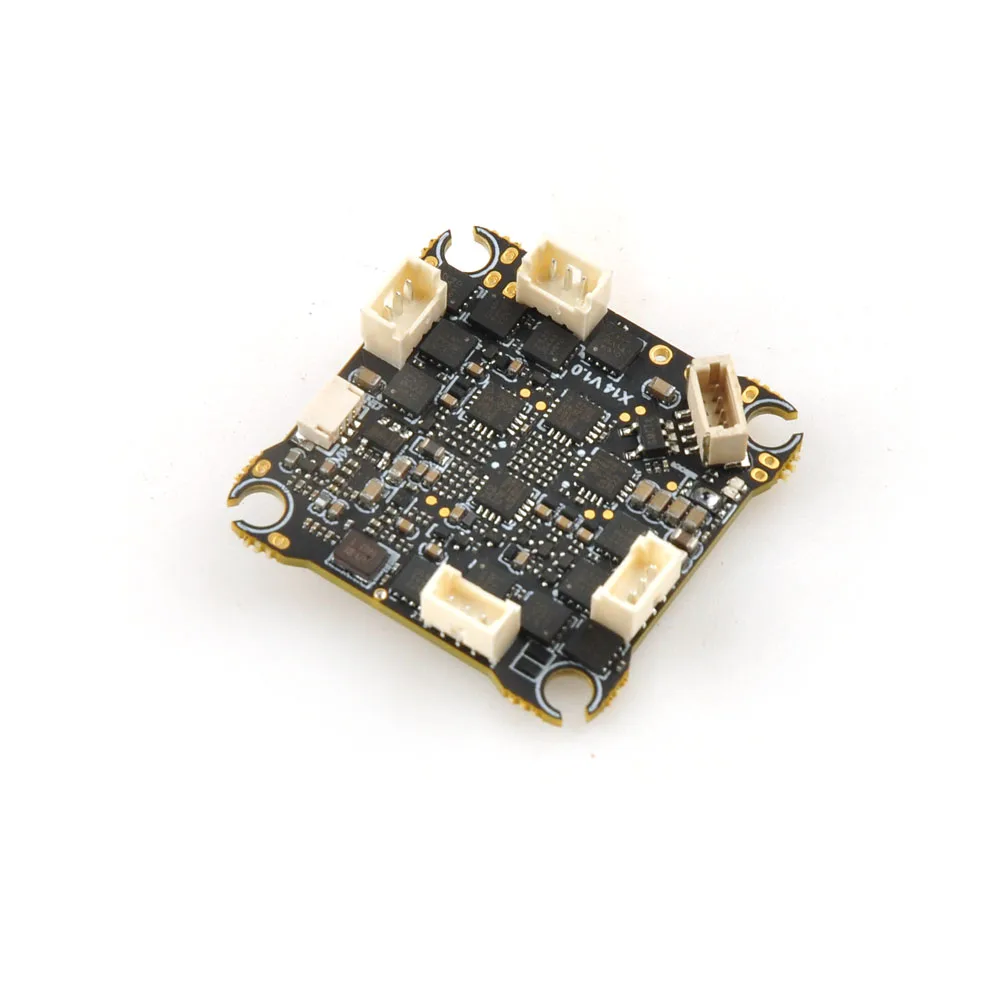

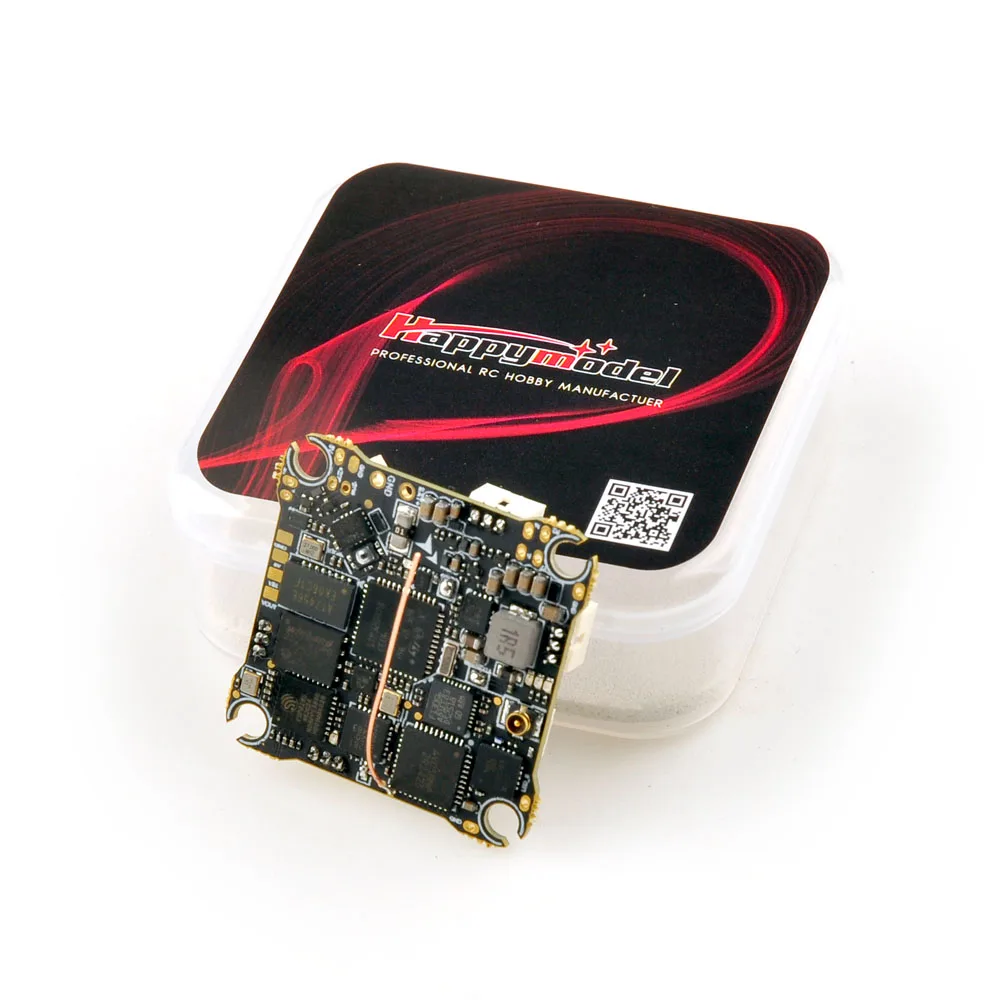

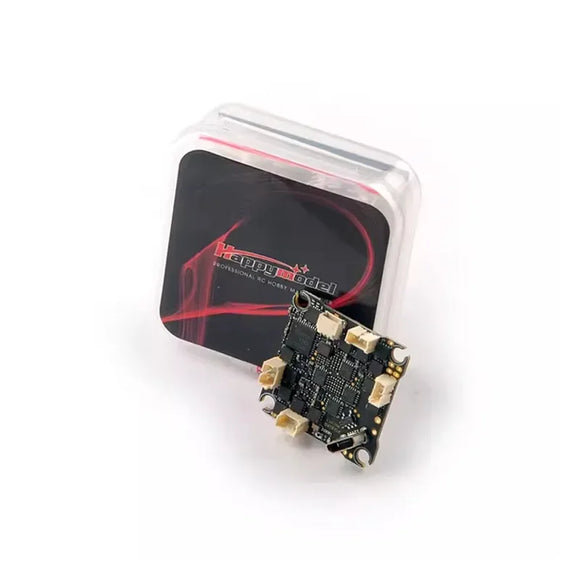

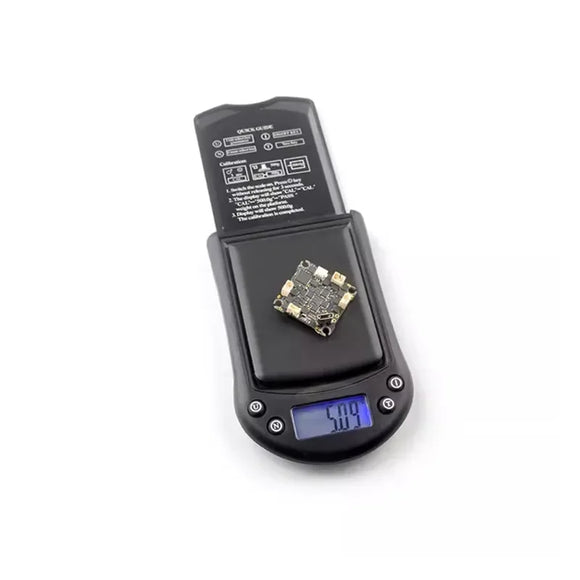

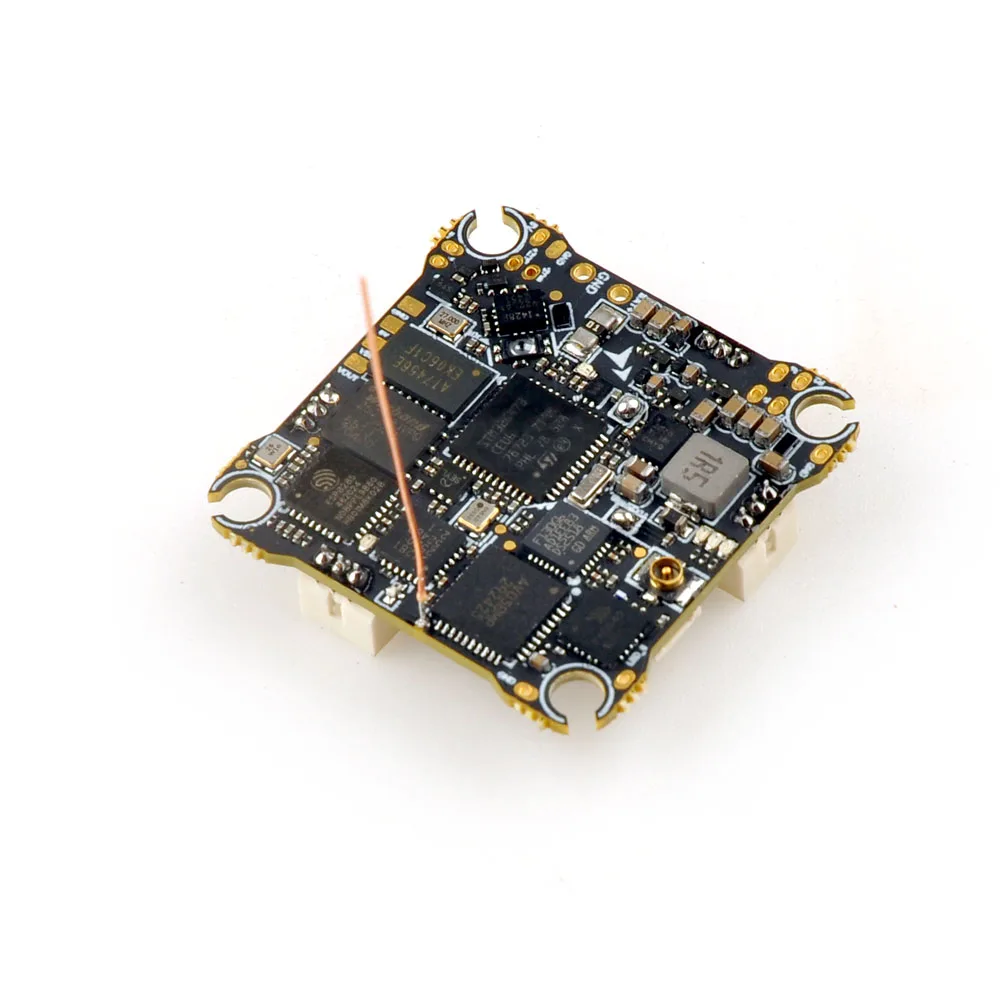

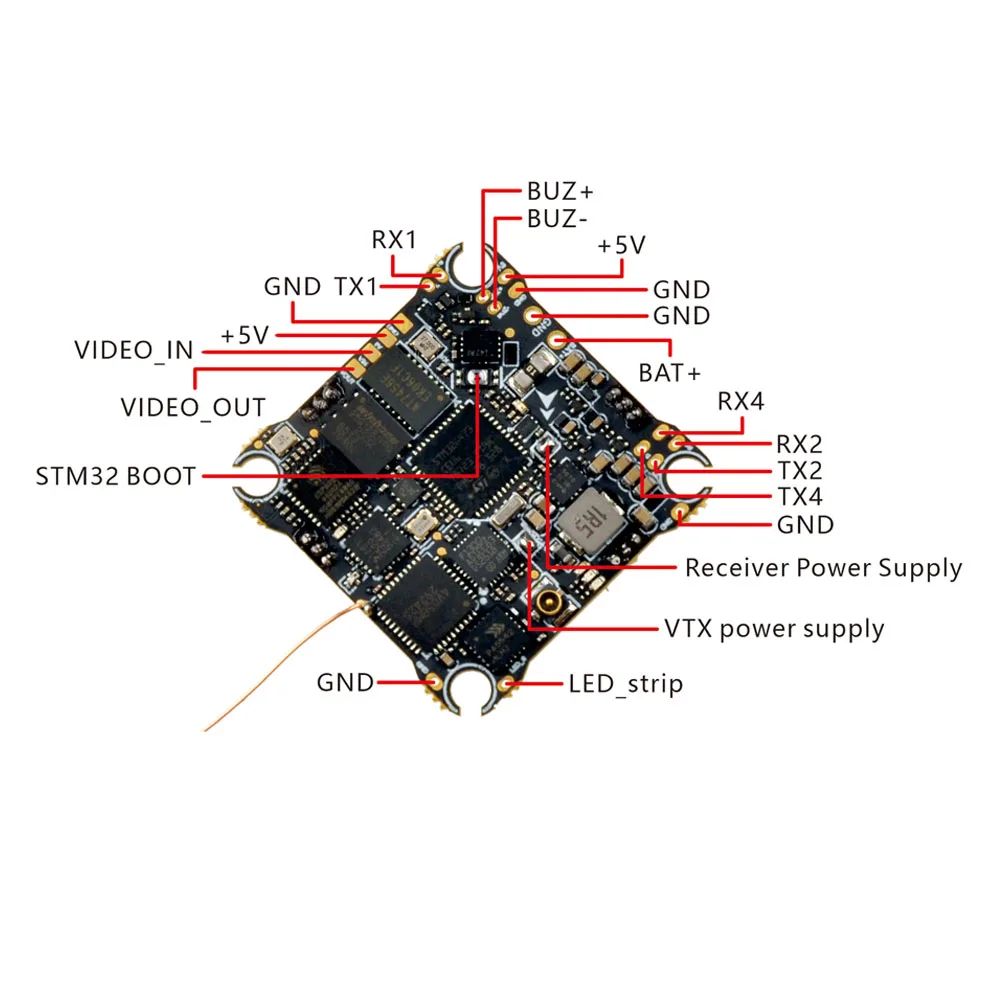

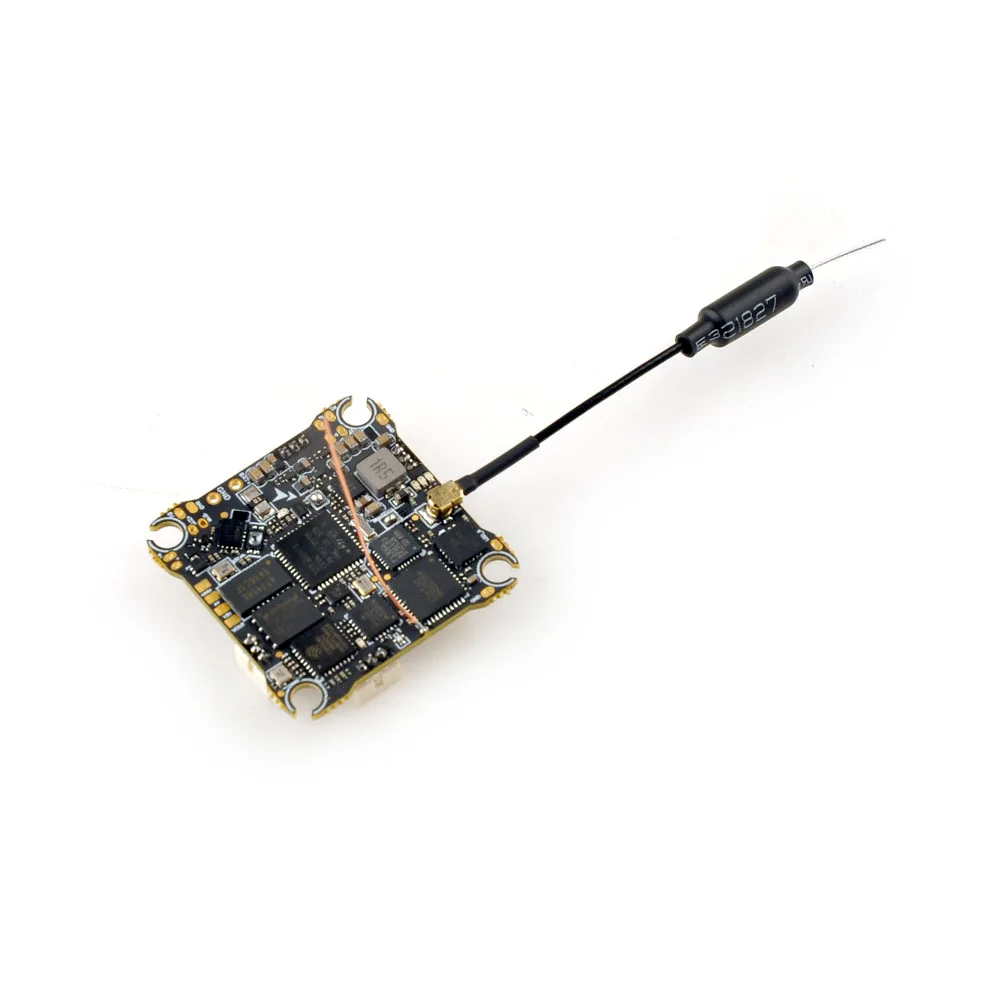

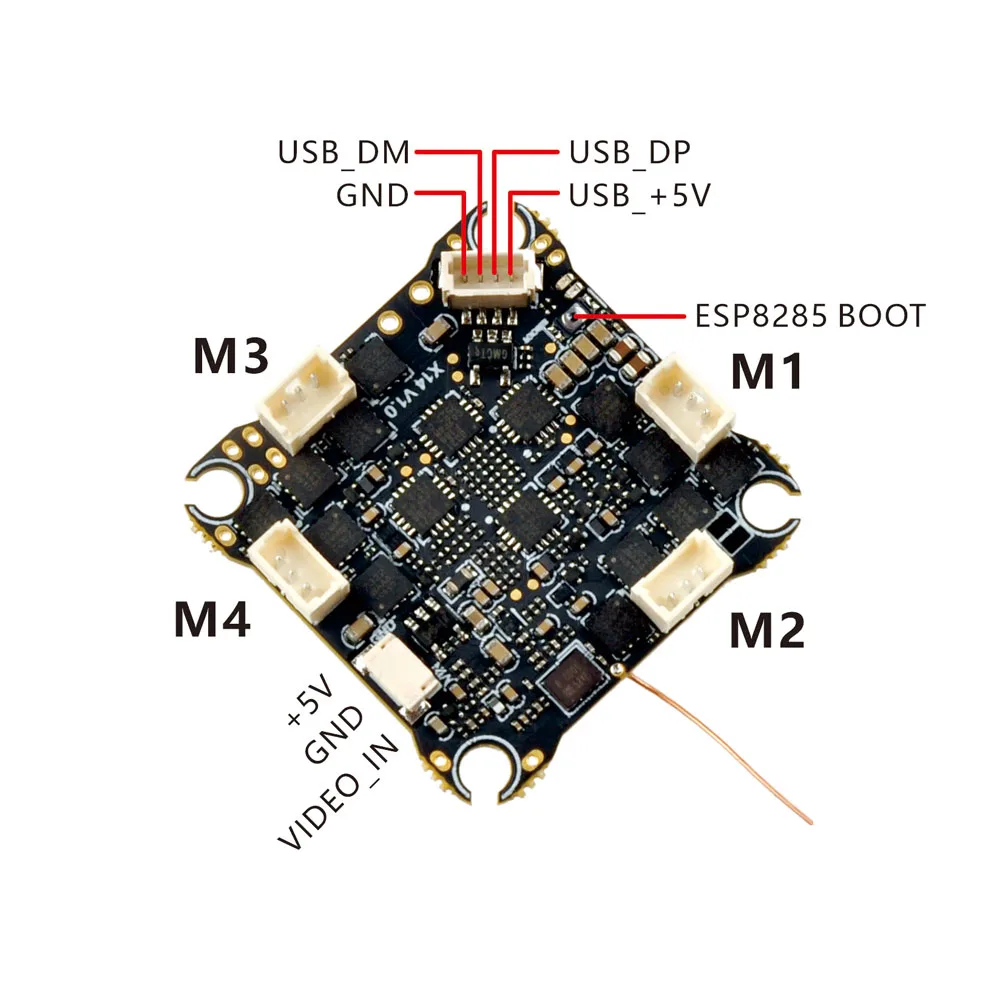

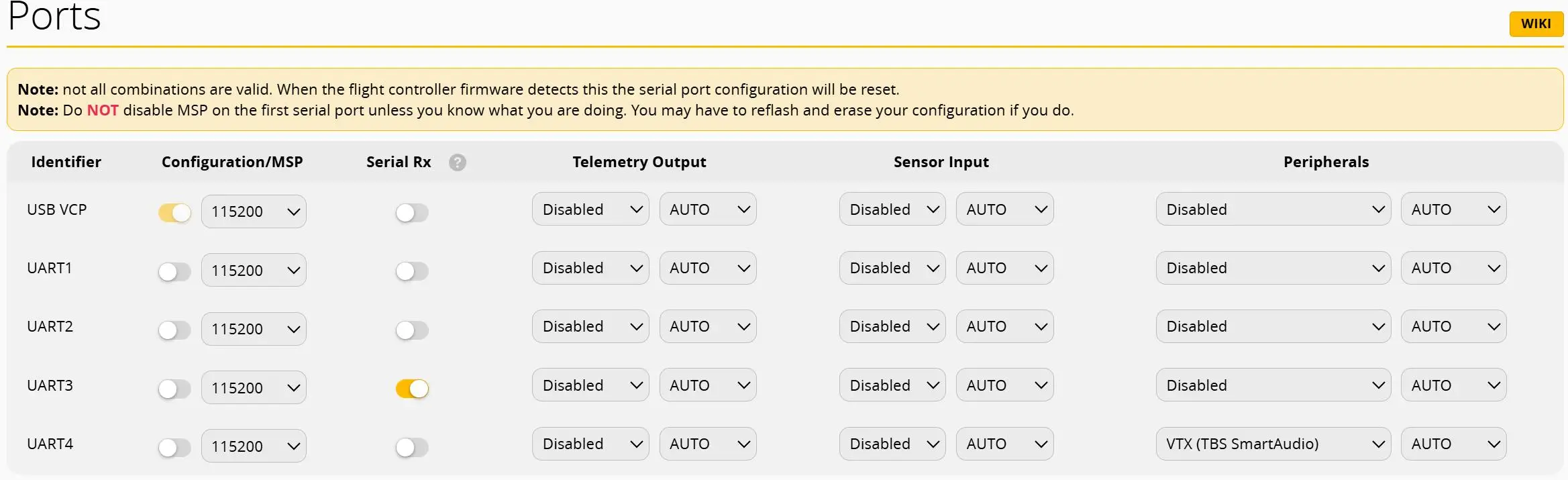

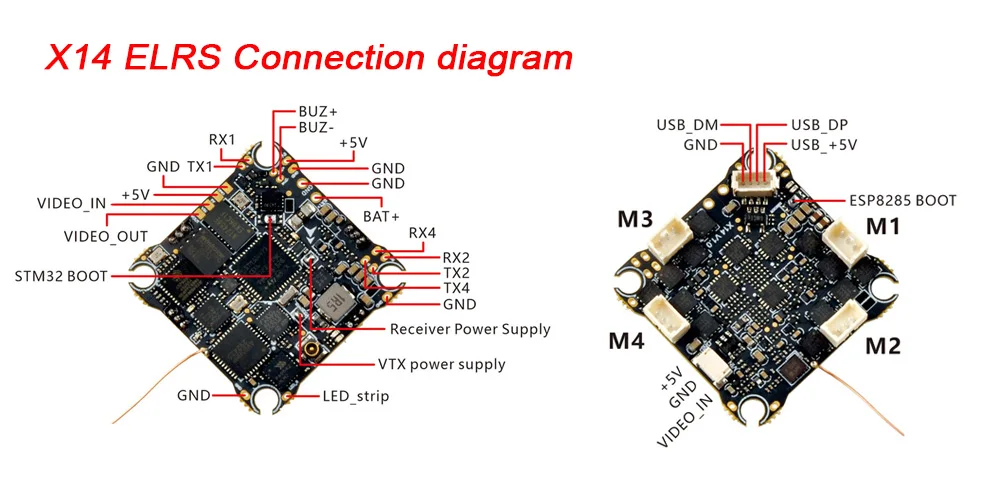

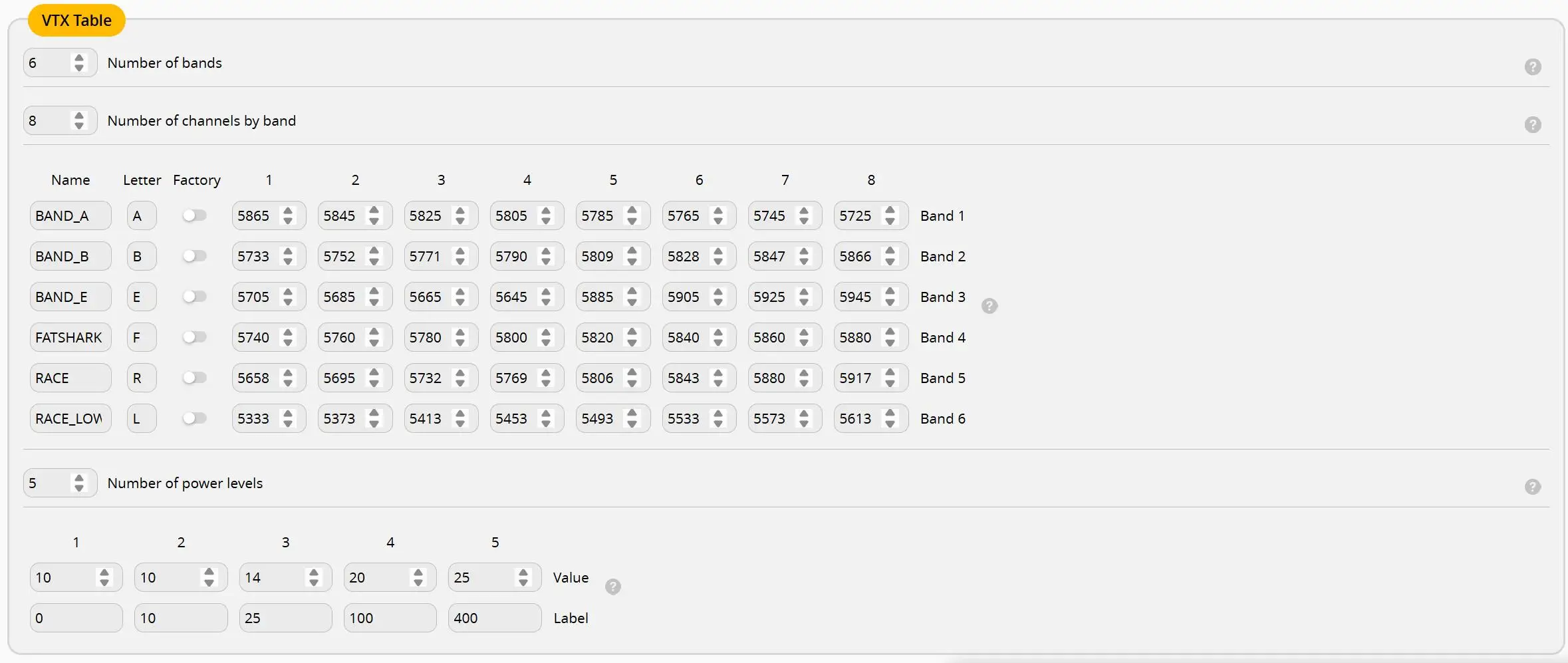

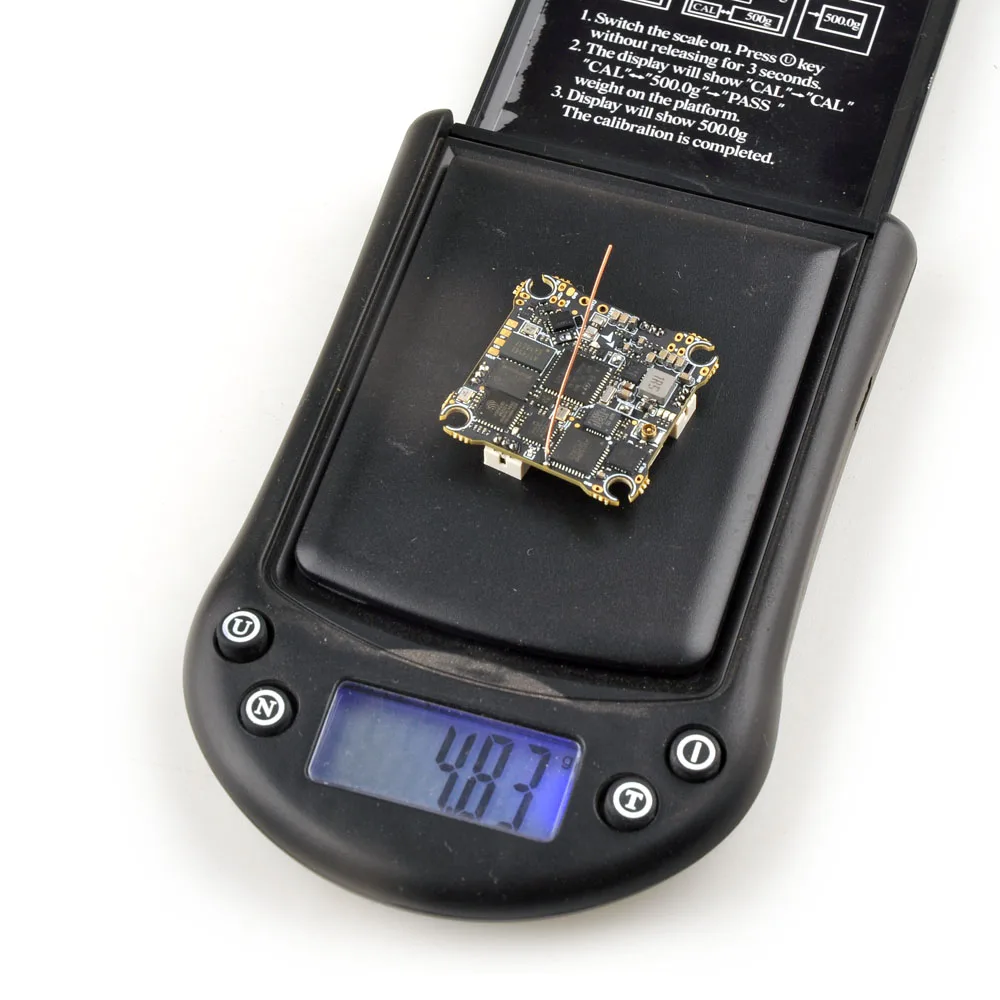

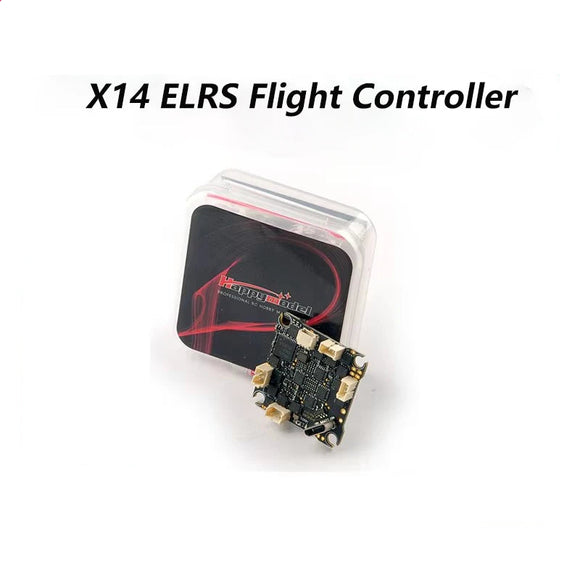

X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It’s a good option for 75mm/85mm 2S whoops building. FC · MCU: STM32G473CEU6 · Gyro: ICM42688P · Blackbox memory: 16MB · Sensor: Voltage & Current · BEC: 5V, Max. 2A · UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) · BetaFlight OSD: AT7456ELAH · ESC: 12A continuous · OPENVTX: 5.8GHz 48 channels, Max. 400mW · FC firmware target: CRAZYBEEG473 · USB port: SH1.0-4Pin · Battery connector: XT30 or A30 · Mounting hole size: 25.5mm x 25.5mm · Weight: 4.83g without power pigtail and VTX antenna ESC · Power input: 1-2S Lipo input · Current: 12A continuous, 15A peak · ESC firmware: V0.19 48KHz Bluejay · Firmware target: Z_H_30_48KHz · Digital signal protocol: DShot300, DShot600 VTX · OPENVTX Firmware · Support firmware upgrade by openvtx configurator · Output power: PIT/10/25/100/400 · Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz · Channel SEL: SmartAudio2.1 · Modulation type: FM · Operating temperature: -10℃~+80℃ · Antenna port: IPEX1/U.FL RECEIVER · Serial ExpressLRS 2.4GHz · Antenna: Enameled copper wire 31mm length · Firmware target: HappyModel EP1/EP2 2.4GHz RX · Telemetry output Power: <12dBm · Compatible with ExpressLRS V3.x.x TX Module · ExpressLRS firmware version 3.0.1 · Support flash firmware by WIFI · Bind method is the same like all ExpressLRS 2.4GHz receivers |
