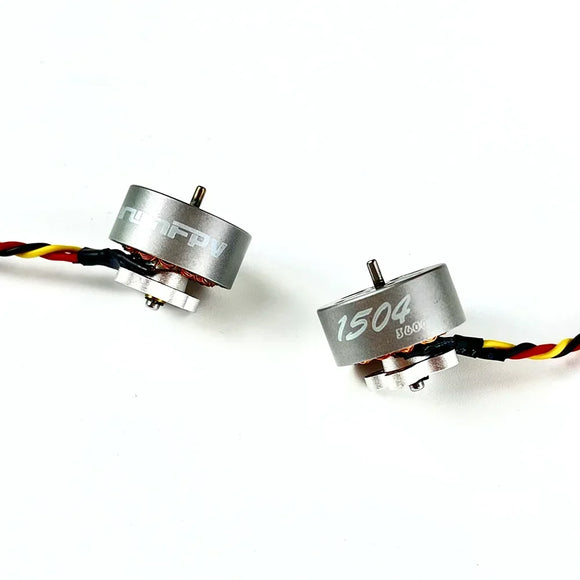

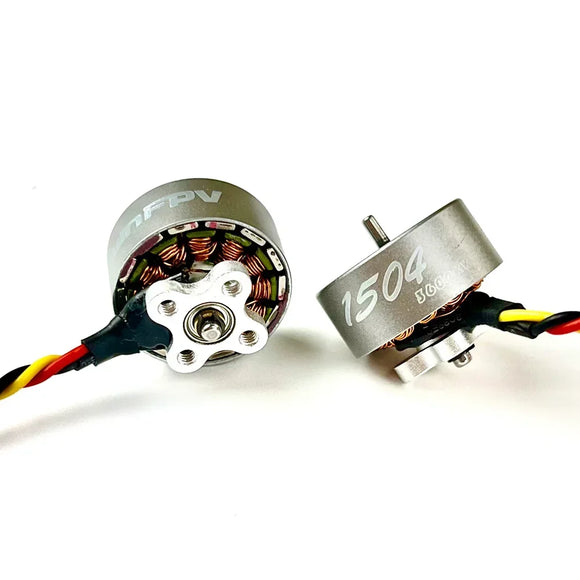

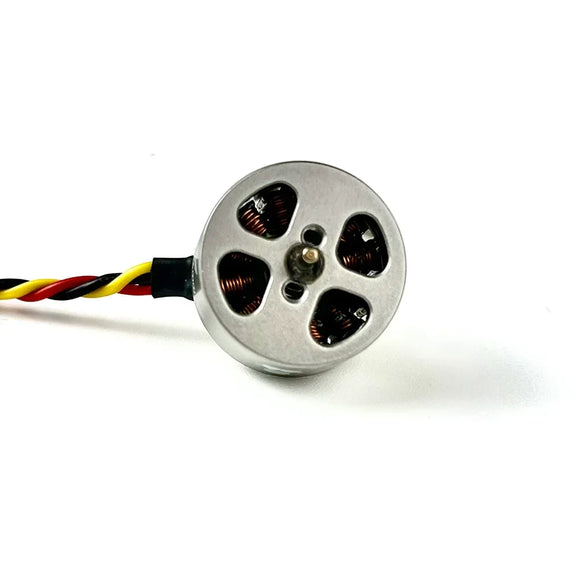

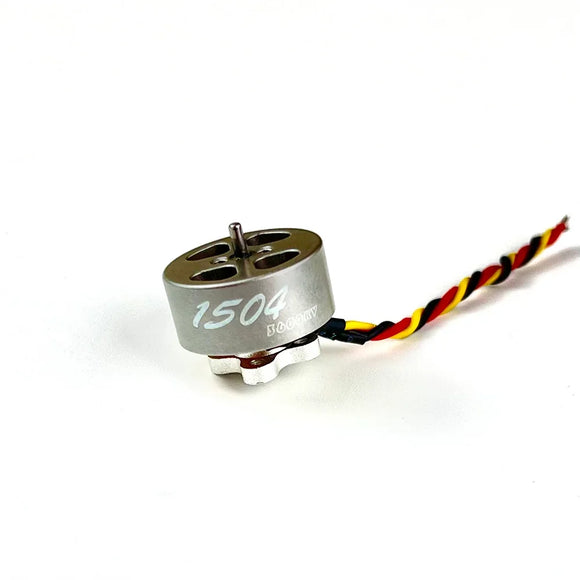

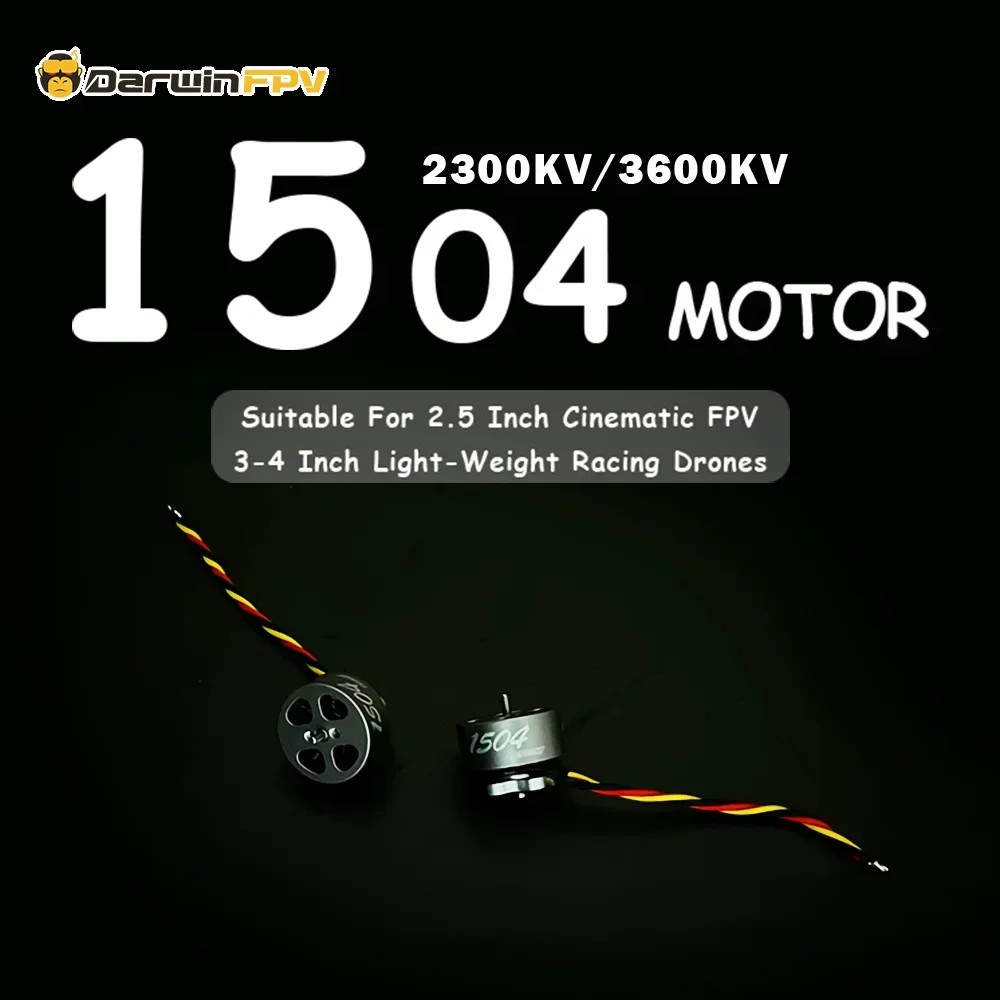

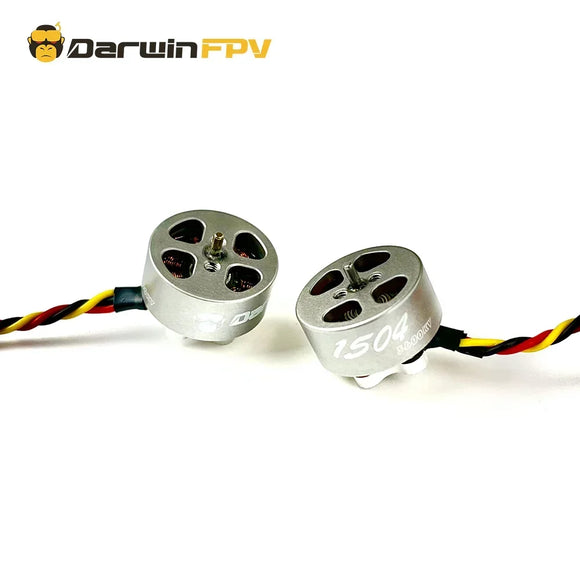

DARWINFPV 1504 Motor is a very cost-effective motor with an overall lightweight design weighing only 10g.
Smooth running, powerful and easier to control. This motor is also a good choice if you are building a 2.5" hoop or 4" toothpick quadcopters.
Features:
The most cost-effective brushless motor. Like the 1504 motor of a well-known brand, it has mature production technology, sufficient raw materials and a complete supply chain, which essentially determine the characteristics of low price and high quality.
Lightweight design, weighing only 10g, greatly improves the battery life of the drone.
Compatible with 2.5-inch FPV drone and 3-4-inch toothpick FPV drone, which can be used for racing.
The 1.5mm shaft fits perfectly with most 2.5-4 inch FPV propellers on the market.

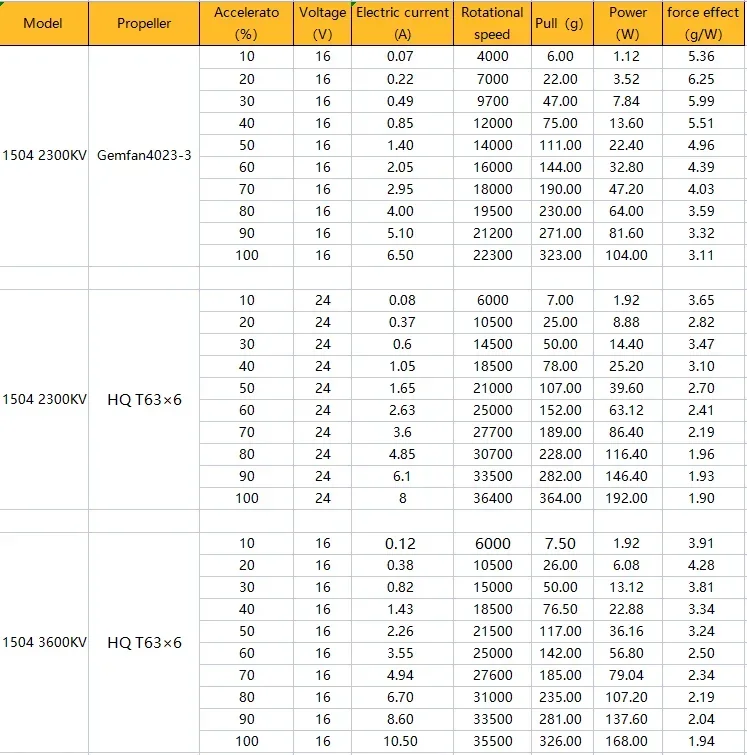

Specifications:
Model: 1504-3600KV
Number of slot poles: 12N14P
Stator size: 15 x 4mm
Out shaft diameter: 1.5mm

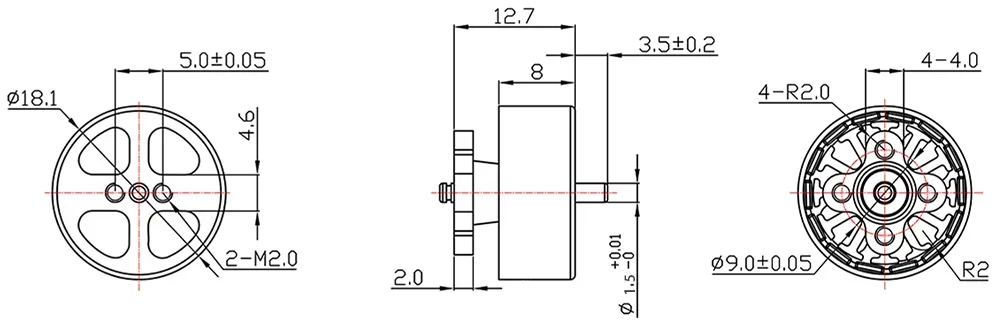

Motor Dimensions: 18.1 x 12.7mm

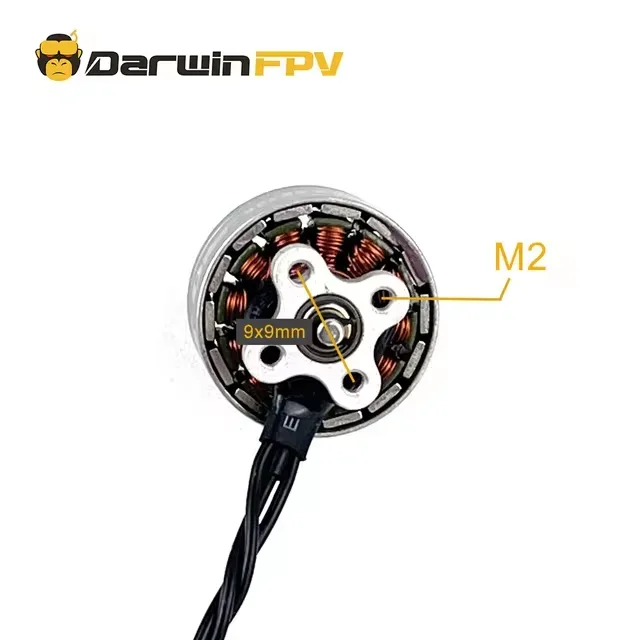

Mounting hole: 9 x 9mm (M2)

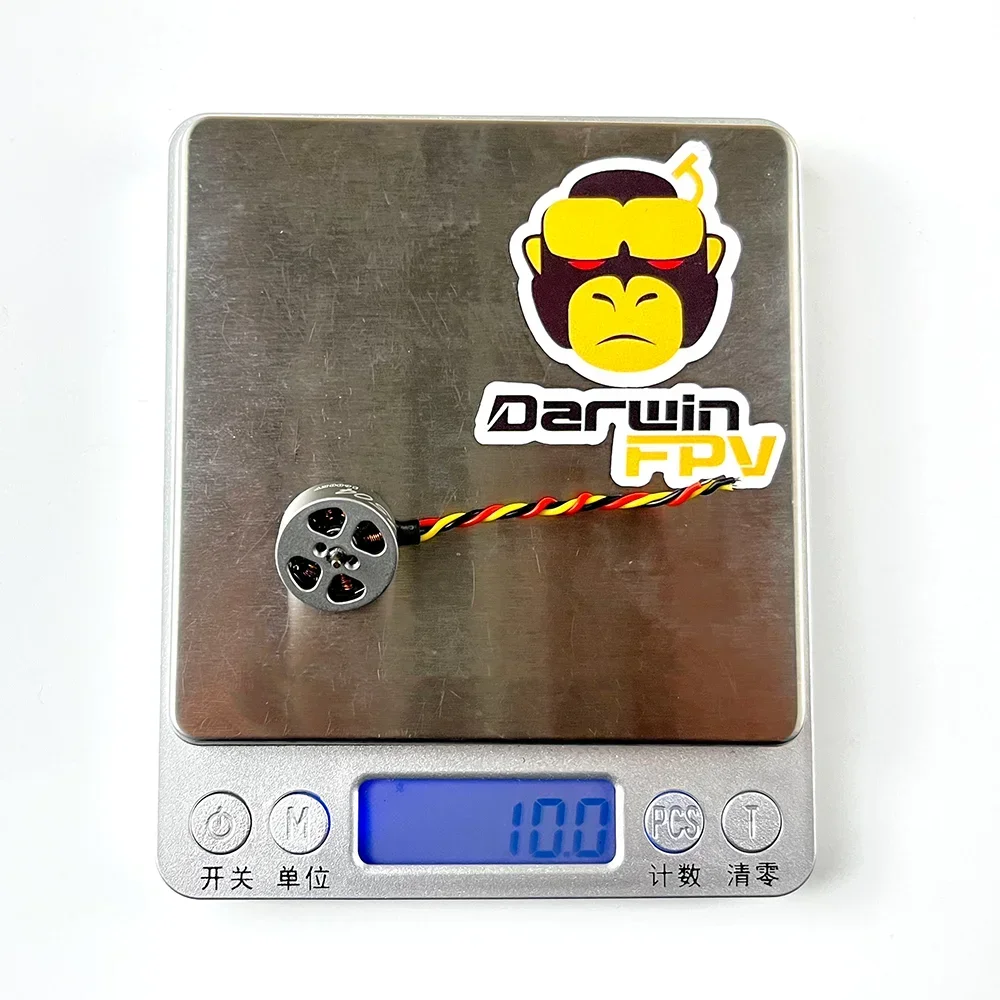

Weight: 10g
Lead wire specifications: 26#AWG
Rated voltage: 4S
Maximum power: 168W
Maximum current: 10.5A
Recommended configuration: 4S-2.5 inch whoop FPV drone
4S-3 inch toothpick quadcopters
Packing list:
-
1 x DARWINFPV 1504 motor
-
4 x M2 x 4mm screws
