Specifications:
-

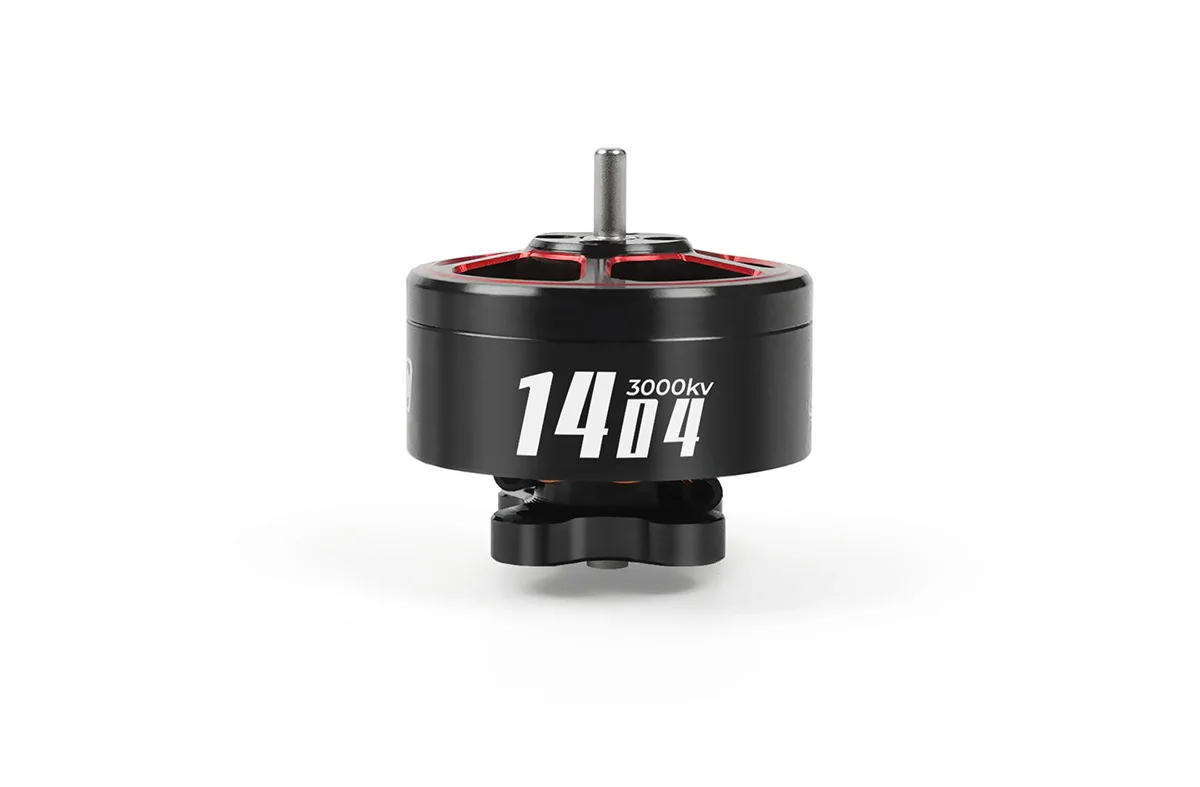

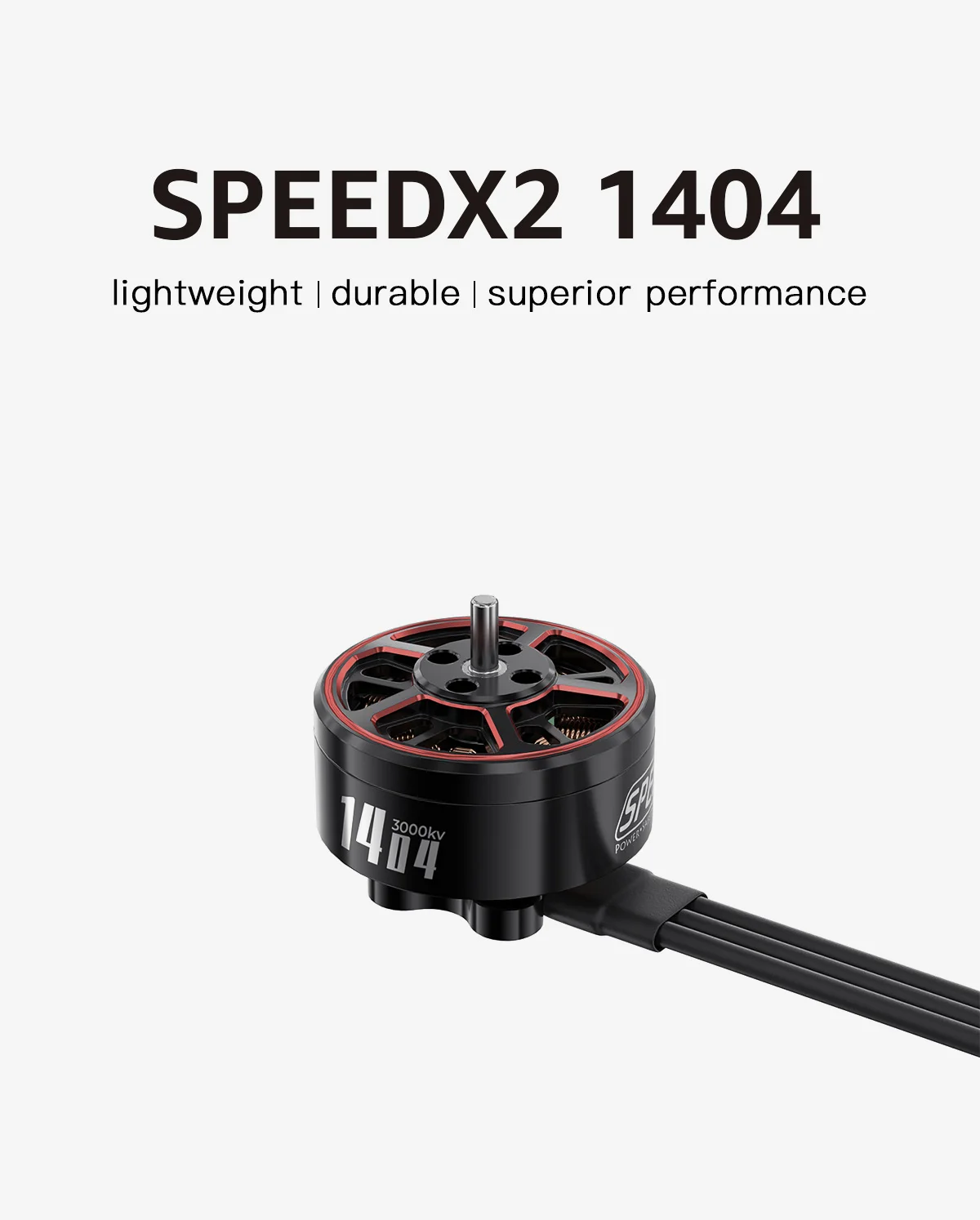

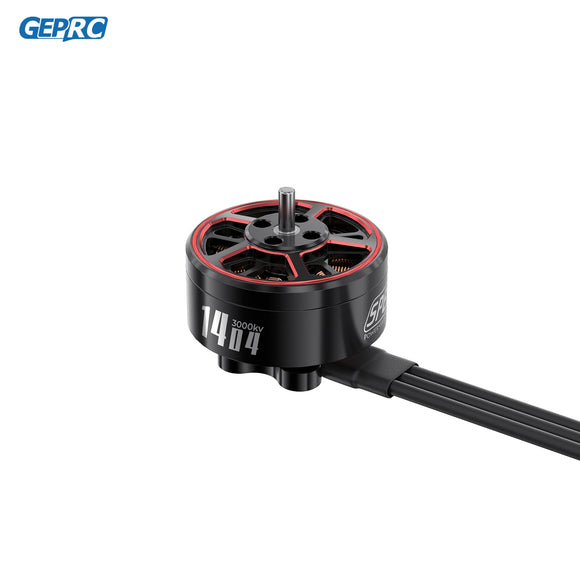

Model: SPEEDX2 1404 3000KV Motor
-
Max Watt: 160W
-
Peak current: 10A/3″
-
Interphase resistance: 0.33Ω
-
Magnet: N52H
-
Bearing type: NSK/NMB
-
Configuration: 9N12P
-

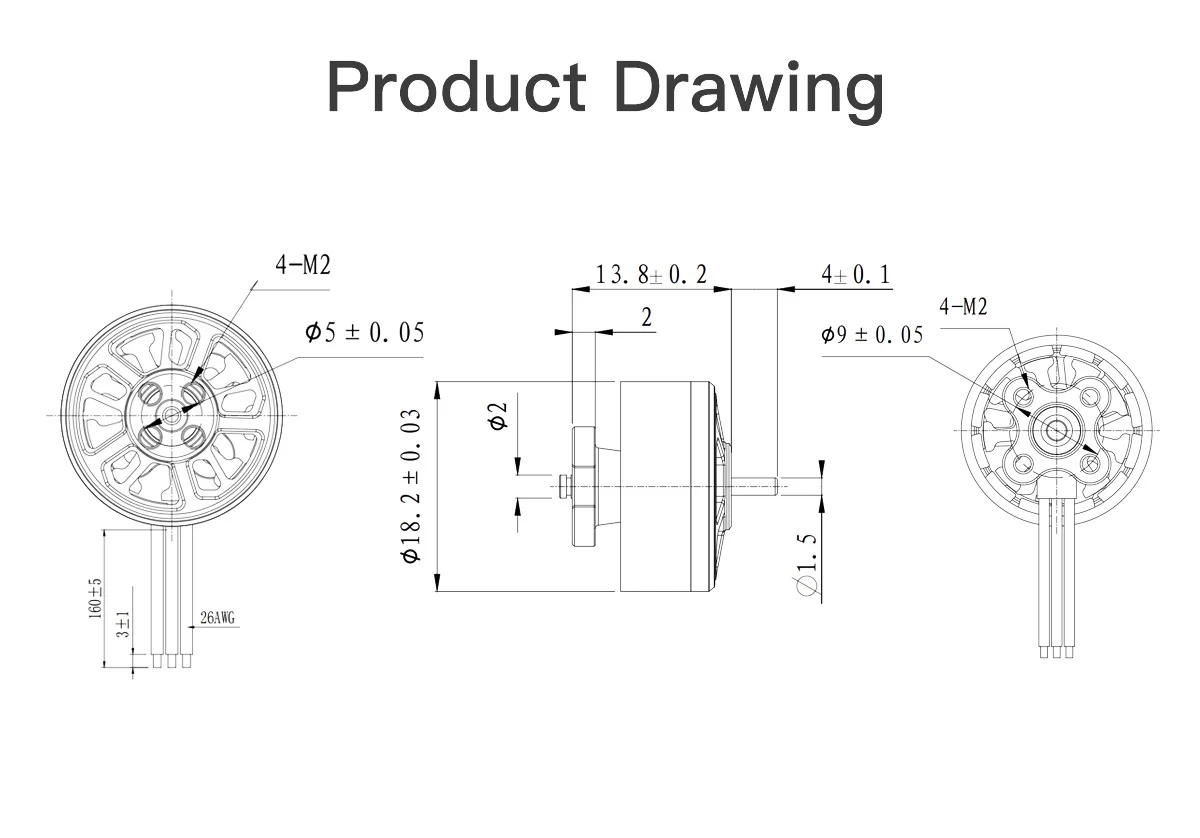

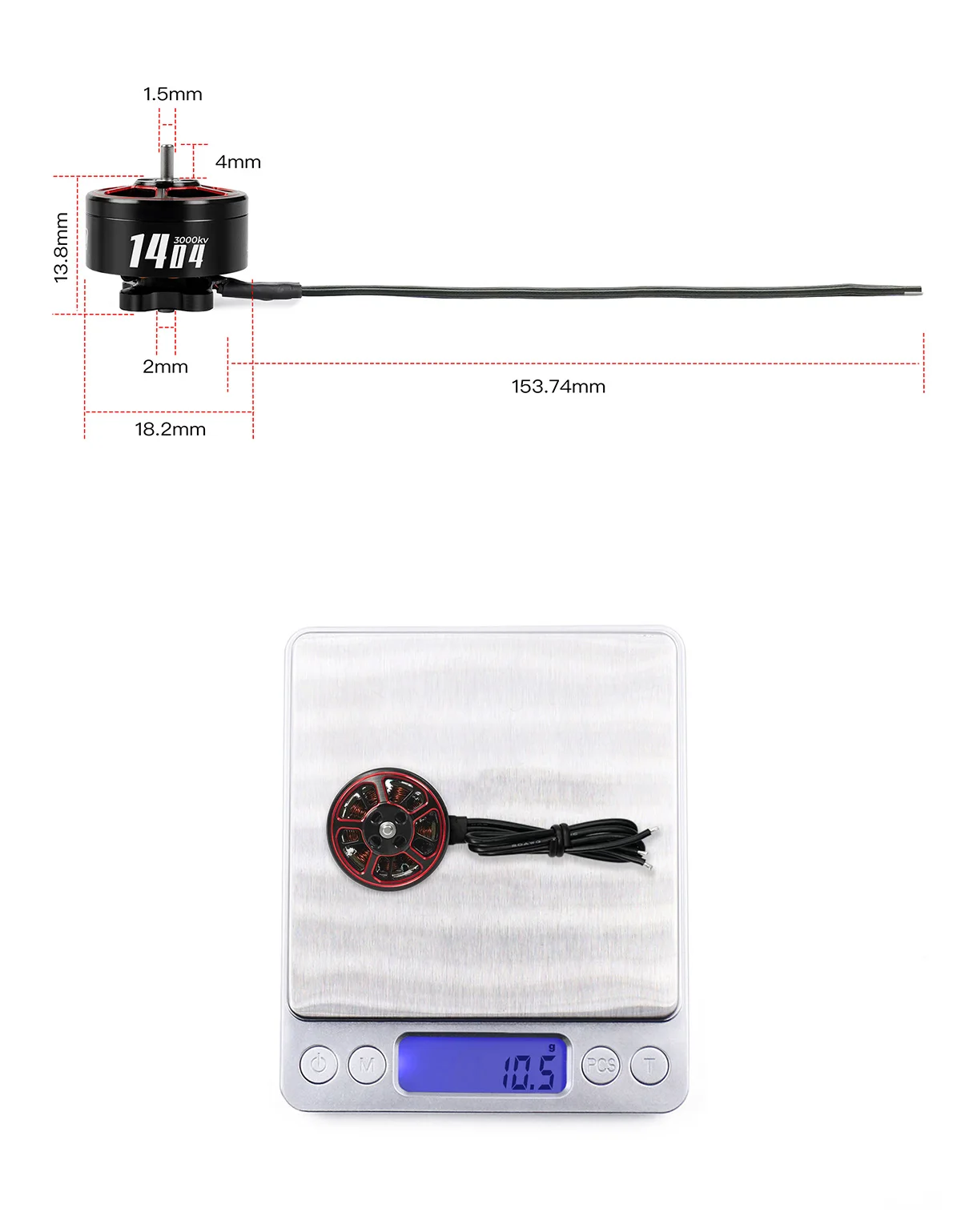

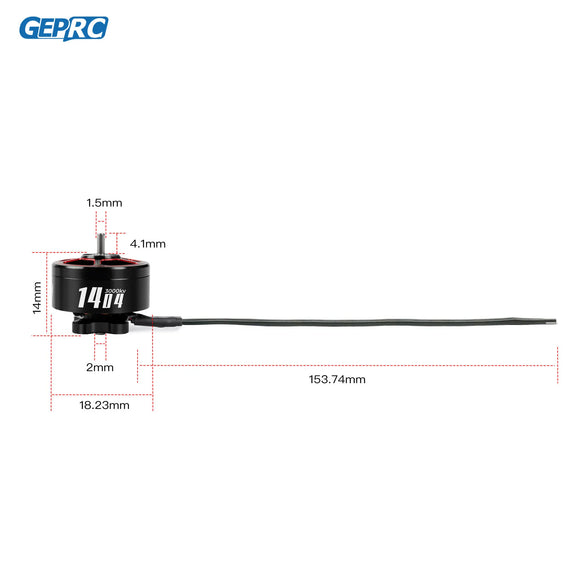

Dimension: φ18.2mm*13.8mm
-
Shaft Diameter: φ1.5mm
-

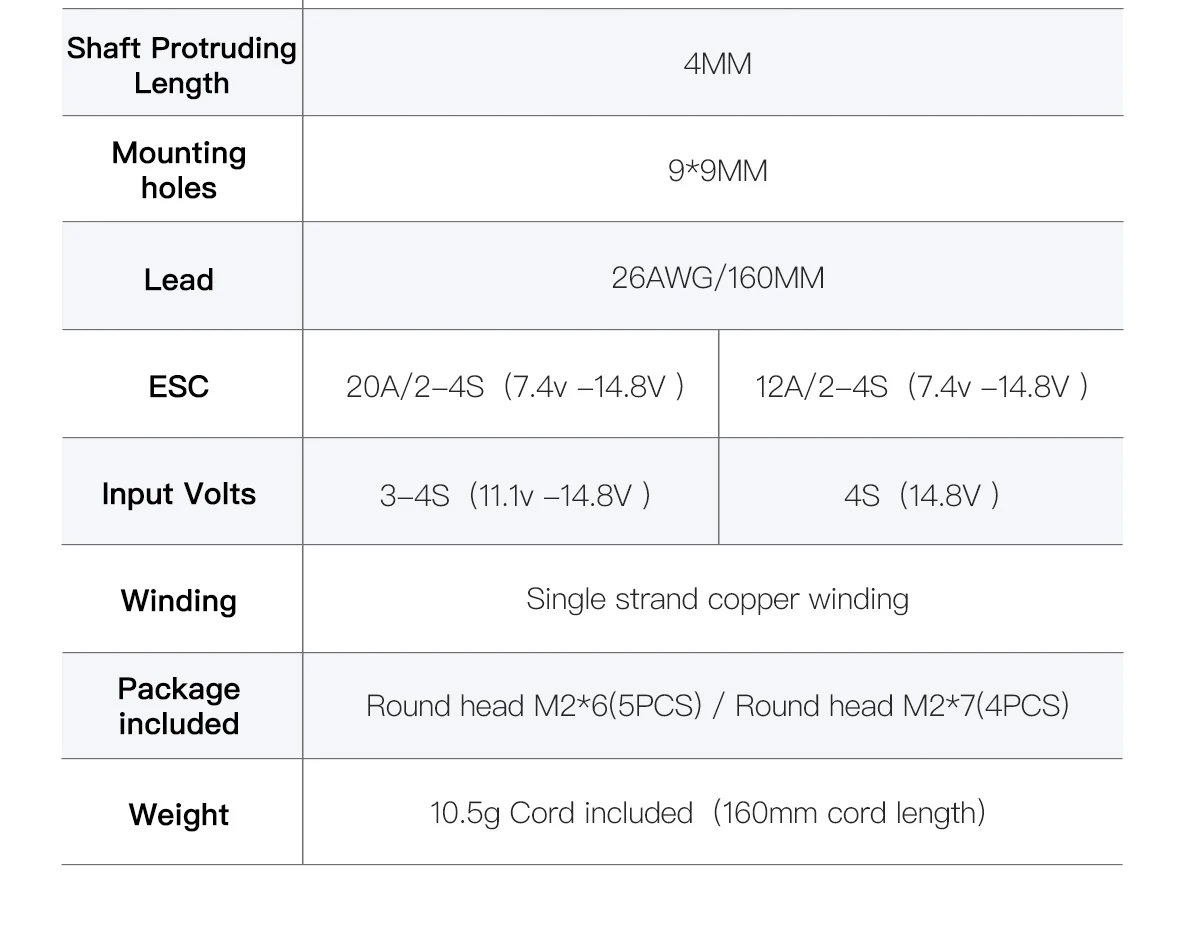

Shaft Protruding Length: 4mm
-
Mounting holes: 9mm*9mm（M2）
-
Lead: 160mm/26AWG
-
ESC: 12A/2-4S（7.4V-14.8V）
-
Input Volts: 14.8V（4S LiPo)
-
Winding: Single strand copper winding
-

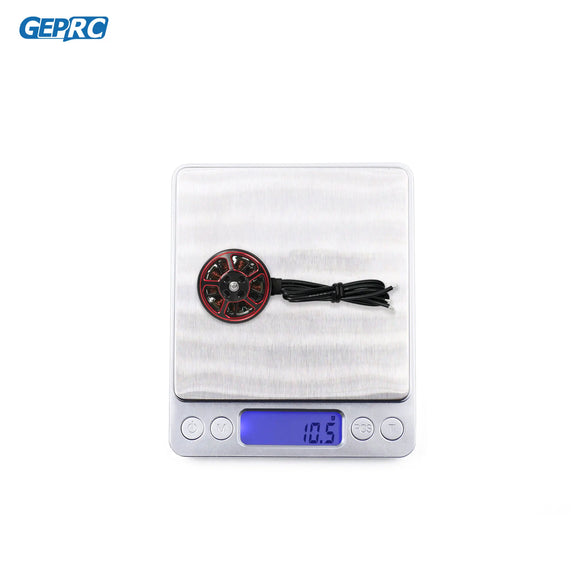

Weight: 10.5g (included wire)
-
Suitable for: 3 inch - 4 inch lightweight models
-
Model: SPEEDX2 1404 4600KV Motor
-
Max Watt: 180W
-
Peak current: 14.3A/3″
-
Interphase resistance: 0.19Ω
-
Magnet: N52H
-
Bearing type: NSK/NMB
-
Configuration: 9N12P
-
Dimension: φ18.2mm*13.8mm
-
Shaft Diameter: φ1.5mm
-
Shaft Protruding Length: 4mm
-
Mounting holes: 9mm*9mm（M2）
-
Lead: 160mm/26AWG
-
ESC: 20A/2-4S（7.4V-14.8V）
-
Input Volts: 11.1V - 14.8V（3S - 4S LiPo)
-
Winding: Single strand copper winding
-
Weight: 10.5g (included wire)
-
Suitable for: 2 inch - 3 inch lightweight models
Feature
1.Red with black color is obviously high-end.
2.Use bearings with excellent performance and strong anti-wear ability.
3.Lightweight silhouette, strong power.
4.Suitable for 2-inch-4-inch lightweight chassis.
