We will send according to your choice
because the choice has the difference between set package and separate camera and VTX

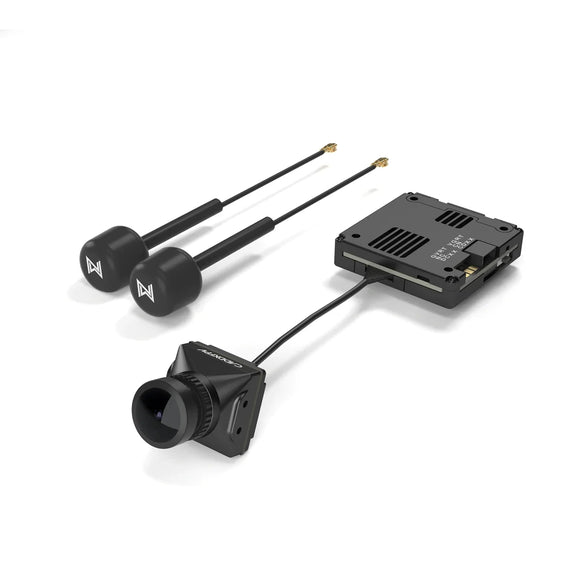

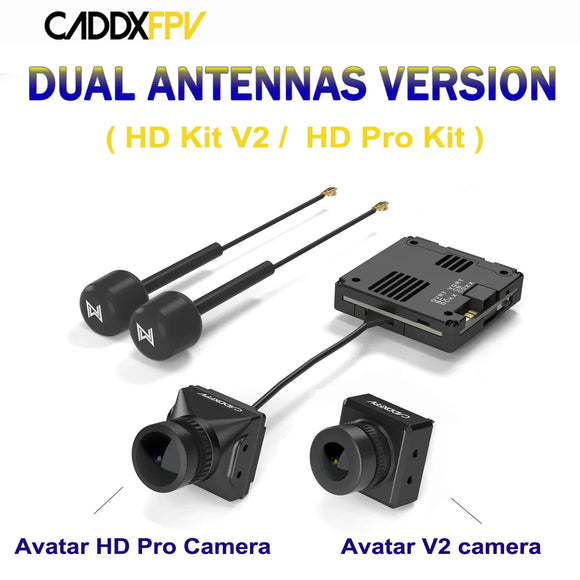

Walksnail Avatar HD Kit V2 (Dual Antennas Version)
Features
-
Dual antennas
-
Compatible 4K
-
1080P 120fps compatibility
-
22ms low latency
-
Ranging Mode
-
4KM range
-
Light weight design
-
FOV160°
-
Built-in 32G storage,
-
Support Gyroflow
-
6V-25.2V
-
The only native 4:3 high-definition sensor in the FPV industry
Bullet Points for Walksnail Avatar HD Kit V2 (Dual Antennas)
-
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with low latency.
-
Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well.
-
The camera ( 32G VTX KIT) supports Gyroflow, take you a smooth and stable video quality.
-
The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
-
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
-
Optimized the installation place of the antenna, so as to better protect the VTX.
-
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
-
A spare pad is added to provide two power connection modes.
-
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability . Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
-
The Avatar VTX comes with 32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.
-
Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate.
-
Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
Q: Do we support 1080P 120FPS?
A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.
|
Specification |
|
|
Camera |
|
|
Model |
Avatar V2 camera |
|
Image Sensor |
1/3.2-Inch 4Mp 4:3sensor |
|
Resolution |
1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility; |
|
Ratio |
4:3 native /16:9 |
|
Lens |
2.1mm |
|
FOV |
160° |
|
Aperture |
F2.0 |
|
Shutter |
Rolling shutter |
|
Min.Illumination |
0.001Lux |
|
Weight |
7.2g |
|
Dimensions |
19*19*22mm |
|
Coaxial Cable |
140mm |
|
Gyroflow |
Only 32G VTX Supported |
|
VTX |
|
|
Model |
Avatar V2 module(Dual Antenna) |
|
Communication Frequency |
5.725-5.850GHz |
|
Transmitter Power (EIRP) |
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
|
1/O Interface |
JST1.0*4(Power in)JST0.8*6(USB) |
|
Mounting Holes |
25.5*25.5mm; 20*20mm |
|
Dimensions |
33.5*33.5*10.5mm |
|
Storage |
32G |
|
Recording |
1080p/720p |
|
Weight |
15.4g |
|
Operating Temperature |
-20-40℃ |
|
Channels |
8 |
|
Wide Power Input |
6V-25.2V |
|
Supported FC System |
Betaflight; Inav; Fettec; ArduPilot; Kiss |
|
OSD |
Canvas mode |
|
Latency |
Average delay 22ms |
|
Antenna |
2(IPEX) |
|
Avatar V2 antenna |
|
|
Polarization |
LHCP |
|
Bandwidth |
5600MHz-6000MHz |
|
Gain |
1.9dBi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Interface |
IPEX-1 |
|
Size |
R15 X 45mm （without cable） |
|
Weight |
2g |
|
Packing List |
|
|
USB transfer extension cable |
X1 |
|
4 Pin silicone cable |
X1 |
|
M2*4mm screws |
X8 |
|
M2*5mm screws |
X4 |
|
M2*6mm screws |
X4 |
|
M2*14mm screws |
X4 |
|
M2*5*0.5mm gasket |
X4 |
Walksnail Avatar HD Pro kit (Dual Antennas Version)
features：
-
Dual Antennas
-
Compatible 4K
-
FOV160°
-
6V-25.2V
-
4km range
-
22ms low latency
-
Built-in 32G storage
-
High frame starlight
-
1080P 120fps compatibility
-
Sony Starvis Ⅱ Technology
Bullet Points for Avatar HD Pro kit (Dual Antennas)
-
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with low latency. Support 1080P/60FPS, 720P/120FPS.
-
Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.
-
The camera supports Gyroflow, take you smooth and stable video quality.
-
The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
-
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
-
Optimized the installation place of the antenna, so as to better protect the VTX.
-
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
-
A spare pad is added to provide two power connection modes.
-
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
-
The Avatar VTX comes with 32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.
-
It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.
-
Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
|
Specification |
|
|
Camera |
|
|

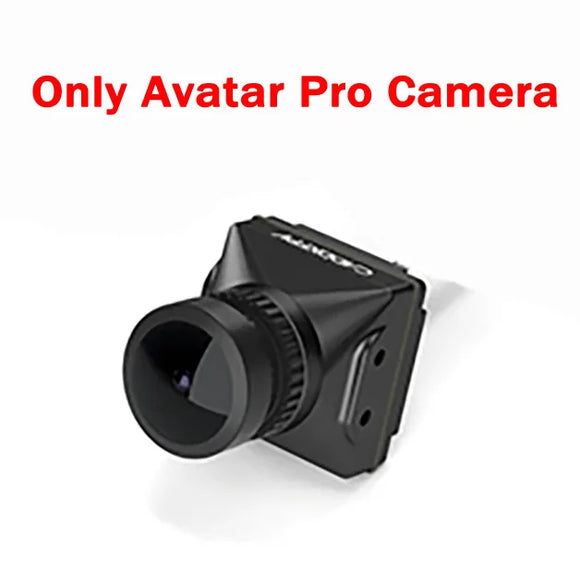

Model |
Avatar HD Pro Camera |
|
Image Sensor |
1/1.8-Inch Sony Starvis Ⅱ Sensor |
|
Resolution |
1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
|
Ratio |
16/9; 4/3 |
|
Lens |
8Mp |
|
FOV |
160° |
|
Aperture |
F1.6 |
|
Shutter |
Rolling shutter |
|
Min.Illumination |
0.00001Lux |
|
Weight |
9.5g |
|
Dimensions |
19*19*24mm |
|
Coaxial Cable |
140mm |
|
VTX |
|
|
Model |
Avatar V2 Pro Module(Dual Antenna) |
|
Communication Frequency |
5.725-5.850GHz |
|
Transmitter Power (EIRP) |
FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
|
1/O Interface |
JST1.0*4(Power in)JST0.8*6(USB) |
|
Mounting Holes |
25.5*25.5mm; 20*20mm |
|
Dimensions |
33.5*33.5*10.5mm |
|
Storage |
32G |
|
Recording |
1080p/720p |
|
Weight |
15.4g |
|
Operating Temperature |
-20-40℃ |
|
Channels |
8 |
|
Wide Power Input |
6V-25.2V |
|
Supported FC System |
Betaflight; Inav; Fettec; ArduPilot;Kiss |
|
OSD |
Canvas mode |
|
Latency |
Average delay 22ms |
|
Antenna |
2(IPEX) |
|
Avatar V2 Antenna |
|
|
Polarization |
LHCP |
|
Frequency range |
5600MHz-6000MHz |
|
Gain |
1.9dBi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Interface |
IPEX-1 |
|
Size |
R15 X 45mm(without cable) |
|
Weight |
2g |
|
Packing List |
|
|
USB transfer extension cable |
X1 |
|
4 Pin silicone cable |
X1 |
|
M2*4mm screws |
X8 |
|
M2*5mm screws |
X4 |
|
M2*6mm screws |
X4 |
|
M2*14mm screws |
X4 |
|
M2*5*0.5mm gasket |
X4 |
