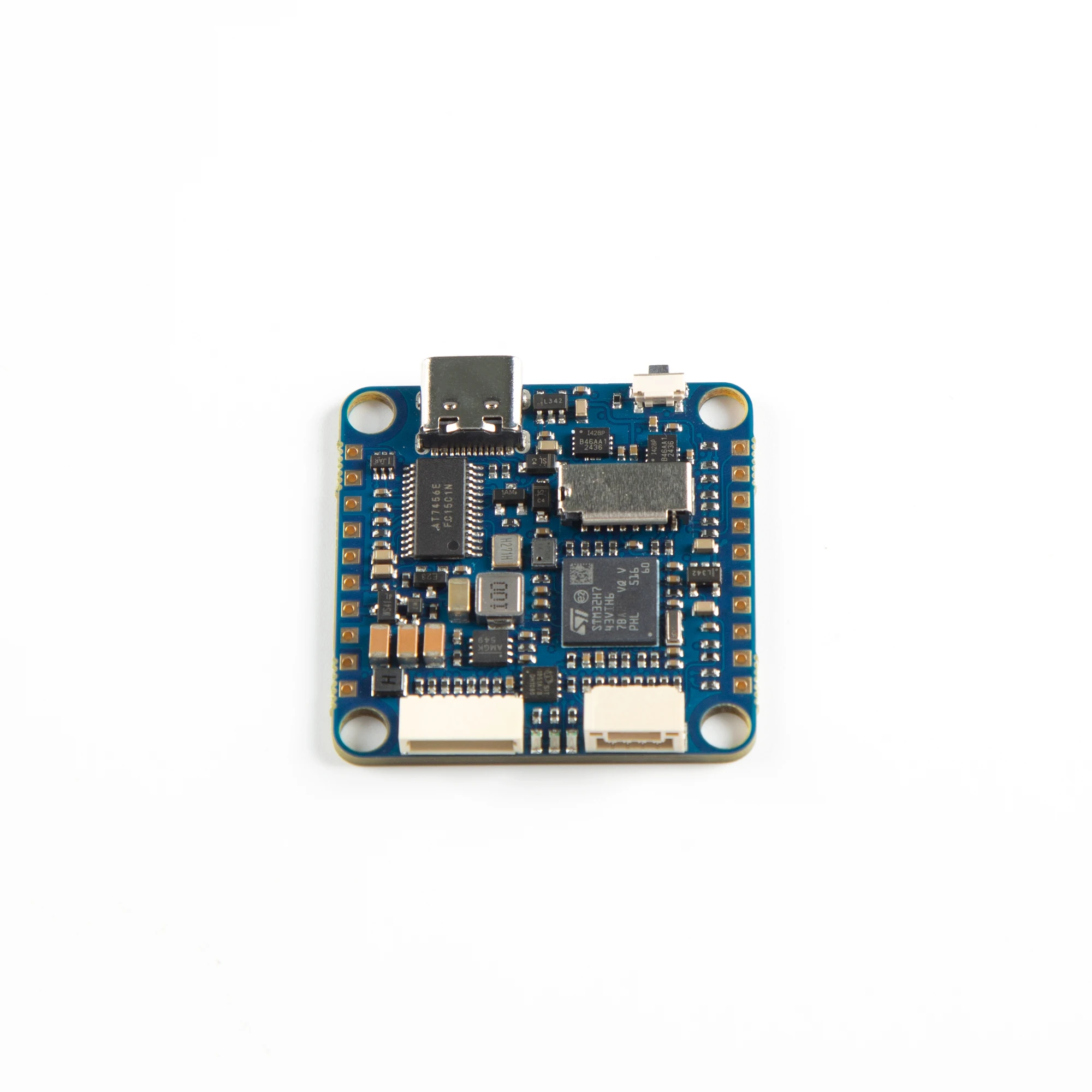

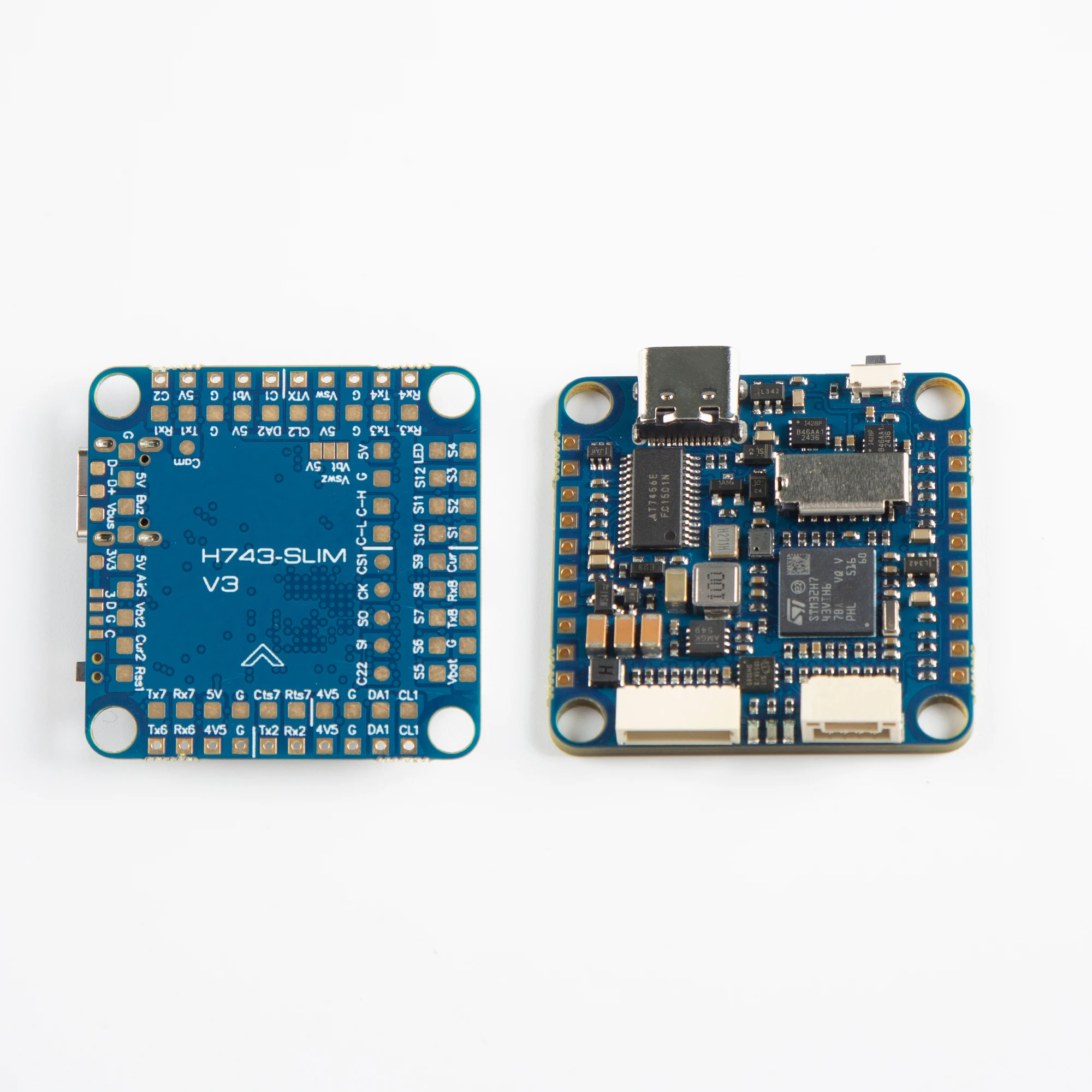

FC Specifications
-

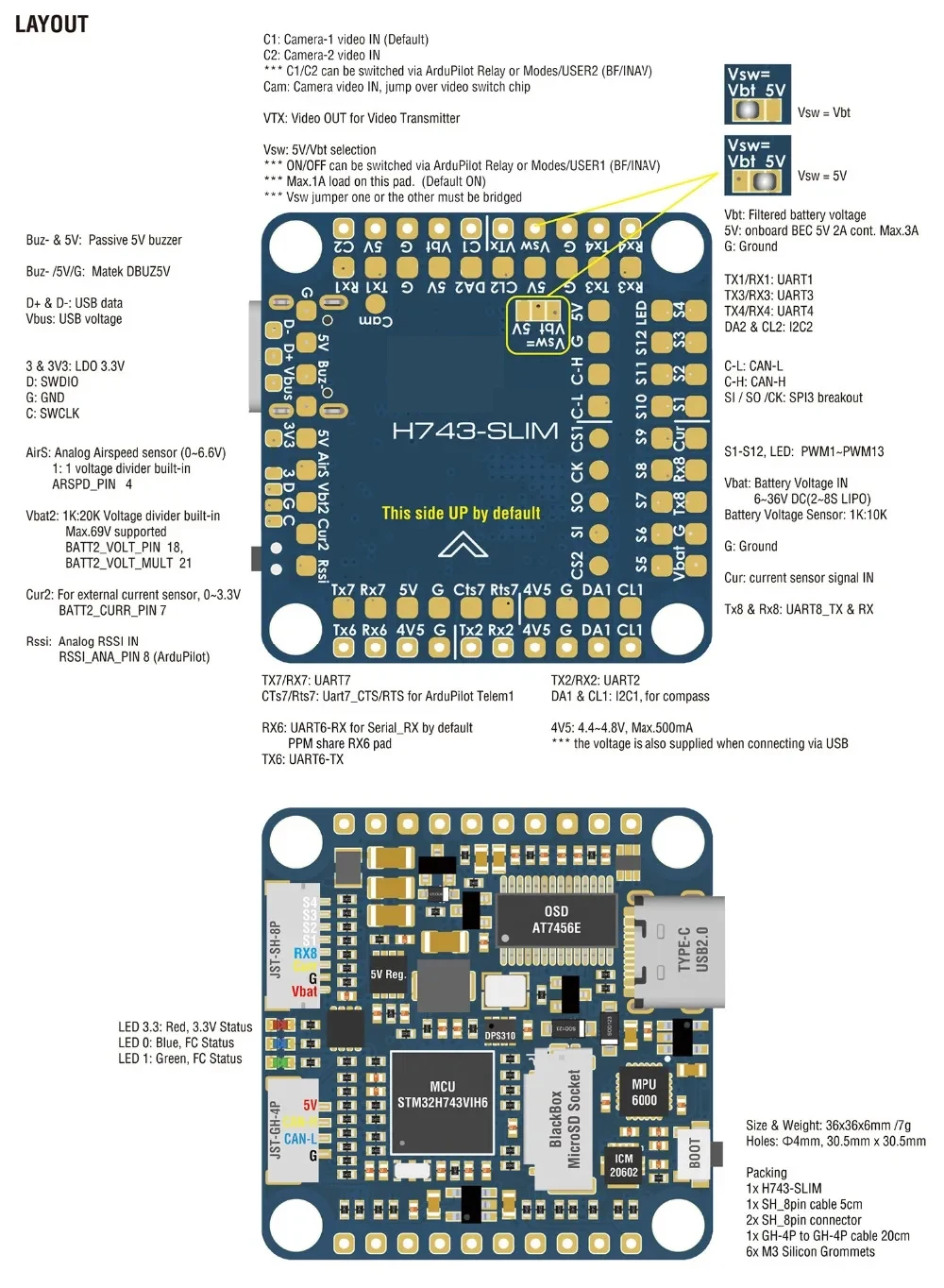

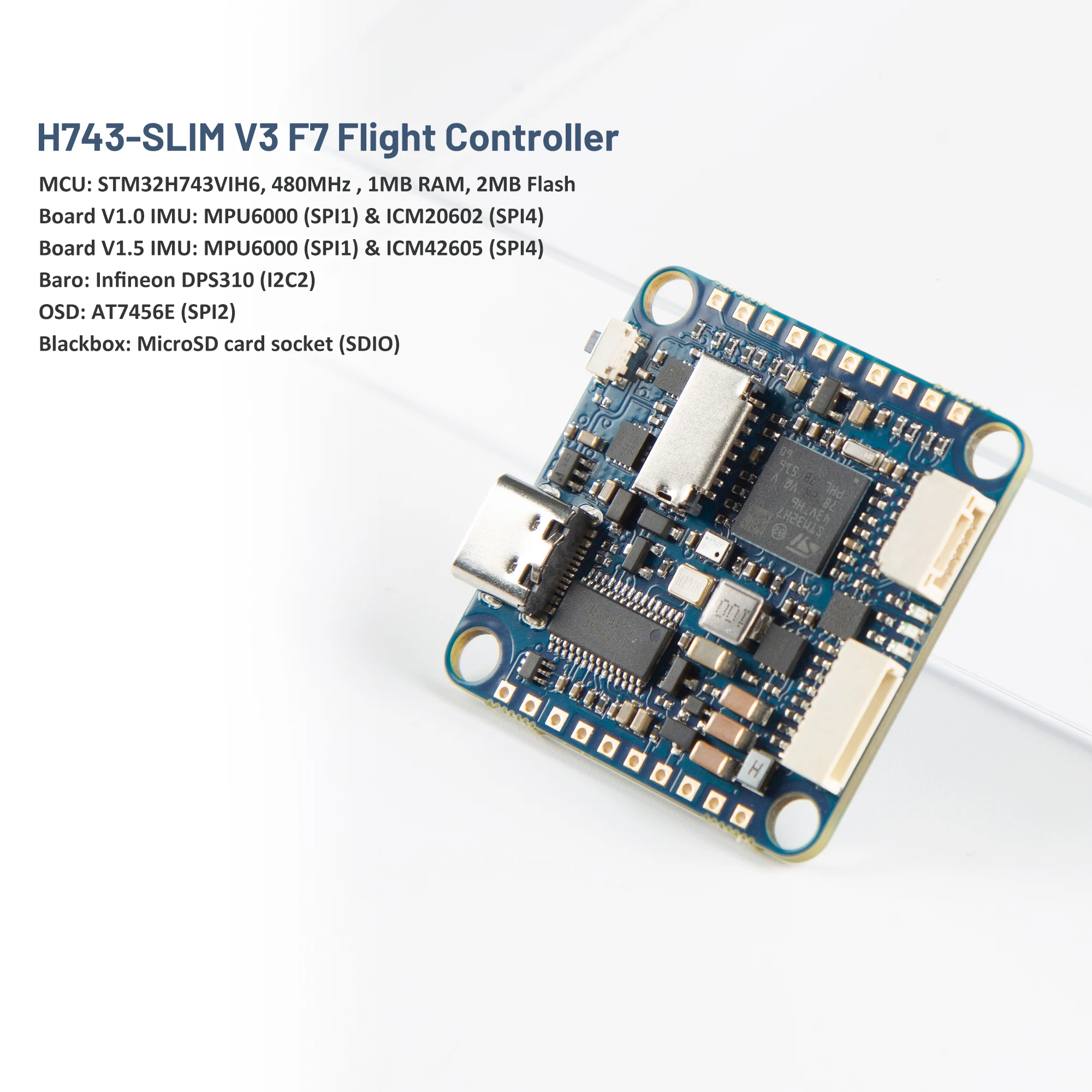

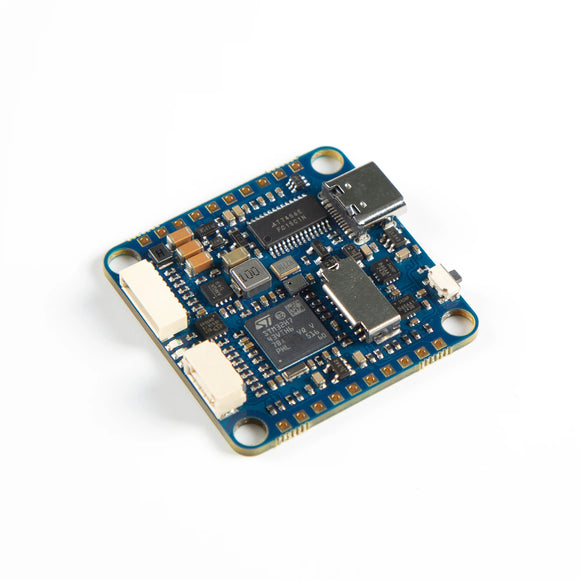

MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
-
Board V1.0 IMU: MPU6000 (SPI1) & ICM20602 (SPI4)
-
Board V1.5 IMU: MPU6000 (SPI1) & ICM42605 (SPI4)
-
Baro: Infineon DPS310 (I2C2)
-
OSD: AT7456E (SPI2)
-
Blackbox: MicroSD card socket (SDIO)
-
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
-
13x PWM outputs(including "LED" pad)
-
2x I2C
-
1x CAN
-
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
-
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
-
1x SPI3 breakout
-
USB Type-C(USB2.0)
-

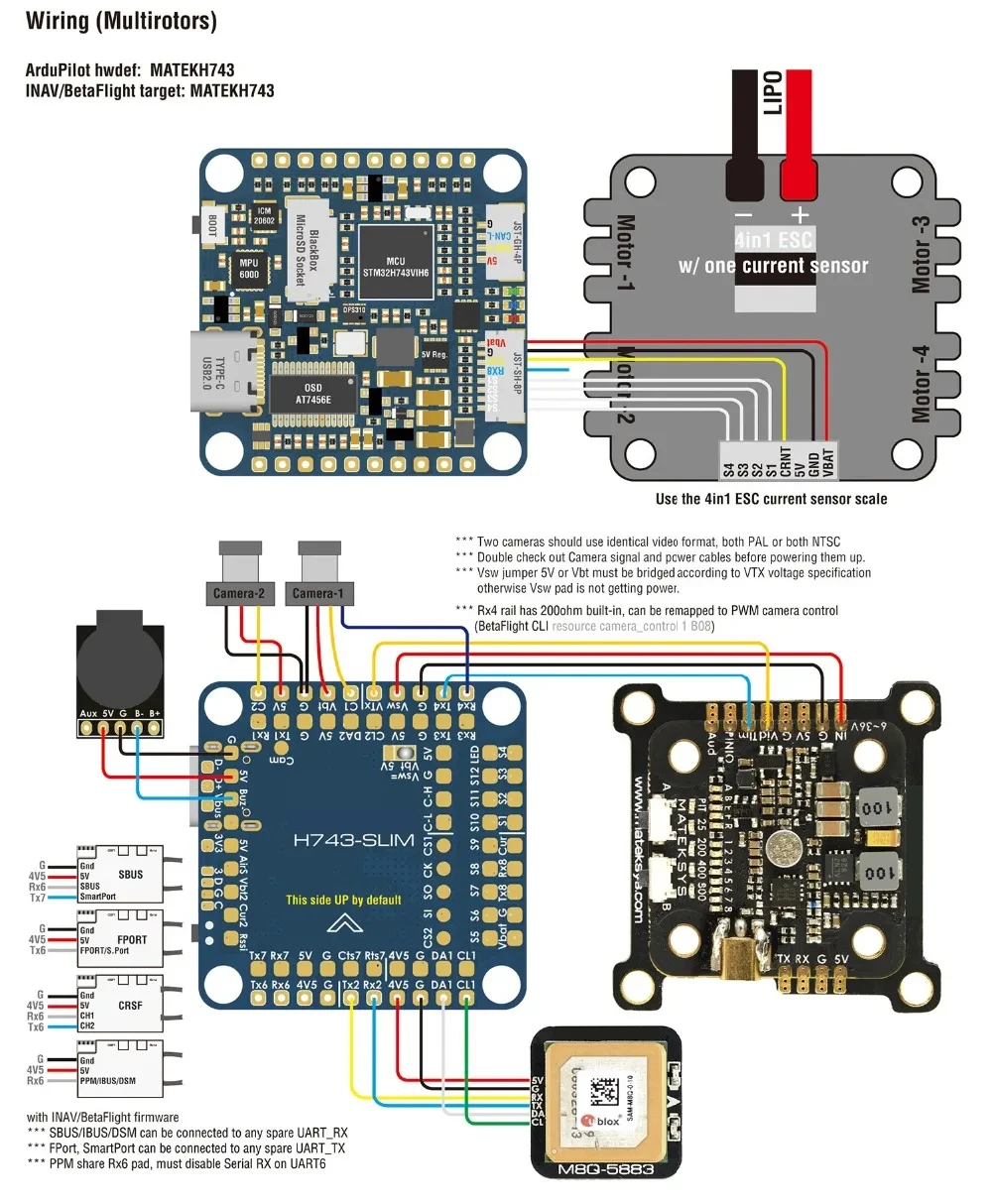

1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
-
1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
-
Dual Camera Inputs switch
-
5V/Vbat filtered power ON/OFF switch
-
DJI FPV OSD is supported by any spare UART
Power
-
Vbat Input: 6~36V (2~8S LiPo)
-
BEC: 5V 2A cont. (Max.3A)
-
LDO 3.3V: Max.200mA
-
No Current Sensor built-in
-
ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)
-
Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
Physical
-
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
-
Dimensions: 36 x 36 x 5 mm
-
Weight: 7g

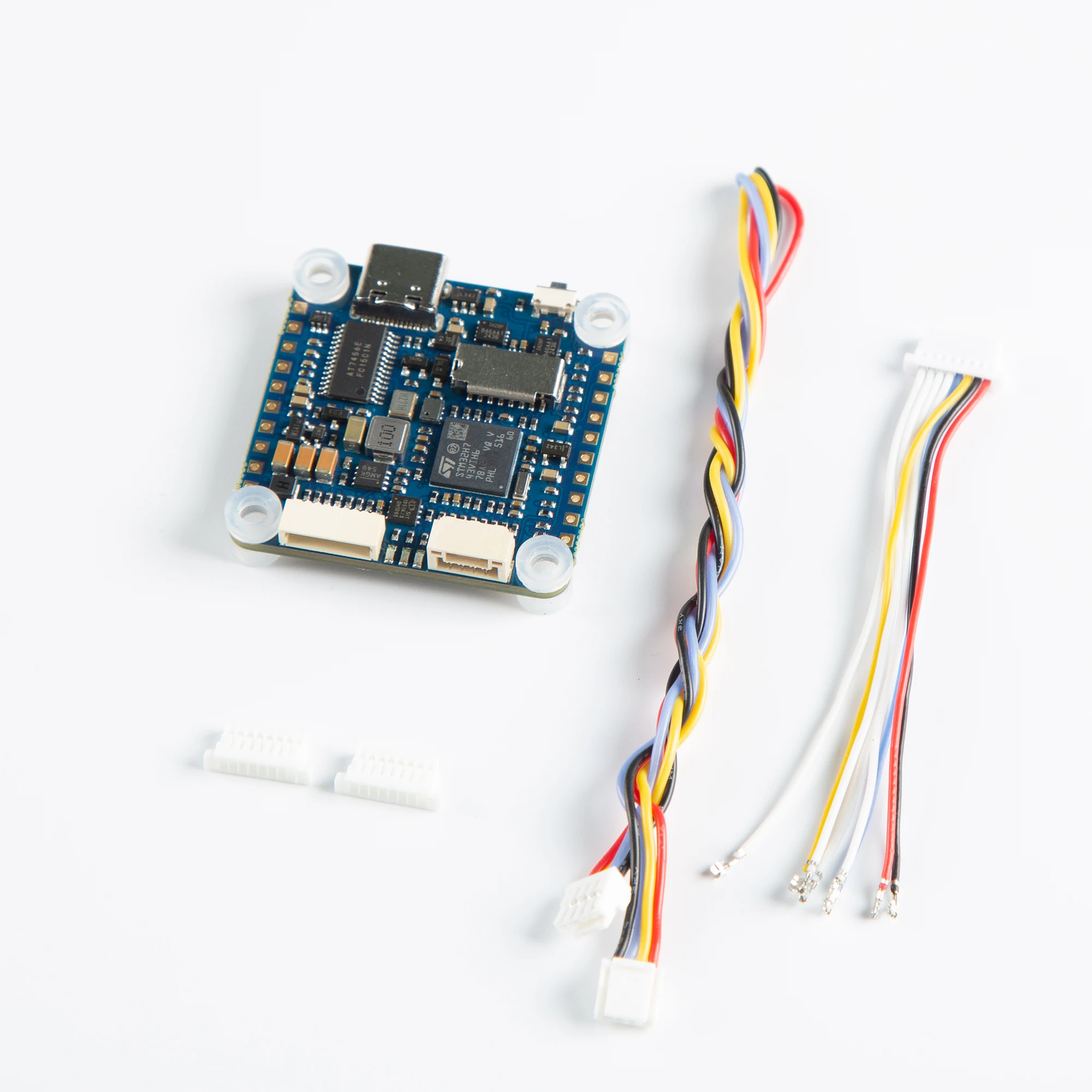

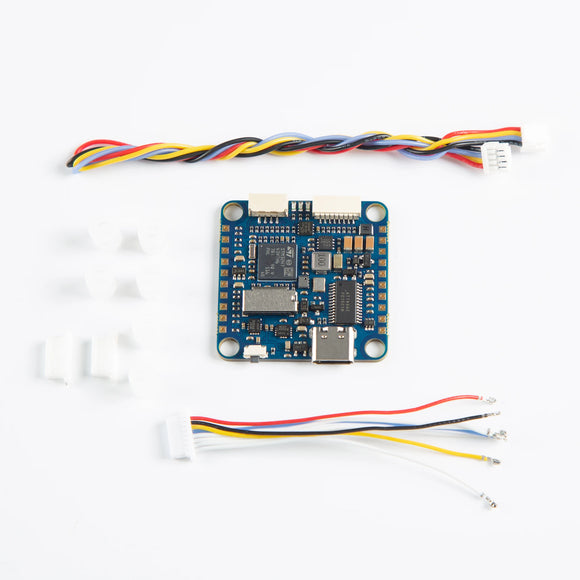

Including
-
1x H743-SLIM
-
6x Silicon grommets M4 to M3
-
1x JST-SH1.0_8pin cable, 5cm
-
2x JST-SH1.0_8pin connectors
-
1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
