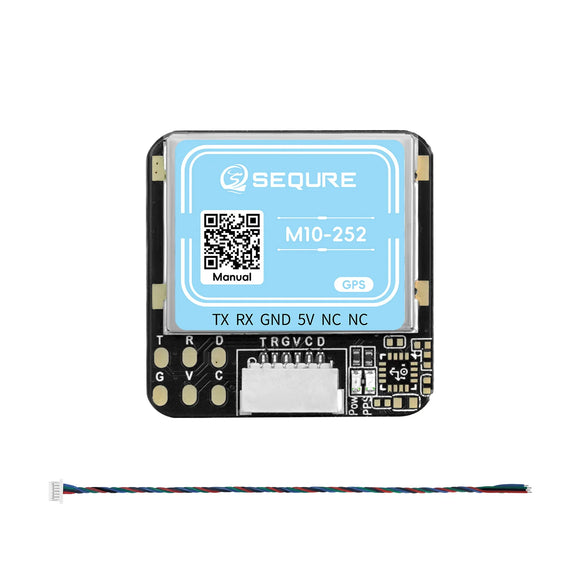

SEQURE M10 Second-generation GPS Fast Positioning Betaflight INVA Ardupilot Fixed-wing Racing Drone FPV Return QMC5883 Compass

$27.48 $39.26 Save $11.78

Prices include VAT and any applicable duties

All prices include import tax & VAT

In stock!

Model: M10-122

Usually ships within 3 business days

Add $29.00 more for FREE shipping!

Description Compatibility & Notes Returns & Warranty

Package included:

GPS×1
Cable×1

Product Description:

(1) SEQURE M10 second-generation GPS is designed with a 10th-generation chip optimization solution and GPS+BDS+GALILEO positioning system, supporting NMEA/UBLOX protocol. It has a faster positioning speed and stronger anti-interference.

(2) High-quality ceramic antenna with strong performance and effective reception of satellite signals.

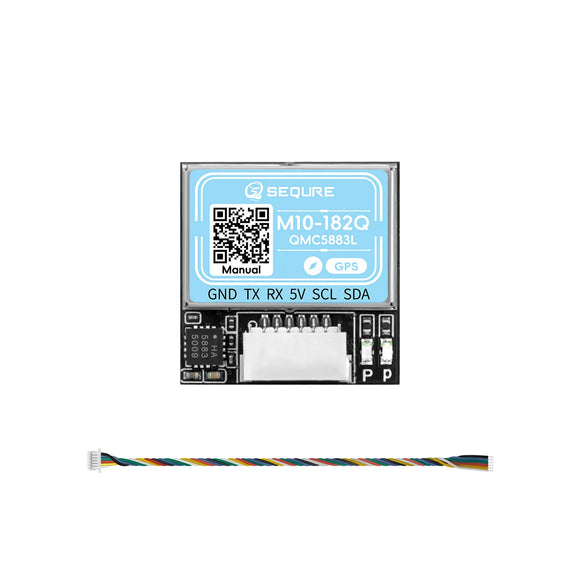

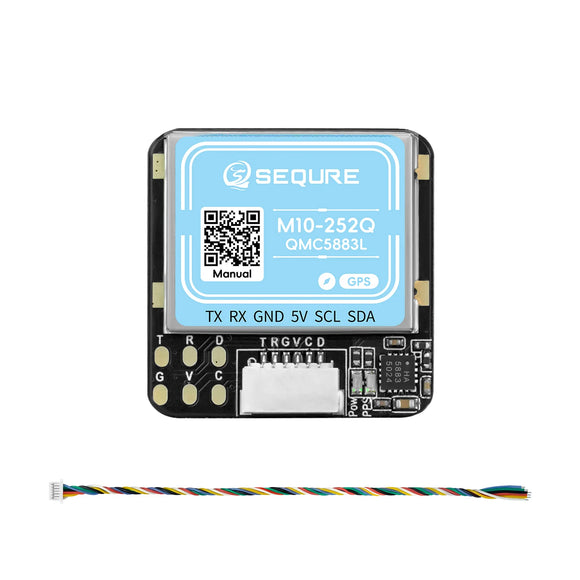

(3) M10-182Q, M10-252Q respectively integrate QMC5883 compass for a wider range of applications

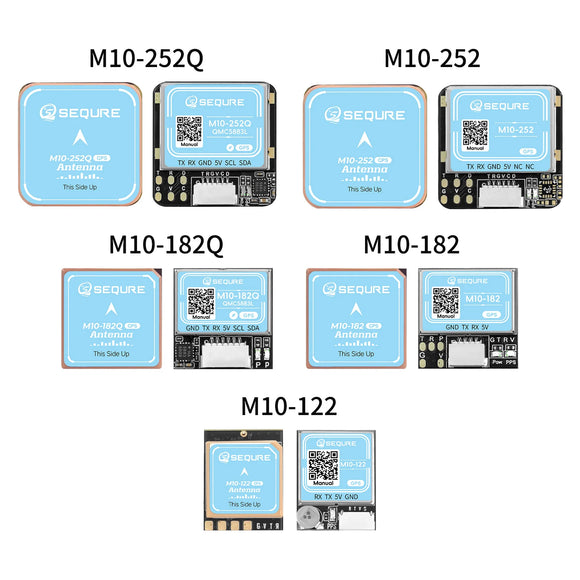

(4) Miniaturization multi-specification design for easy installation, accommodating drones of various sizes available on the market.

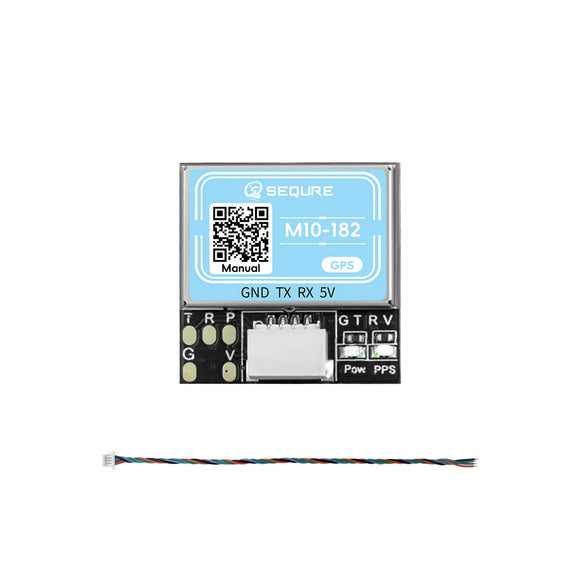

(5) Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.

(6) The full range of GPS is compatible with a variety of mainstream FC firmware on the market: Betaflight, INVA, Ardupilot, etc.

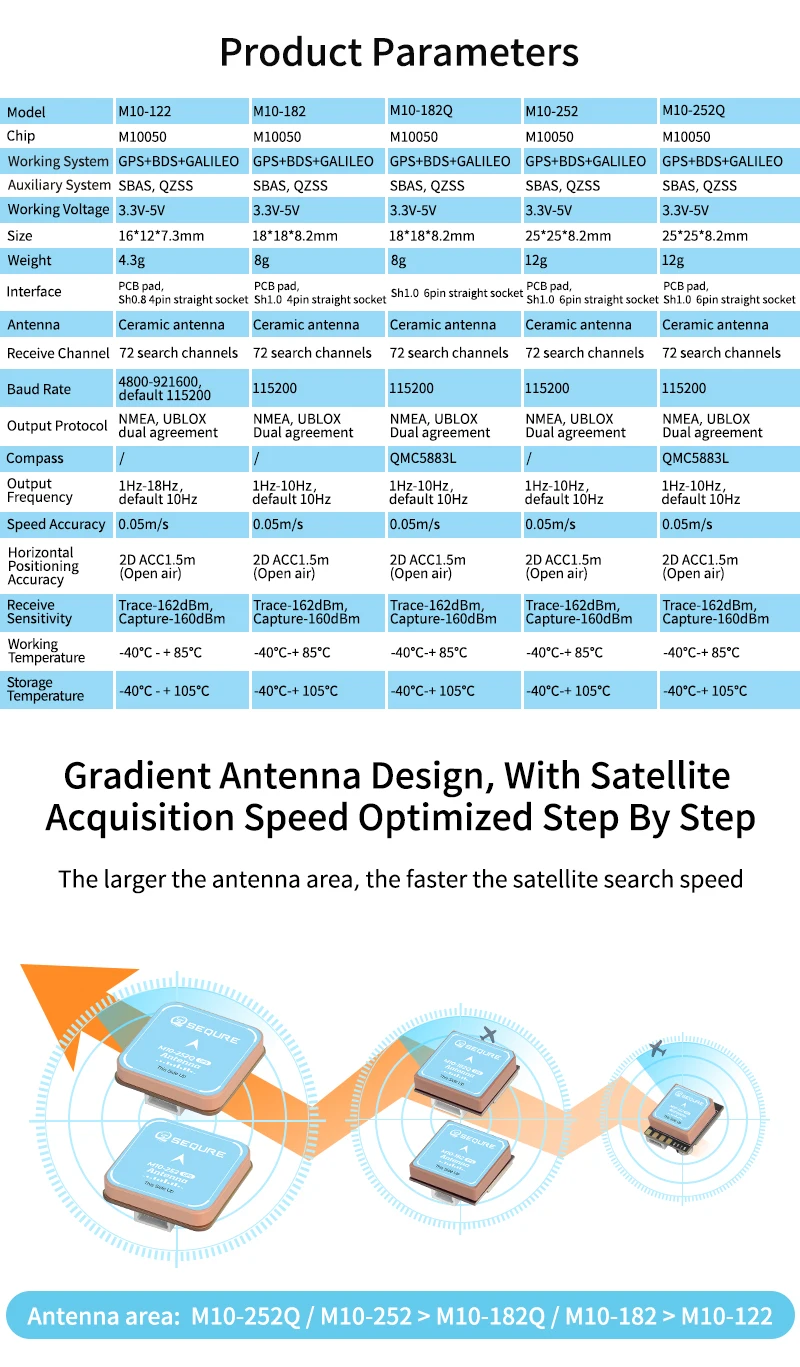

Parameters of Product

Model	M10-252Q	M10-252	M10-182Q	M10-182	M10-122
Chip	M10050	M10050	M10050	M10050	M10050
Working System	GPS+BDS+GALILEO	GPS+BDS+GALILEO	GPS+BDS+GALILEO	GPS+BDS+GALILEO	GPS+BDS+GALILEO
Auxiliary System	SBAS, QZSS	SBAS, QZSS	SBAS, QZSS	SBAS, QZSS	SBAS, QZSS
Working Voltage	3.3V-5V	3.3V-5V	3.3V-5V	3.3V-5V	3.3V-5V

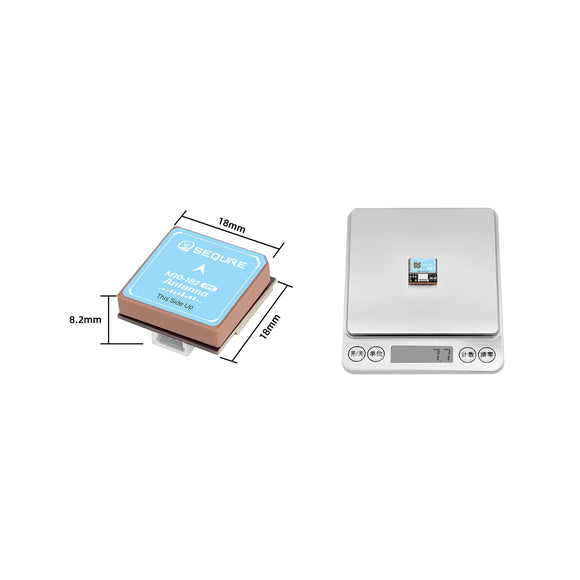

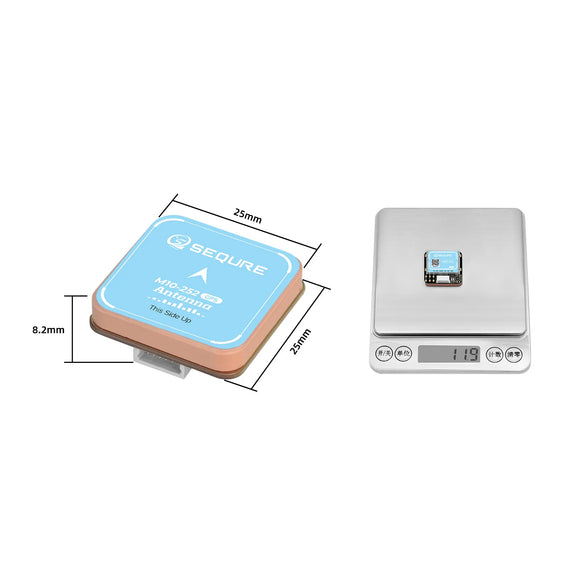

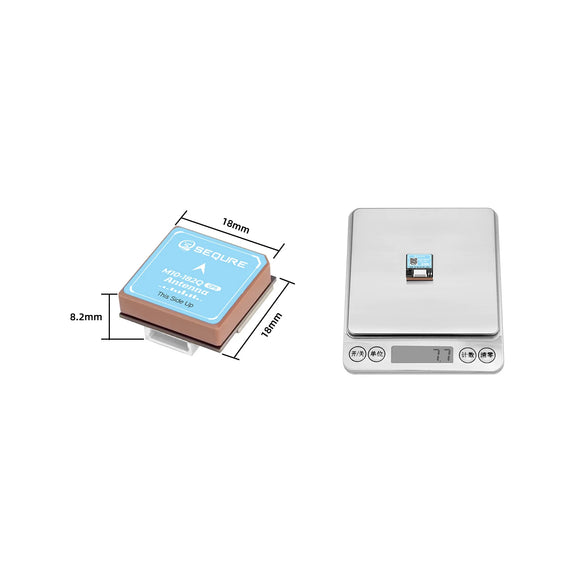

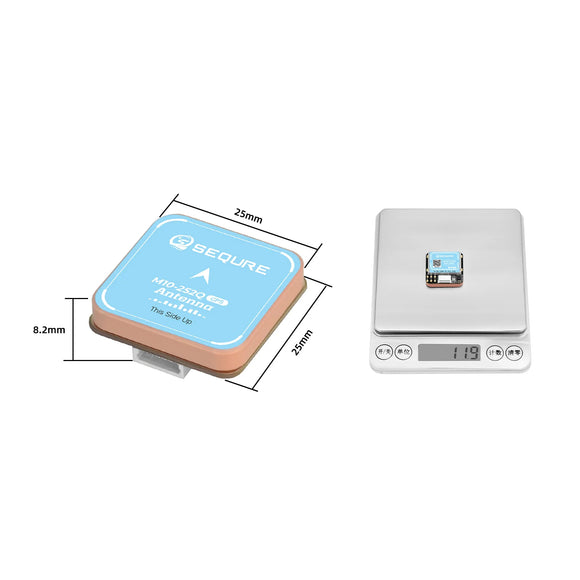

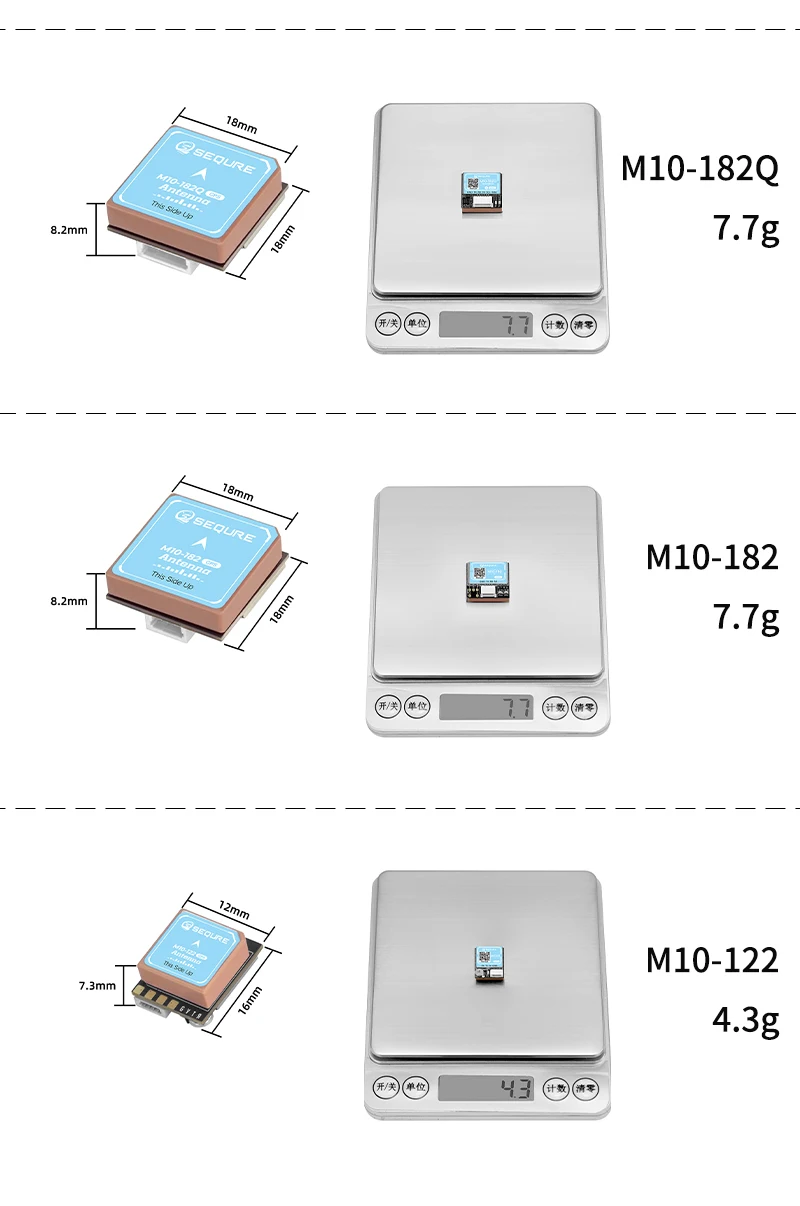

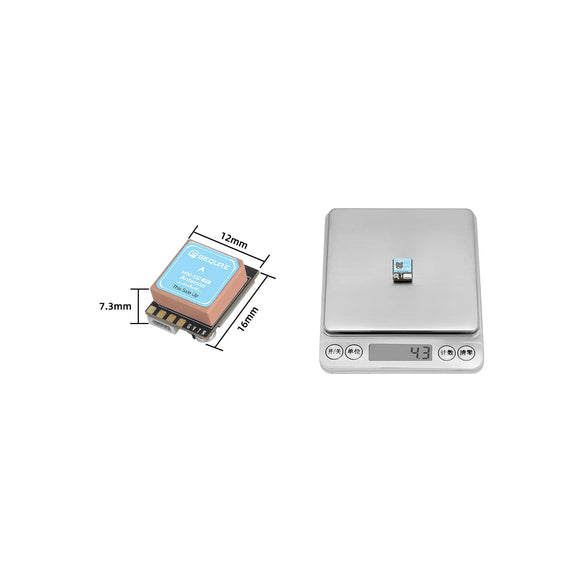

Size	25258.2mm	25258.2mm	18188.2mm	18188.2mm	16127.3mm
Weight	12g	12g	8g	8g	4.3g
Interface	PCB pad、 sh1.06pin straight socket	PCB pad、 sh1.06pin straight socket	sh1.06pin straight socket	PCB pad、 Sh1.04pin straight socket	PCB pad、 Sh0.84pin straight socket
Antenna	Ceramic antenna	Ceramic antenna	Ceramic antenna	Ceramic antenna	Ceramic antenna
Receive Channel	72 search channels	72 search channels	72 search channels	72 search channels	72 search channels
Baud Rate	115200	115200	115200	115200	4800-921600， default 115200
Output Protocol	NMEA、UBLOX dual agreement	NMEA、UBLOX dual agreement	NMEA、UBLOX dual agreement	NMEA、UBLOX dual agreement	NMEA、 UBLOX dual agreement
Compass	QMC5883L	/	QMC5883L	/	/
Output Frequency	1Hz-10Hz, default 10Hz	1Hz-10Hz, default 10Hz	1Hz-10Hz, default 10Hz	1Hz-10Hz, default 10Hz	1Hz-18Hz, default 10Hz
Speed Accuracy	0.05m/s	0.05m/s	0.05m/s	0.05m/s	0.05m/s
Horizontal Positioning Accuracy	2D ACC1.5m（open air）	2D ACC1.5m（open air）	2D ACC1.5m（open air）	2D ACC1.5m（open air）	2D ACC1.5m（open air）
Receive Sensitivity	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm
Working Temperature	-40℃～+85℃	-40℃～+85℃	-40℃～+85℃	-40℃～+85℃	-40℃～+85℃
Storage Temperature	-40℃～+105℃	-40℃～+105℃	-40℃～+105℃	-40℃～+105℃	-40℃～+105℃
