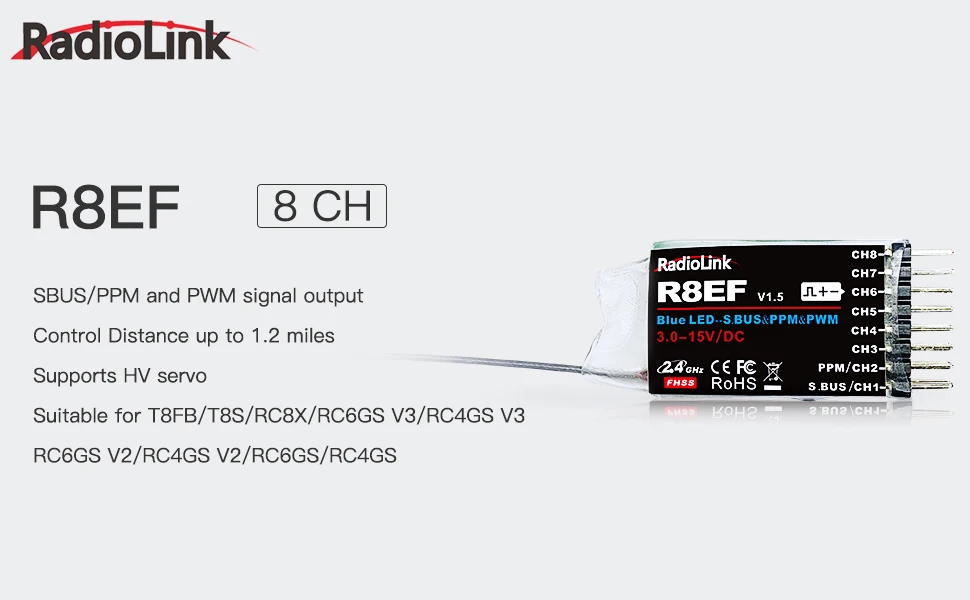

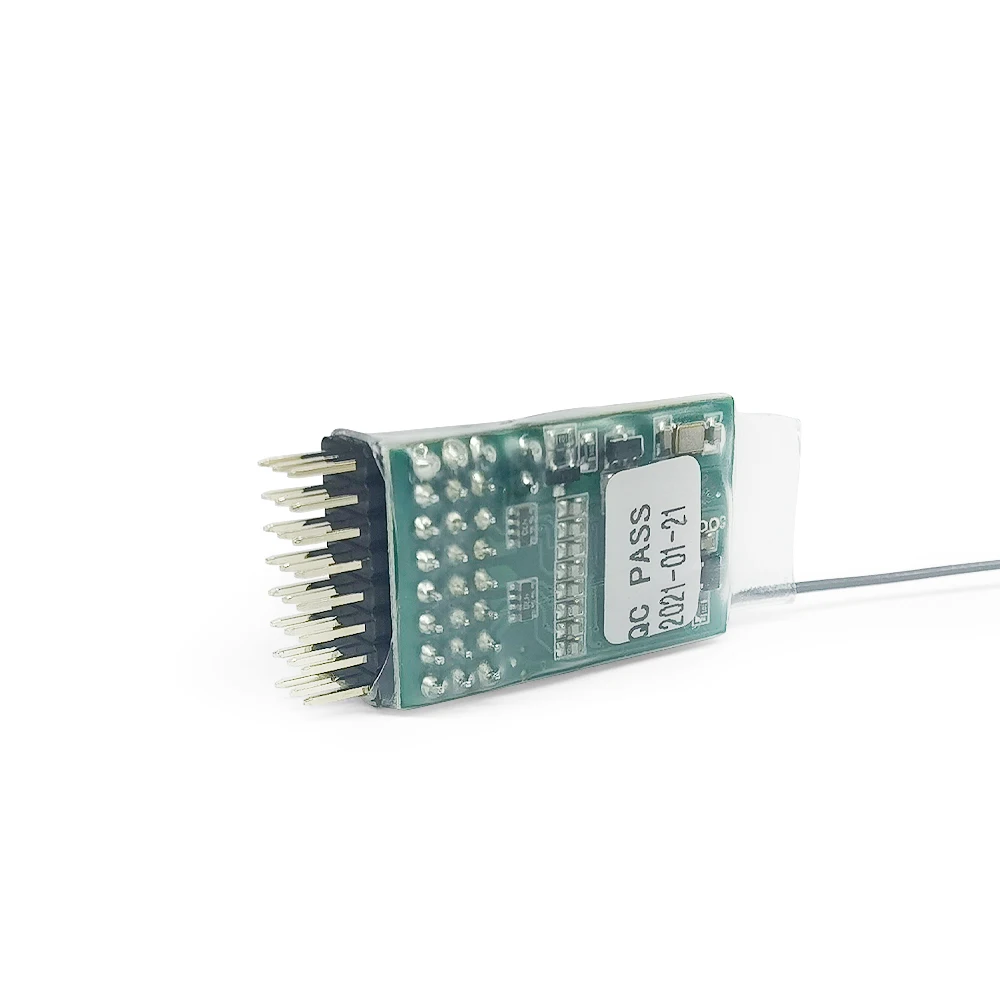

R8EF 8 Channel Receiver Full Features:
Excellent Anti-interference:Support SBUS/PPM/PWM signal output, 2.4G 8 Channels with FHSS algorithm reduce overall signal interference.
Long Range Control:Outstanding range over 1.2 miles in the air, good choice for FPV drone, fixed wing.
Reverse Polarity Protection:even the polarities are mistakenly connected which not damaged. Support 4.8~10V high voltage servo.
Easy to Bind:wireless bind to transmitter only 1 second.
Works with many types radio T8S T8FB RC4GS RC6GS.
Please note:

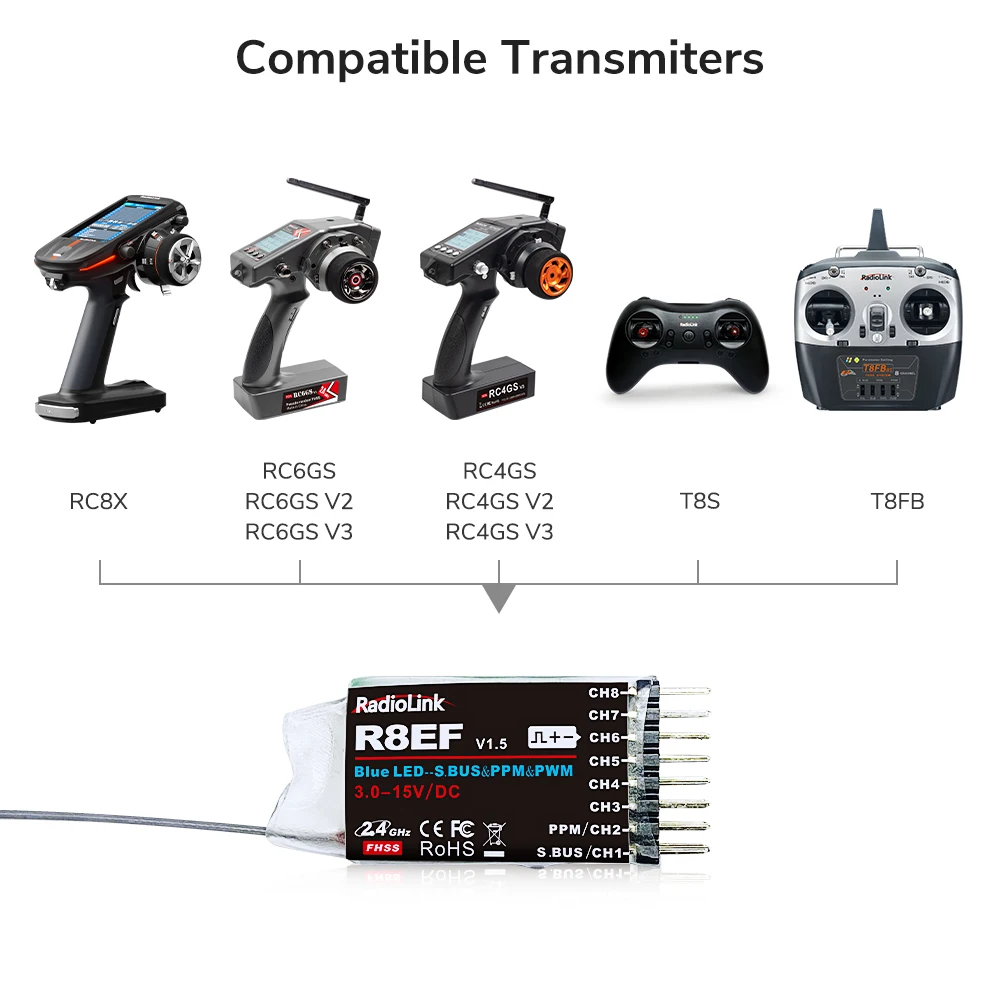

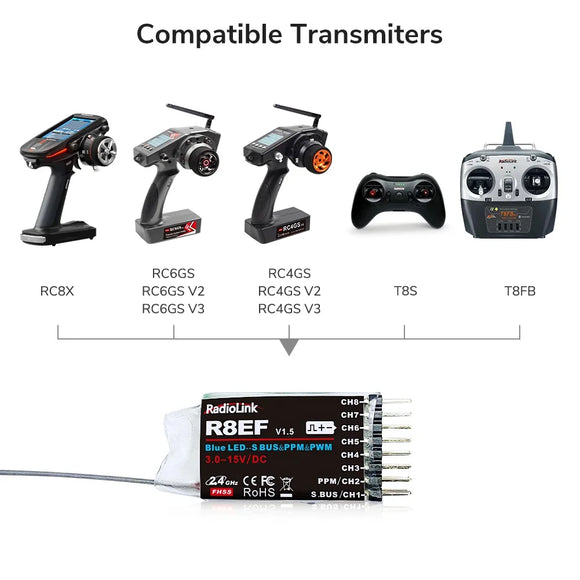

1.R8EF 8CH receiver only work with Radiolink transmitter products:T8FB/T8S/RC4GS/RC6GS/RC4GS V2/RC6GS V2/RC4GS V3/RC6GS V3

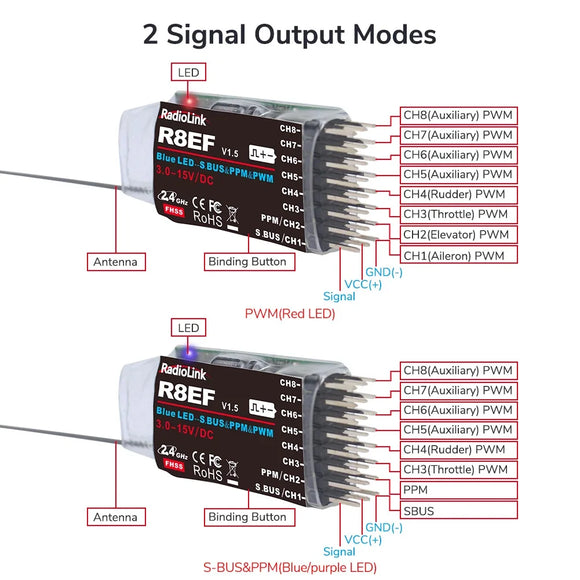

S-BUS and PPM signal change:
1.Quick press the ID SET switch 2 times within 1 second, the signal is changed from PWM to S-BUS&PPM.
2.Red LED indicates PWM signal output with 8 channels totally work, blue/purple LED indicates SBUS&PPM signal output, 8 channels totally work.
3.SBUS and PWM signal possible working at the same time with SBUS&PPM signal output working mode. CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.
How tobindwith transmitter:
1. Put the transmitter and the receiver close to each other about 50 centimeters.
2. Turn on the transmitter, then power on the R8EF.
3. There is a black button on the R8EF, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.
Specifications:
Channels: 8 channels
Working voltage: 3-15V
Working current: 30mA（input voltage: 5V）

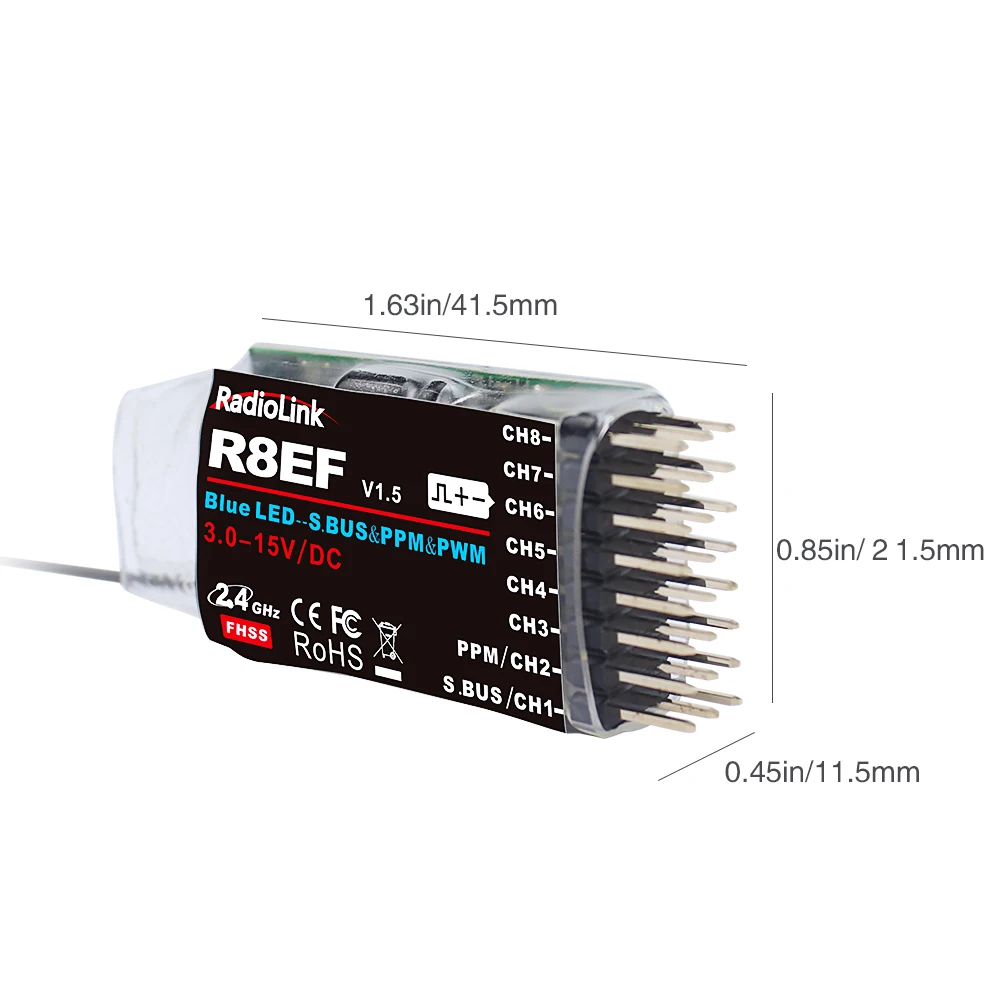

Size: 48.5*21*11mm/1.9*0.8*0.4in
Weight: 7g/0.015lb
2048 section precision, 0.5us per section, servo anti-shake rudder.
Control distance: 2000 meters air, actually control distance depends on the environment.
