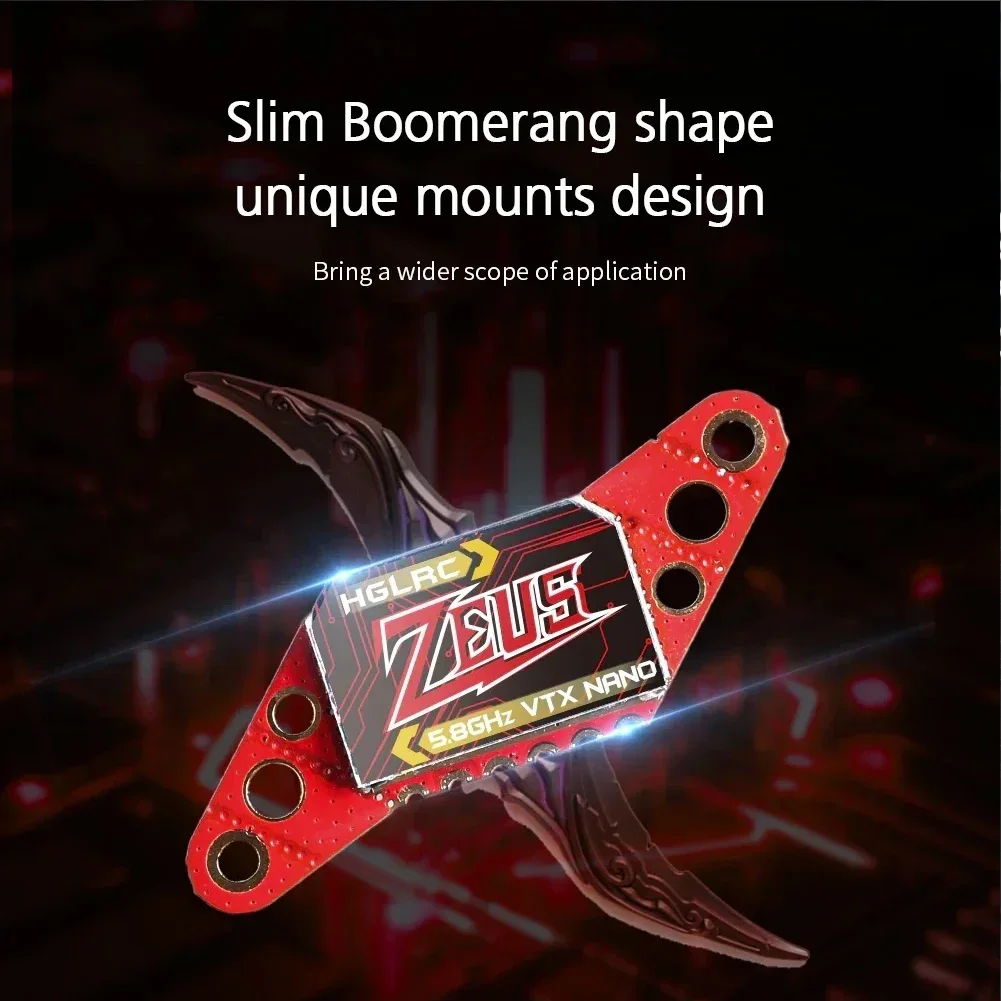

Product name: Zeus nano 300mW VTX
Built-in microphone
Support voltage: DC 5V
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
350mW@400mA/27.5dBm
Antenna interface: ipex

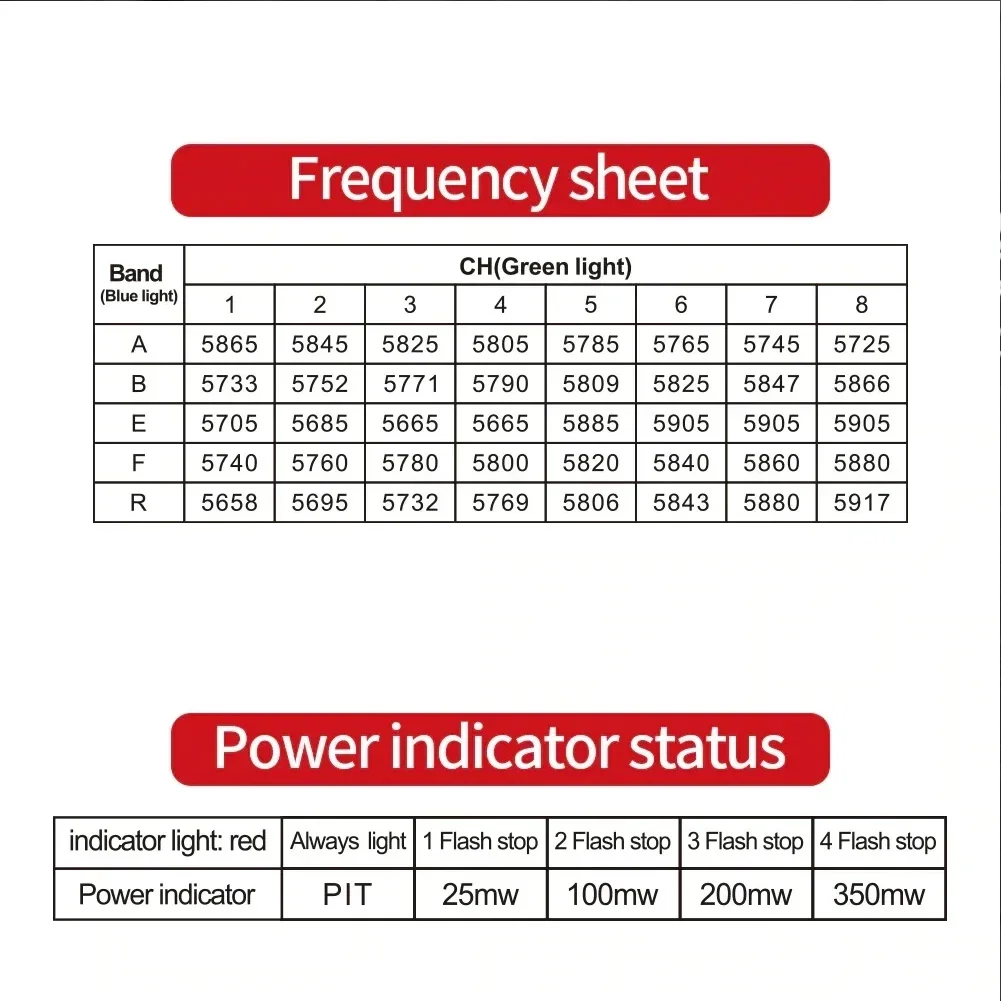

Output power: PIT/25/100/200/350mW
Standard 40 channels. A/B/E/F/R frequency group

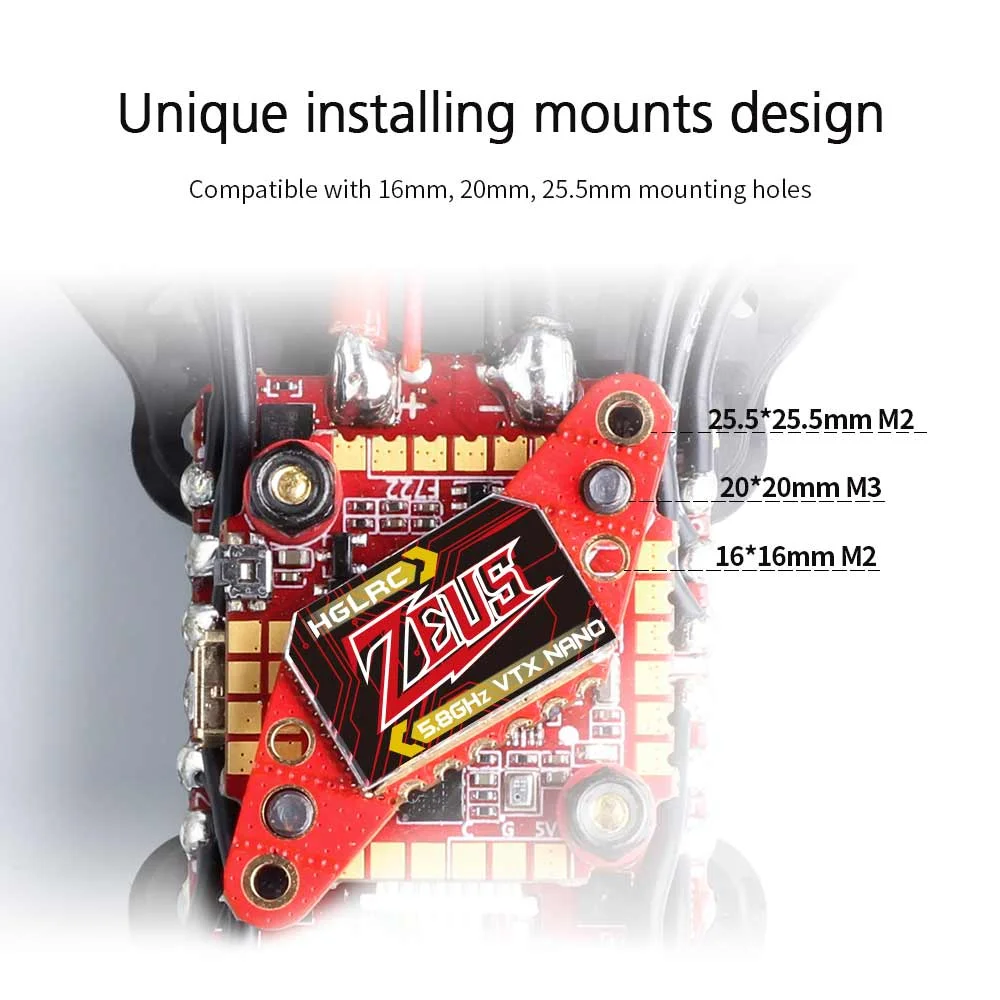

Mounting hole: 16X16 / 25.5X25.5mm.M2 / 20X20mm.M3

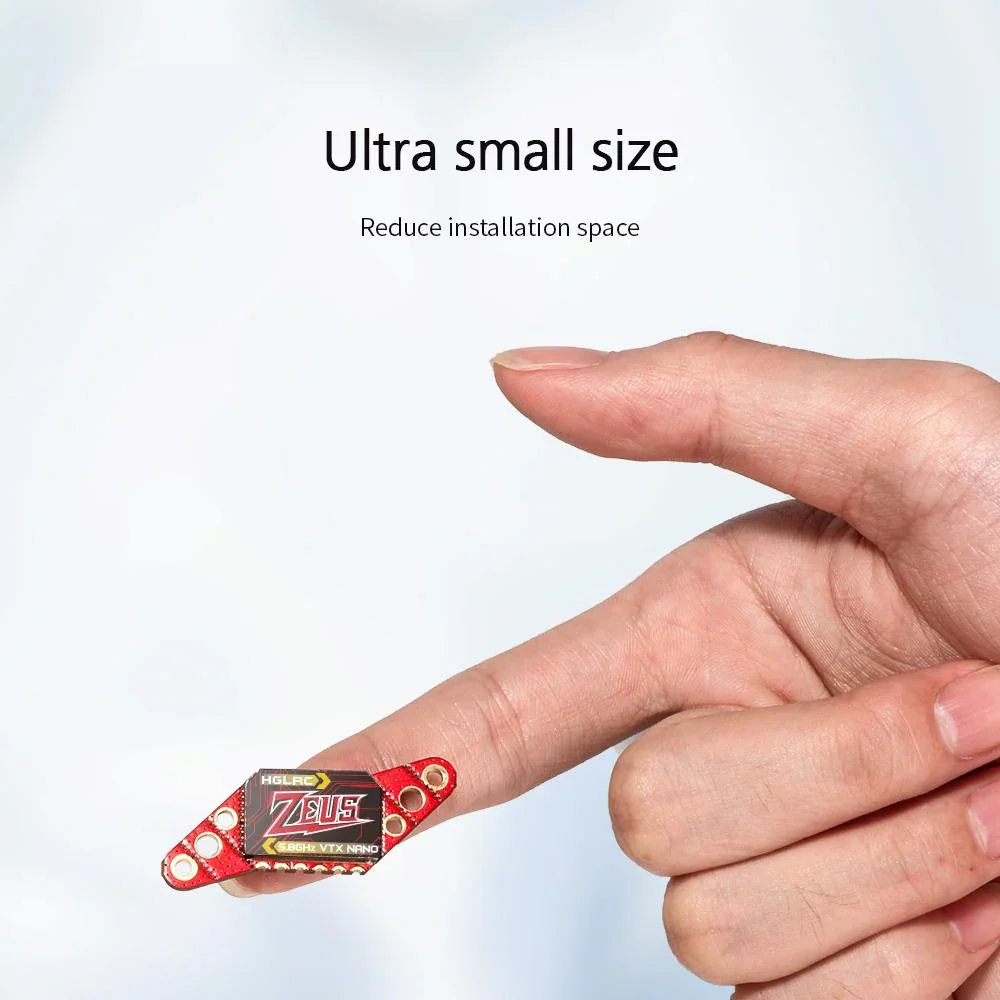

Size: 18.6mm x 13.6mm x 6mm
Weight: 2.4g
Product List:
1 x Zeus nano VTX
1 x ipex interface copper tube antenna
1 x ipex to SMA adapter
6 x video transmission cable

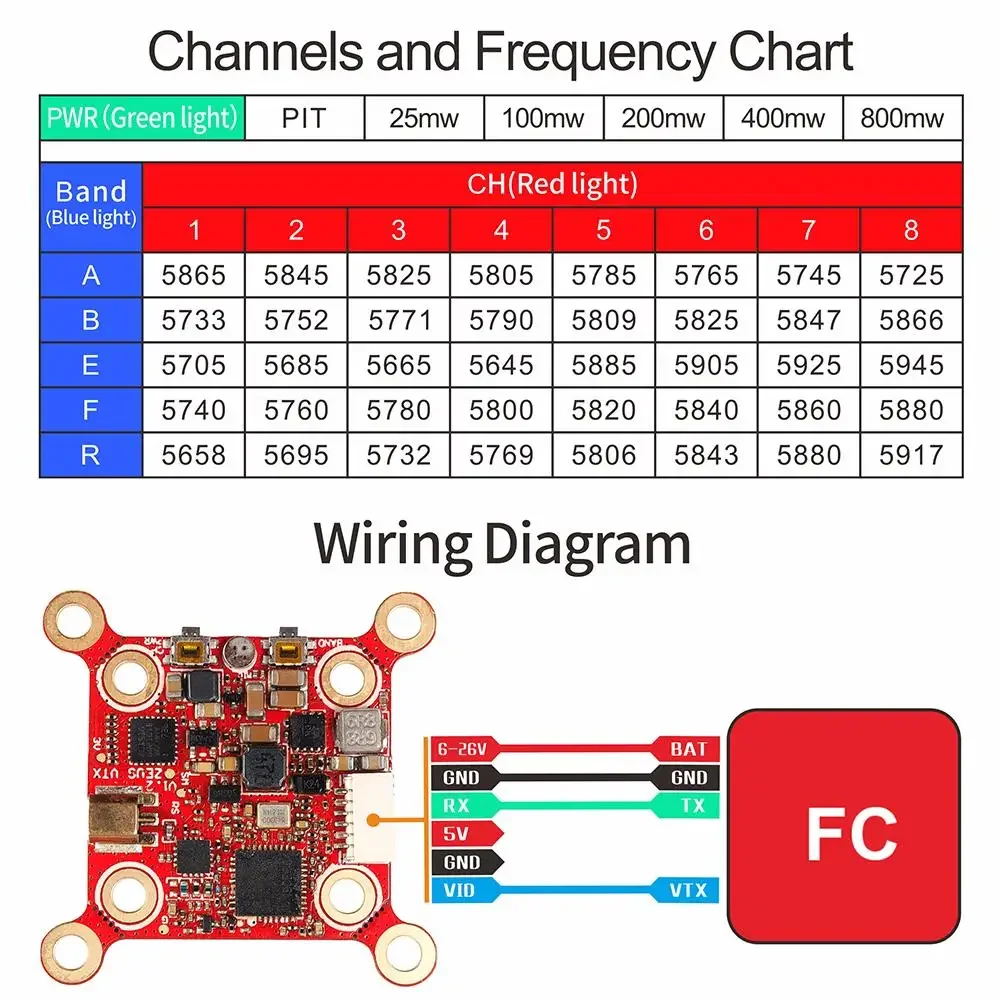

Model:Zeus VTX 800mW

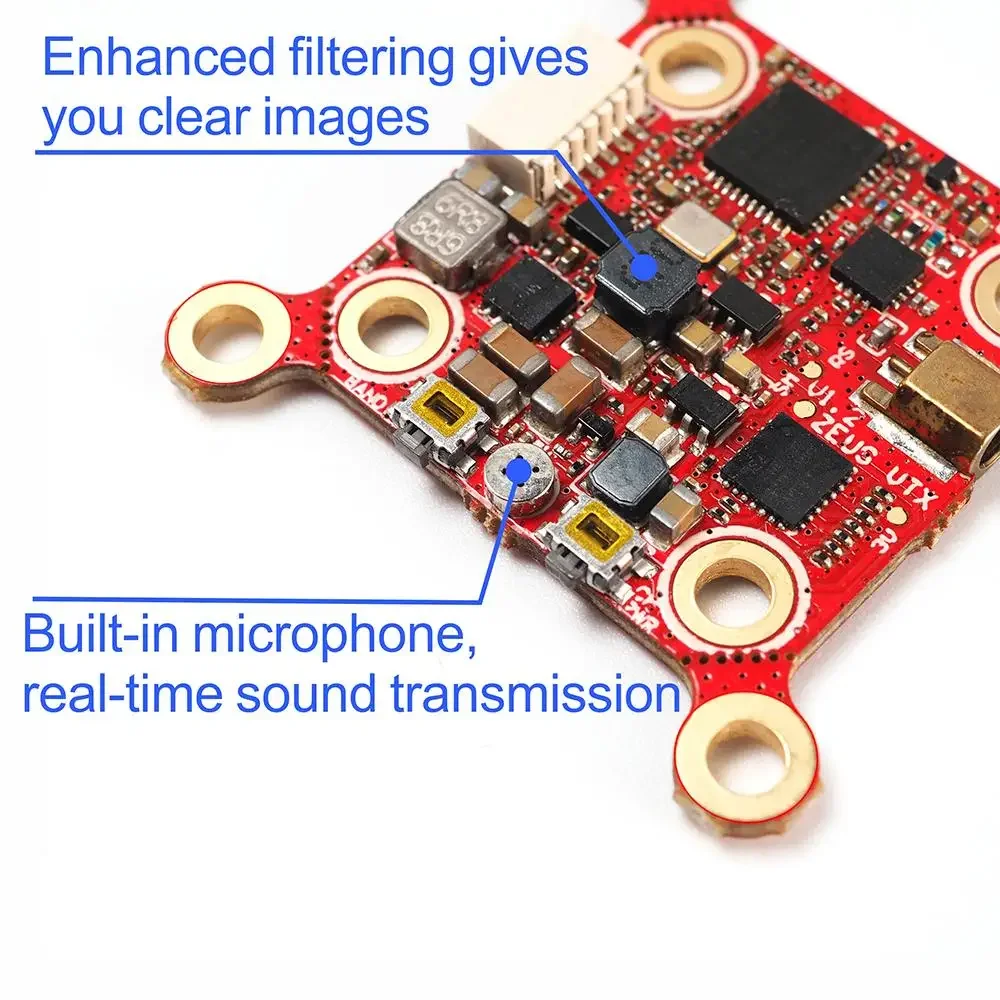

Built-in Microphone
Input voltage:DC 6-26V
Output voltage:5V/2A
PIT@94mA
25mW@169mA/14dBm
100mW@199mA/20dBm
200mW@216mA/23dBm
400mW@279mA/26dBm
800mW@387mA/29dBm
Antenna interface:MMCX
Output power:PIT/25/100/200/400/800mW
Frequency:5.8GHz 5 bands, 40 channels
Installing Hole:20X20/30X30mm.M3
Size:37mm x 37mm x 5mm
Weight:4.8g
Package Included:
1 x Zeus VTX 800mW
1 x 80mm 5.8G MMCXLinear Brass Antenna
1 x SH1.0 6Pin 100mm Cable
1 x MMCX to SMA-KY Adapter Cable

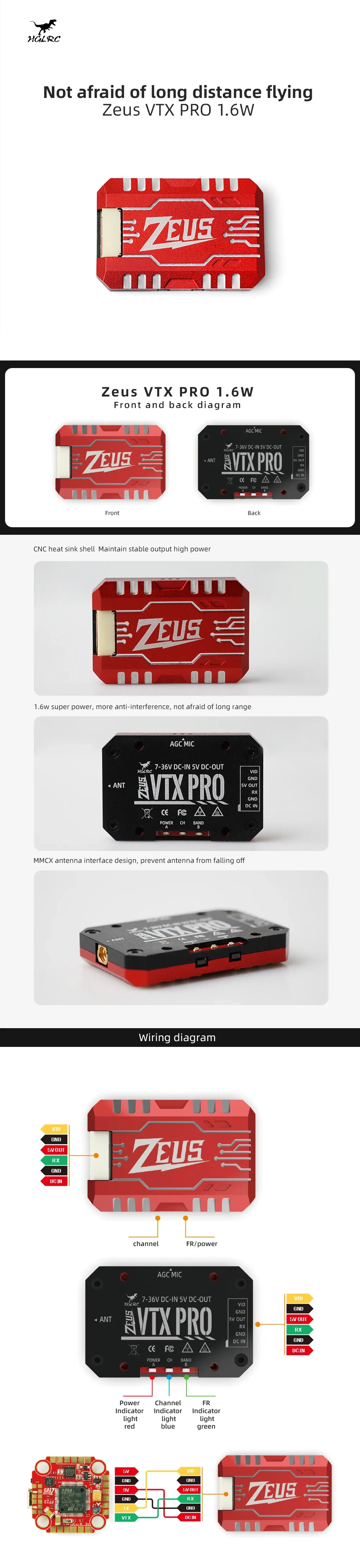

Item: HGLRC Zeus VTX PRO 1.6W 5.8G
Parameters:
Model:Zeus VTX PRO 1.6W
Built-in Microphone
Input voltage:DC 7-36V
Output voltage:5V/500mA
PIT
25mW/13.95dBm
400mW/26.02dBm
800mW/29.03dBm
1.6W/32.04dBm
Antenna interface:MMCX
Output power:PIT/25/400/800/1.6W
Standard 40 channels. A/B/E/F/R frequency group
Installing Hole:20X20.M2
Size:25mm x 37mm x 6.5mm
Weight:13g
Package Included:
1 x Zeus VTX PRO 1.6W
1 x 80mm 5.8G MMCX Linear Brass Antenna
1 x MMCX to SMA 100mm Adapter Cable
1 x GH1.25 6Pin 100mm Cable
Product name: Zeus VTX 2.5W
Support voltage: DC 7-26V (2-6S)
BEC: 5V/800mA
Antenna interface: MMCX
Cable interface: GH1.25 6P
Video format: PAL/NTSC
Standard 40 channels: A/B/E/F/R frequency group
Protocol: IRC Tramp
Output power: PIT/25/200/800/1600mW/2500mW
PitMode/0dbm
25mW/13.95dBm
200mW/23.01dBm
800mW/29.03dBm
1.6W/32.04dBm
2.5W/33.98dBm
Installation hole position: 30.5*30.5*M3
Dimensions (L*W*H): 40mm x 35mm x 11.8mm
Weight: 19.6g
Product List:
1x Zeus VTX 2.5W
1 x MMCX 80mm copper tube antenna
1 x MMCX to SMA 100mm adapter
1 x GH1.25 6Pin 100mm single-ended cable
1 x SH1.0 4Pin-GH1.25 6Pin 60mm double-ended cable
