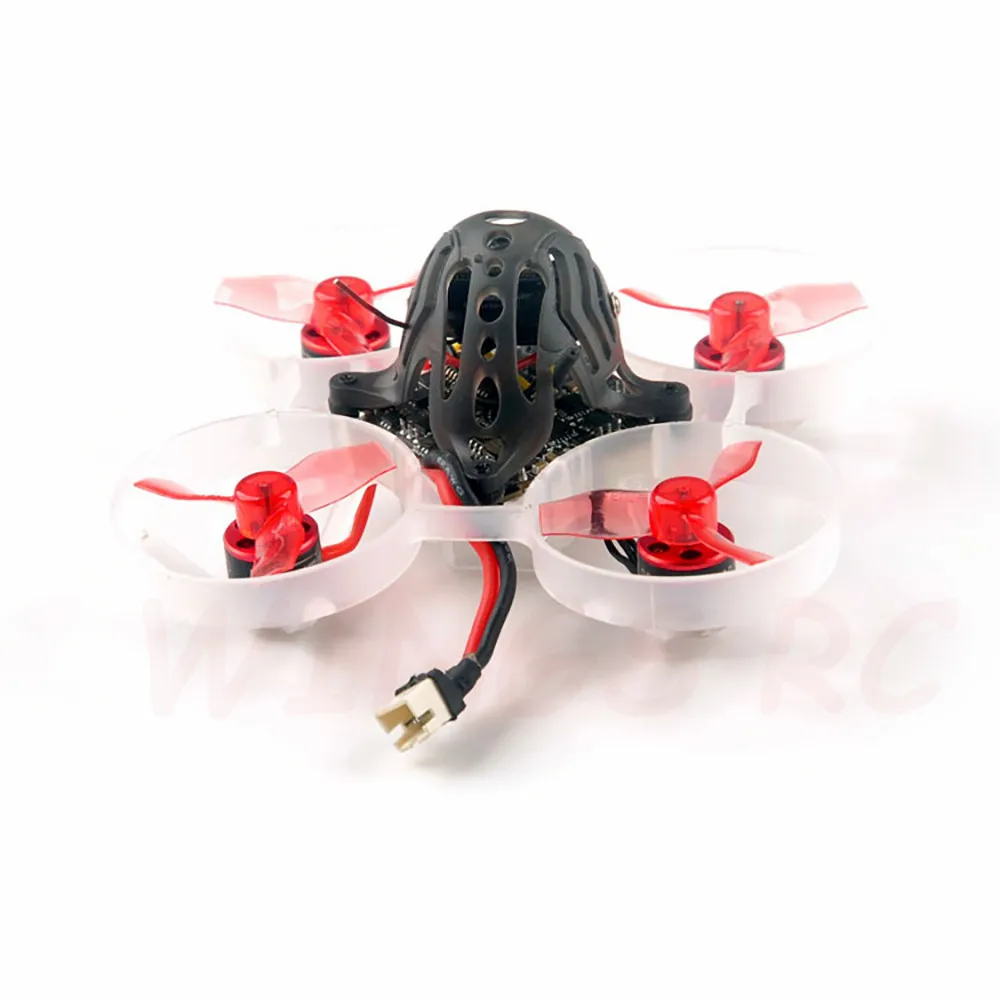

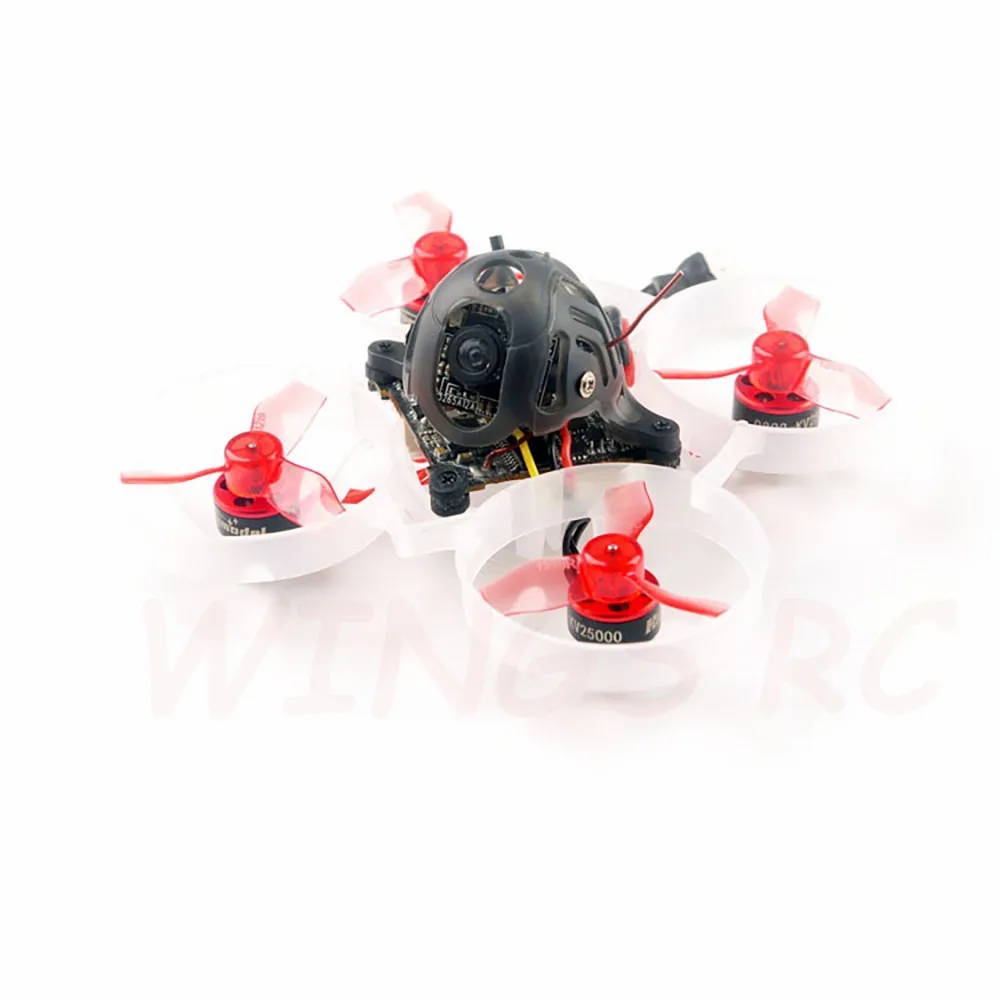

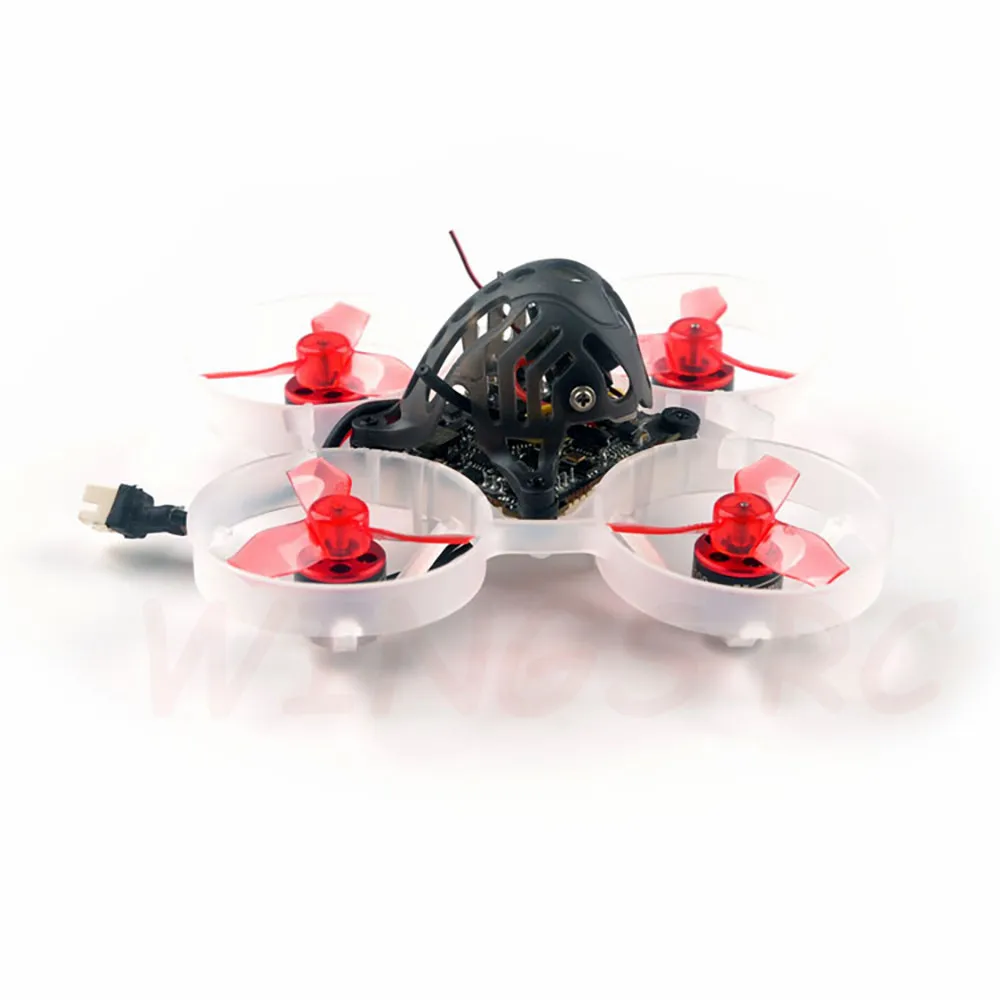

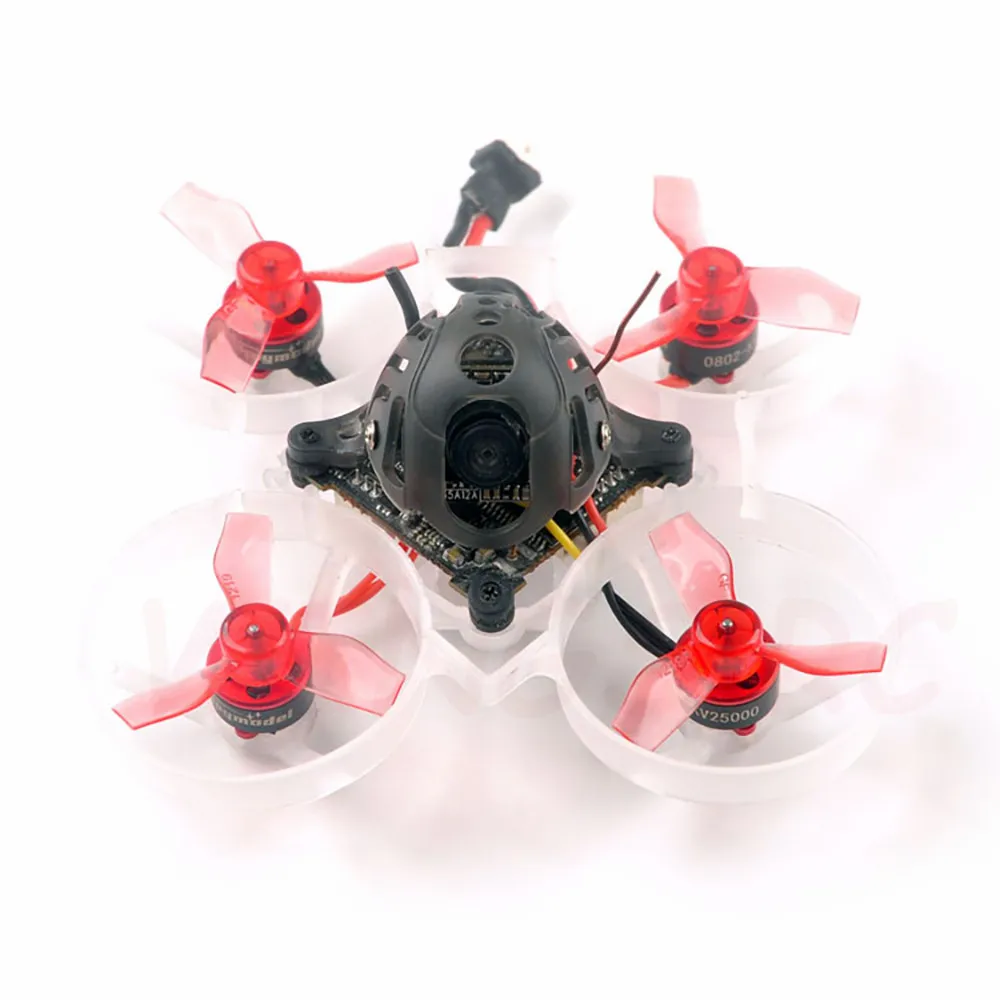

The newly launched Mobula6 1S indoor brushless whoop ride-through machine, Mobula6 is a highly integrated ultra-small 1S indoor brushless Whoop ride-through machine with a wheelbase of 65mm. The integrated Crazybee F4 Lite flight control integrates OSD, Dshot ESC, 2.4G SPI receiver, 5.8G VTX, etc., 0802 motor KV19000/25000KV motor with 31mm propeller, provides you with strong flight power, this winter, mobula6 indoor crossing The machine is your best choice.
Spare parts specifications:
Brand: Happymodel
Model: Mobula6
Wheelbase: 65mm
Size: 80mm*80mm*37mm

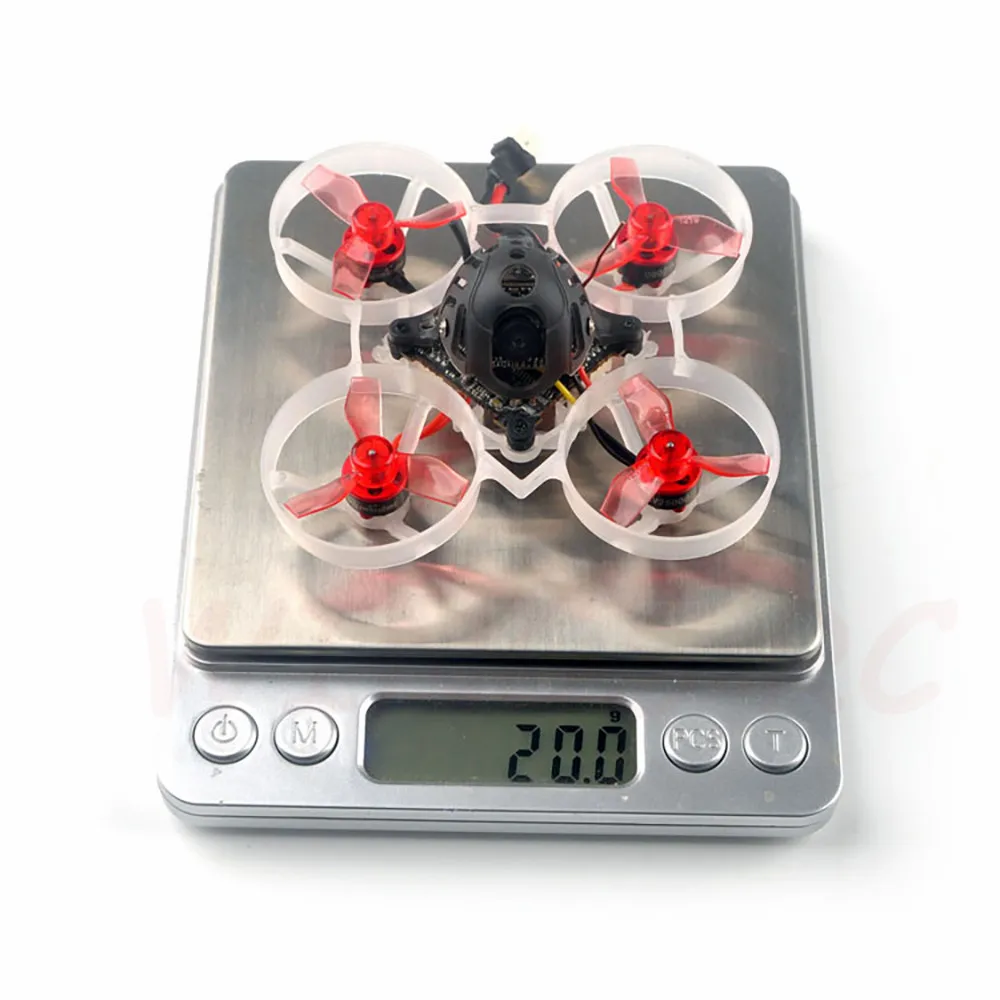

Weight: 20 grams (without battery)
Features:
Crazybee F4 Lite flight controller supports 1S lithium battery (lihV).
1S indoor whoop ride-through machine, with 0802 motor, strong power.
Support Betaflight parameter adjustment, multiple flight modes.
Integral injection-molded Tiny Whoop structure.
Frsky and Flysky versions are highly integrated motherboards with integrated OSD, Dshot ESC, 2.4G SPI receiver, 5.8g 25mw 40CH VTX.
Integrated Betaflight OSD function, keep abreast of flight voltage and receiver signal, and fly more calmly VTX comes with Smartaudio function, you can adjust the flight control parameters through the OSD to adjust the flight control PID, and adjust the VTX frequency parameters.
Fully assembled and debugged, you can connect to the remote control and fly immediately.
The receiver can choose Frsky D8 version (compatible with ACCST D8 / D16, D8 mode is recommended), Flysky version (AFHDS/AFHDS-2A switchable).

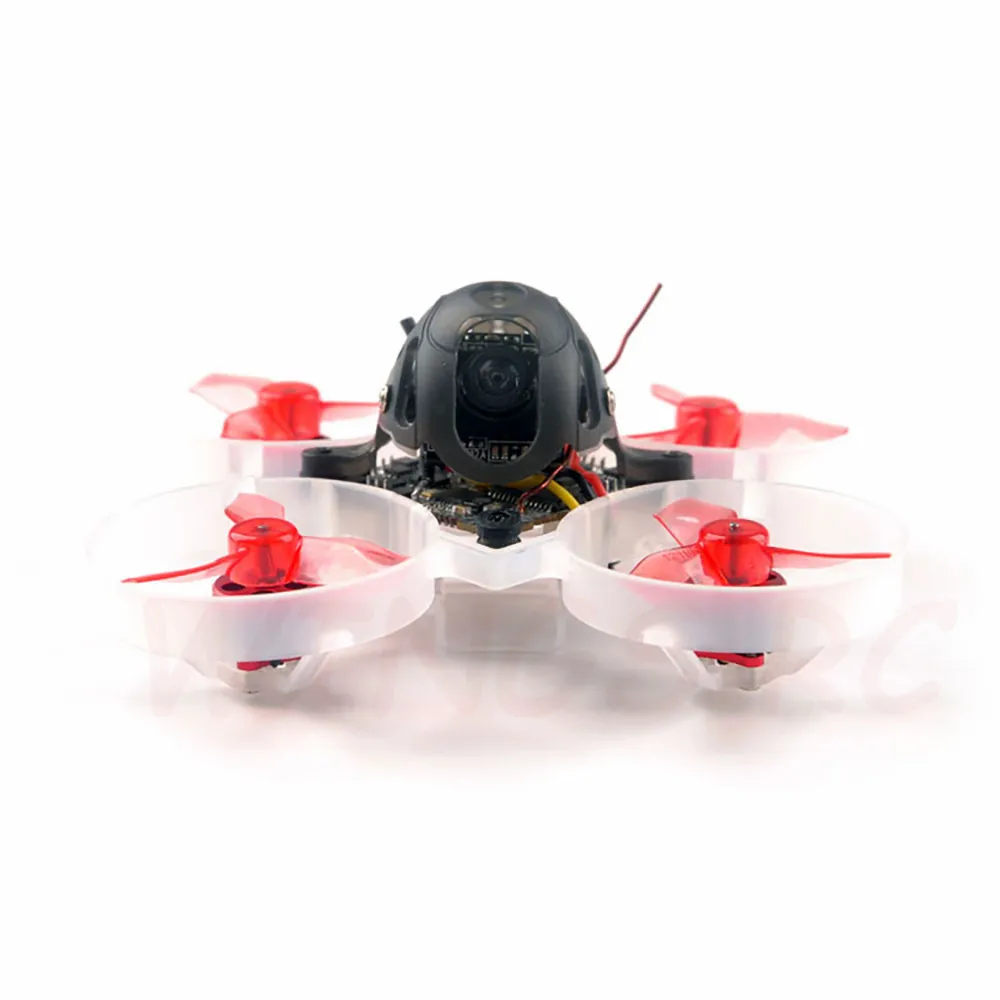

The camera tilt angle is adjustable.

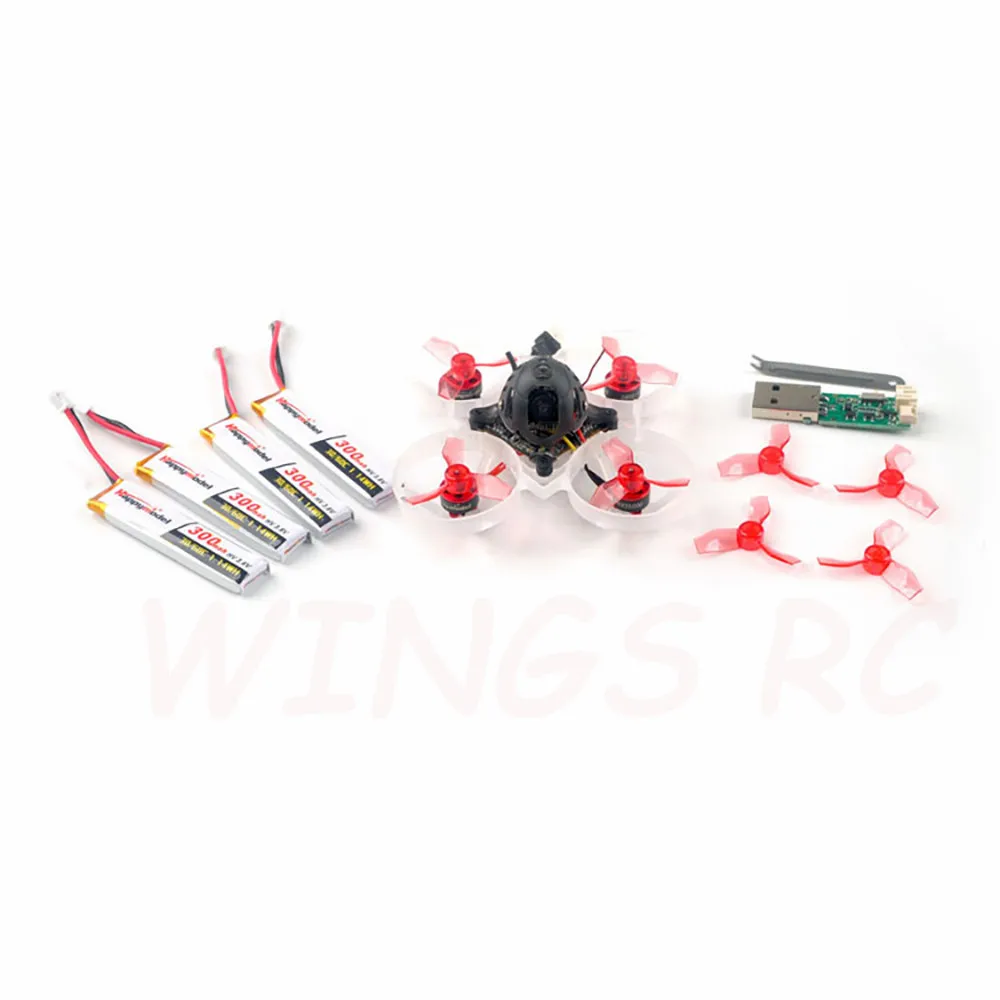

The package includes:
Mobula6 1S 65mm Rack x1
Crazybee F4 Lite flight controller x 1（Frsky SPI RX）or（Flysky SPI RX）
SE0802 KV19000 x 4 or KV25000 x 4
Gemfan 1219 Three-Blade Propeller (4cw + 4ccw)
Runcam Nano3 1/3 CMOS 800TVL x 1
5.8G 25mw 40ch vtx (built-in flight controller)
1S 300mah 30C LiHV battery x 4
1S Lipo/LIHV USB Charger x 1
paddle remover x 1
Spare parts specifications:
Motor Mode: SE0802 19000KV or KV25000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only
Propellers Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g
Flight controller :
(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard Flysky SPI receiver Version SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support
Onboard 5.8g VTX Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Runcam Nano3 Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
Lipo Battery Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0
