Product Features
1. Streamlined high-strength frame: adopts a newly designed slender body, combining aesthetics and sturdiness to achieve a perfect balance between shape and high strength:
2. Wear-resistant injection molded parts: abandon traditional FDM prints, use high-wear-resistant mold injection ABS\PP parts, significantly improve shock absorption and buffering performance and overall durability;
3. Fully covered side plate protection: The side plate of the fuselage are fully covered to protect the internal electronic equipment without fear of flying sand and rocks intrusion;
4. Independent quick-release receiver compartment: a dedicated independent receiver compartment is set up to say goodbye to the crowded and messy internal frequency debugging, maintenance and replacement are convenient and efficient:

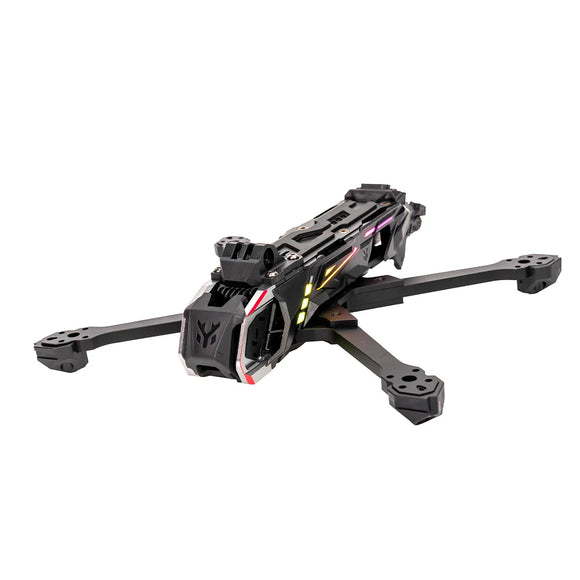

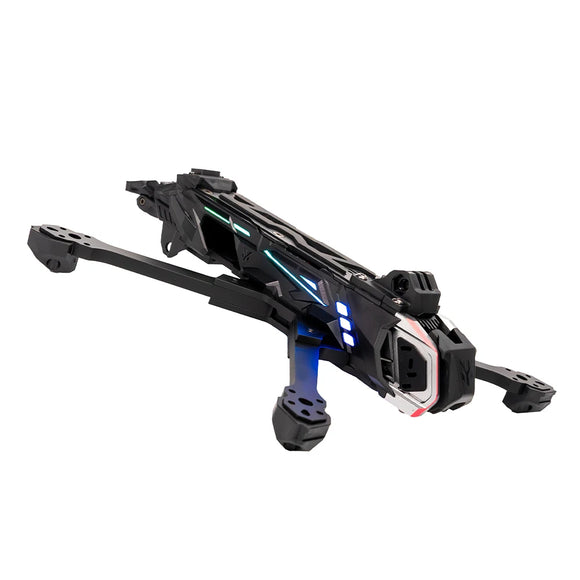

5. Colorful RGB lighting effect system: equipped with colorful RGB LED light strips, support independent APP wireless control, customized lighting effects, let your drone become the most dazzling focus in the night sky.

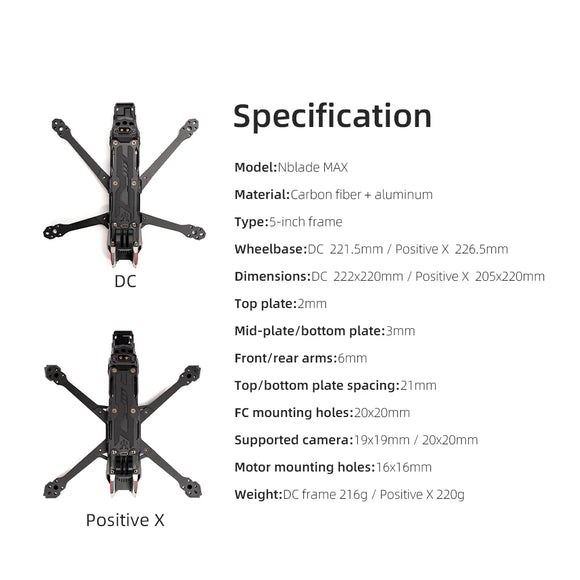

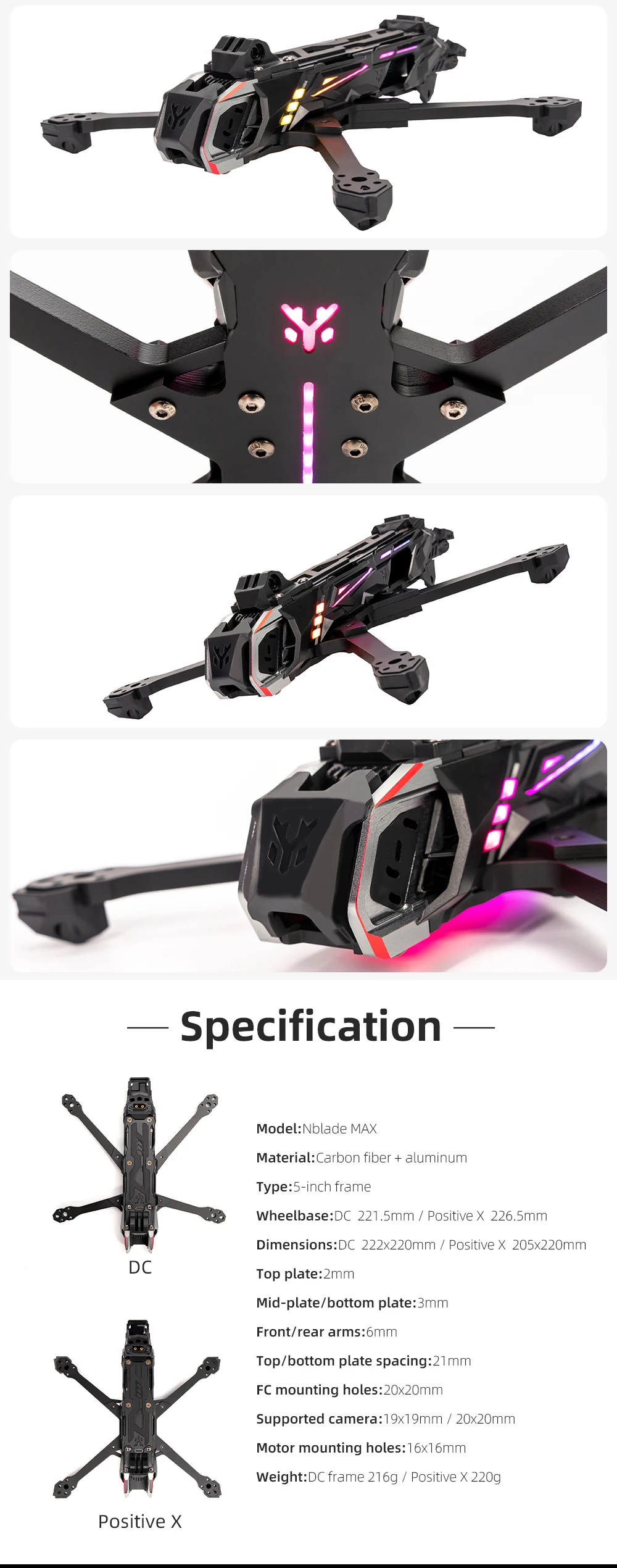

Product parameters

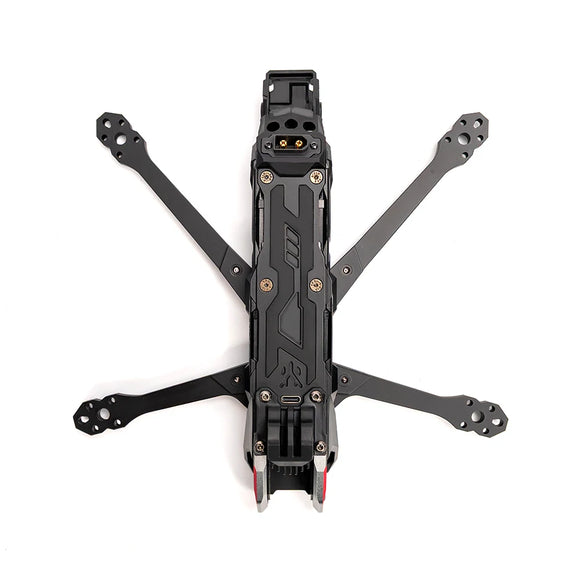

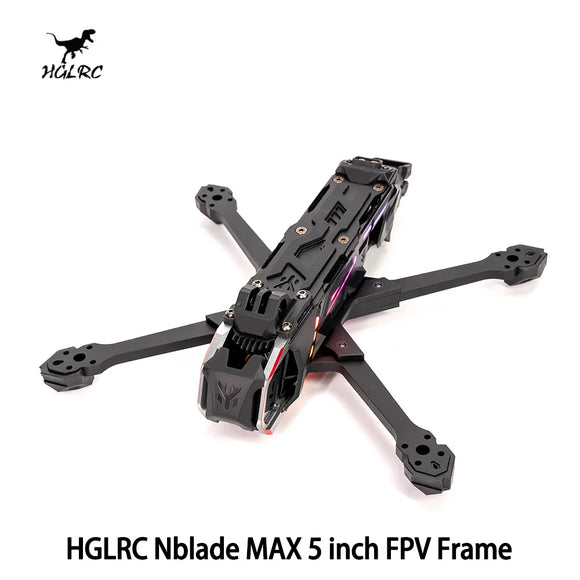

Product name: Nblade MAX

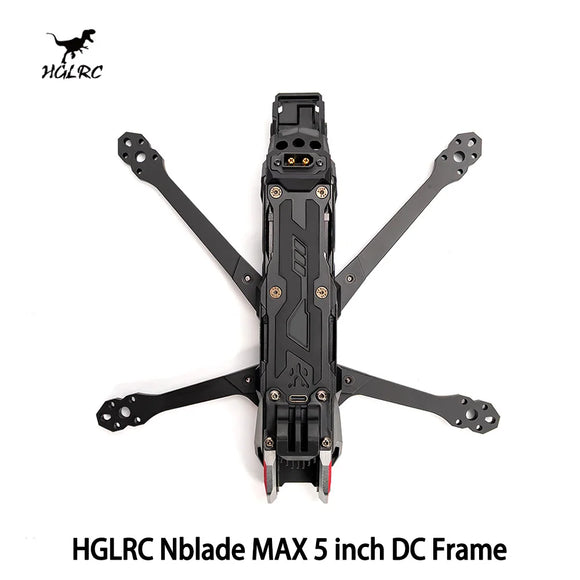

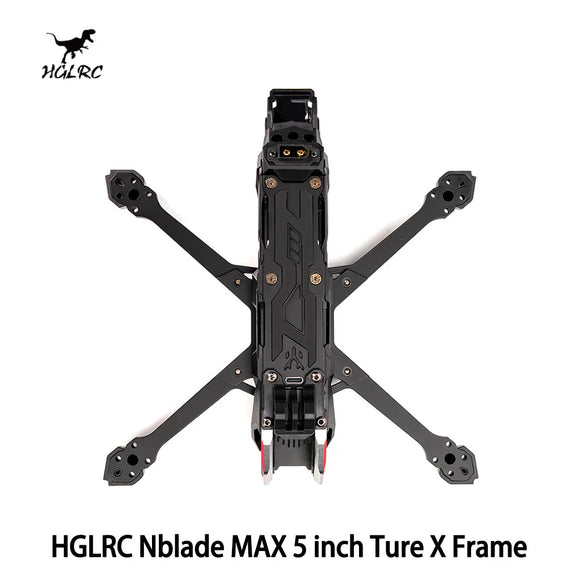

Frame: DC / Ture x 5 inches
Camera installation hole distance: 20mm/19mm

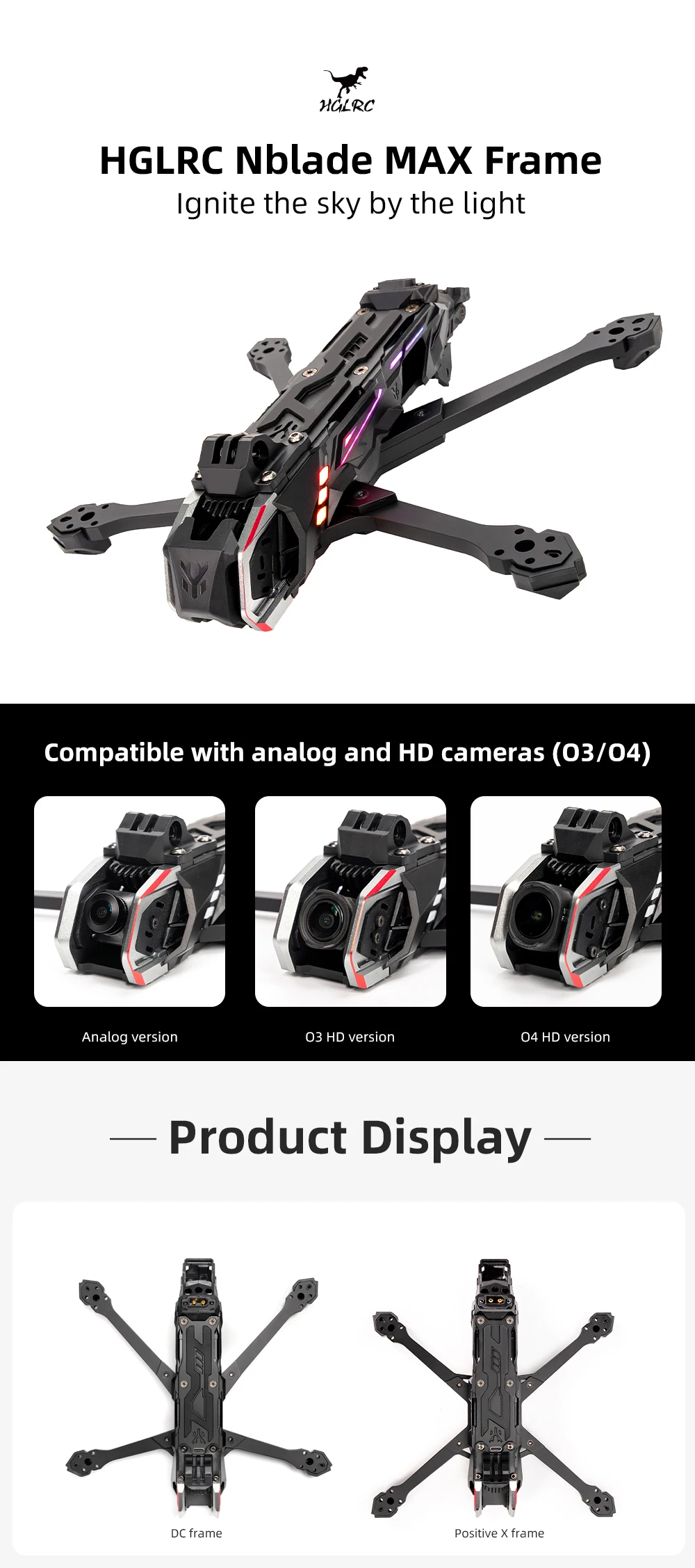

Camera installation hole position: O4, O3, analog
FC installation hole position: 20*20/30.5*30.5/φ3mm
Stack installation height 21mm
VTX installation hole position: 20*20/25*25/φ2mm
Motor installation hole distance: 19mm/φ3mm/4 holes
snap ring groove : 6mm
Applicable propeller size: 5.1inch (MAX)
Upper plate thickness: 2mm
Middle plate thickness: 3mm
Bottom plate thickness: 3mm
Arm thickness: 7mm
Head material: aluminum alloy
Receiver installation size: 20mm*11.7mm*5mm
VTX antenna installation hole position: round SMA*3
GPS installation size: 21mm*21mm
Capacitor installation size: φ10mm*45mm
Applicable VTX: DJI O4 PRO AIR Unit/ DJI O3 AIR Unit/Analog VTX
Frame weight: DC: 216g Ture X: 220g

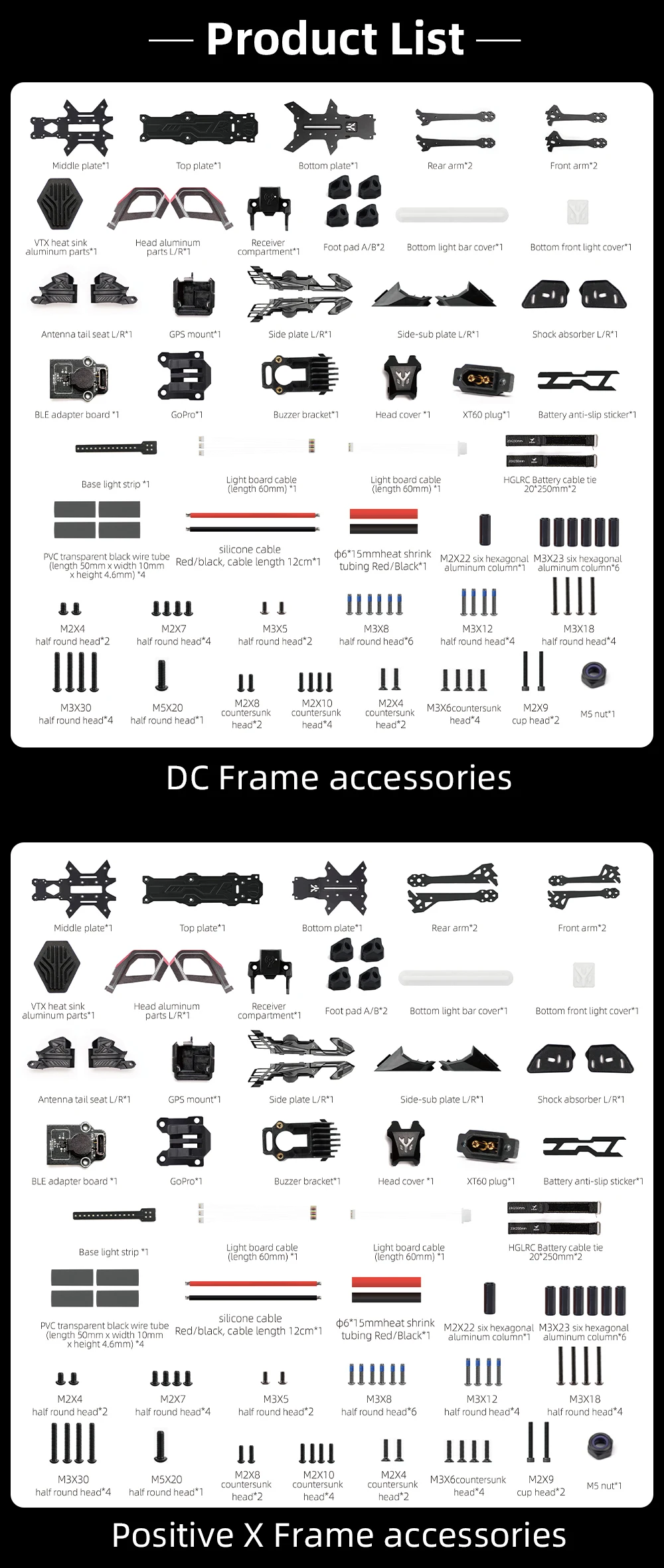

Shipping List:
Bottom plate
Middle plate
Top plate
Front arm x2
Rear arm x2
Head aluminum part L
Head aluminum part R
GoPro reinforced carbon sheet x2
VTX heat dissipation aluminum part
Camera shock pad L
Camera shock pad R
GoPro
Foot pad A x2
Foot pad B x2
Antenna tail seat L
Antenna tail seat R
GPS mount
Receiver compartment
Battery anti-slip sticker
Buzzer mount
Side plate L
Side plate R
Side sub-plate L
Side sub-plate R
Bottom light bar cover
Bottom front light cover
Head cover
Semi-circular head M5*20
Self-locking M5 nut
BLE adapter small board
Bottom light bar
0.8mm piercing terminal wire 6P
0.8mm piercing terminal wire 9P—3P*3
XT60EW-M male head
PVC cable bundle 50mm x4
HGLRC battery strap

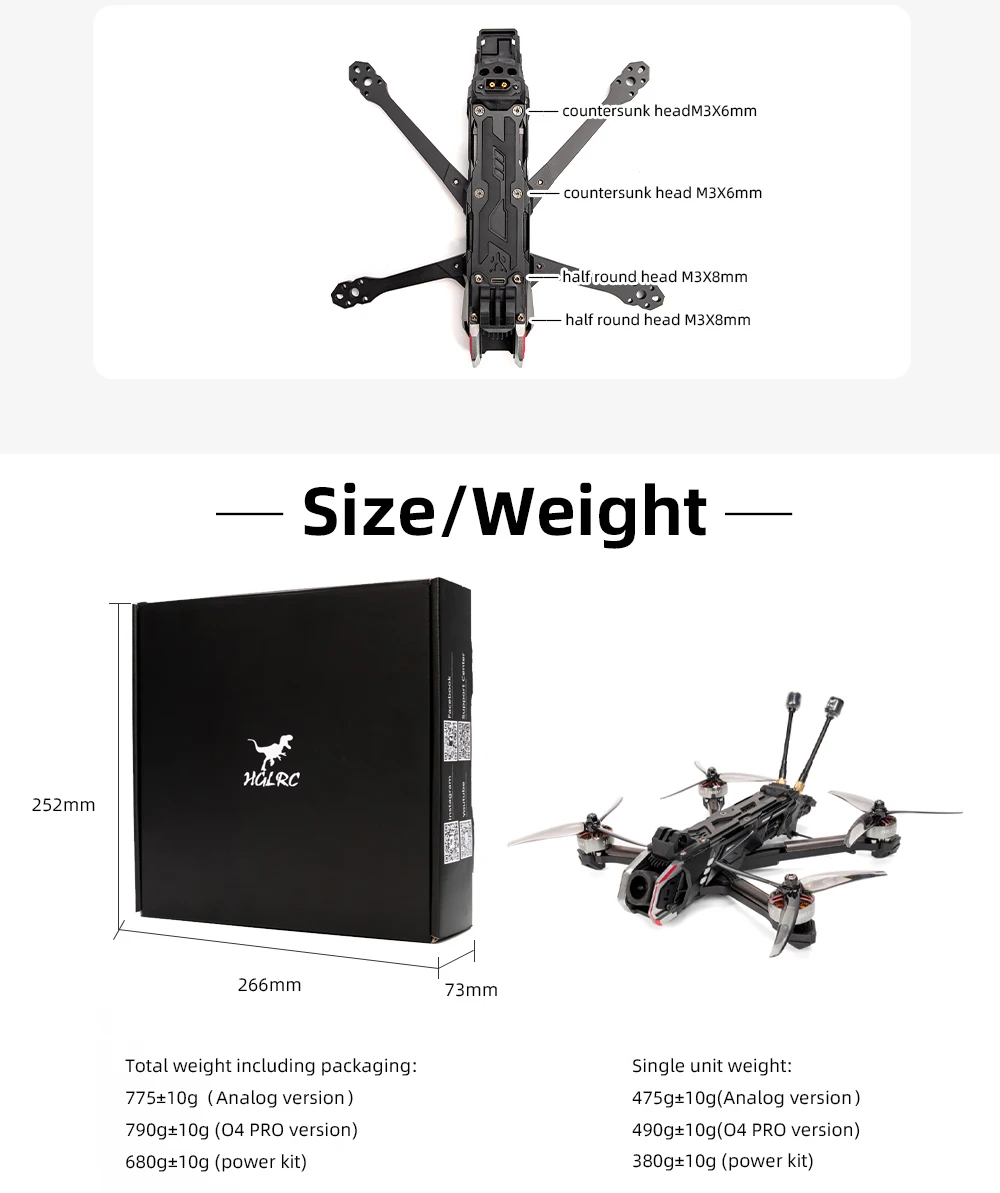

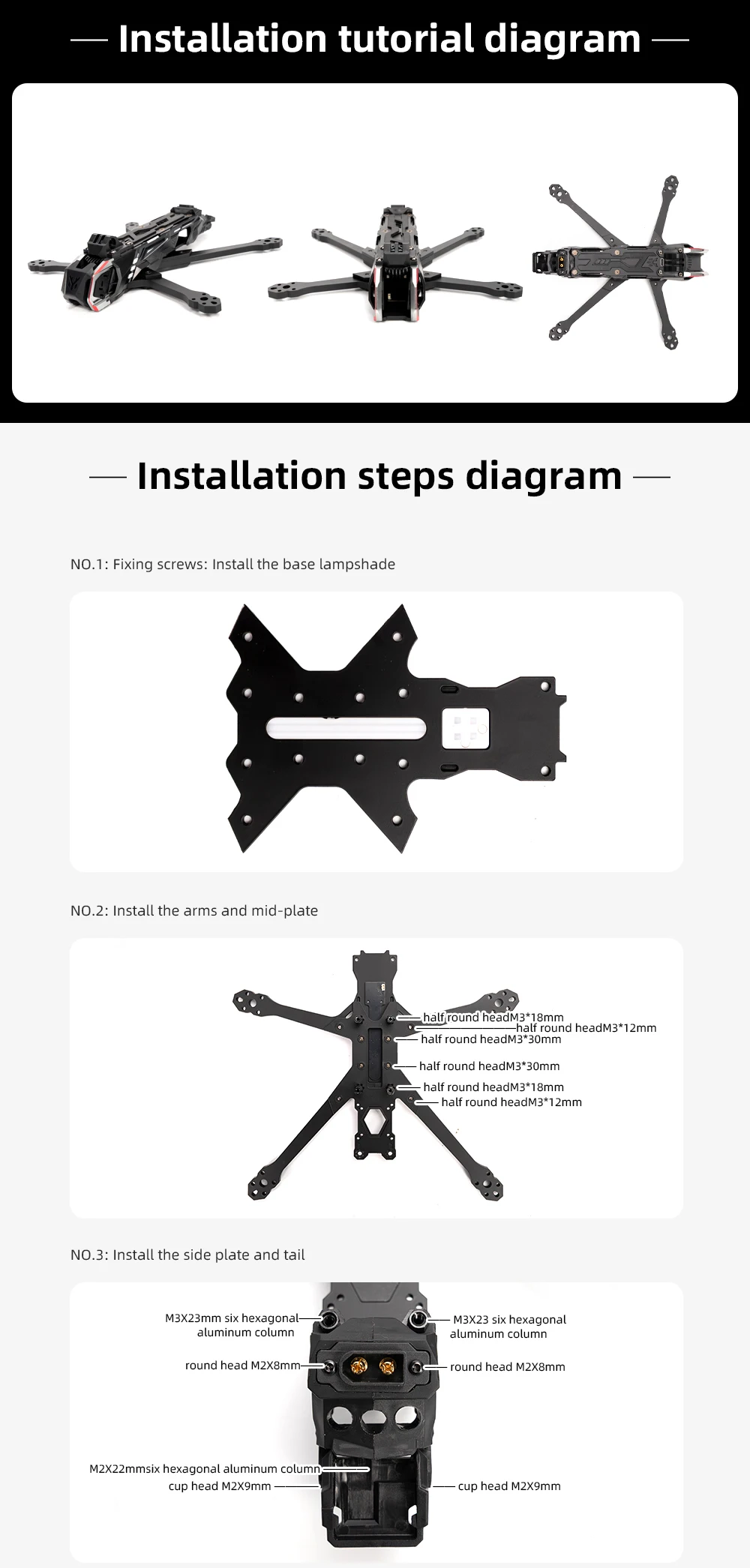

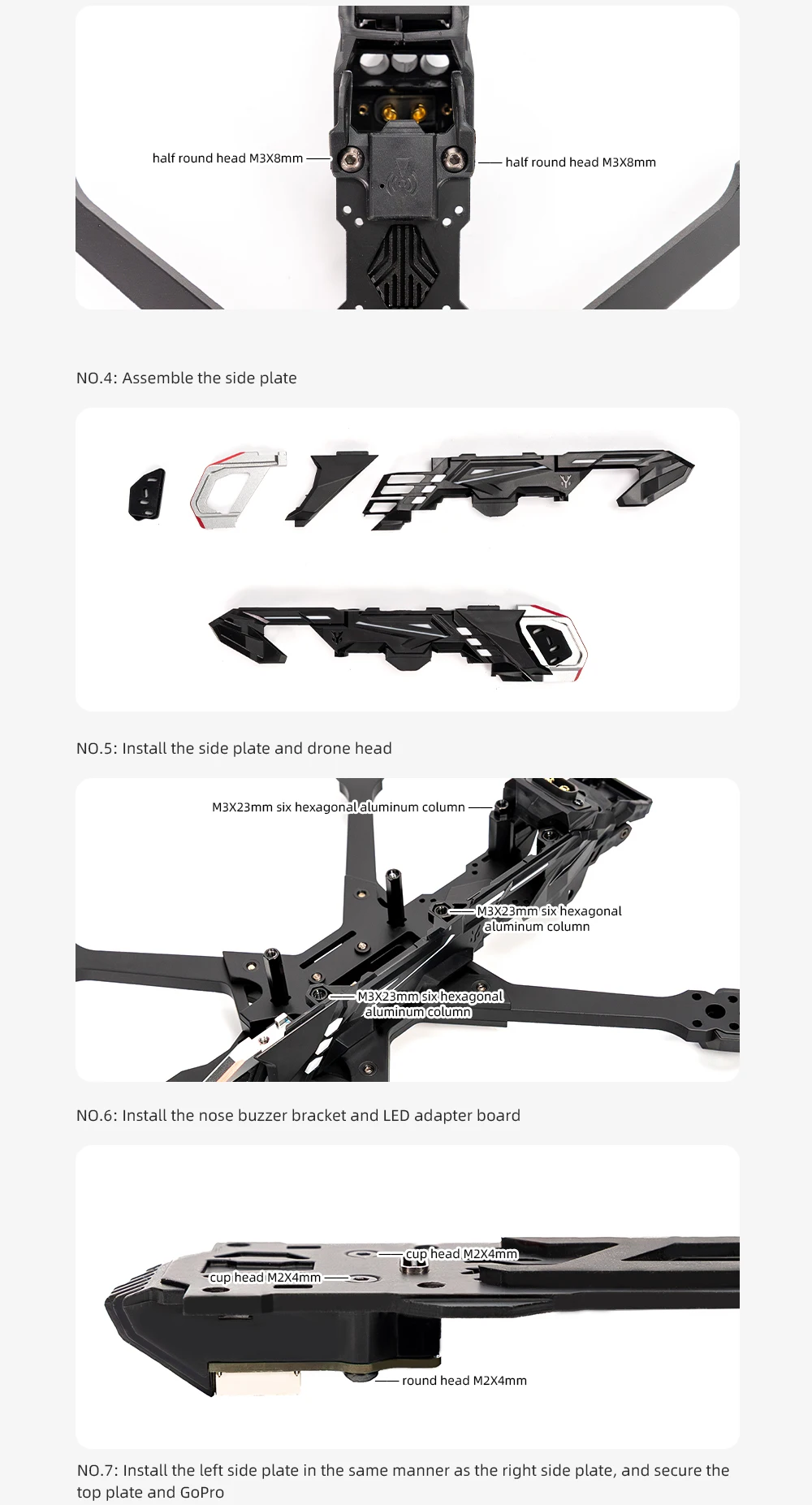

Screw List:
M3*5 half round head X2
M3*18 half round head X4
M3*12 half round head X4
M3*30 half round head X4
M3*8 half round head X6
M3*10 half round head X4
M3*6 countersunk head X4
M2*4 countersunk head X2
M2*4 round head X2
M2*9 cup head X2
M2*8 round head X2
M2*22 hexagonal aluminum column X1
M3*23 hexagonal aluminum column X6
Packing list
Nblade MAX Frame X1
HGLRC 2023 large sticker X1
Universal QR code instruction manual X1
HGLRC battery strap X2
Nblade MAX Frame packaging box X1

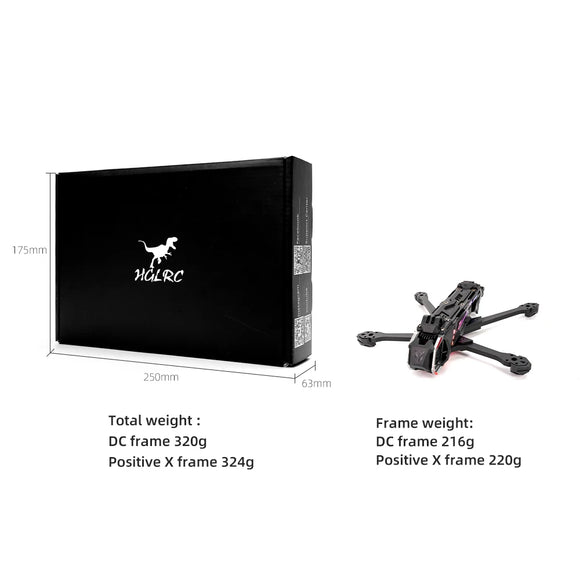

Package weight: 320g
