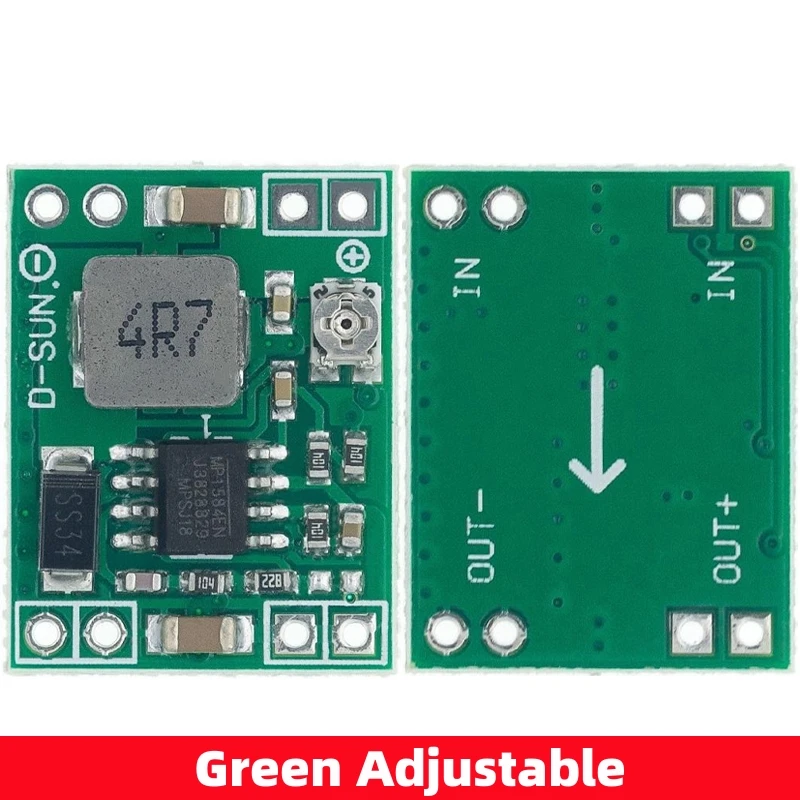

3A Green board (Adjustable Stepdown)
Application fields: DIY mobile power supply, monitoring power supply, children's vehicle power supply, camera power supply, vehicle power supply, communication equipment power supply, various occasions that have strict requirements on volume and weight (such as aviation models, etc.).
Product attributes:
Input voltage: 5V~28V
Output voltage: 3.3V (accuracy 1%)
Output current: 3A (maximum), long-term working current is about 1.5A
Conversion efficiency: 96% (maximum)
Output ripple: <30mV
Switching frequency: 1.5MHz (maximum), typically 1MHz
Working temperature: -45℃~ +85℃
Size: 22mm * 17mm * 4mm (length * width * height)
Item Description

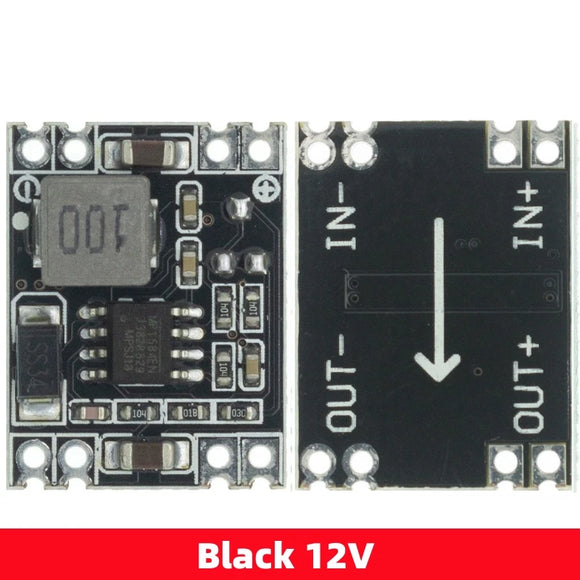

Product Name: DC-DC 3A Buck power module (12V fixed output)
Input voltage: 14-26V
Output voltage: 12V
Output Current: 3A (maximum), long working hourscontrol in less than0.8A
Conversionefficiency:96%(maximum)voltage difference(Vin-Vout> = 2V), the higher theefficiency
Output ripple: <30mV
Workingtemperature:-40-85° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buck power module (5V fixed output)
Input voltage: 7-26V
Output voltage: 5V
Output Current: 3A (maximum), long working hourscontrol in less than 1.6A
Conversion efficiency: 96% (maximum) voltage difference(Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM

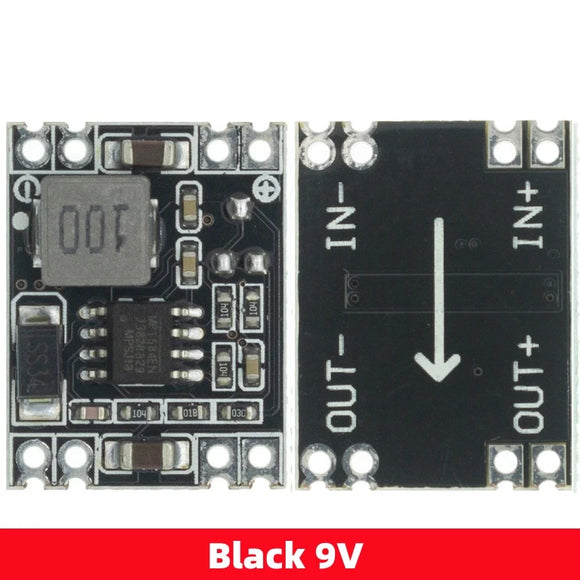

Product Name: DC-DC 3A Buck power module (9V fixed output)
Input voltage: 11-26V
Output voltage: 9V
Output Current: 3A (maximum), long working hours control in less than 1.1A
Conversionefficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buckpower module (3.3V fixed output)
Input voltage: 5.3V-26V
Output voltage: 3.3V
Output Current: 3A (maximum), long working hours control in less than 1.8A
Conversion efficiency: 96% (maximum) voltage difference(Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
