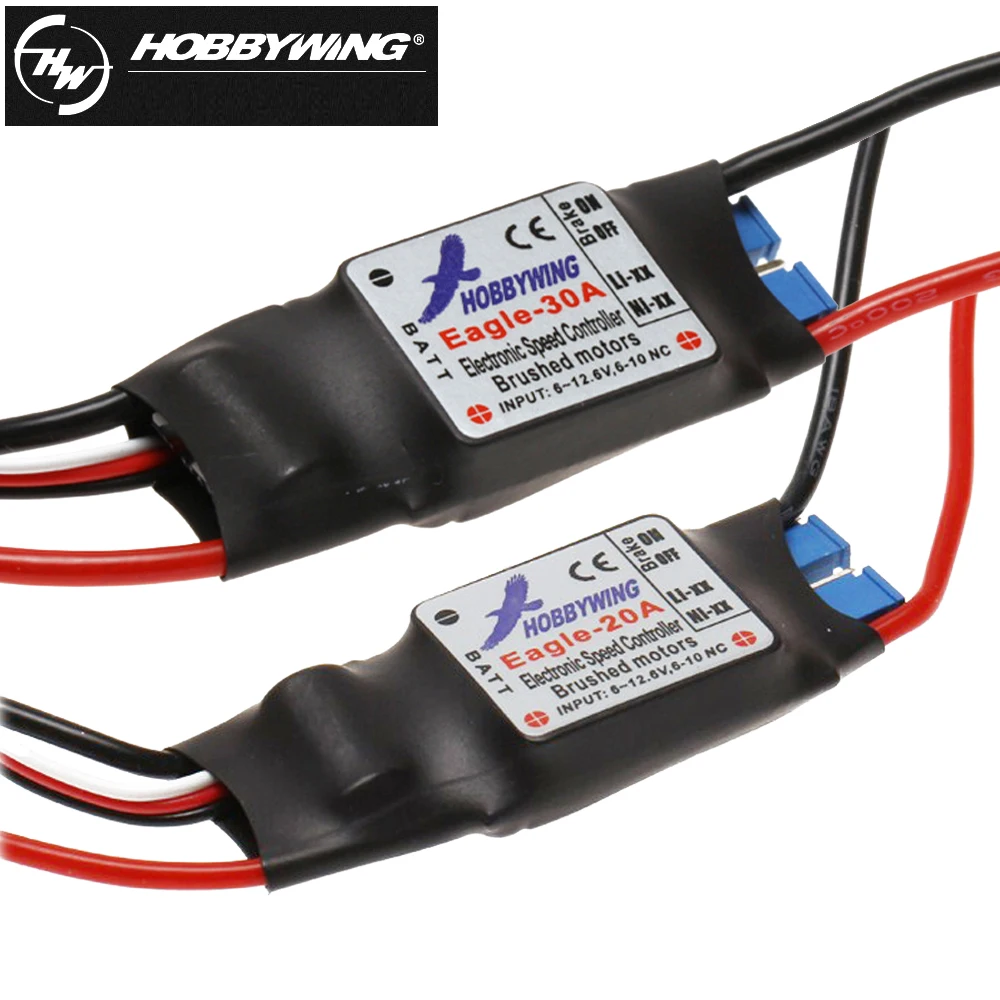

Hobbywing Eagle 20A/30A 2-3S 1A/5V BEC Brushed ESC Speed Controller
Features:
1. Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2. Brake Settings: The brake function can be enabled or disabled by a jumper.
3. Battery Type: The battery type can be chosen by a jumper.
4. Low Voltage Protection Threshold: For lithium batteries, the threshold for each cell is 3.0V. When the battery\'s voltage is less then the threshold, the ESC will gradually reduce the output power to prevent the battery from over discharging.
5. Over-heat protection: When the temperature of the ESC is over 110 Celsius degree, the ESC will gradually reduce the output power.
6.Throttle signal loss protection: The ESC will gradually reduce the output power if the throttle signal is lost for 1 second, further loss for 2 seconds will cause its output to be completely cut-off.
Advantages:
Advanced microprocessor.
Compatible with lithium battery and nickel battery.
User programmable by using the jumper connectors.

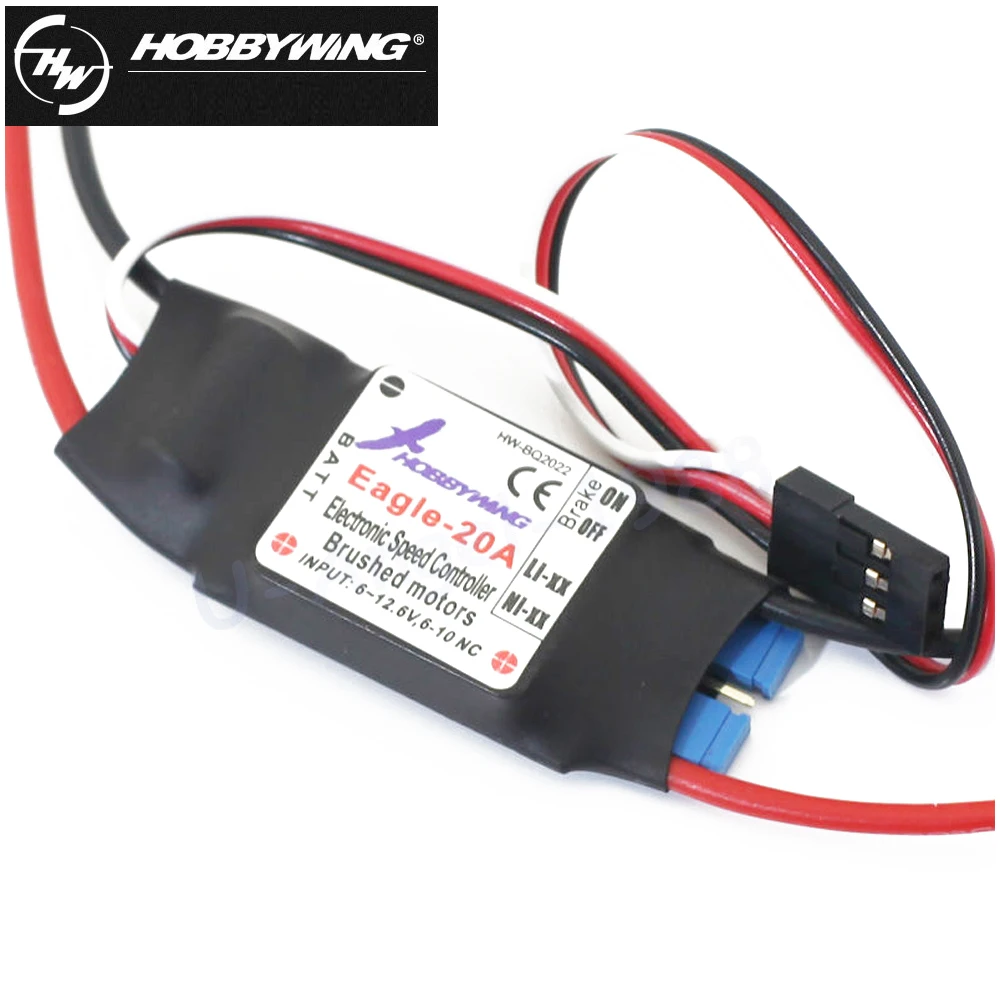

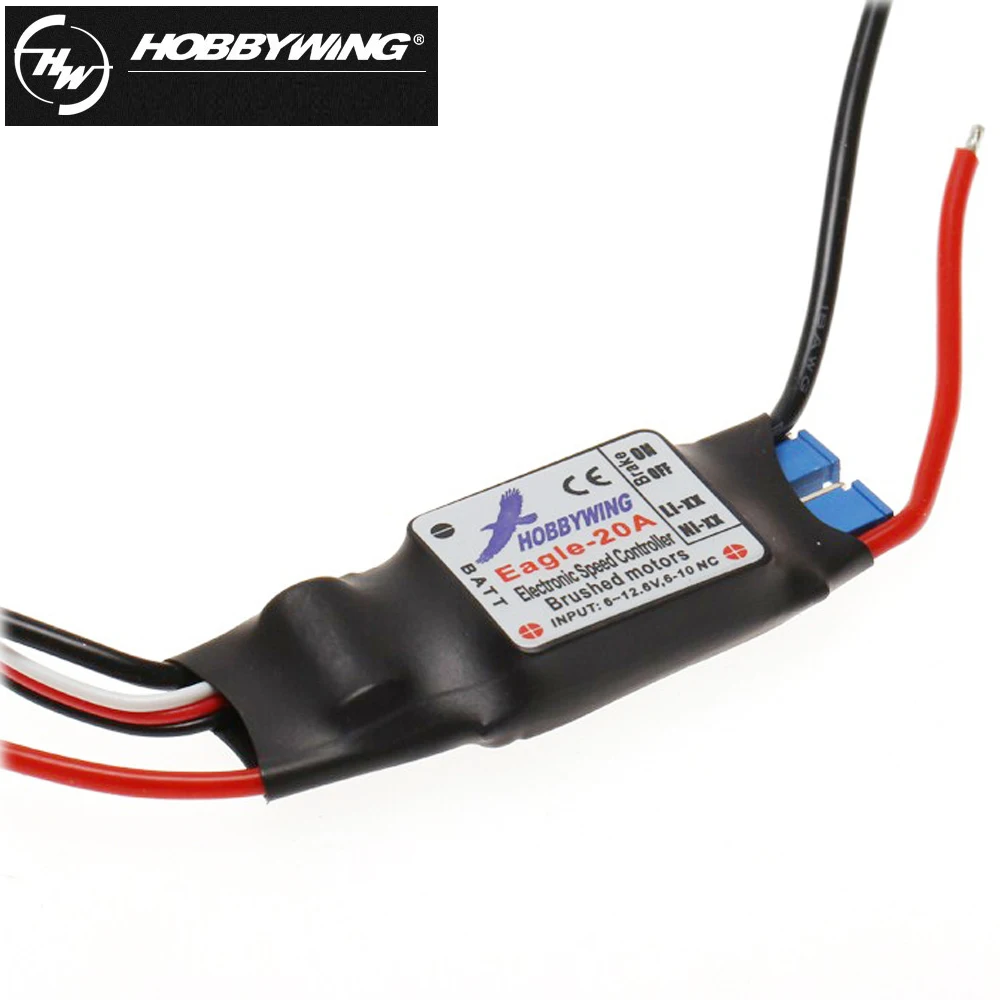

Hobbywing Eagle 20A:
1.1 Output: Continuous 20A, Burst 25A up to 10 Secs.
1.2 Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NIMh battery.
1.3 BEC: 1A / 5V (Linear mode).
1.4 PWM Frequency: 2 kHz.
1.5 Size: 45mm (L) * 21mm (W) * 8mm (H).
1.6 Weight: 17g.

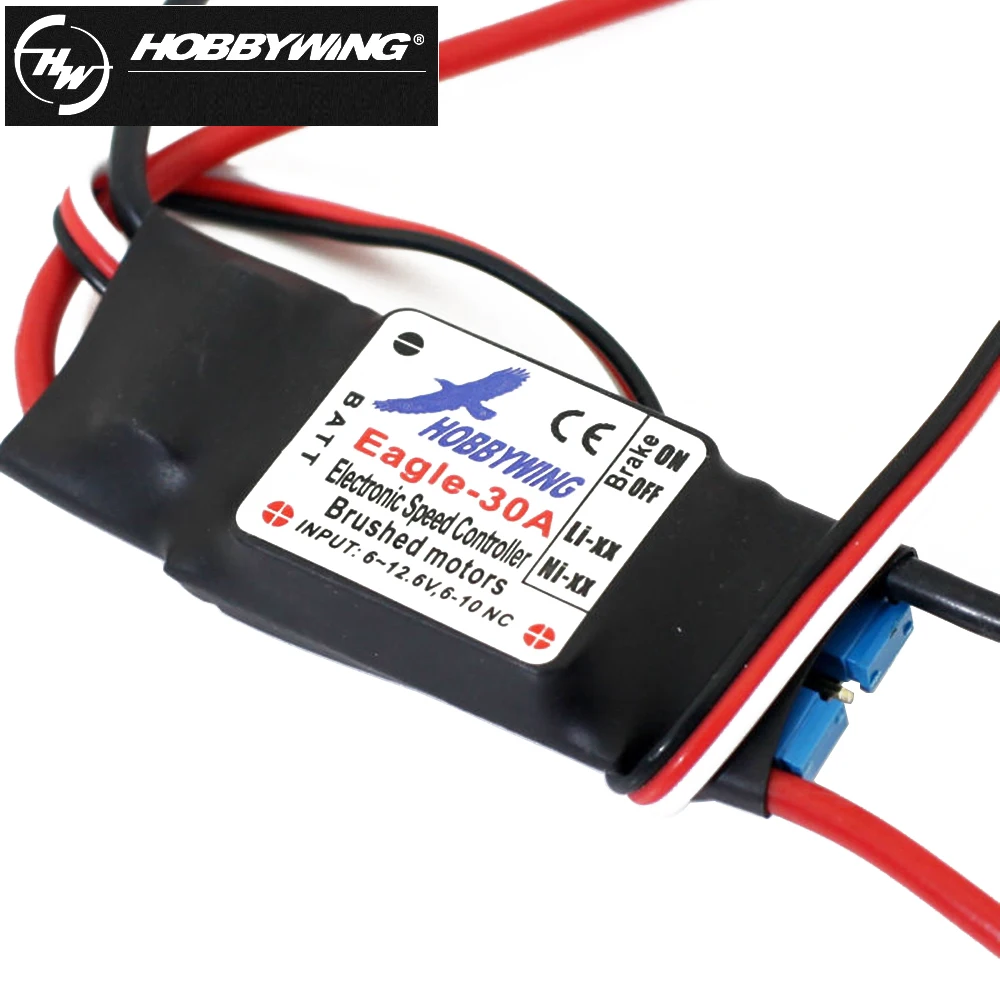

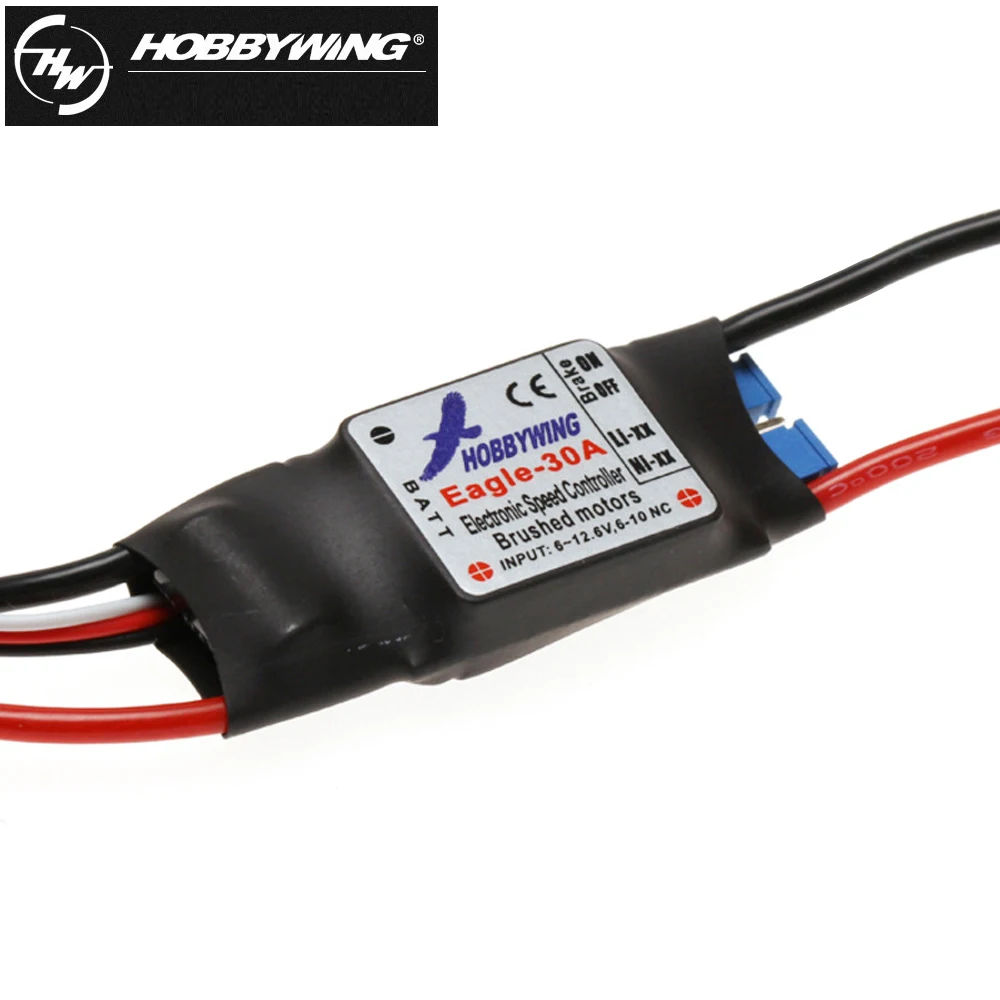

Hobbywing Eagle 30A:
Brand Name: Hobbywing
Item Name: Eagle 30A Brushed ESC
Output: Continuous 30A, Burst 40A up to 10 seconds
Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
BEC: 1A / 5V (Linear mode)
PWM Frequency: 2 kHz
Size: 45 x 21 x 8mm
Weight: 21g
