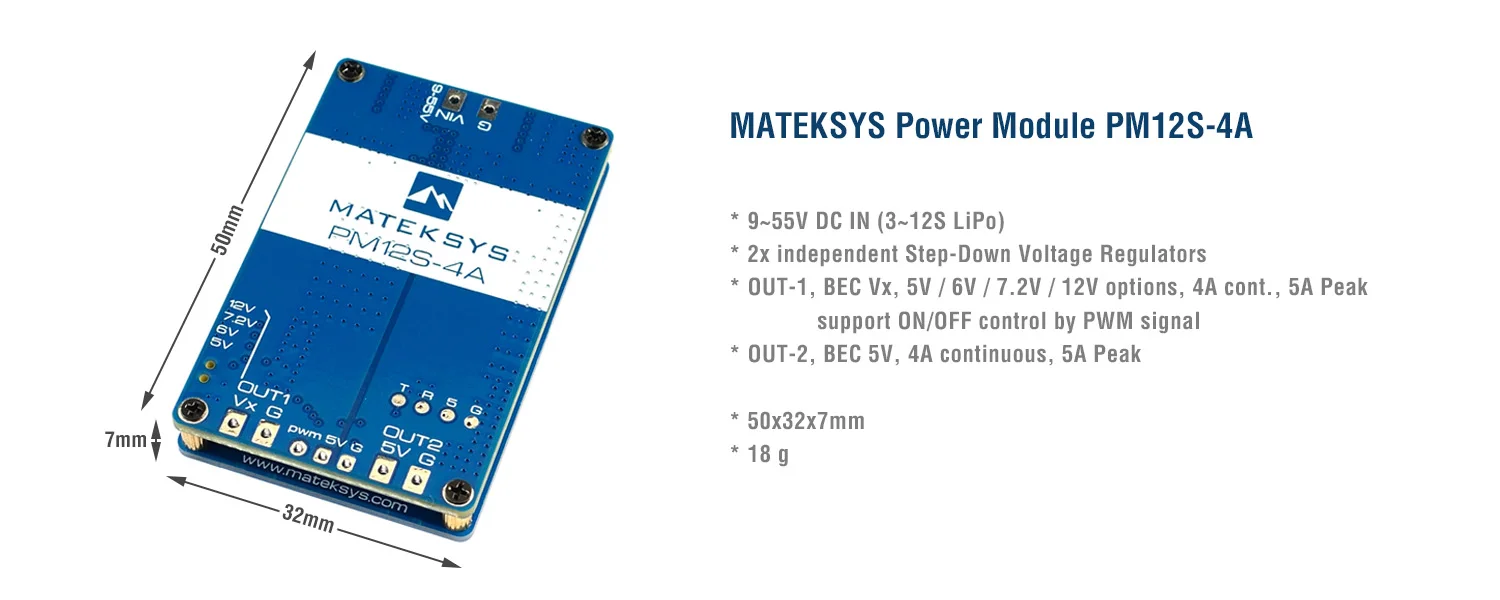

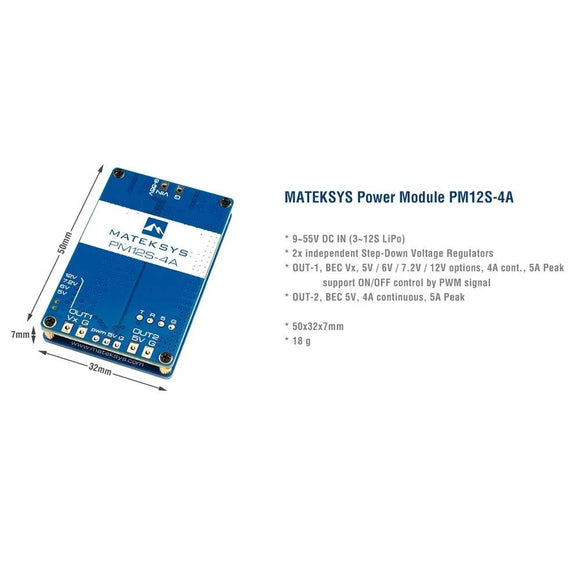

Specifications
-
Wide 9V to 55V Operating Input Range with TVS protection
-
2x independent Step-Down Voltage Regulators
-
OUT-1 Vx, 5V / 6V / 7.2V / 12V output options(5v default). 4A continuous, 5A Peak. ON/OFF is controllable by PWM signal.
-
OUT-2 5V (Fixed), 4A continuous, 5A Peak
-
Output ripple: 20mV (VIN=50V, Output 5v @ 4A), 40mV (VIN=50V, Output 12V @ 4A),
-

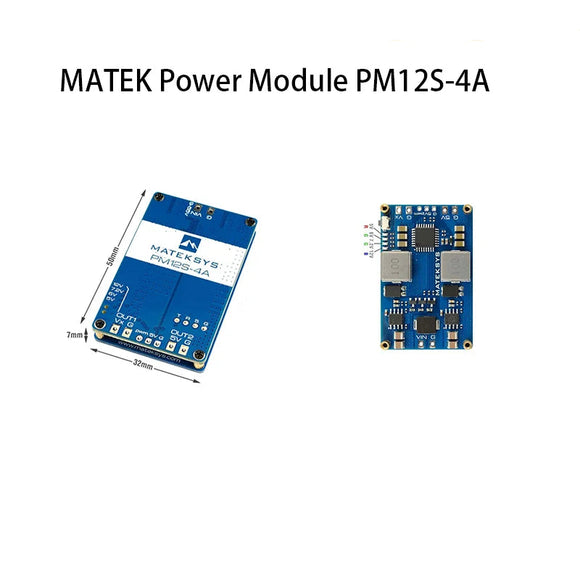

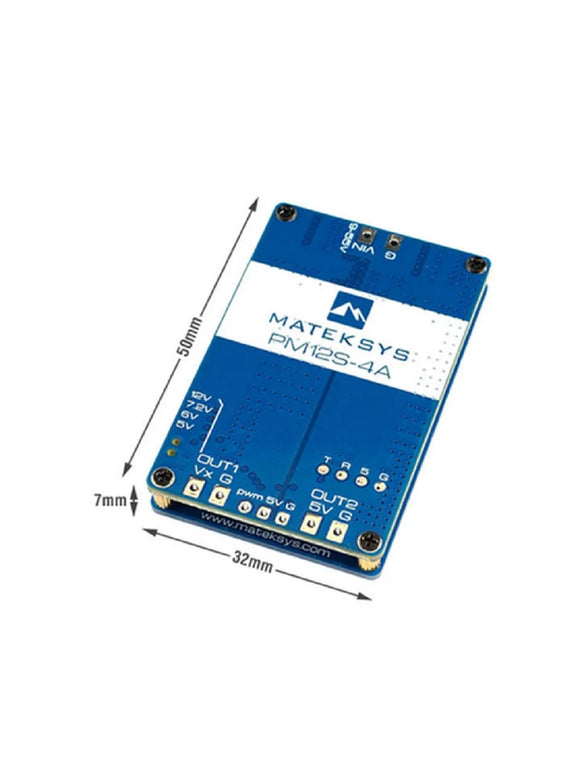

Size & Weight: 50 x 32 x 7mm, 18g
-
Packing: 1x PM12S-4A (no wires)
Settings
1. Set the OUT-1(Vx) voltage
-

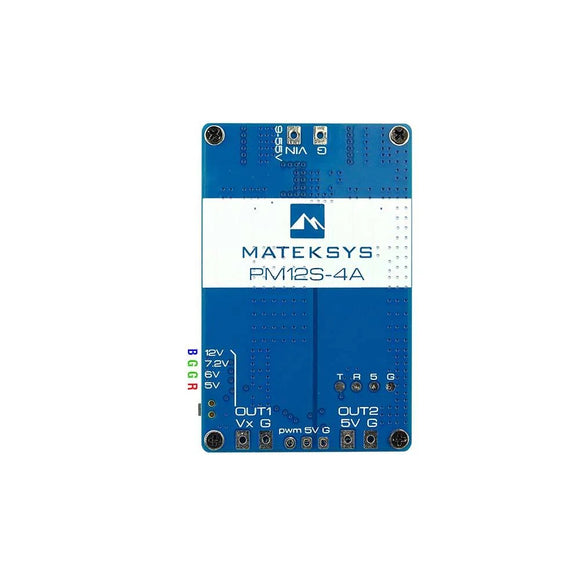

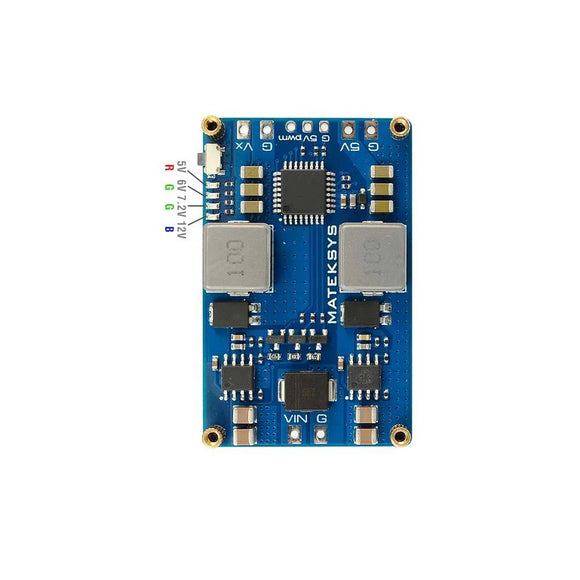

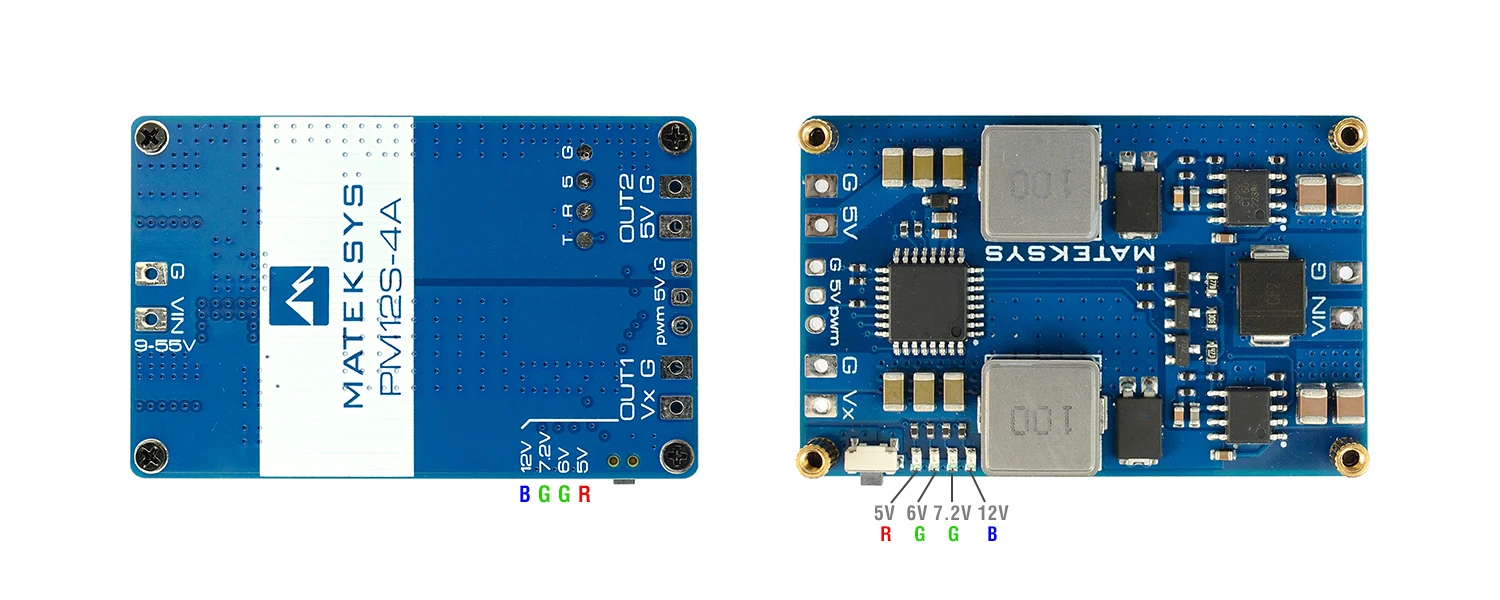

Output voltage indicators, 5V Red, 6V Green, 7.2V Green, 12V Blue
-
Press and hold the button for 3 seconds to enter the setting of the OUT-1 voltage.
-
The LED on the current output voltage will blink. then press button to choose the voltage between 5V(Red), 6V(Green), 7.2V(Green), 12V (Blue) .
-
The value will be saved if no button action within 3 seconds.
2. PWM control
-
PWM Freq & Range: 50Hz-330Hz, 900-2100
-
OUT-1 Default output is ON if no PWM signal connected
-
Connect the PWM pin and GND to a spare PWM channel on the receiver or flight controller.
-
OUT-1 will be turned OFF when the auxiliary switch’s pwm value becomes higher than 1800. It will be turned ON when the value falls below 1200.
