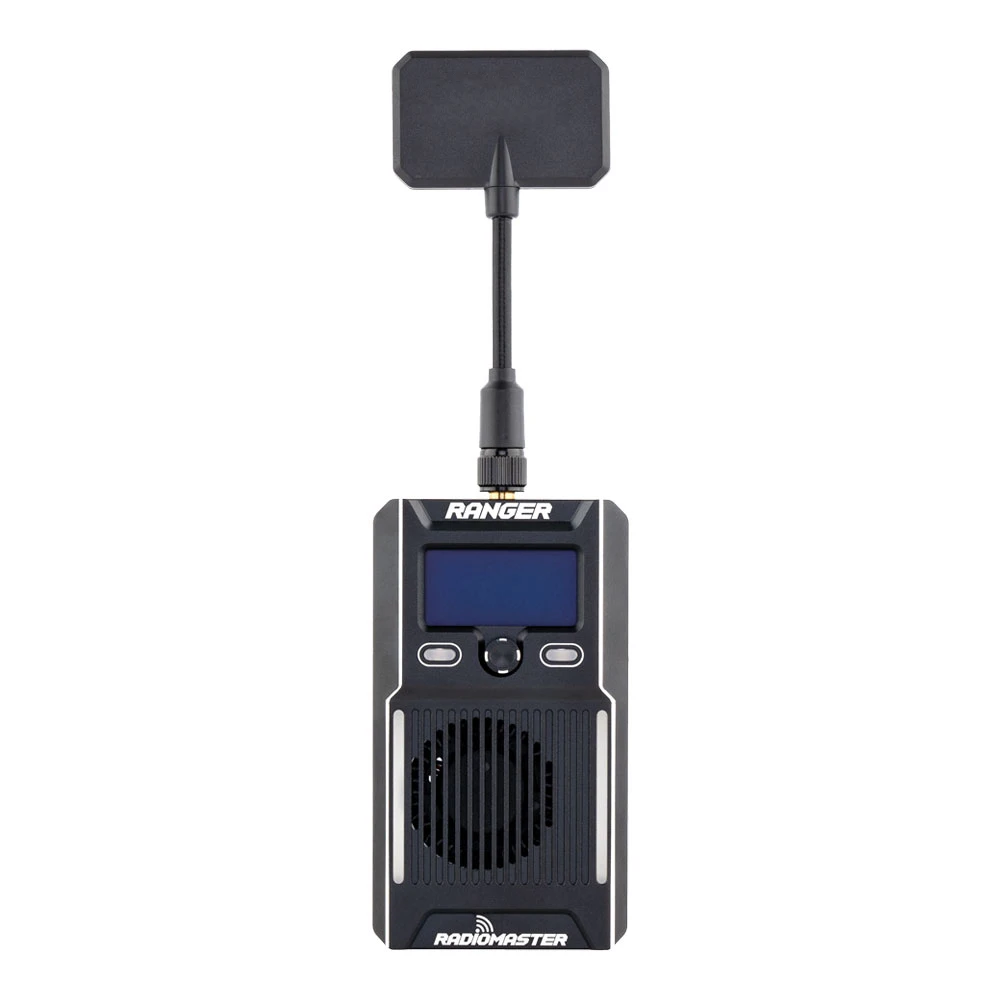

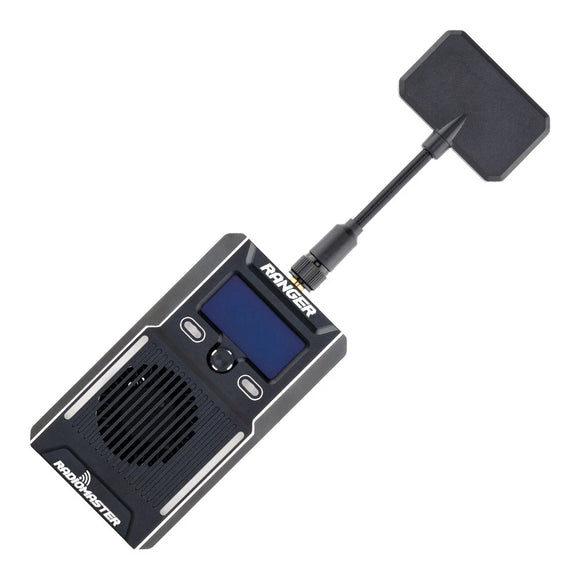

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiencty cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

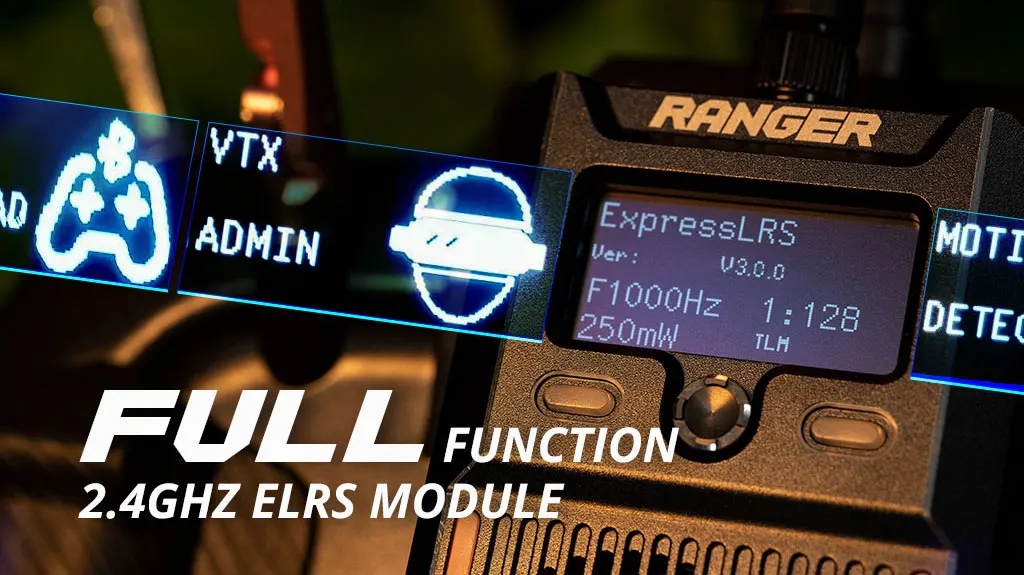

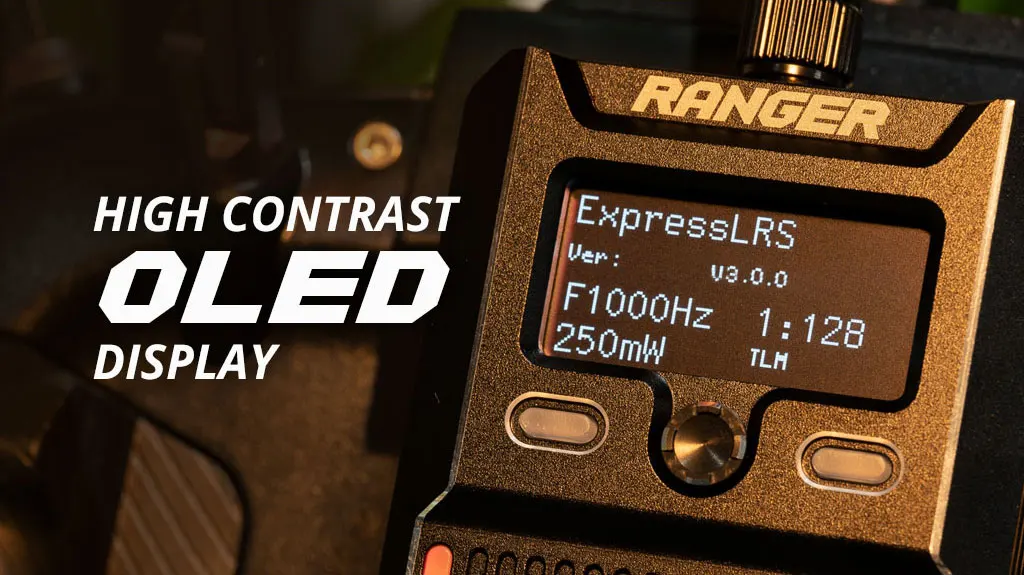

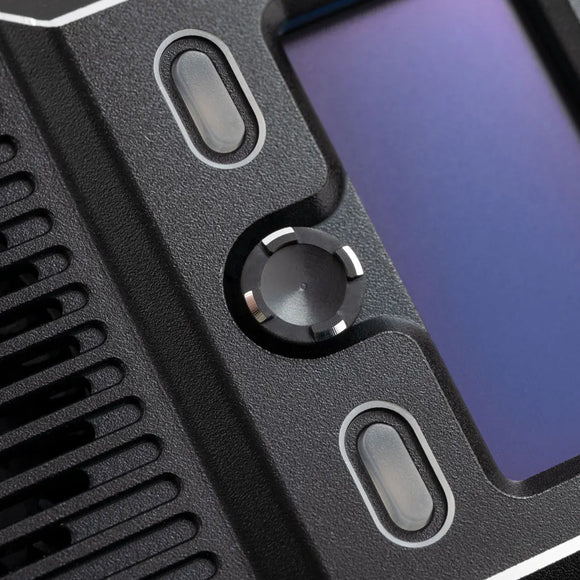

Featuring an OLED display, directional menu key and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

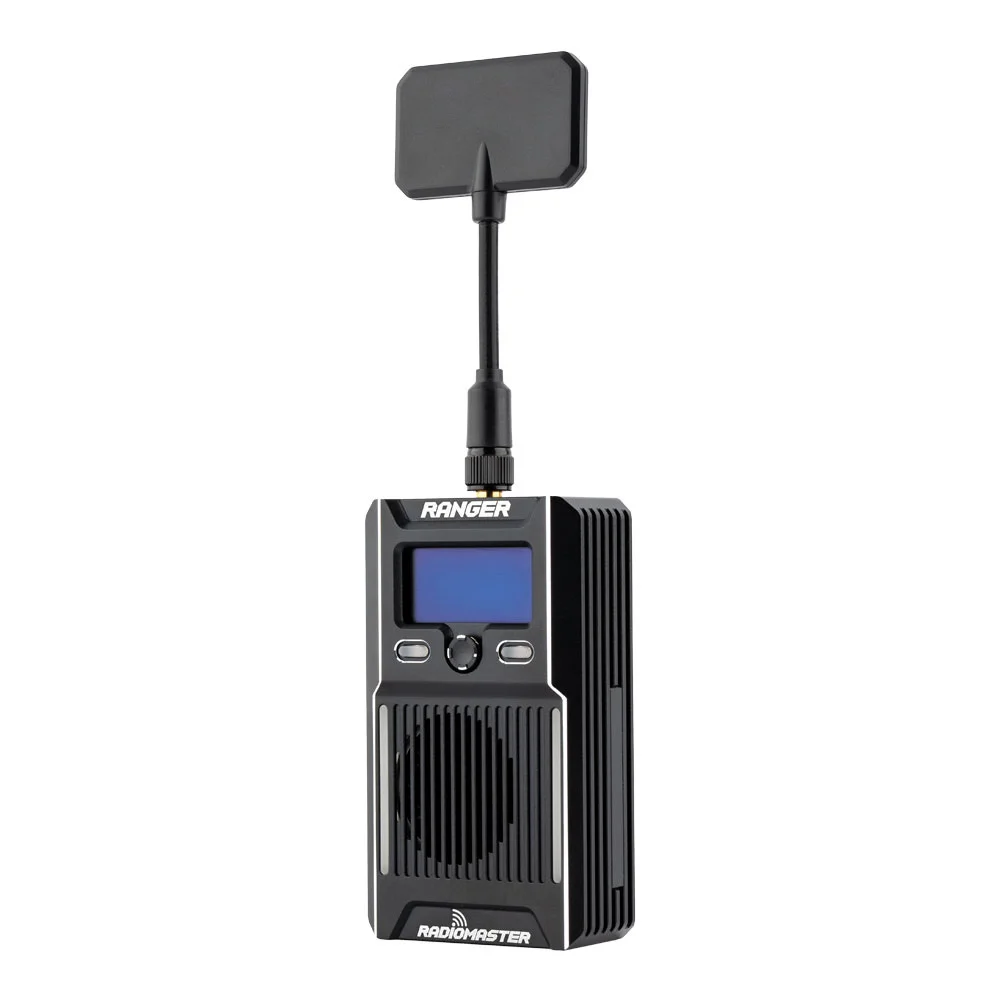

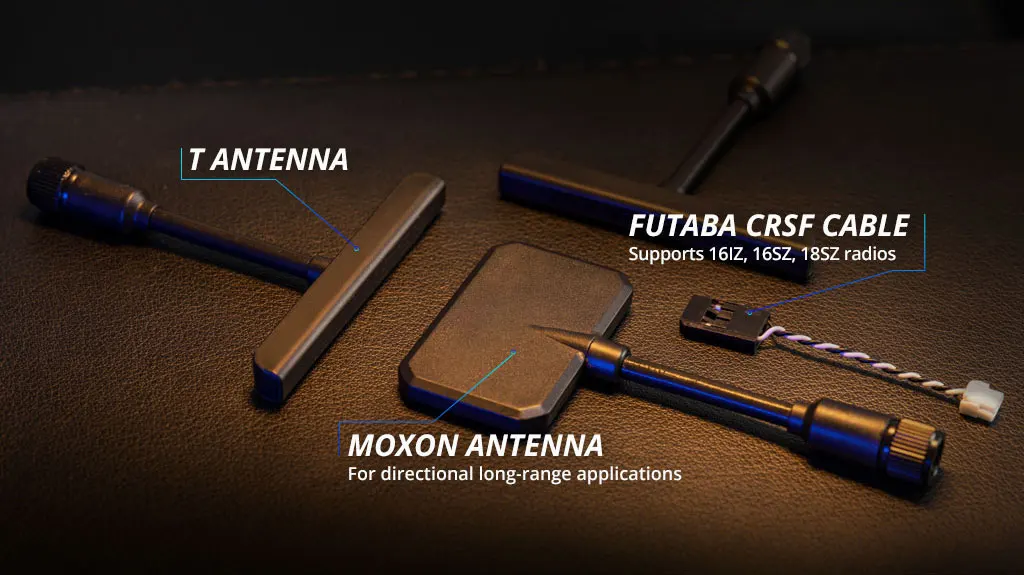

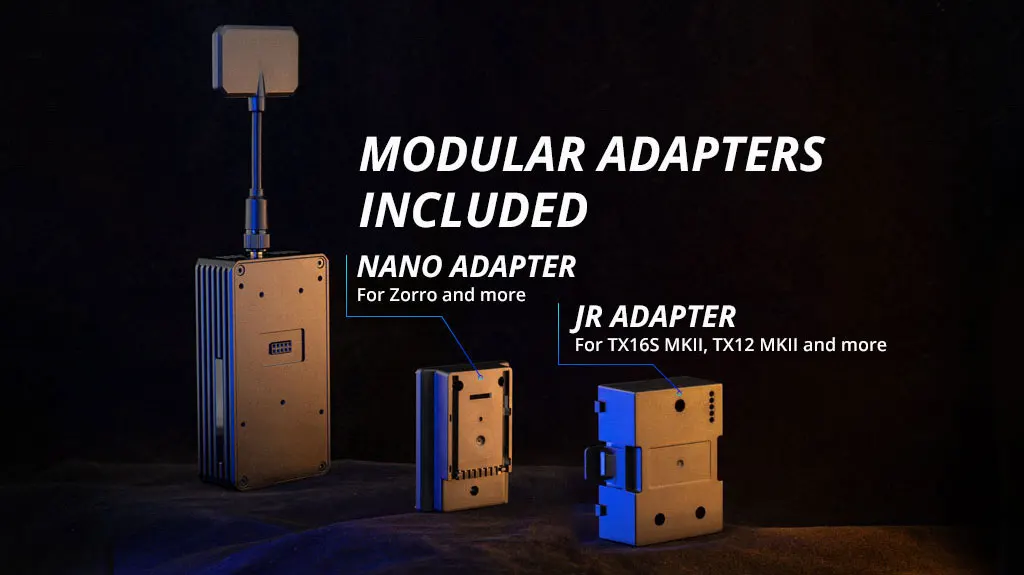

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

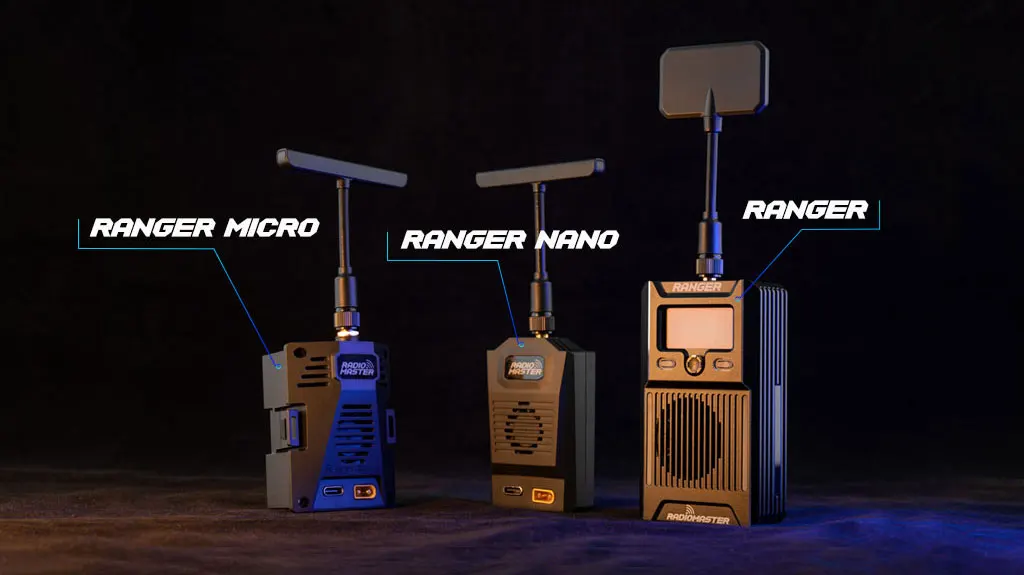

Except for the Ranger, we also provide the Ranger Micro and Ranger Nano for your choice.
Features
- Rugged CNC Case
- High efficiency cooling system
- OLED Display

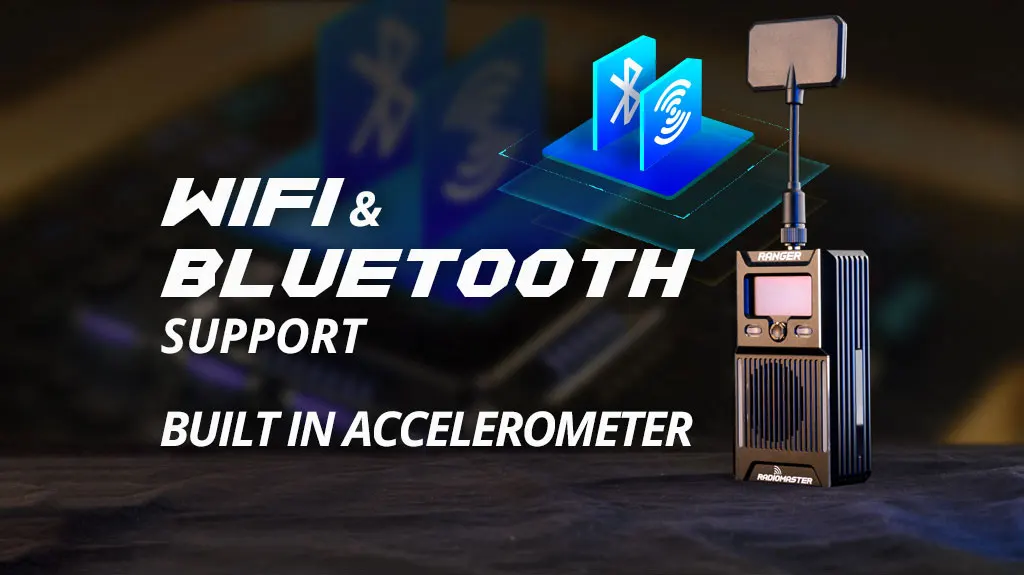

- Wifi and Bluetooth support
- Built in Accelerometer
- Packet rates up to F-1000Hz

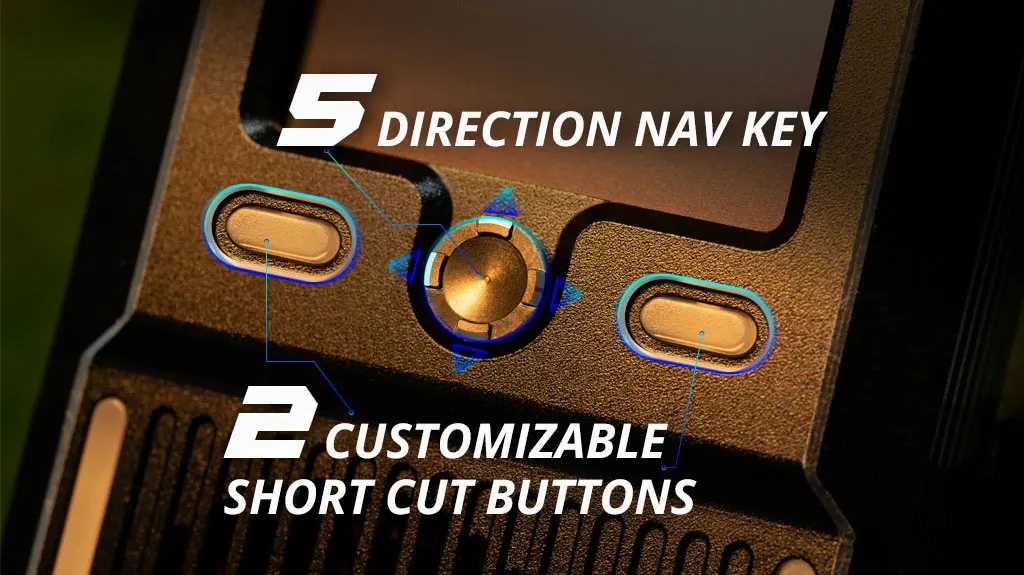

- 5 Direction Nav key and customizable short cut buttons
- Up to 1 Watt Power output
Specification
- Item: Ranger Module
- Regulatory Domain: ISM2400
- MCU: ESP32(main), ESP8285(aux,as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz - 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
- Futaba CRSF socket cable: Included
- OLED screen: 64x128px
- Wifi Support: Yes
- Bluetooth support: Yes
- 3 Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
- Built in RGB light strip

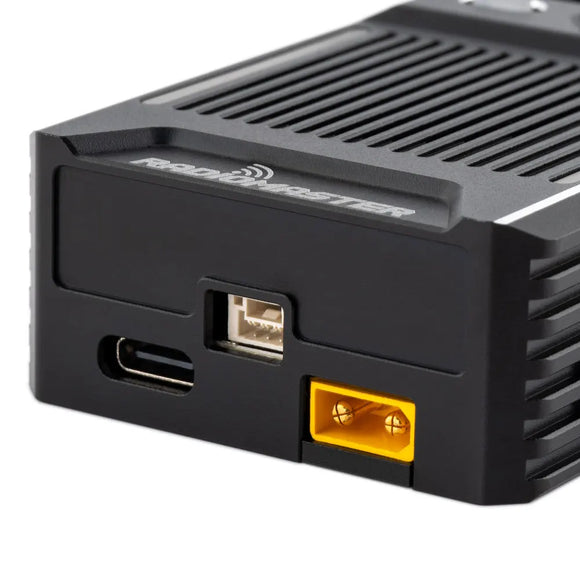

- XT30 Power supply voltage: DC 6V - 16.8V
- Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)

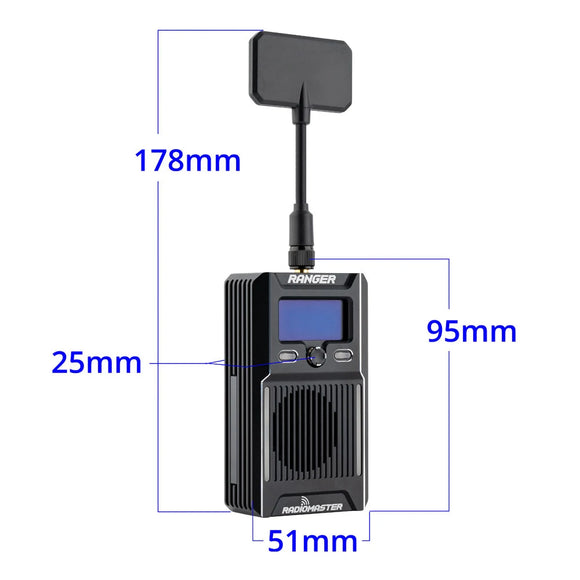

- Dimension: 178*51*25mm (with Moxon antenna) / 95*51*25mm (without antenna)

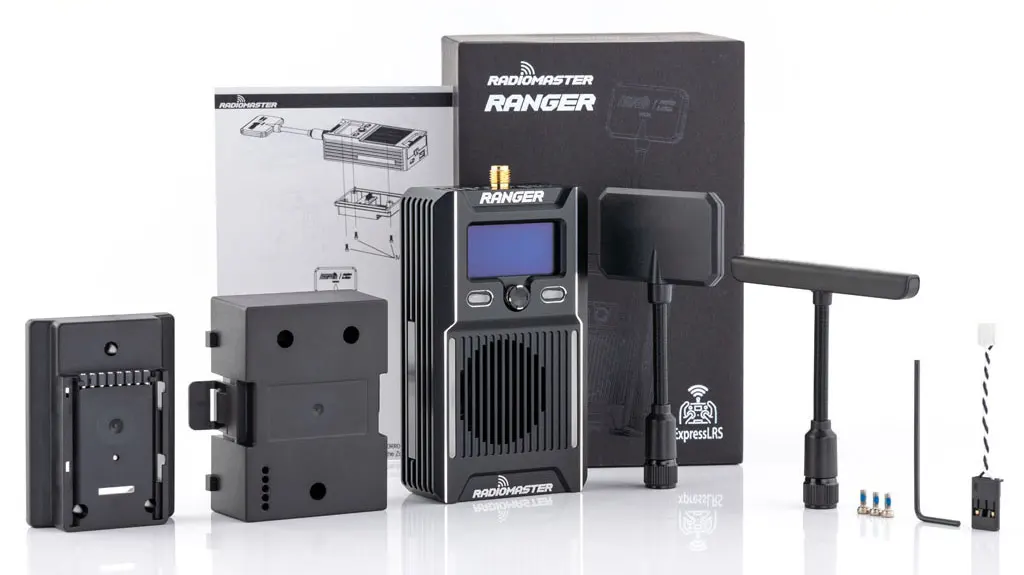

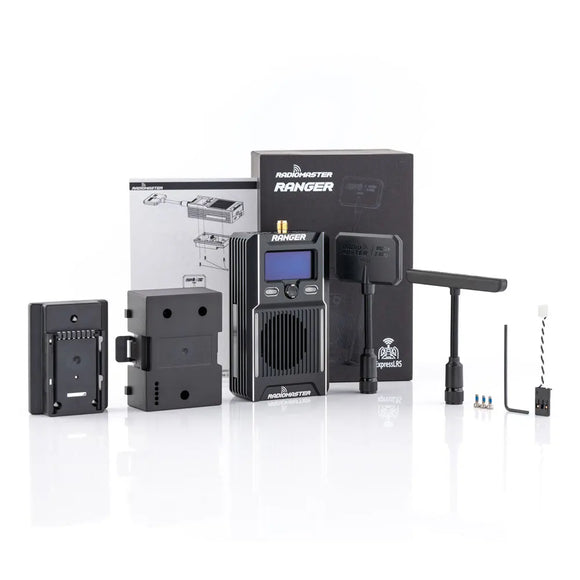

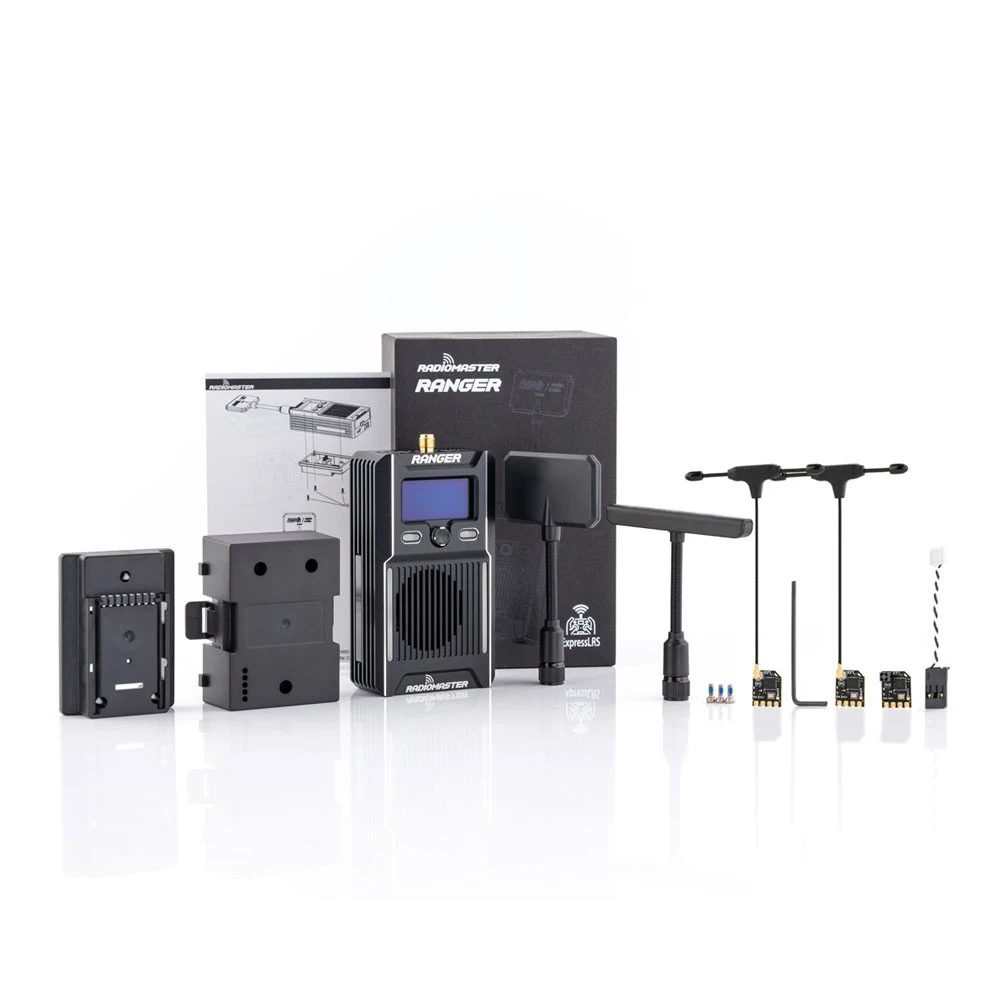

Package
- 1 * RANGER Module
- 1 * Futaba CRSF socket cable
- 1 * JR Adapter
- 1 * Nano Adapter
- 1 * T Antenna
- 1 * Moxon Antenna
- 1 * Hexagon socket screwdriver
- 3 * M2*5 Screws
- 1 * Assembly Manual
Need receivers too? Purchase the Ranger Combo, which includes the following items:
- 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
