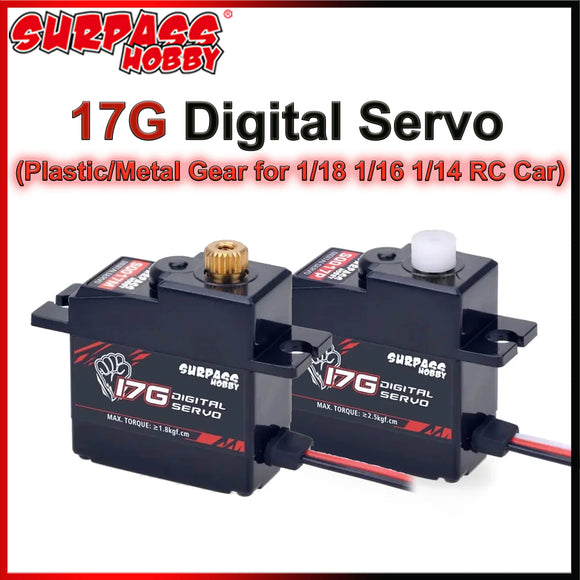

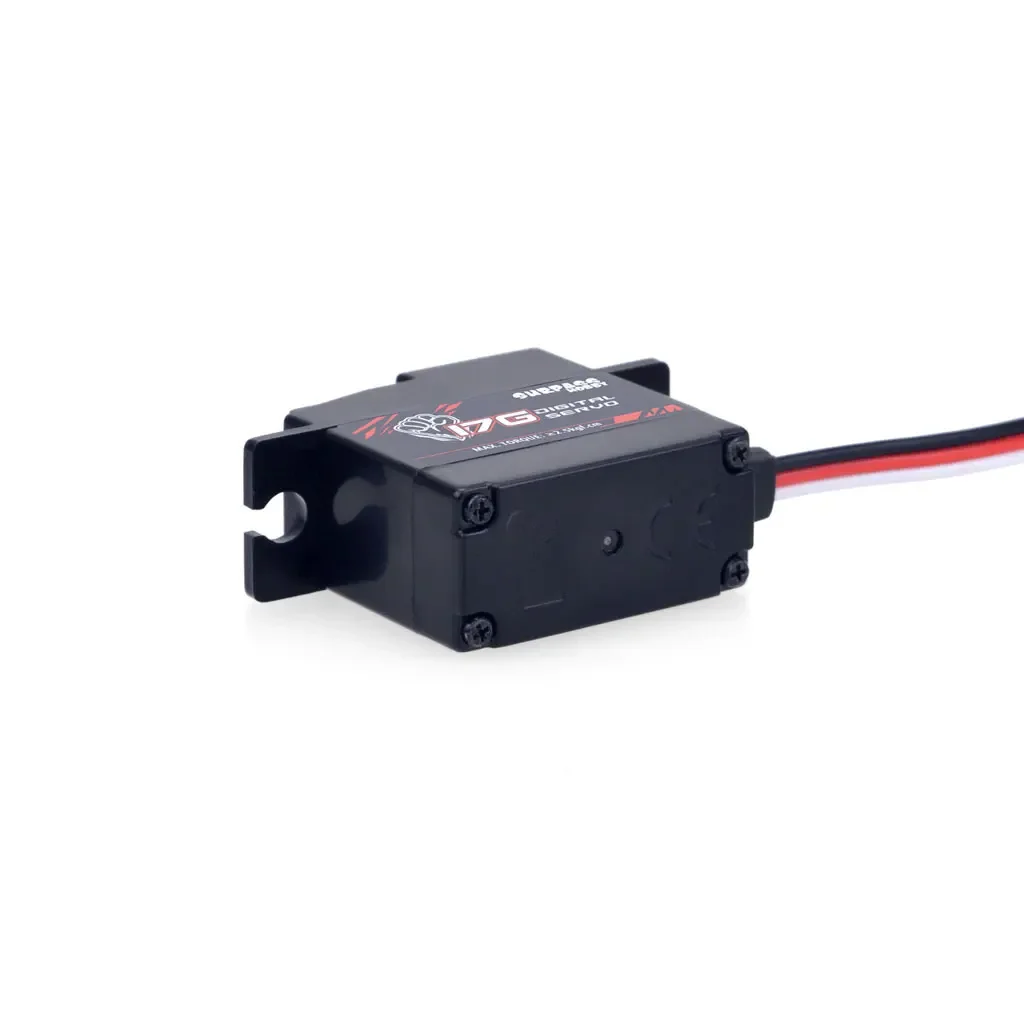

SURPASS HOBBY 17G Plastic / Metal Gear Mini Digital Servo for 1/18 1/16 1/14 RC Car Truck Airplane Robot D90 MN WPL SCY MJX JJRC
Specifications:
Brand: Surpass Hobby

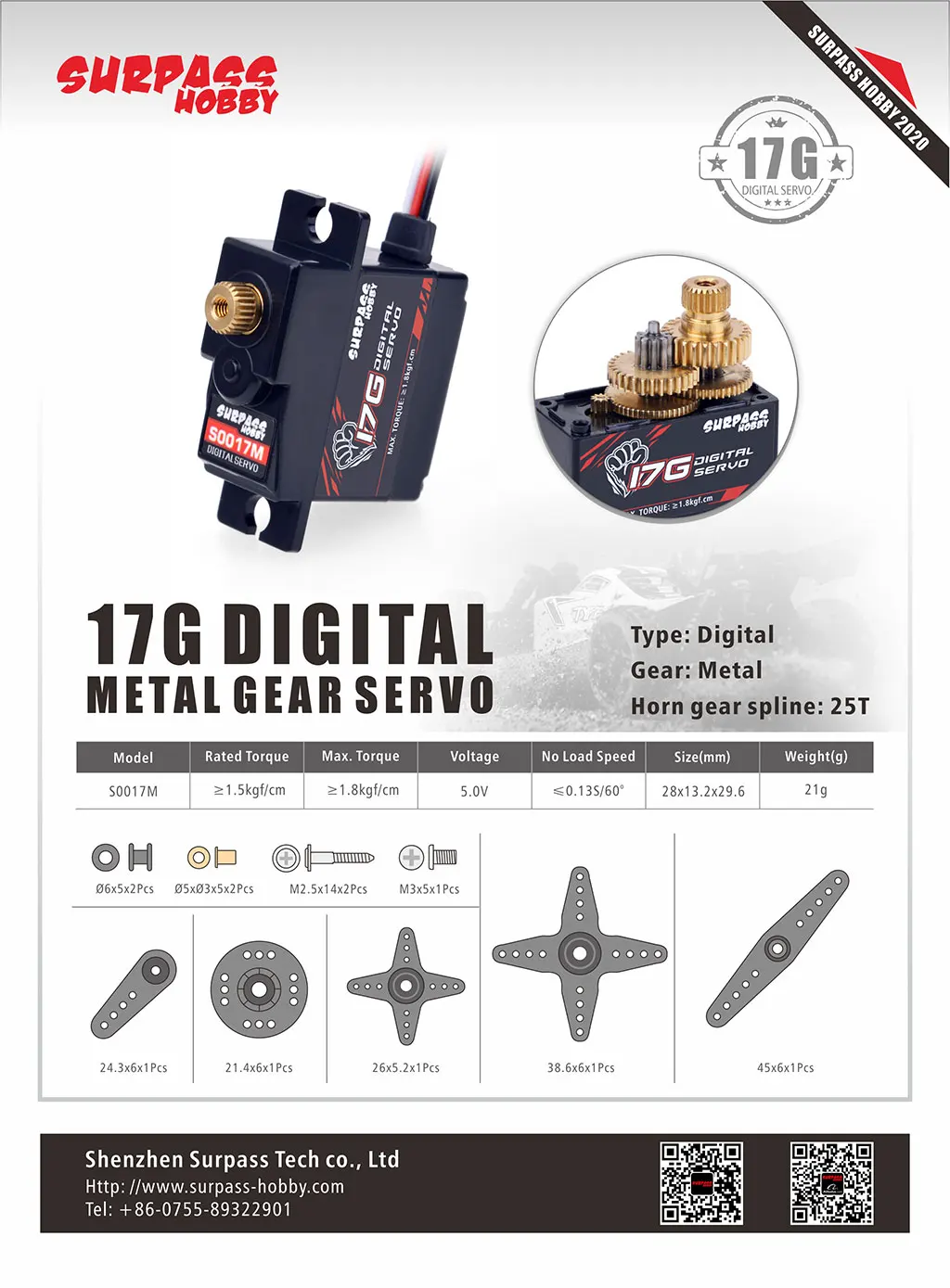

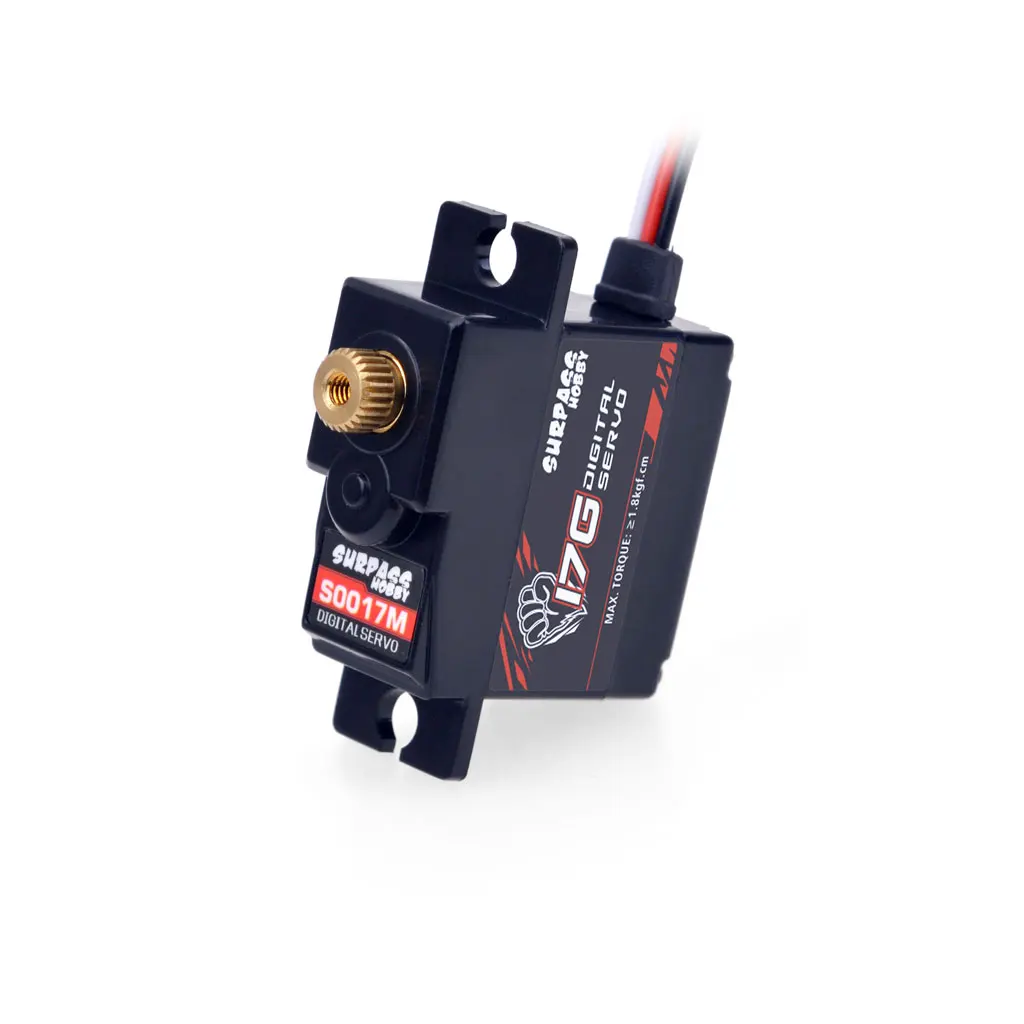

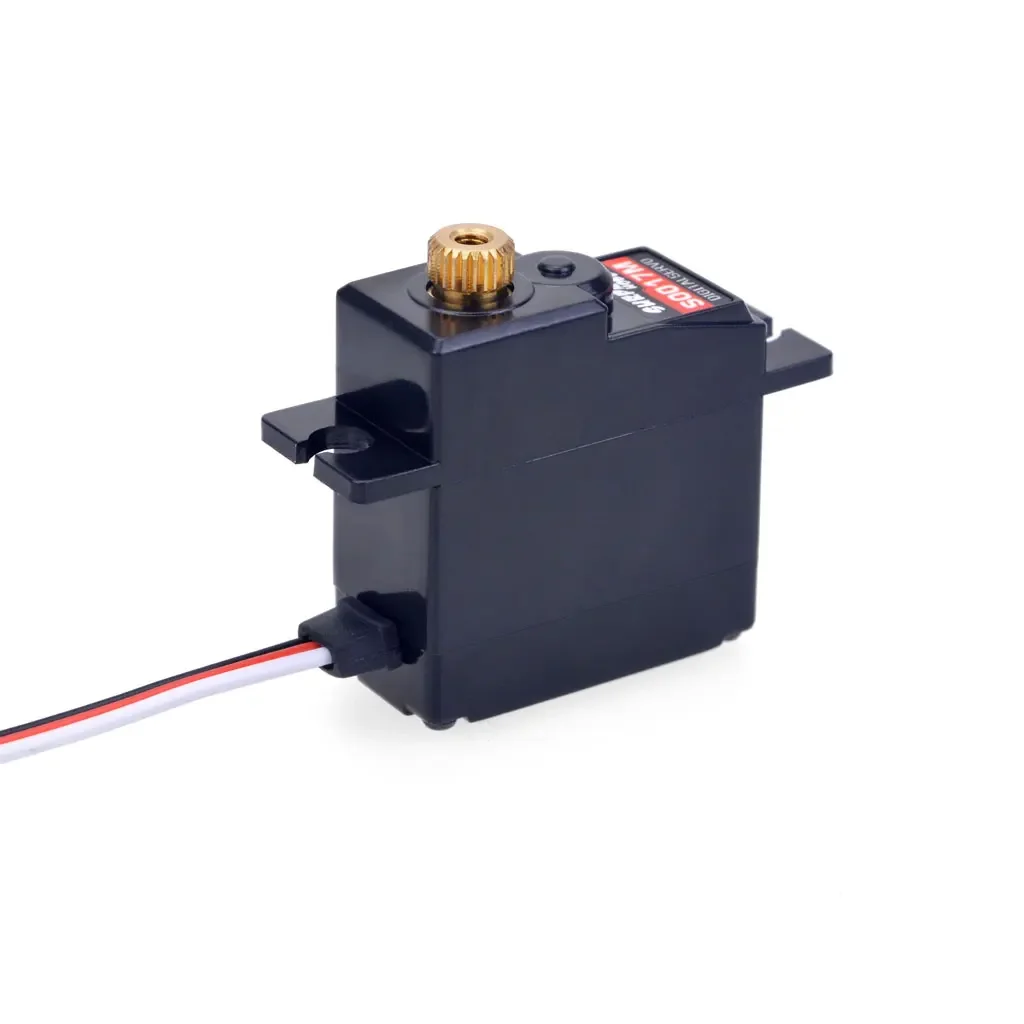

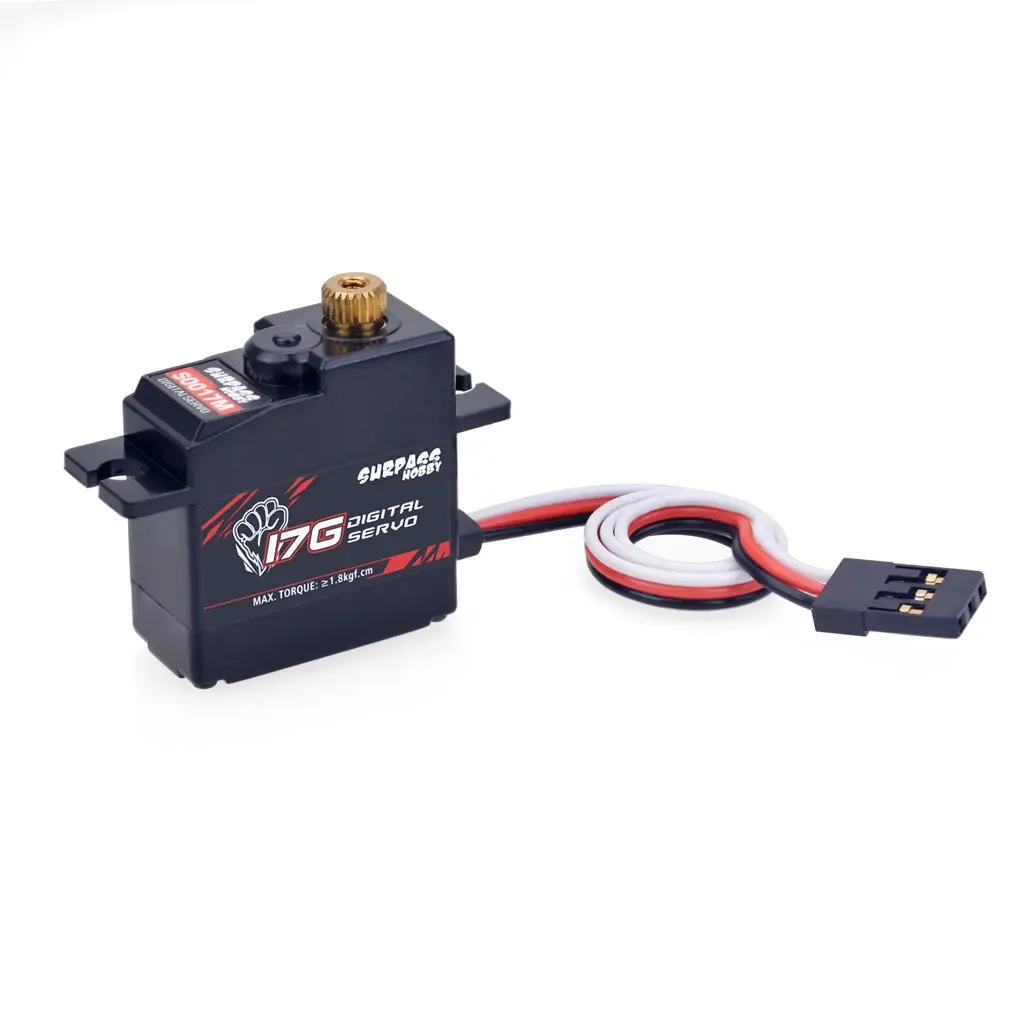

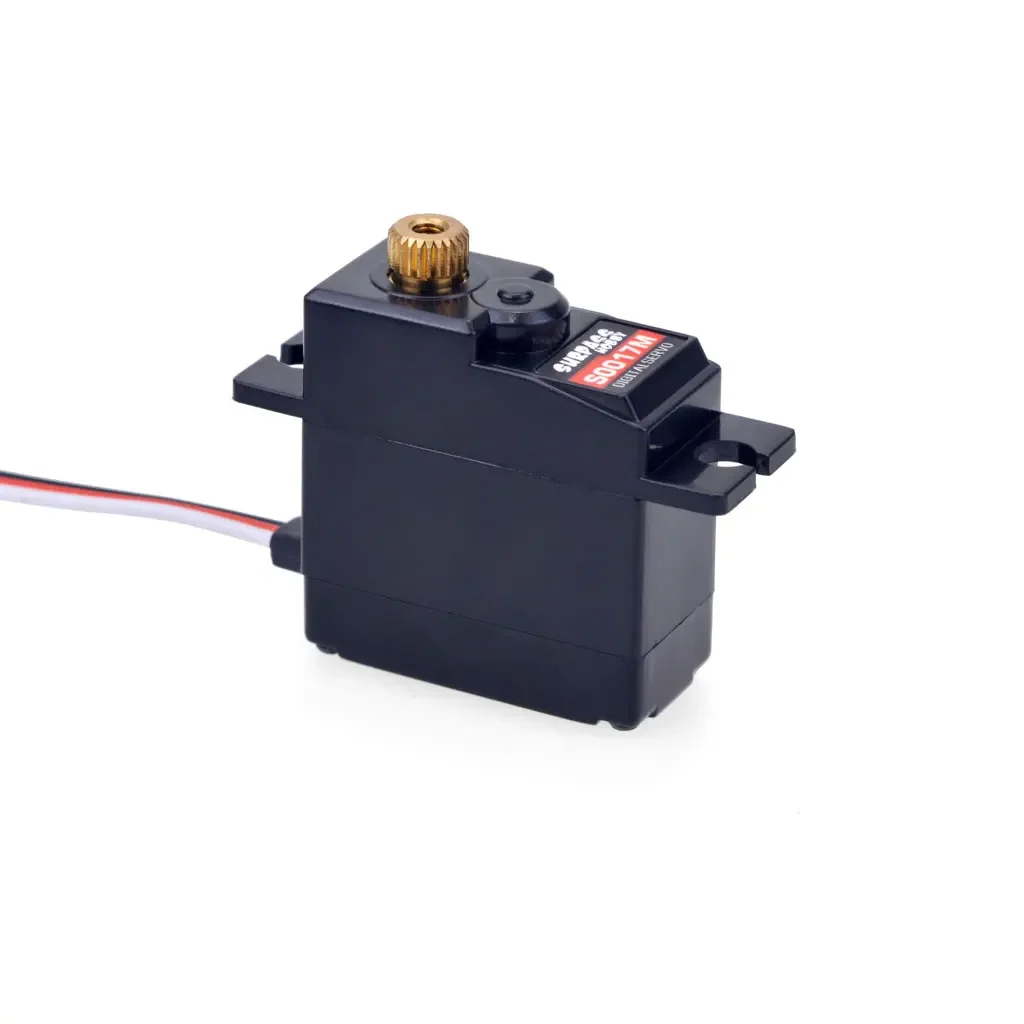

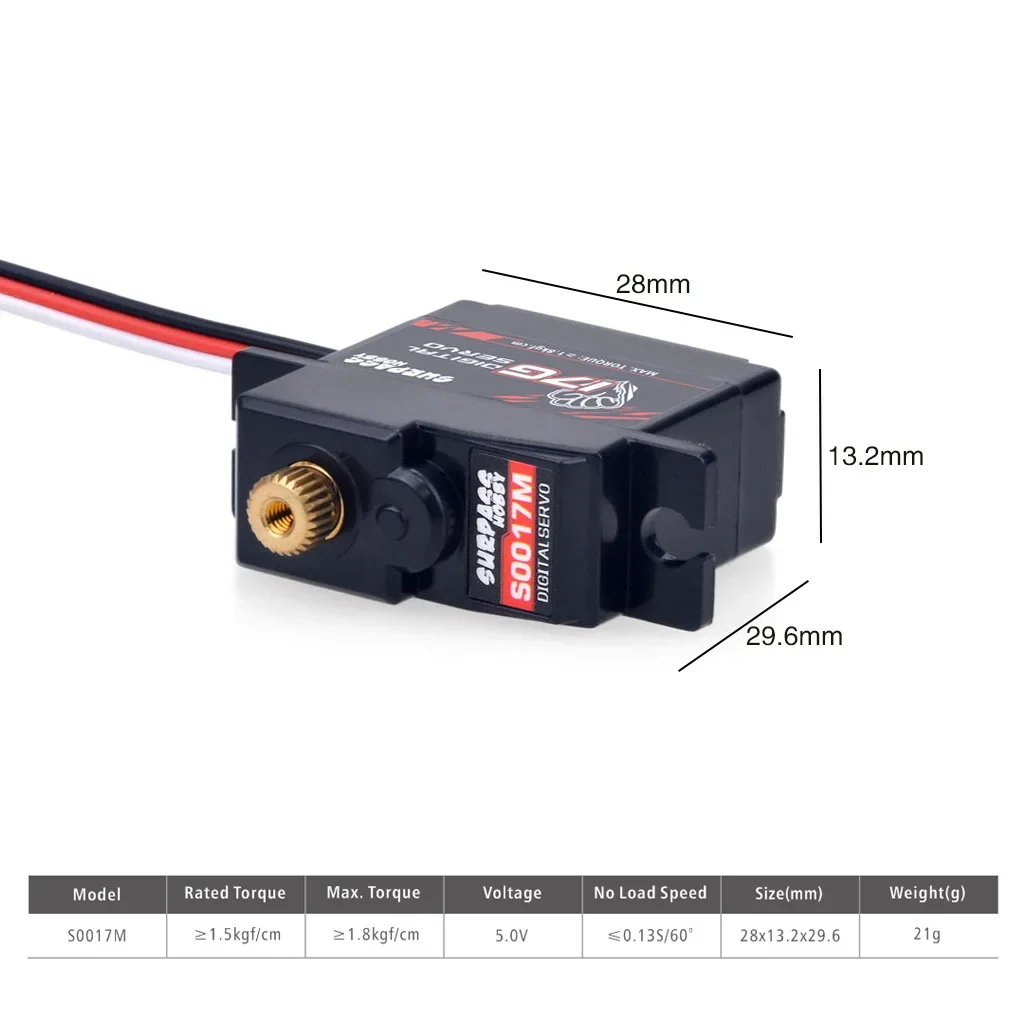

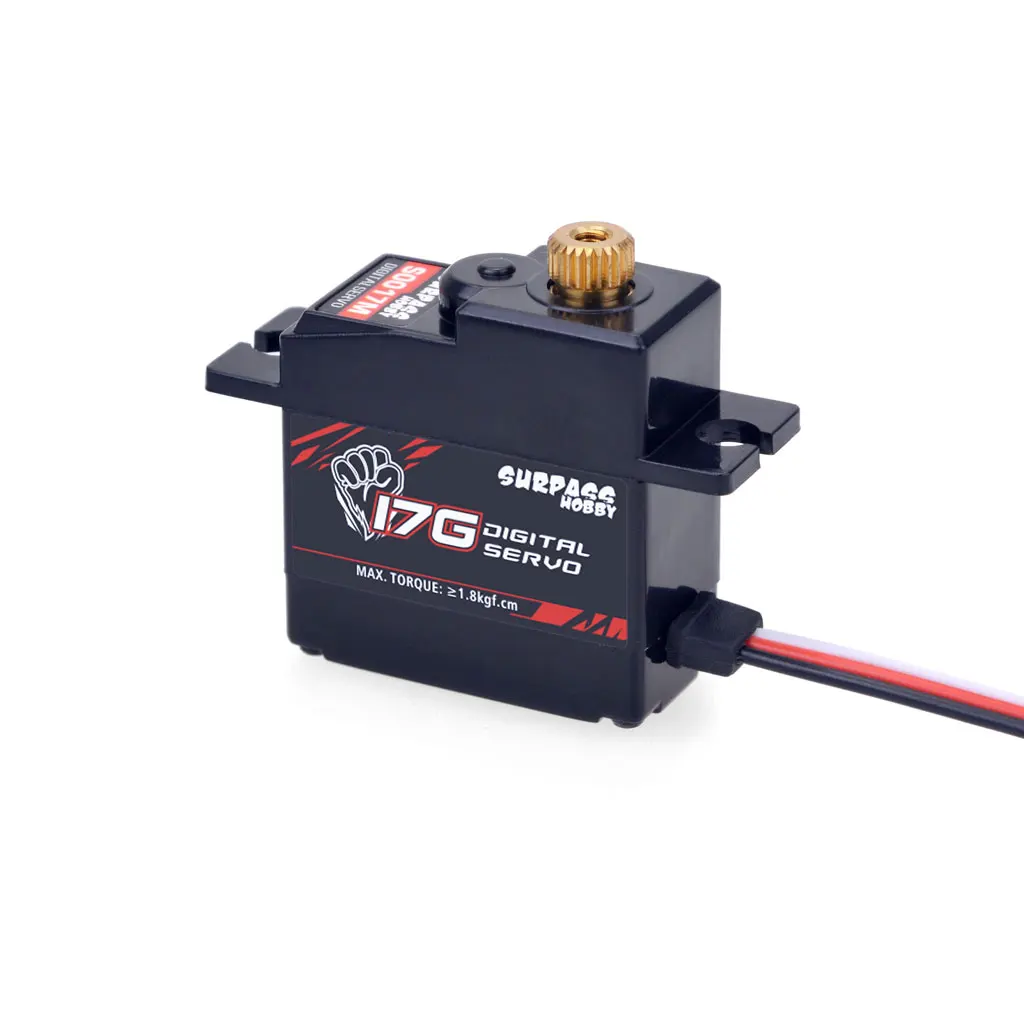

Model: S0017M
Rated Torque: ≥1.5kgf/cm at 5V
Max. Torque: ≥1.8kgf/cm at 5V
No load speed: ≤0.13s/60° at 5V
Product net weight: 21g (0.74oz);
Size: 28*13.2*29.6mm (1.1*0.52*1.2 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;

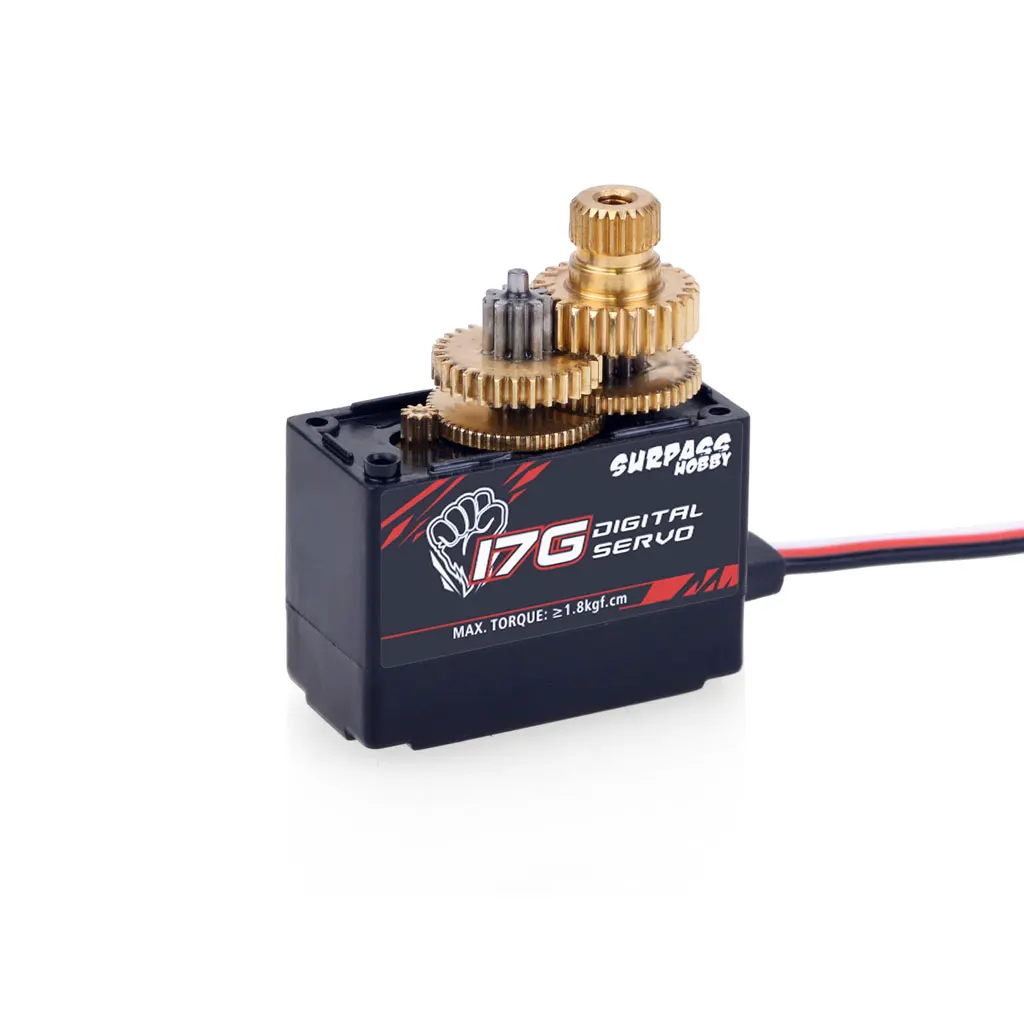

Gear type: Metal gear;
Horn gear spline:25T

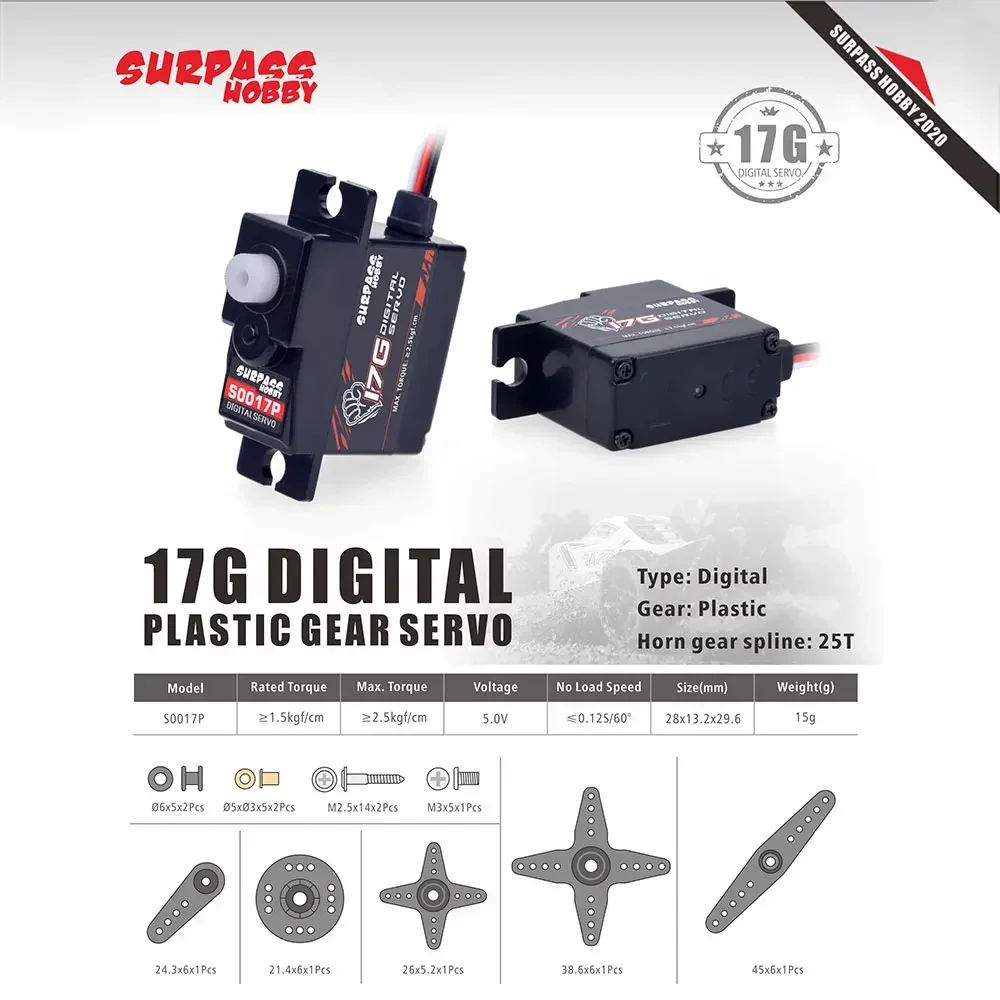

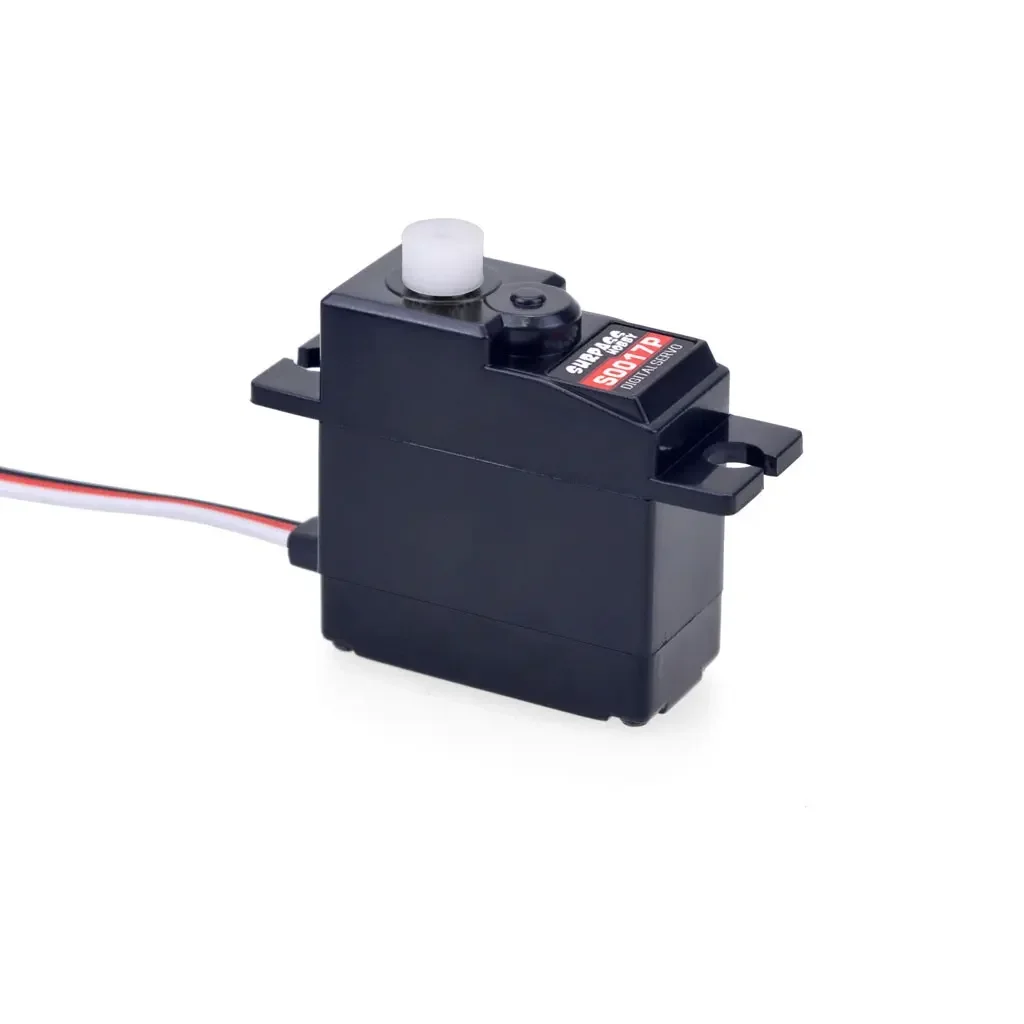

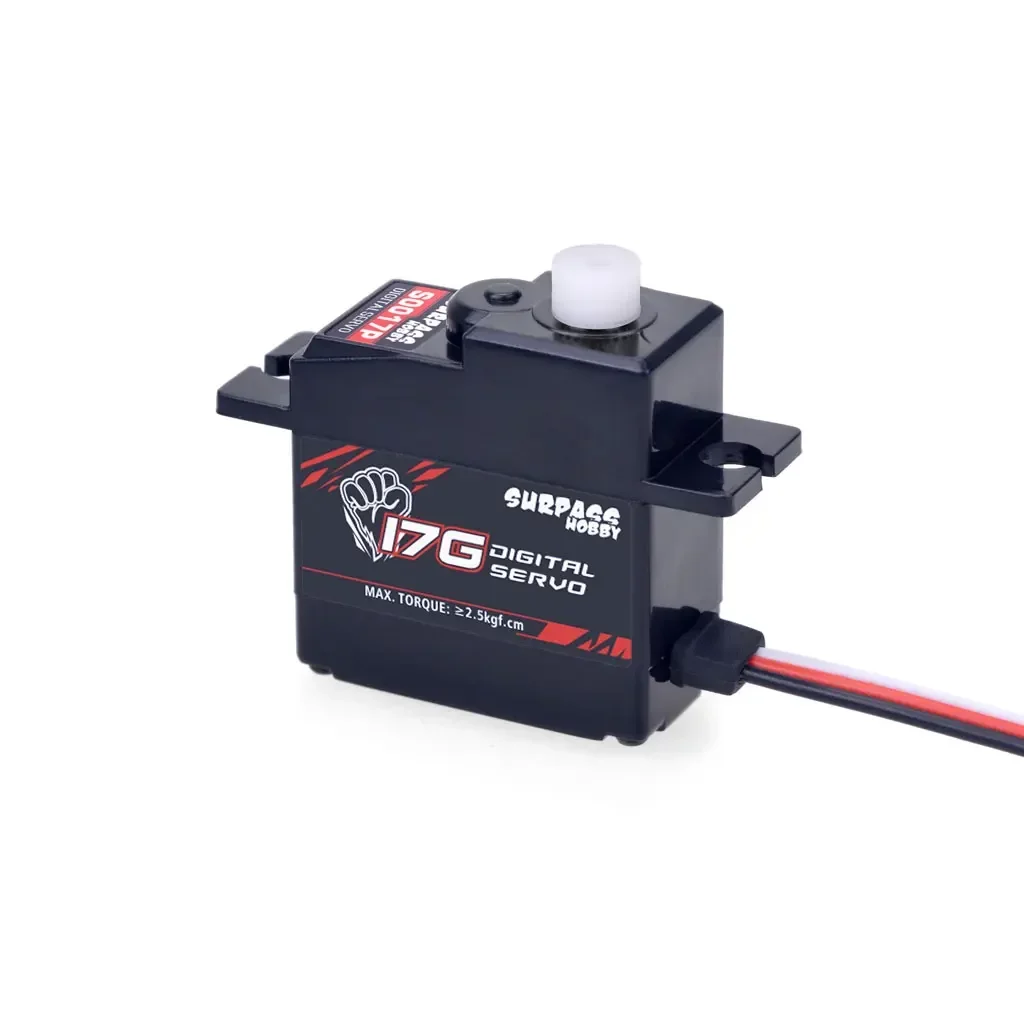

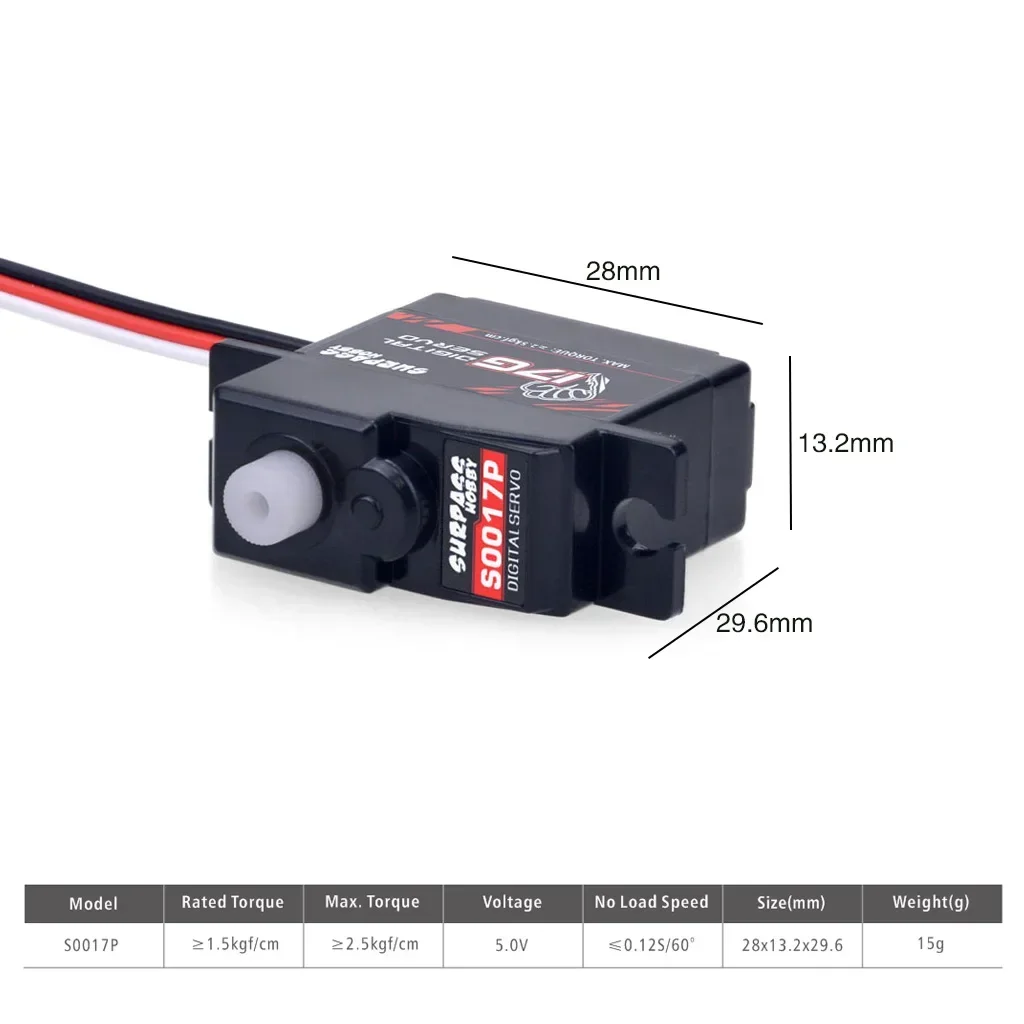

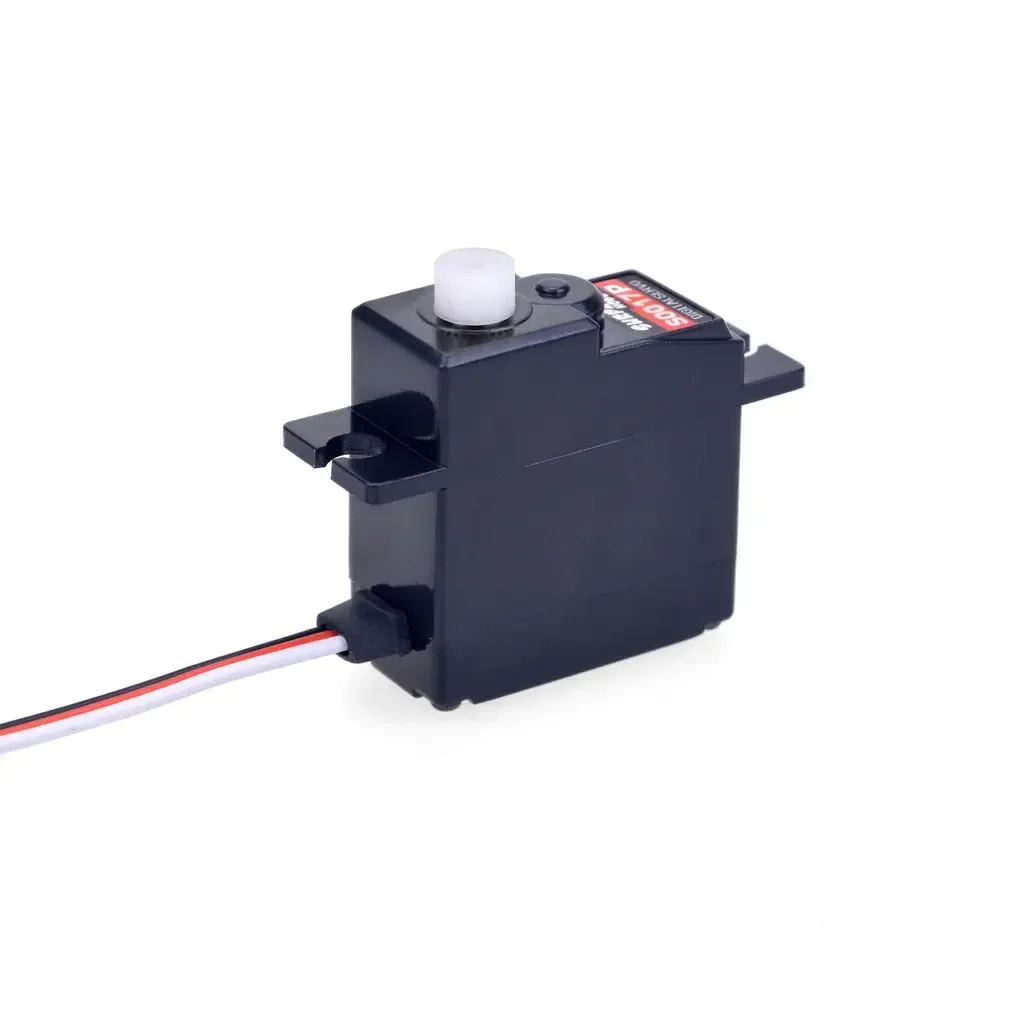

Model: S0017P
Operating voltage: 4.8V ~ 6VDC
Rated Torque: ≥1.5kgf/cm at 5V
Max. Torque: ≥2.5kgf/cm at 5V
No load speed: ≤0.12s/60° at 5V
Working frequency: 1520 μ s / 333hz;
Gear type: Plastic gear
Horn gear spline:25T
Case material :ABS
Motor type : DC motor
Size : 28*13.2*29.6mm (1.1*0.52*1.2 inch)
Product net weight: 15g(0.53oz)

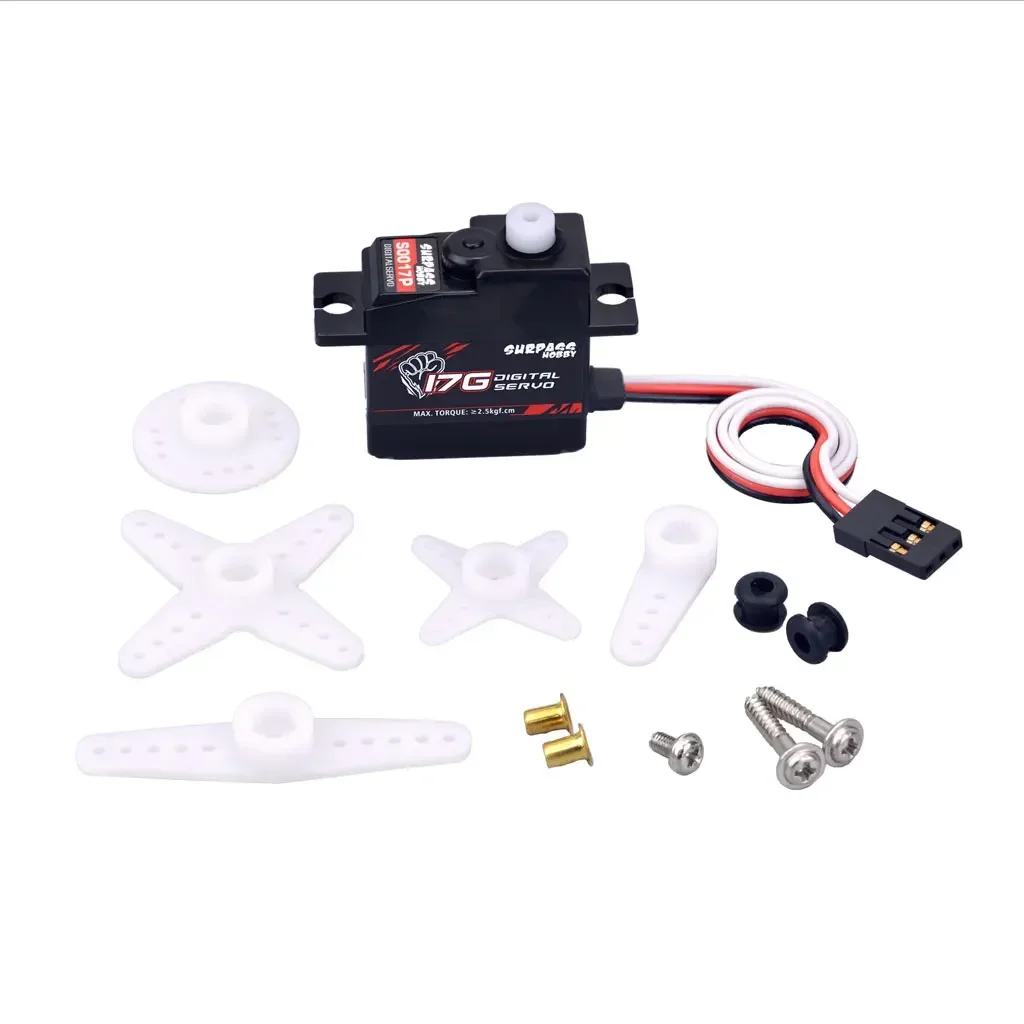

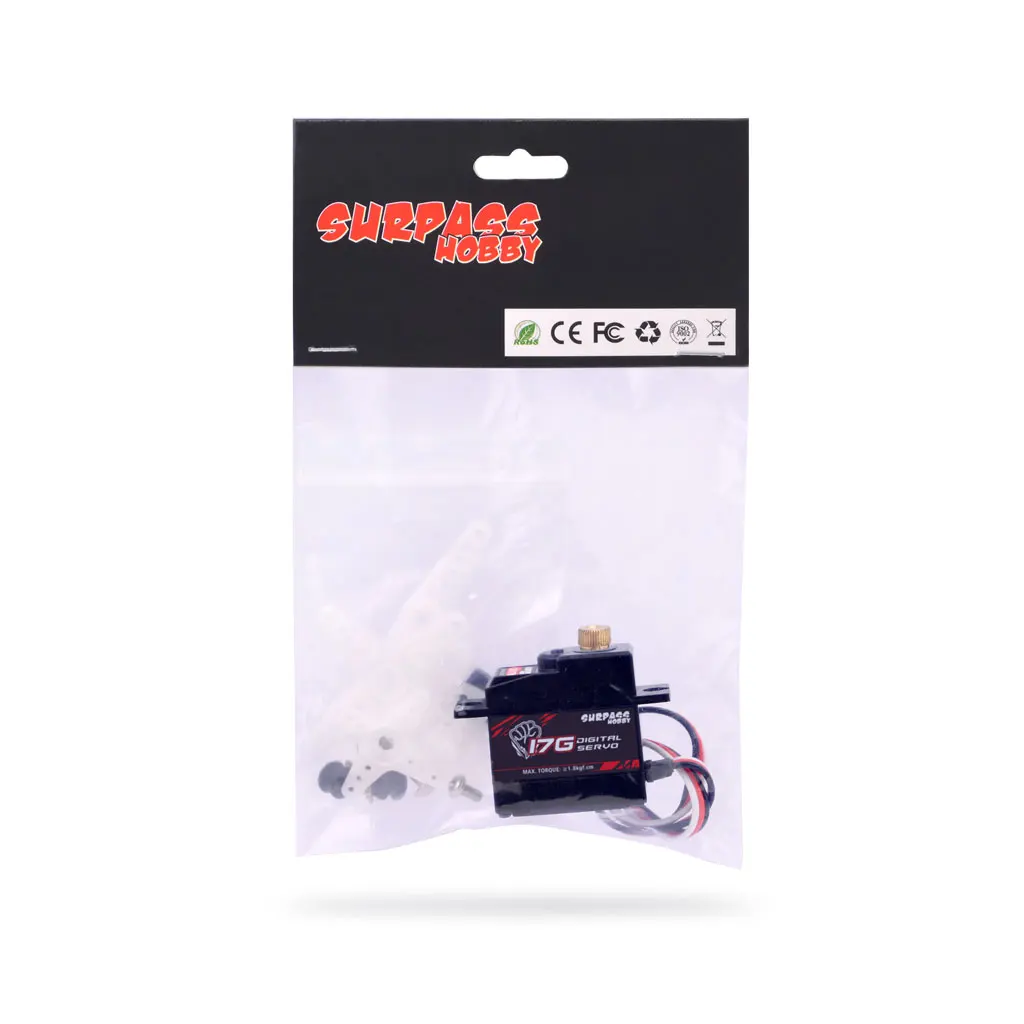

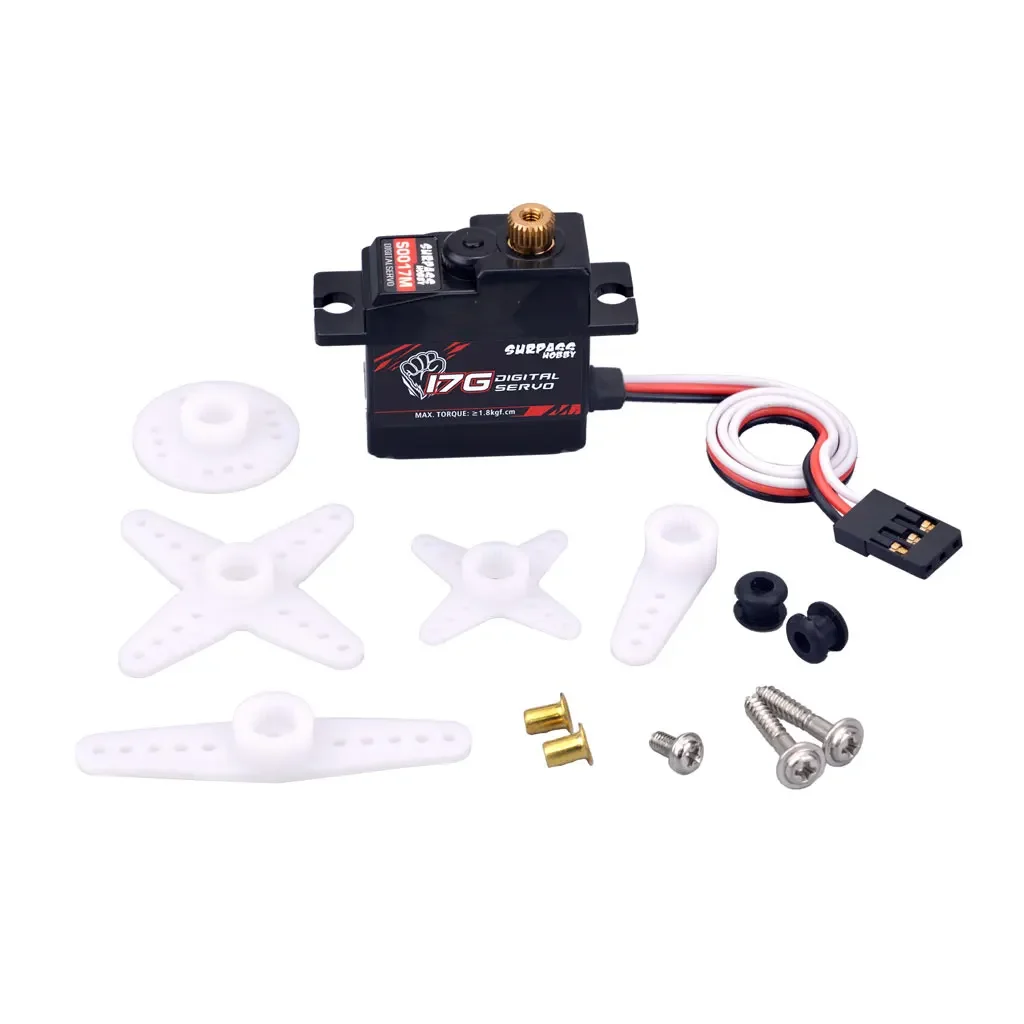

Package listing:
1PCS x SURPASS Hobby 17g Digital Servo

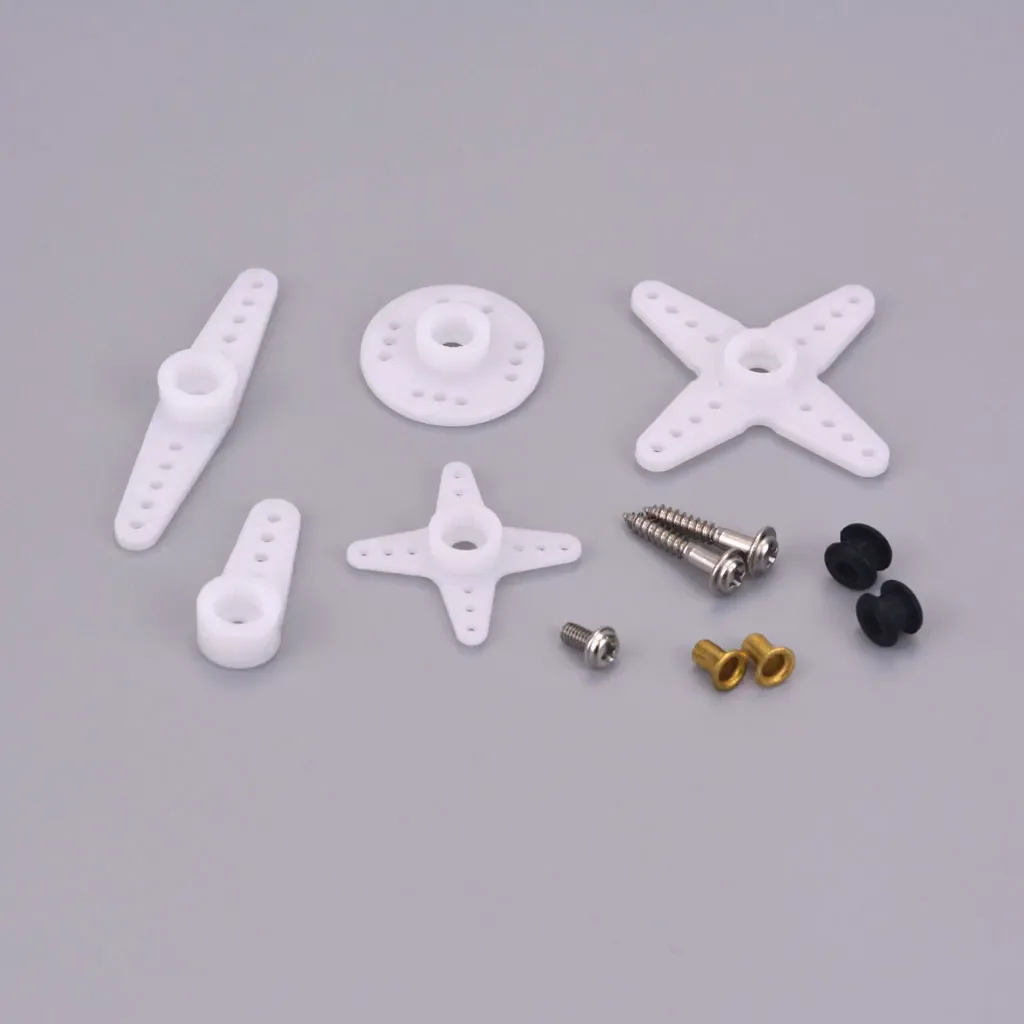

1PCS x Servo Arm Accessories
