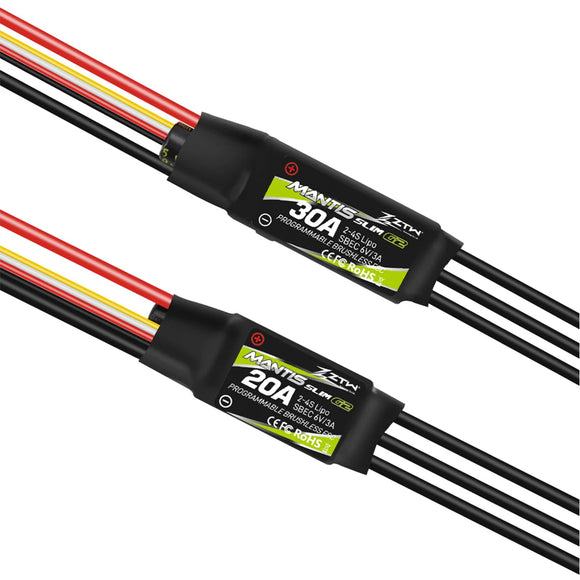

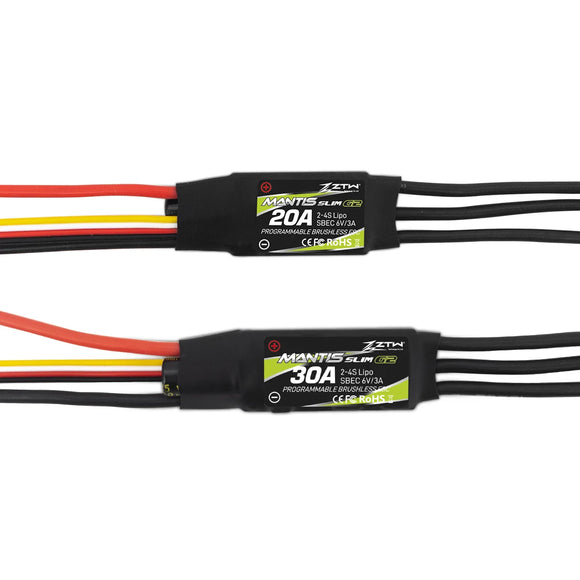

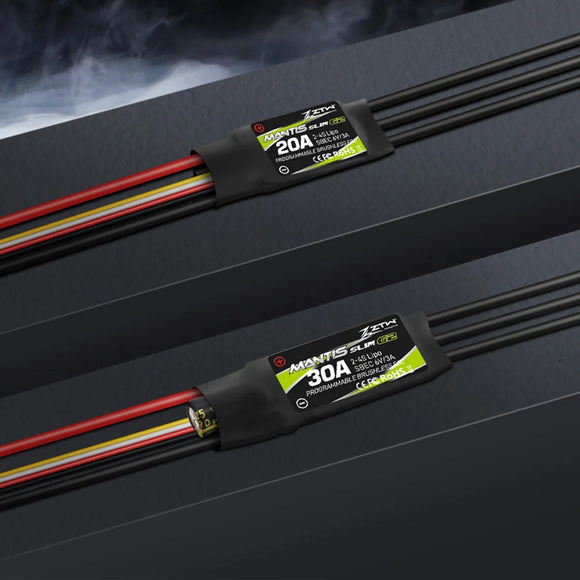

ZTW Mantis Slim G2 20A/30A ESC 2-4S SBEC 5V/3A Bidirectional Speed Controller For RC Airplane Fixed-wing Indoor F3P 3D/4D Flying
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.

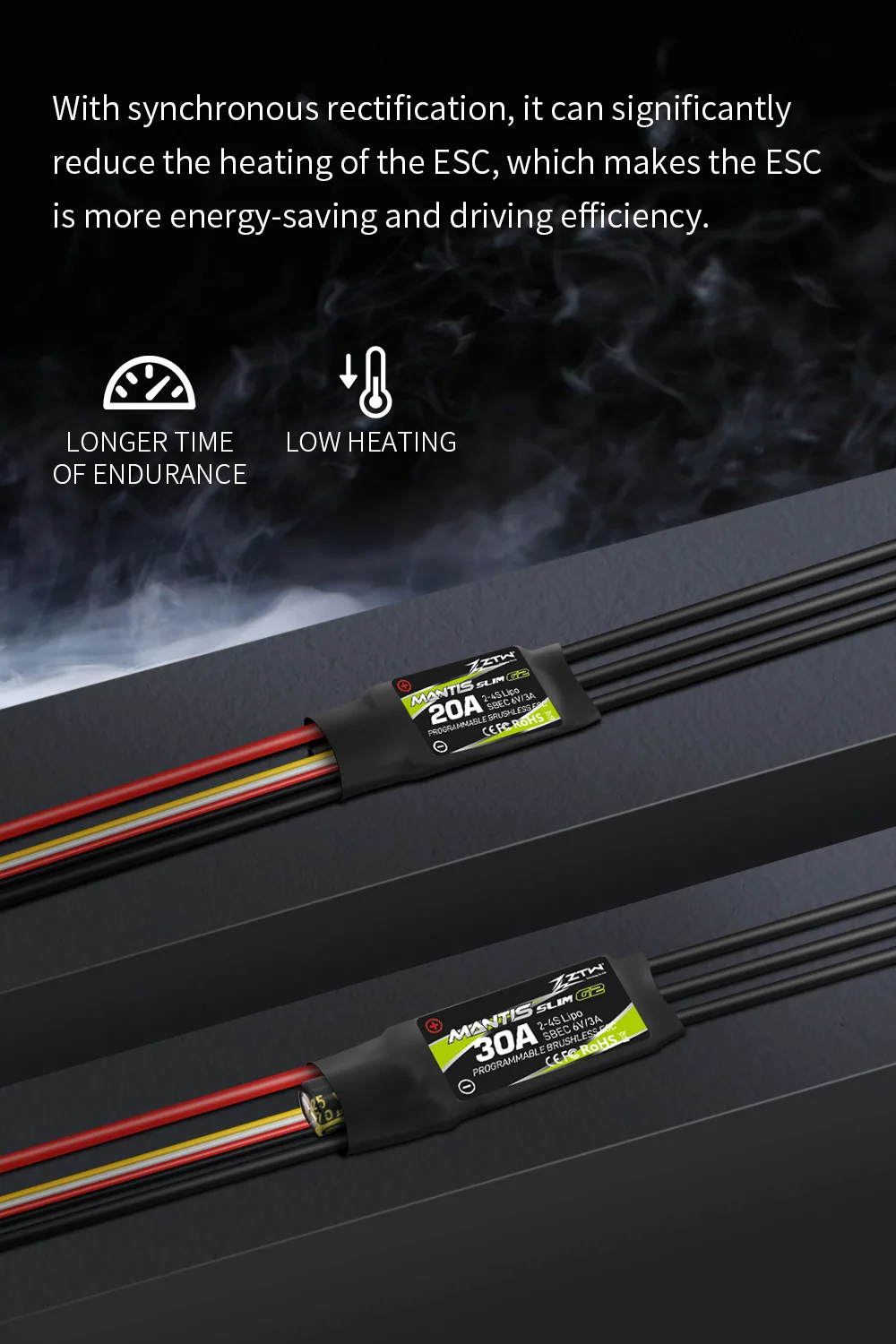

4. Higher driving efficiency and more energy-saving.
5. Mini size, light weight, good for indoor 3D flying.

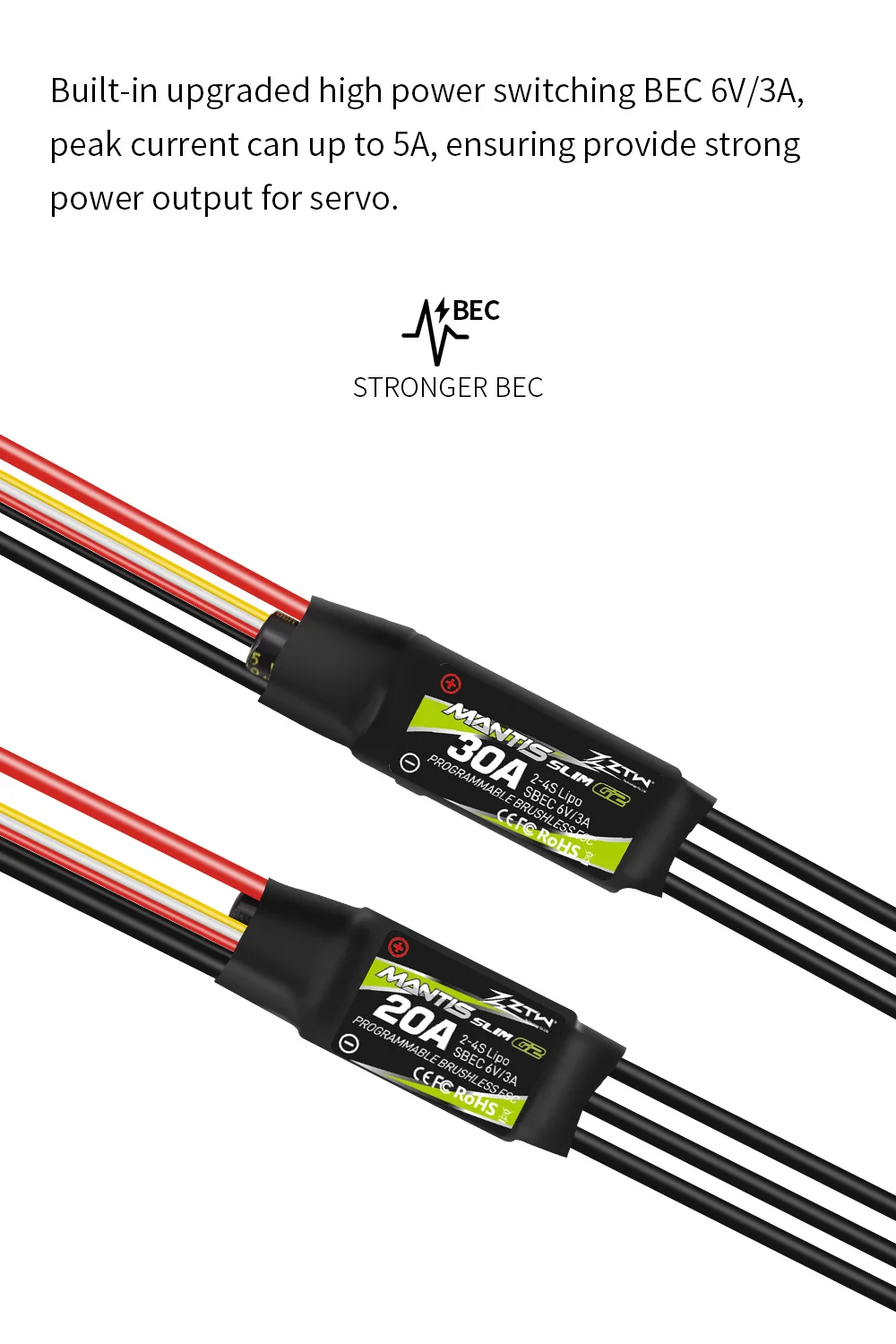

6. Super strong SBEC output, continuous 6V/3A, peak 5A current.

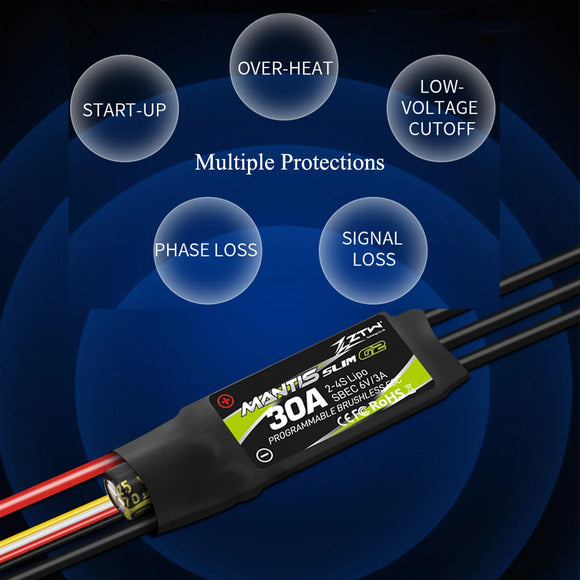

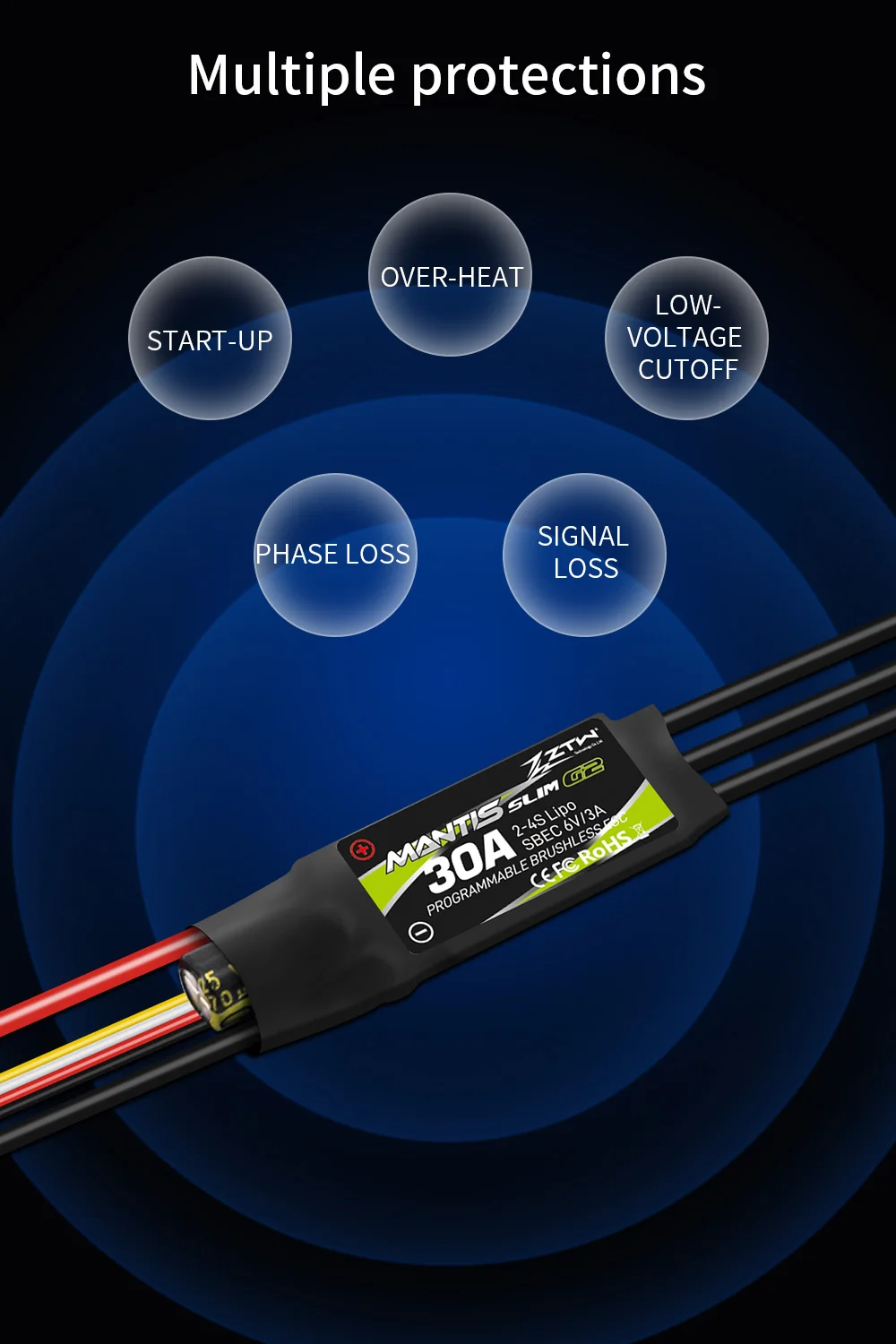

7. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
8. Support high RPM motors, and compatible with most motors in the market.

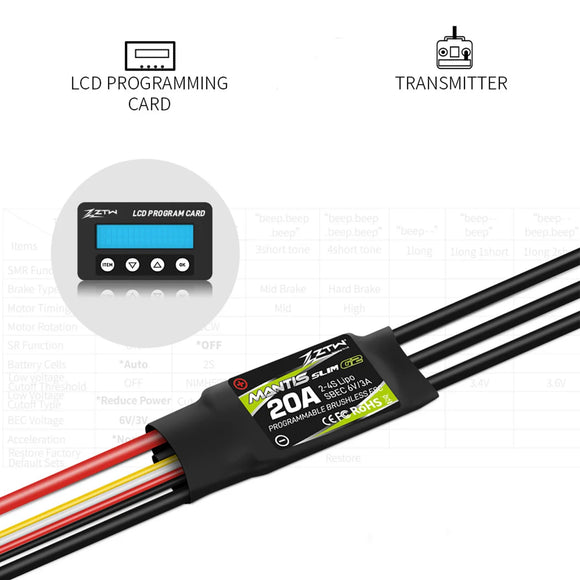

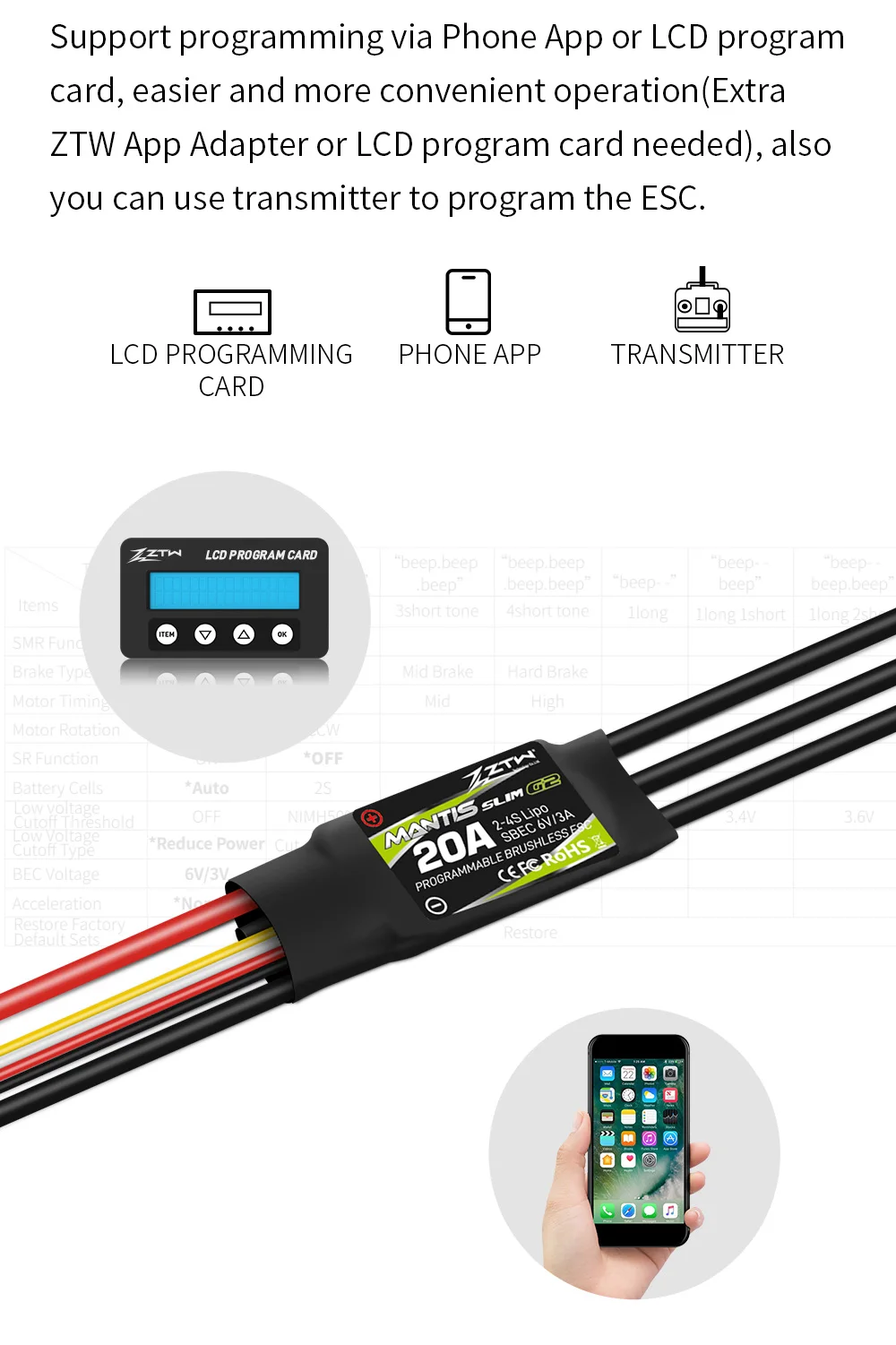

9. Fully programmable via ZTW new LCD programming box G2.
Specifications:

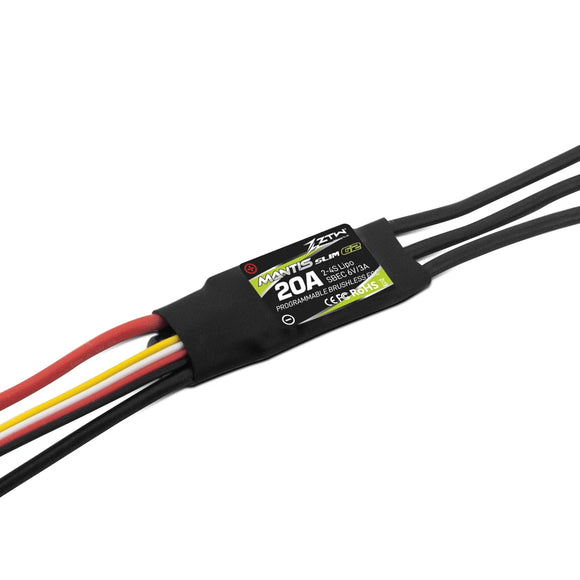

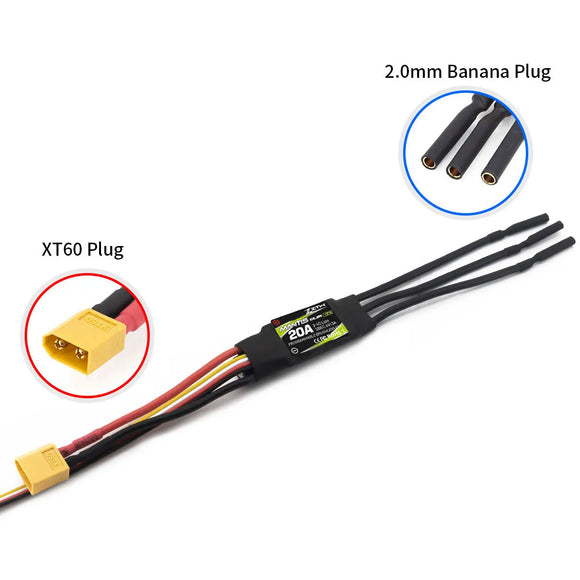

Model: Mantis Slim 20A G2
Cont./Burst Current(A): 20A/30A
Battery cell NiXX\Lipo: 5-12NC/2-4Lipo
Weight(g): 11
BEC Output: 6V/3A
Size(mm)L*W*H: 36*16*10

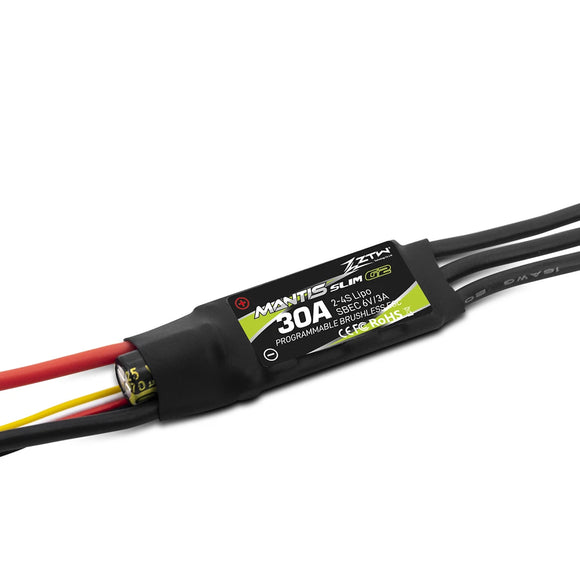

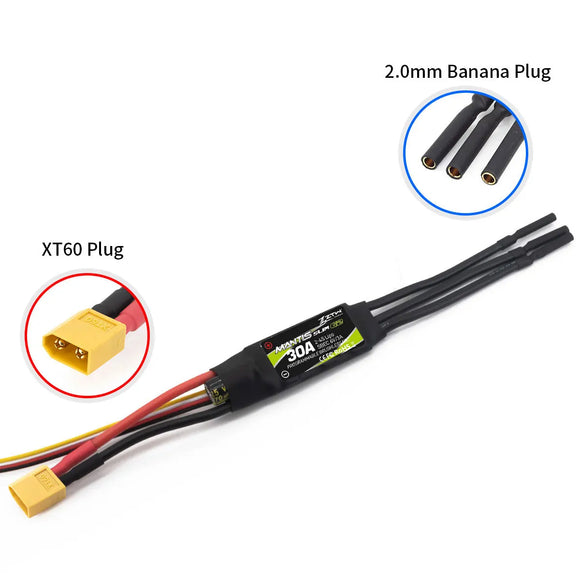

Model: Mantis Slim 30A G2
Cont./Burst Current(A): 30A/40A
Battery cell NiXX\Lipo: 5-12NC/2-4Lipo
Weight(g): 15
BEC Output: 6V/3A
Size(mm)L*W*H: 54*18*10
