BETAFPV Matrix 1S 5IN1 AIO FC Brushless Flight Controller 2.4G ELRS 400mW VTX For Meteor75 Pro Whoop Quadcopter Racing Freestyle

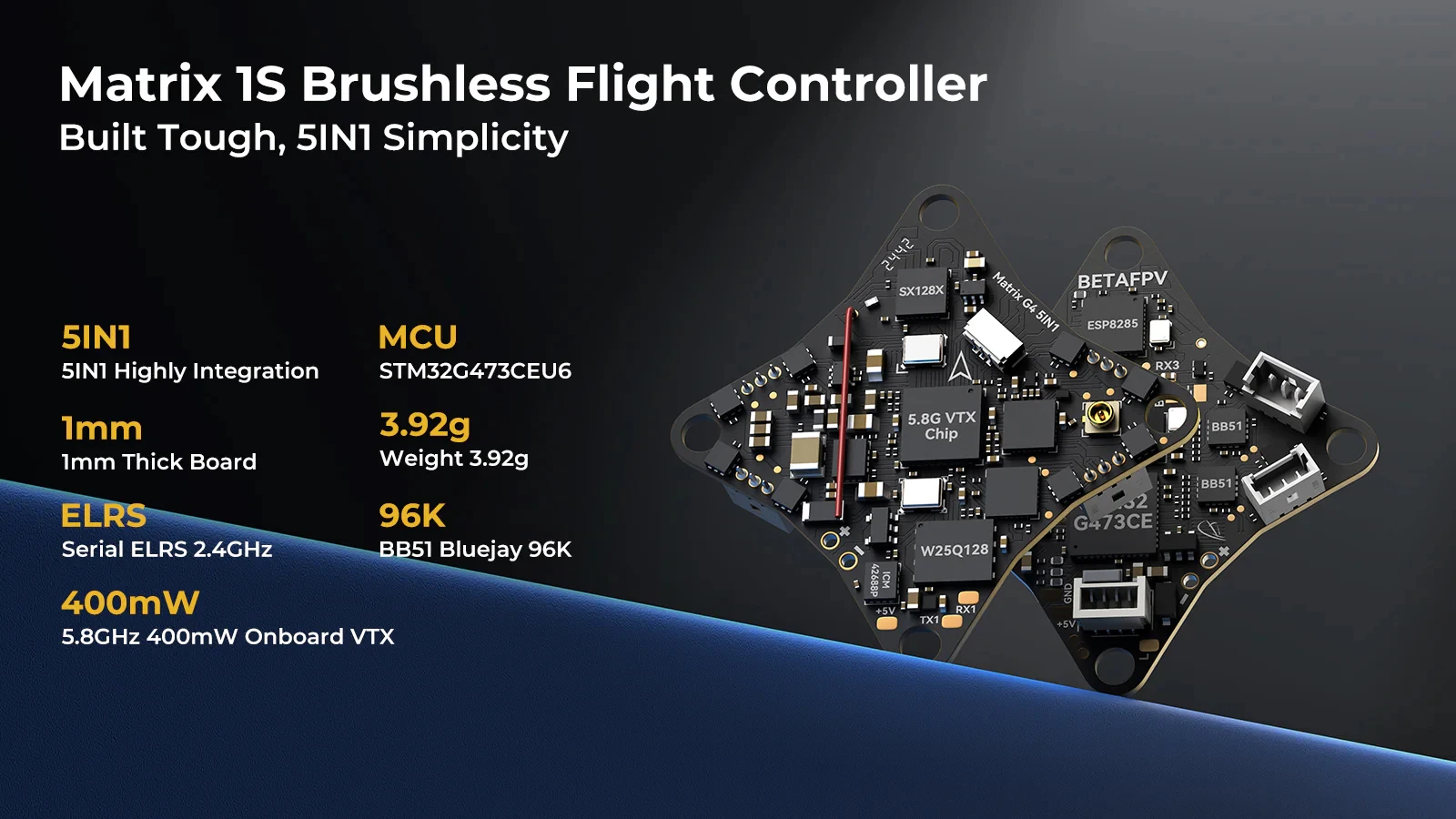

The Matrix 1S Brushless Flight Controller is a highly integrated solution designed for beginners and FPV enthusiasts. Its robust 1mm-thick board ensures durability during intense training, while the built-in motor plug simplifies installation, eliminating welding. Upgraded with the G473 processor, it delivers a 55% performance boost over the F411 for more precise control in racing and freestyle. Plus, its premium 5.8GHz 400mWVTX ensures stable, high-quality video transmission.

Note: stay tuned for our upcoming 3IN1 version, tailored for 1S whoop quads with HD VTX.

Attention

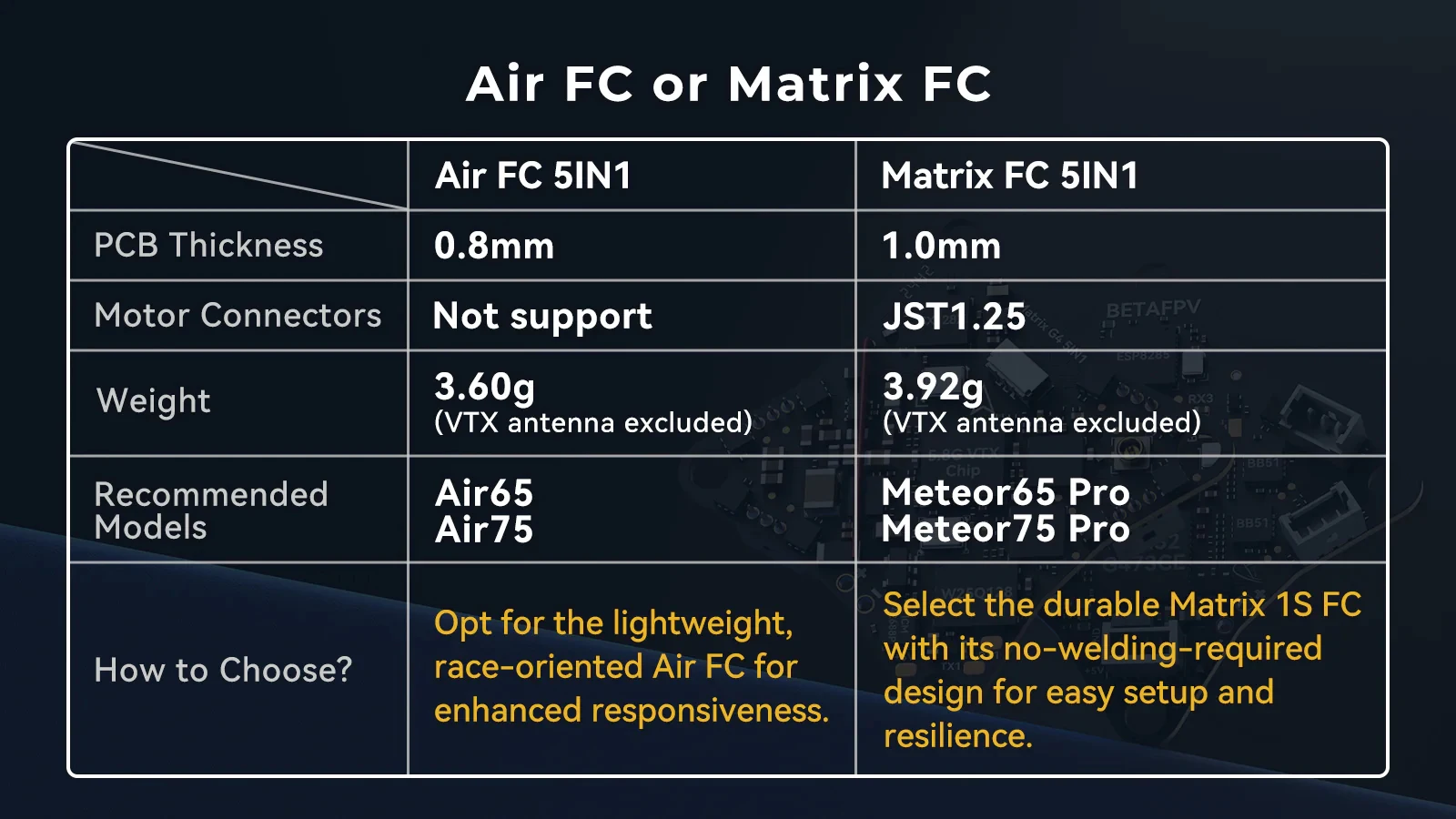

The Matrix 1S Brushless Flight Controller is crafted for beginners and casual pilots, offering enhanced durability with its thicker board and no welding requiredmaking it perfect for entry-level users. As a result, it is slightly heavier than the Air Brushless Flight Controller 5IN1 version. For advanced FPV pilots seeking a more responsive, race-oriented experience, the Air Brushless FC 5IN1 version is highly recommended. The Matrix 1S Brushless FC and Air Brushless FC 5IN1 Version have undergone rigorous testing and meet competition-grade standards.

·Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.

·VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power.

·VTX Antenna: Connect and install the image transmission antenna before powering on the flight control. Alternatively, set transmission power to 0 to avoid burnout.

Bullet Points

·Built Tough: The Matrix 1S Brushless FC features a robust 1mm-thick circuit board. While slightly heavier, this design enhances durability for everyday training. For advanced pilots, the Air Brushless FC 5IN1 Verion provides a lighter alternative.

·Simplified Installation: The Matrix 1S Brushless FC is a true all-in-one flight controller with integrated FC+VTX+OSD+ESC+RX, plus standard motor plugs, making setup and maintenance remarkably easy. Ideal for FPV beginners, this design requires no welding and ensures a smooth installation experience.

·Upgraded Performance: Upgraded with the G473 processor, the Matrix 1S Brushless FC achieves a remarkable 55% increase in computing speed over the F411, delivering swift response for precise racing and complex freestyle maneuvers.

·Premium Video Transmission: Equipped with a high-quality 5.8GHz VTX supporting up to 400mW, the Matrix 1S ensures stable, accurate transmission for both daily flying and competitive racing.

Specifications

FC

• MCU: STM32G473CEU6

• Gyro: ICM42688P

• Blackbox memory: 16MB

• Sensor: Voltage & Current

• BEC: 5V, Max. 3A

• UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4

• BetaFlight OSD: AT7456E

• ESC: 5A continuous

• RX: Serial ELRS 2.4GHz (V3.4.3)

• VTX: 5.8GHz 48 channels, Max. 400mW

• FC firmware: Betaflight_4.5.0_BETAFPVG473

• USB port: SH1.0-4Pin

• Motor plug: JST1.25

• Battery connector: BT2.0

• Mounting hole size: 26mm x 26mm

• Weight: 3.92±0.1g

ESC

• Power input: 1S Only

• Current: 5A continuous, 8A peak

• ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware

• Digital signal protocol: DShot300, DShot600

VTX

• Output power: 25/100/200/400/PIT

• Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz

• Channel SEL: SmartAudio2.0

• Modulation type: FM

• Frequency control: PLL

• All harmonic: Max -50dBm

• Frequency stability: ±100KHz (Typ.)

• Frequency precision: ±200KHz (Typ.)

• Channel carrier error: ±1.5dB

• Antenna port: 50

• Operating temperature: -10~+80

Diagram

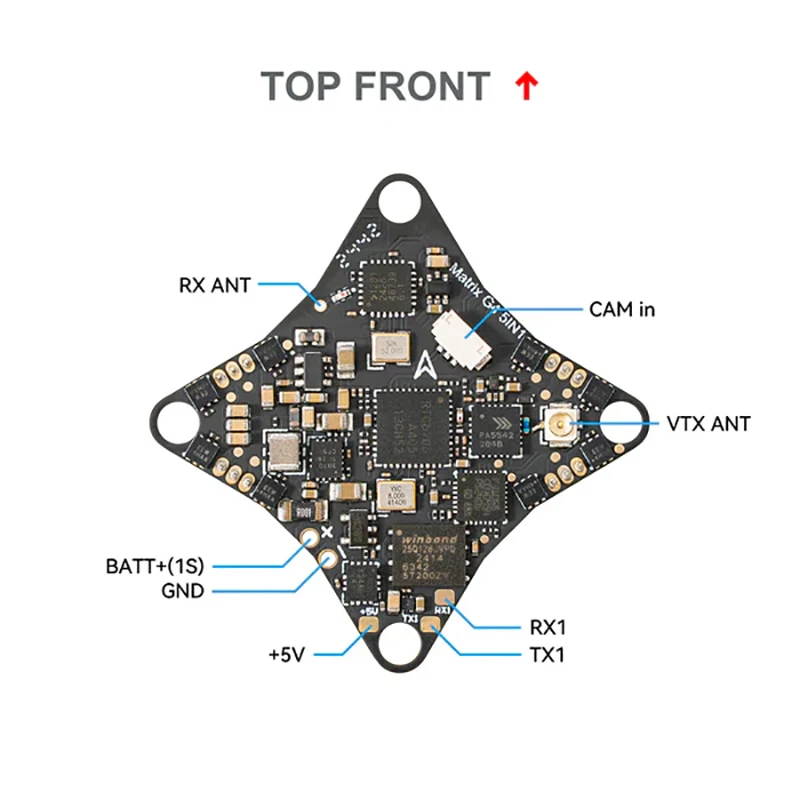

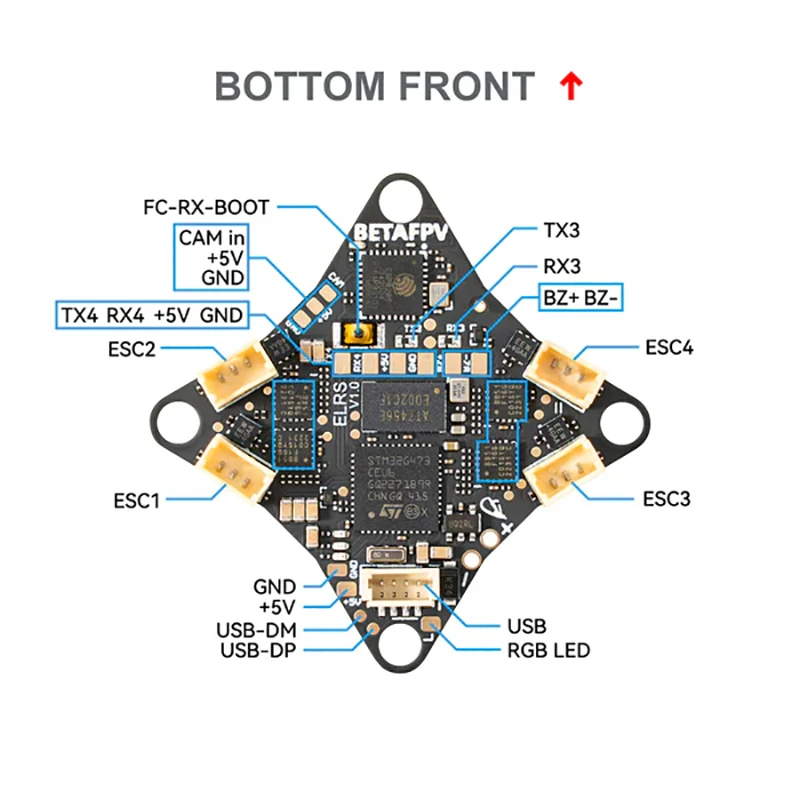

Below is the diagram for Matrix 1S Brushless FC.

Meteor75 Pro Now Powered By the Upgraded Matrix 1S Brushless FC

Starting November 20, the Meteor75 Pro will be upgraded with the Matrix 1S Brushless FC. This enhancement introduces a durable 1mm-thick board, a high-speed G473 processor with a 55% boost in computing power, and an integrated 5.8GHz 400mW VTX. Built-in motor plugs simplify installation, making it more beginner-friendly. These advancements deliver improved durability and performance while ensuring the Meteor75 Pro excels in both indoor and outdoor FPV racing and freestyle flying.

Serial ELRS 2.4G RX

Serial ELRS 2.4G RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board. So the Serial ELRS 2.4G RX is available to support upgrading to ELRS V3.0 with no need to flash Betaflight flight controller firmware. Enter binding status by power on/off three times.

• Plugin and unplug the flight controller three times;

• Make sure the RX LED is doing a quick double blink, which indicates the receiver is in bind mode;

• Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse;

• If the receiver has a solid light, it's bound.

The Serial ELRS 2.4G RX can be updated via Wi-Fi or Betaflight serial passthrough. Here is the way to update the Serial ELRS 2.4G RX firmware through passthrough.

• Plug in your FC to your computer, connect to ExpressLRS Configurator instead of Betaflight Configurator;

• Choose target "BETAFPV 2.4GHz AIO RX";

• Flash using the BetaflightPassthrough option in ExpressLRS Configurator.

How to Use Serial Ports, Intergrated RX and VTX

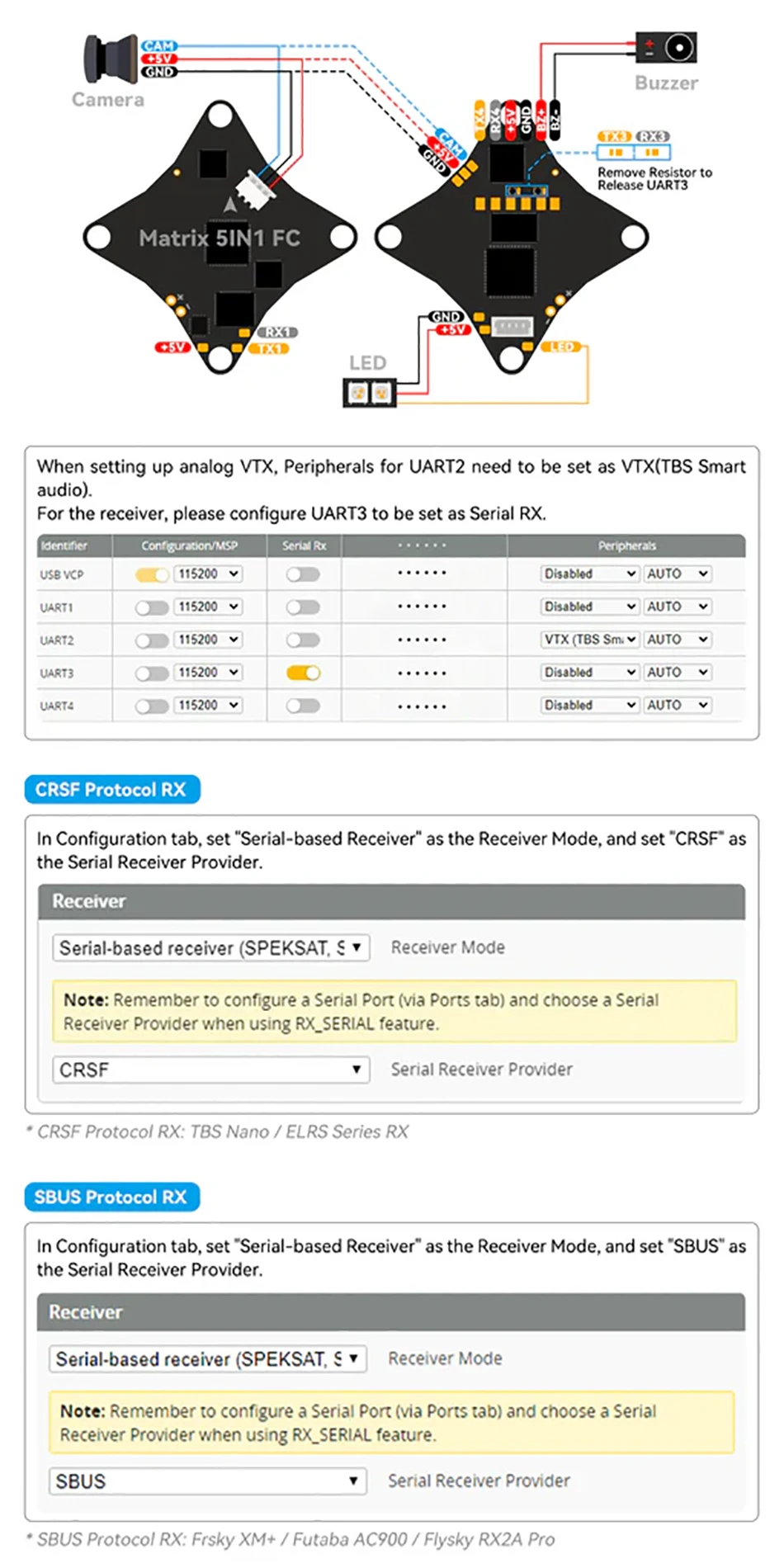

Please note that by default, UART2 is connected to the VTX and UART3 is connected to the RX. To release UART3, please remove the resistor. Additionally, this FC reserves 2 complete full-featured serial ports that can be used for external CRSF/SBUS receivers, GPS, HD VTX, or other serial devices. You can refer to the below pictures.

Recommended Parts

Drones: Meteor65 Pro, Meteor75 Pro

Frames: Meteor65 Pro, Meteor75 Pro

Motors: 0702/0702SE, 0802/0802SE, 1102

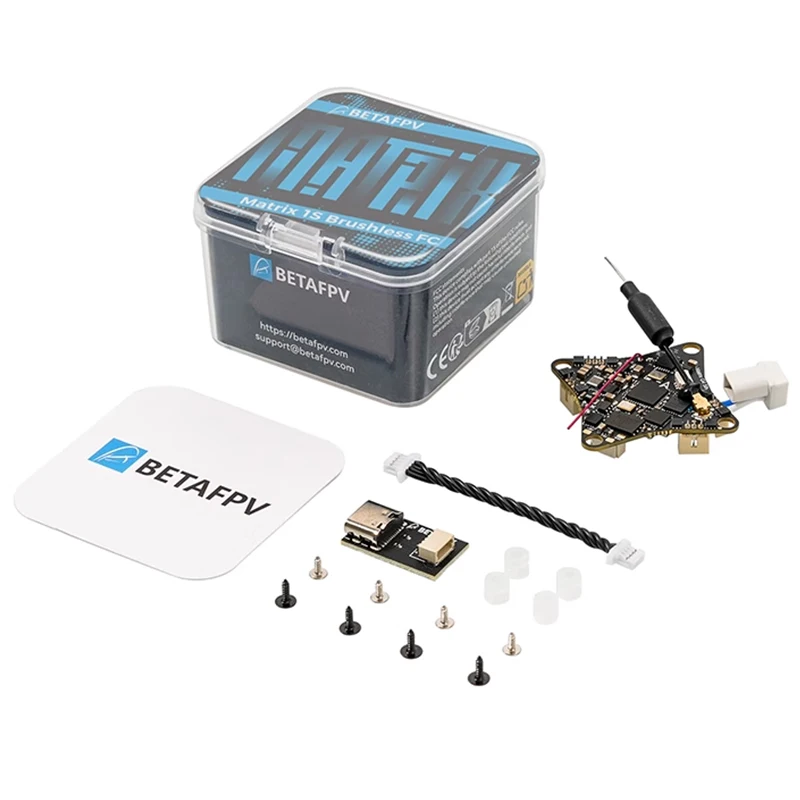

Package

1 * Matrix 1S Brushless Flight Controller

1 * Type-C to SH1.0 Adapter

1 * SH1.0-4Pin Adapter Cable

4 * M1.2*4 Self-tapping Screws

4 * M1.4*4 Self-tapping Screws

4 * Shock Absorbing Balls
