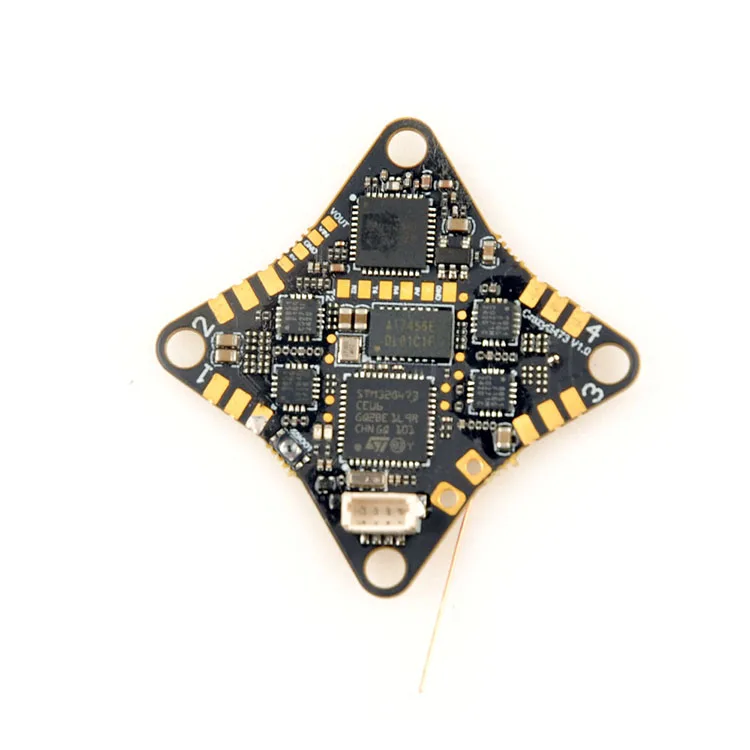

This the first AIO 5-IN-1 flight controller based on G473 MCU platform from Happymodel, Built-in UART ExpressLRS receiver and OpenVTXbetter for 65mm 1s Micro FPV whoops.
FC
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max. 2A

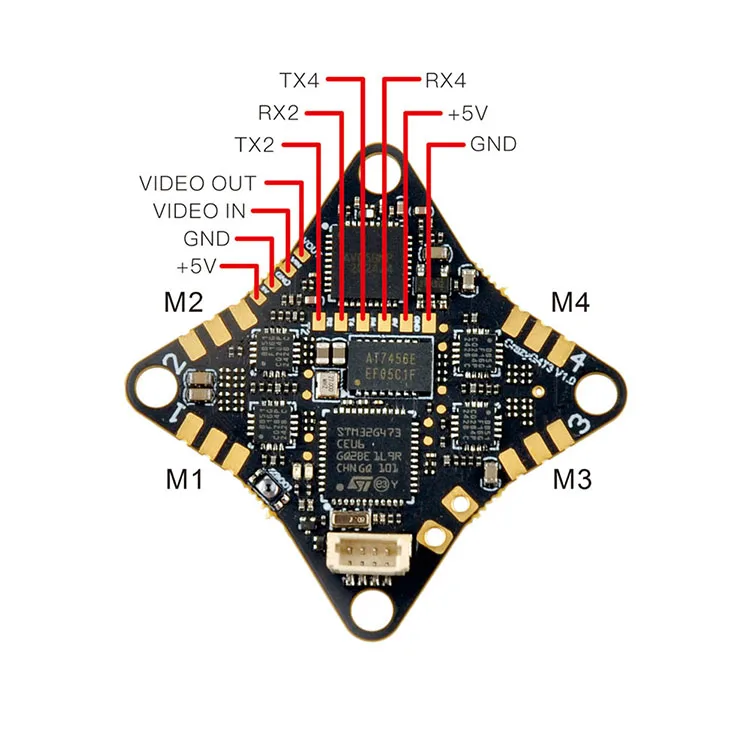

- UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- RX: Serial ELRS 2.4GHz
- RX antenna: Enameled copper wire 31mm length
- Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX
- OPENVTX: 5.8GHz 48 channels, Max. 400mW
- FC firmware target: CRAZYBEEG473
- USB port: SH1.0-4Pin
- Battery connector: A30
- Mounting hole size: 5mm x 25.5mm
- Weight: 83g without pigtail and vtx antenna
ESC
- Power input: 1S Only
- Current: 5A continuous, 6A peak
- ESC firmware: V0.21.hex Bluejay
- Firmware target: A_X_5_96KHz
- Digital signal protocol: DShot300, DShot600
VTX
- OPENVTX Firmware
- Support firmware upgrade by openvtx configurator
- Output power: PIT/10/25/100/400
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.1
- Modulation type: FM
- Operating temperature: -10℃~+80℃
- Antenna port: IPEX1/U.FL
Noted: Visit https://app.betaflight.com and click “select your device” then choose can’t find my USB device, then connect comport and betaflight configurator.
Due to firmware target is not available in current betaflight official ,you can download hex file from the belowing link:
Firmware download CRAZYG473 4.6.0 betaflight firmware
Default factory dump file Dump file for CRAZYG473 Betaflight4.6.0
