DIATONE MAMBA F45/ F55/ F65_128K BLHeli_32 4in1 ESC Dshot 300-600-1200 Installation 30.5mm/M3 4-6S For RC FPV Racing Drone

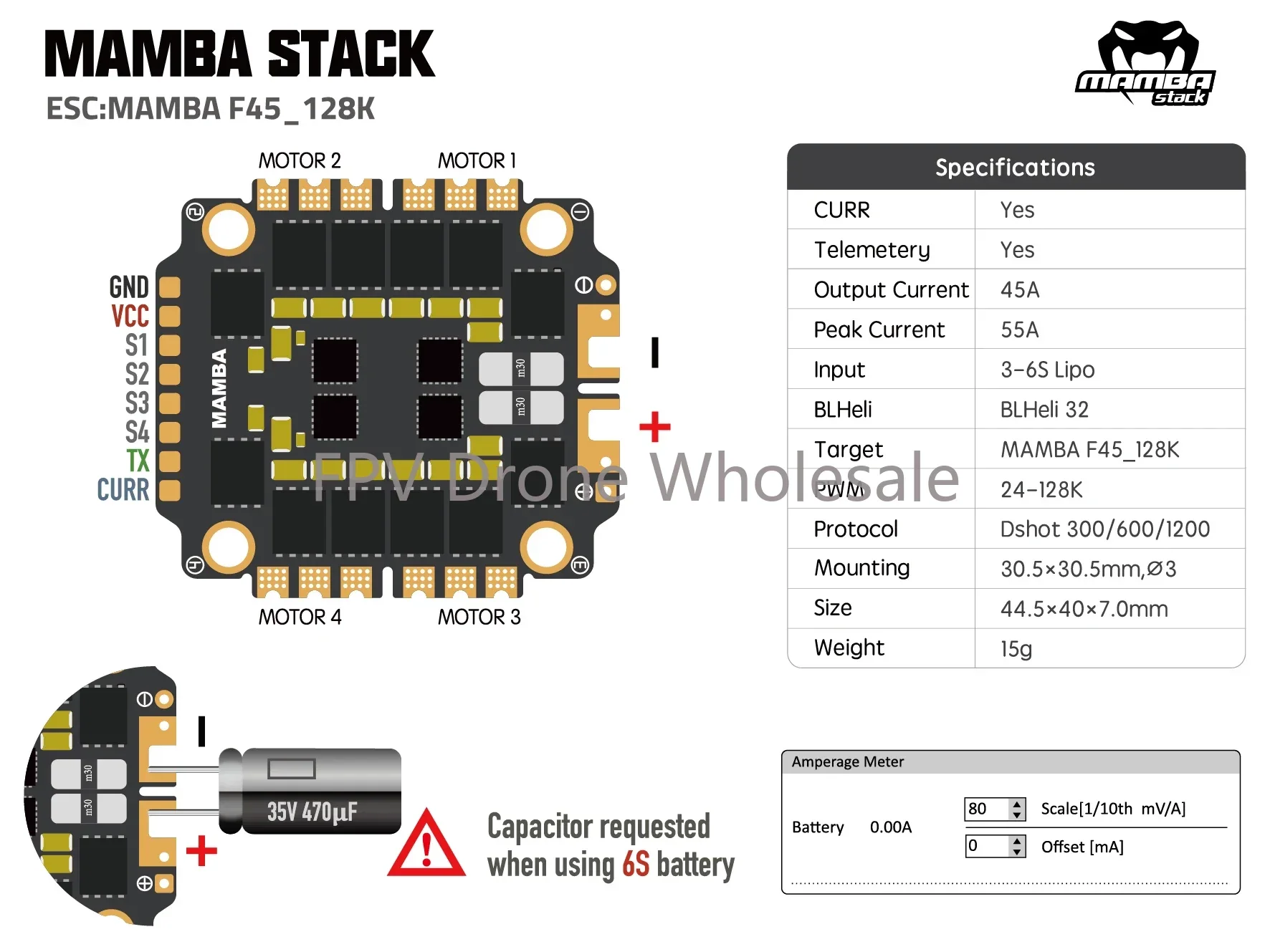

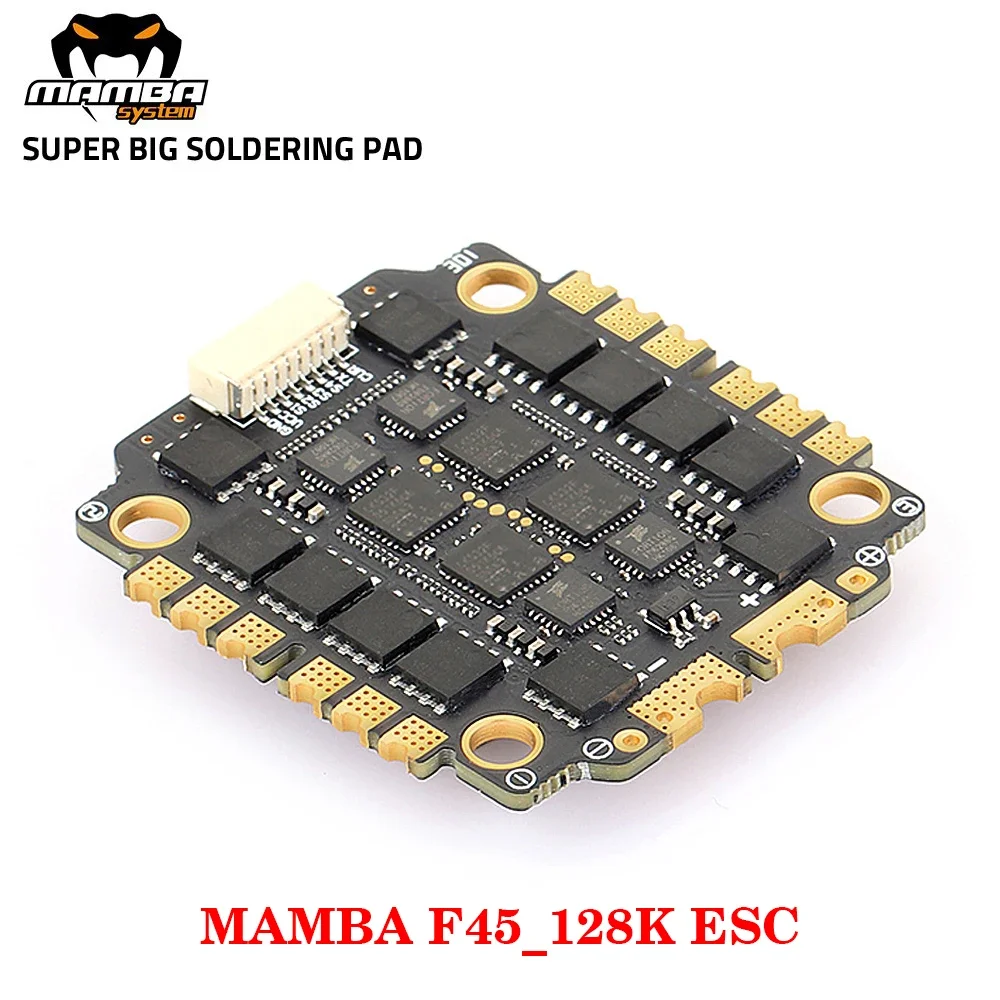

MAMBA F45_ 128K ESC
- Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
- Work current: 45A × 4
- Peak current: 55A (10S)
- BEC output: NO
- Firmware: BLHELI_32 MABA F45_128K
- Agreement: DSHOT300/600/1200
- PWM: 24 ~ 128K
- TVS Power Protection: Yes
- Installation size: 30.5mm/m3
Accessories:
- High -frequency filter capacitance 1000uf/35V × 1
- 8Pin SH1.0 Flying Control Electrocontonal Connection × 2
- AMASS XT60 power plug × 1

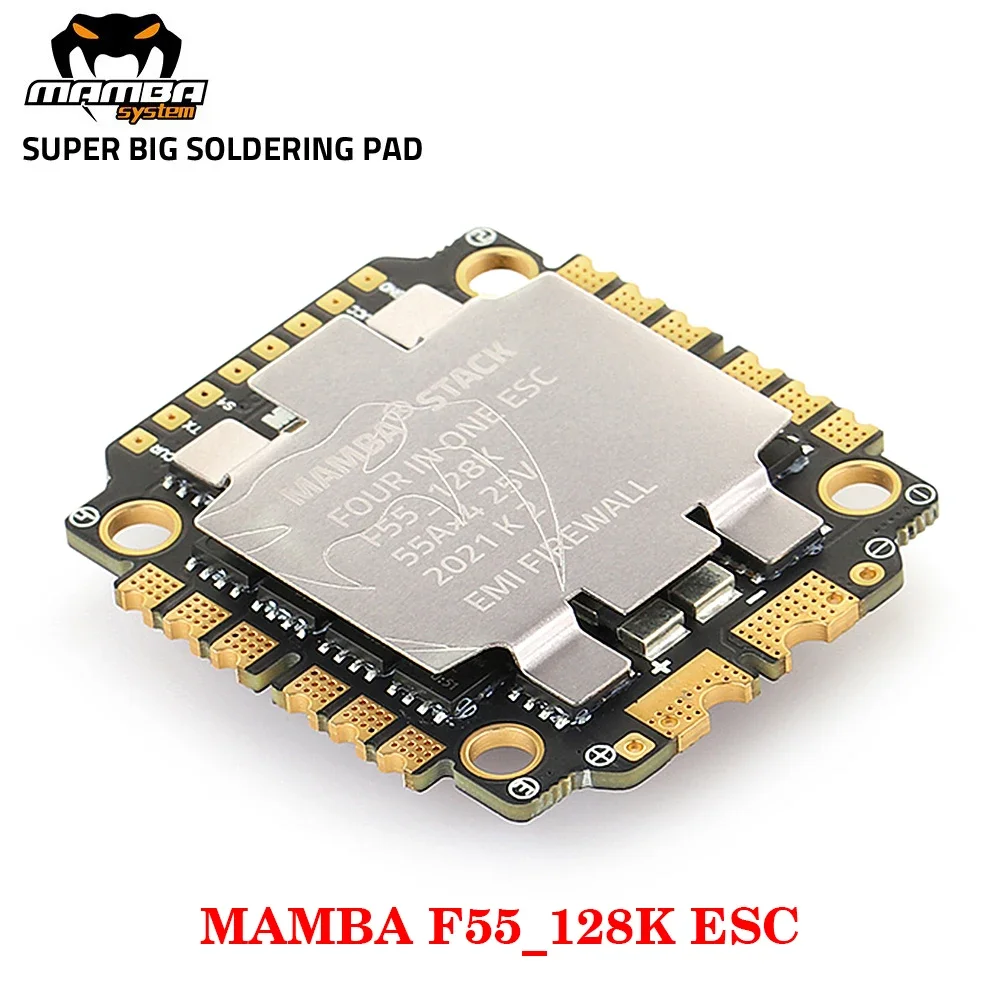

MAMBA F55_ 128K ESC
- Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
- Work current: 55A × 4
- Peak current: 65A (10S)
- BEC output: NO
- Firmware: BLHELI_32 MABA F55_128K
- Agreement: DSHOT300/600/1200
- PWM: 24 ~ 128K
- TVS Power Protection: Yes
- Installation size: 30.5mm/m3
Accessories:
- High -frequency filter capacitance 1000uf/35V × 1
- 8Pin SH1.0 Flying Control Electrocontonal Connection × 2
- AMASS XT60 power plug × 1

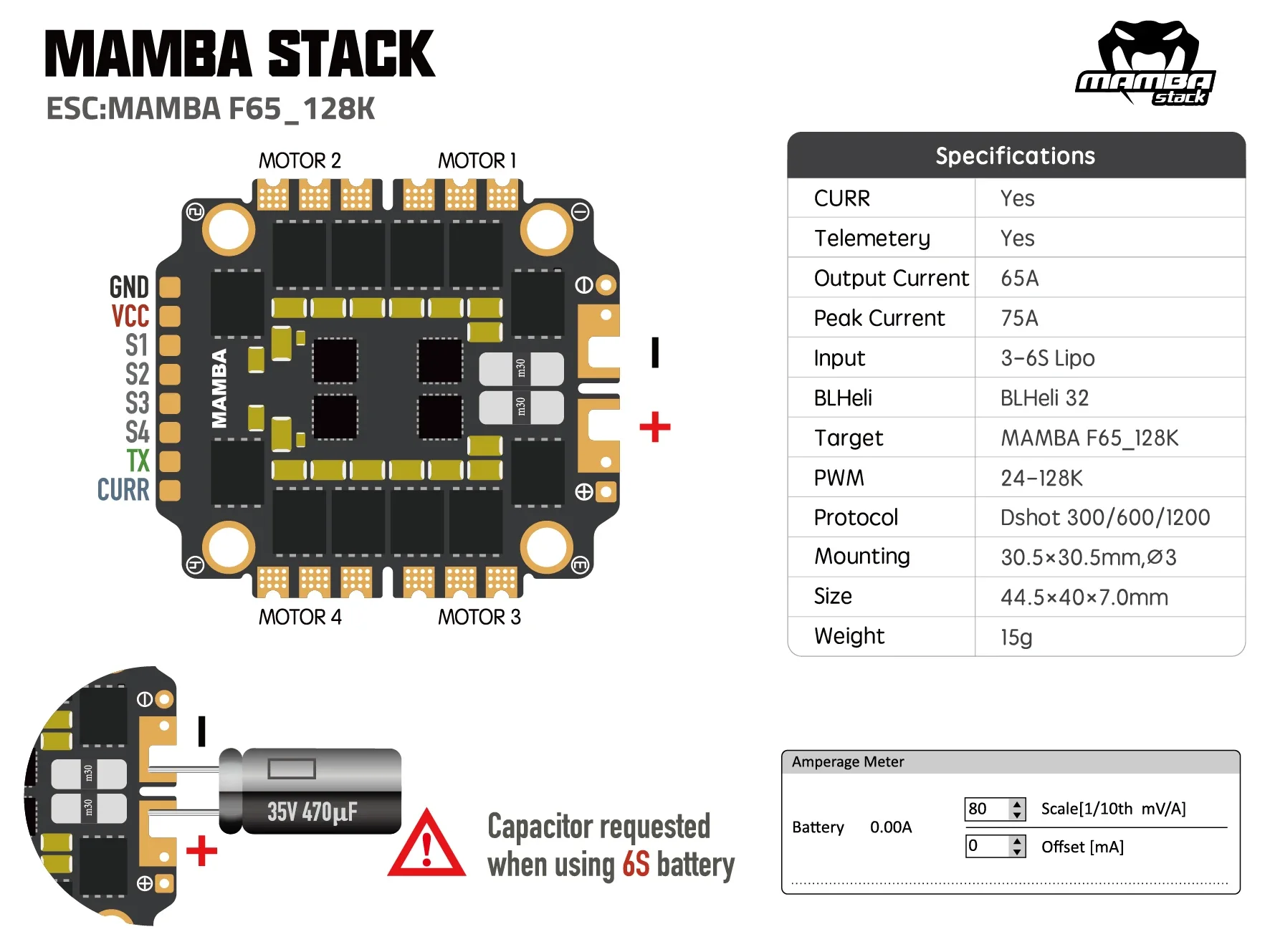

MAMBA F65_ 128K ESC
- Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
- Work current: 65A × 4
- Peak current: 75A (10S)
- BEC output: NO
- Firmware: BLHELI_32 MABA F65_128K
- Agreement: DSHOT300/600/1200
- PWM: 24 ~ 128K
- TVS Power Protection: Yes
- Installation size: 30.5mm/m3
Accessories:
- High -frequency filter capacitance 1000uf/35V × 1
- 8Pin SH1.0 Flying Control Electrocontonal Connection × 2
- AMASS XT60 power plug × 1
