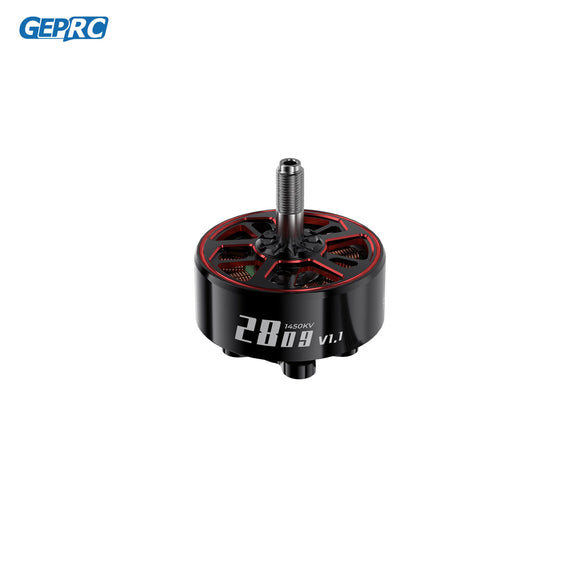

Summary

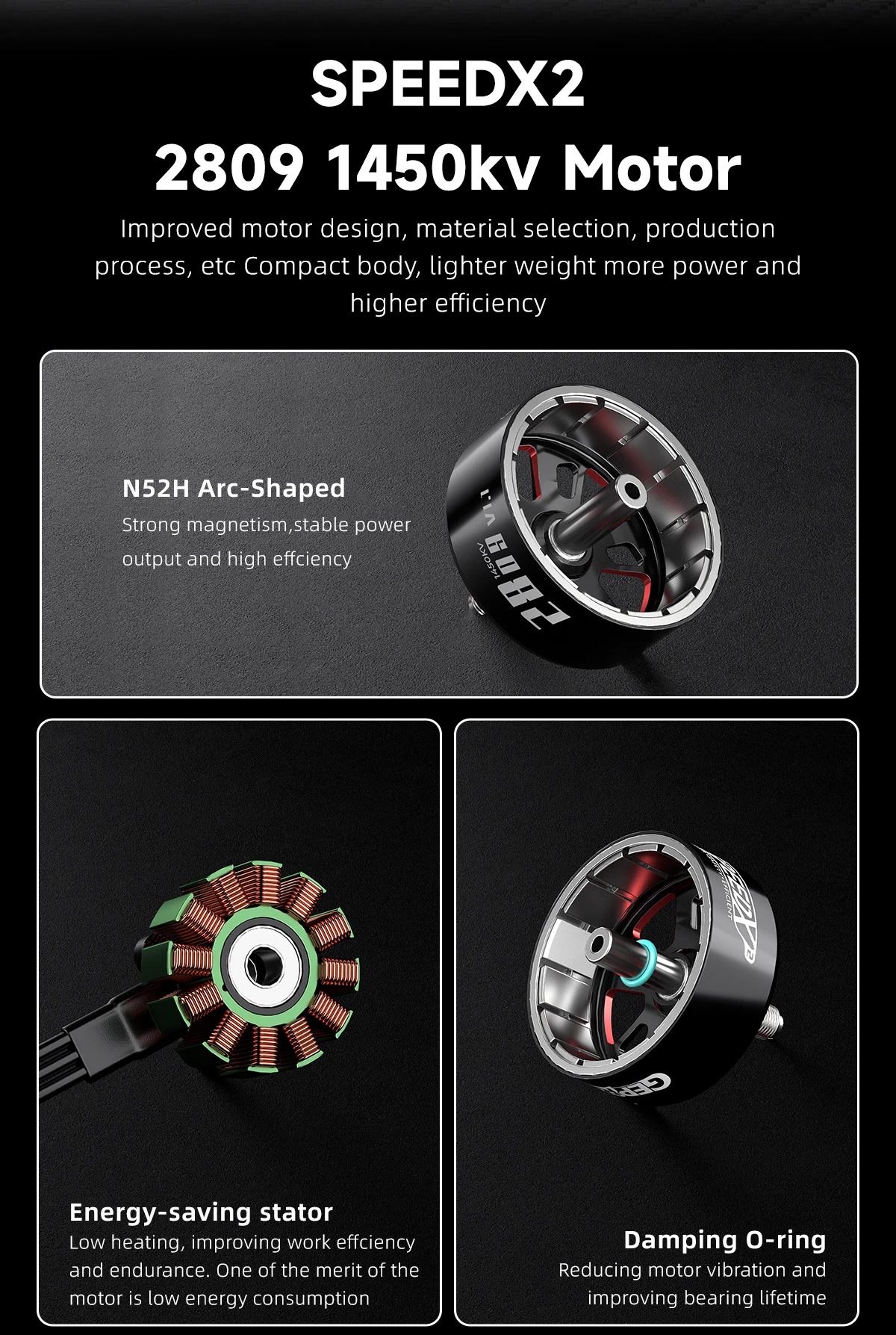

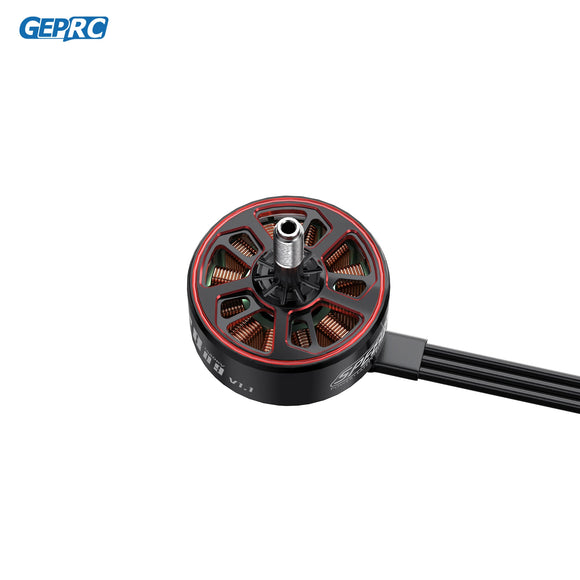

The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasaki silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm.
Feature
-

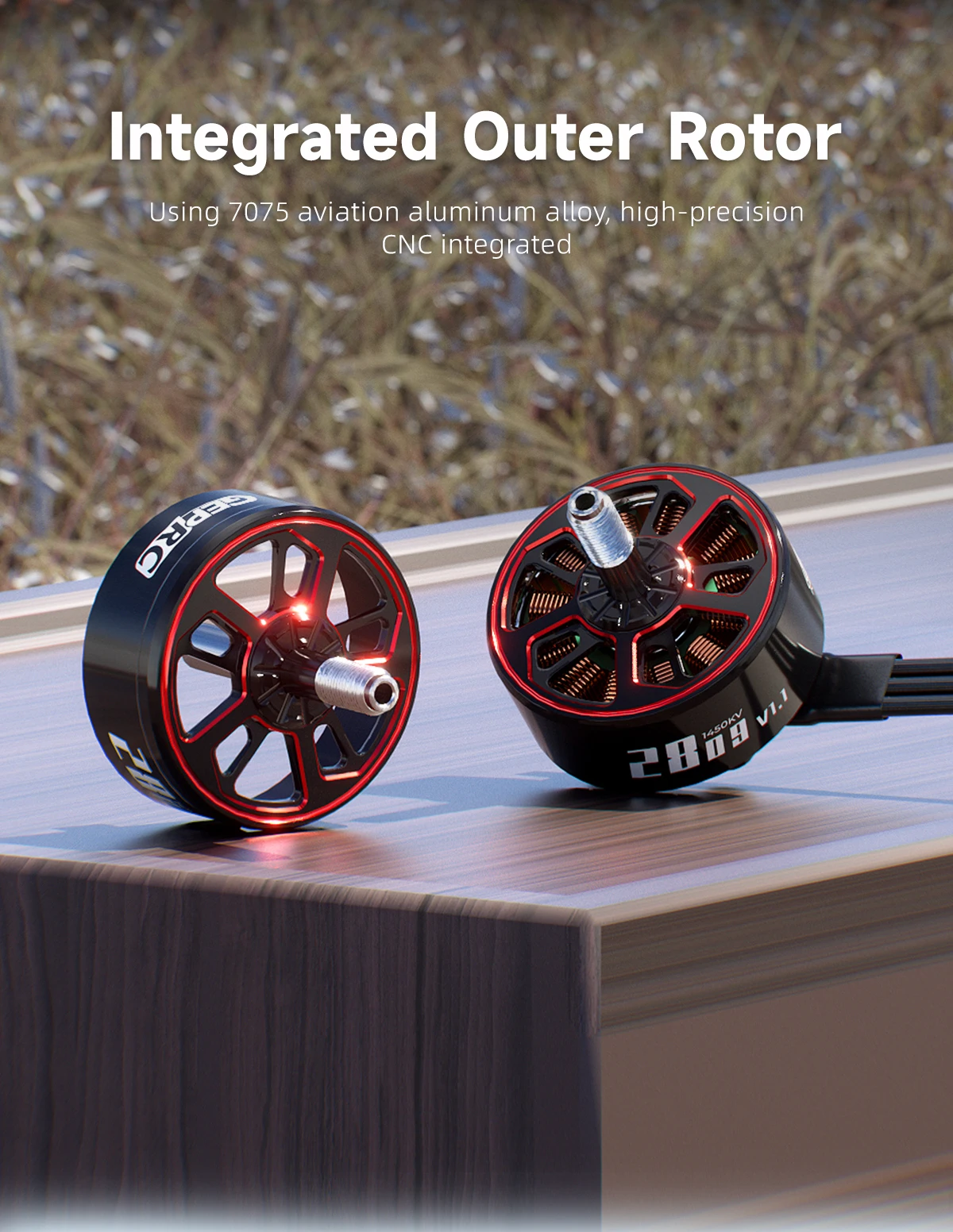

CNC-machined from 7075 aerospace aluminum.
-

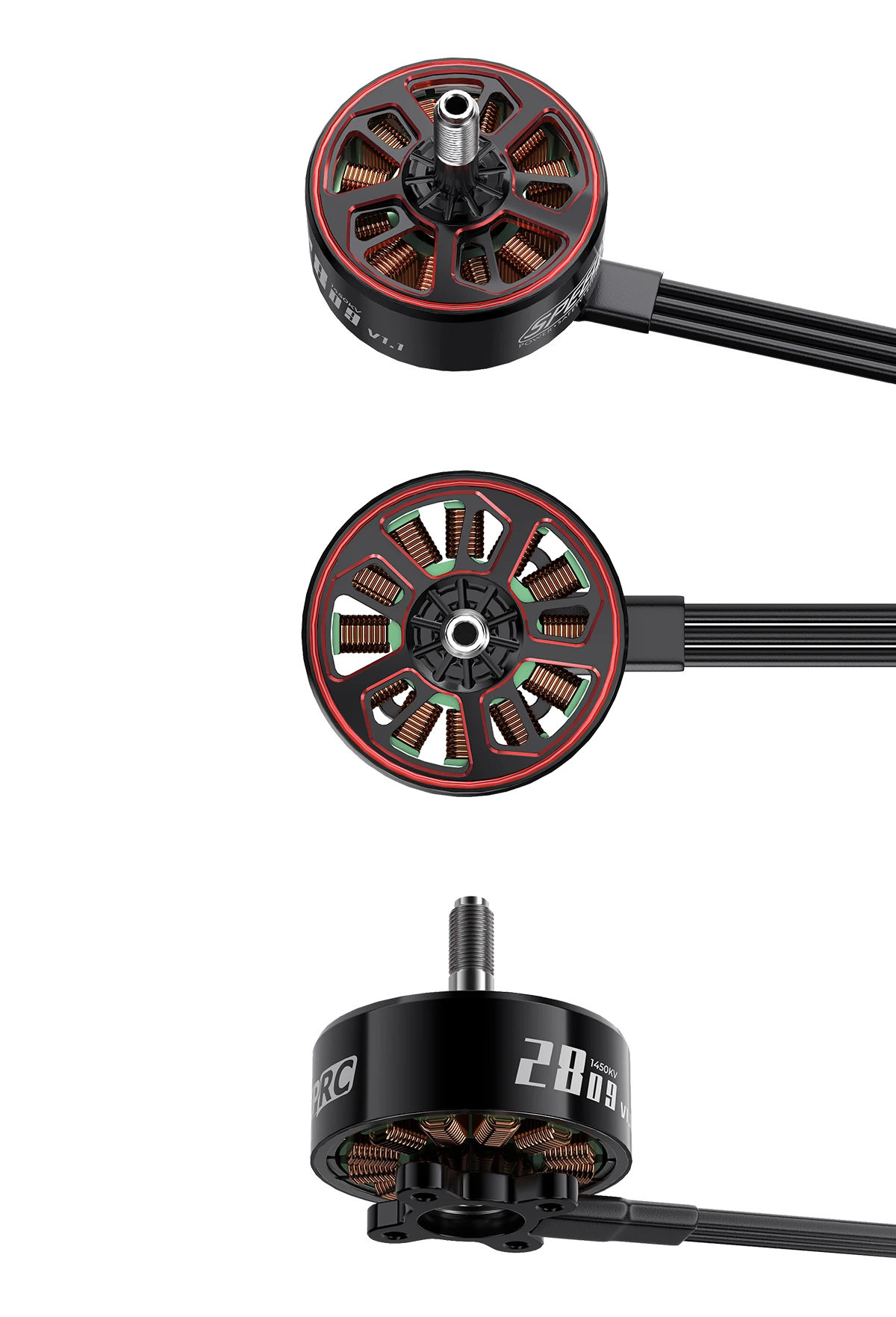

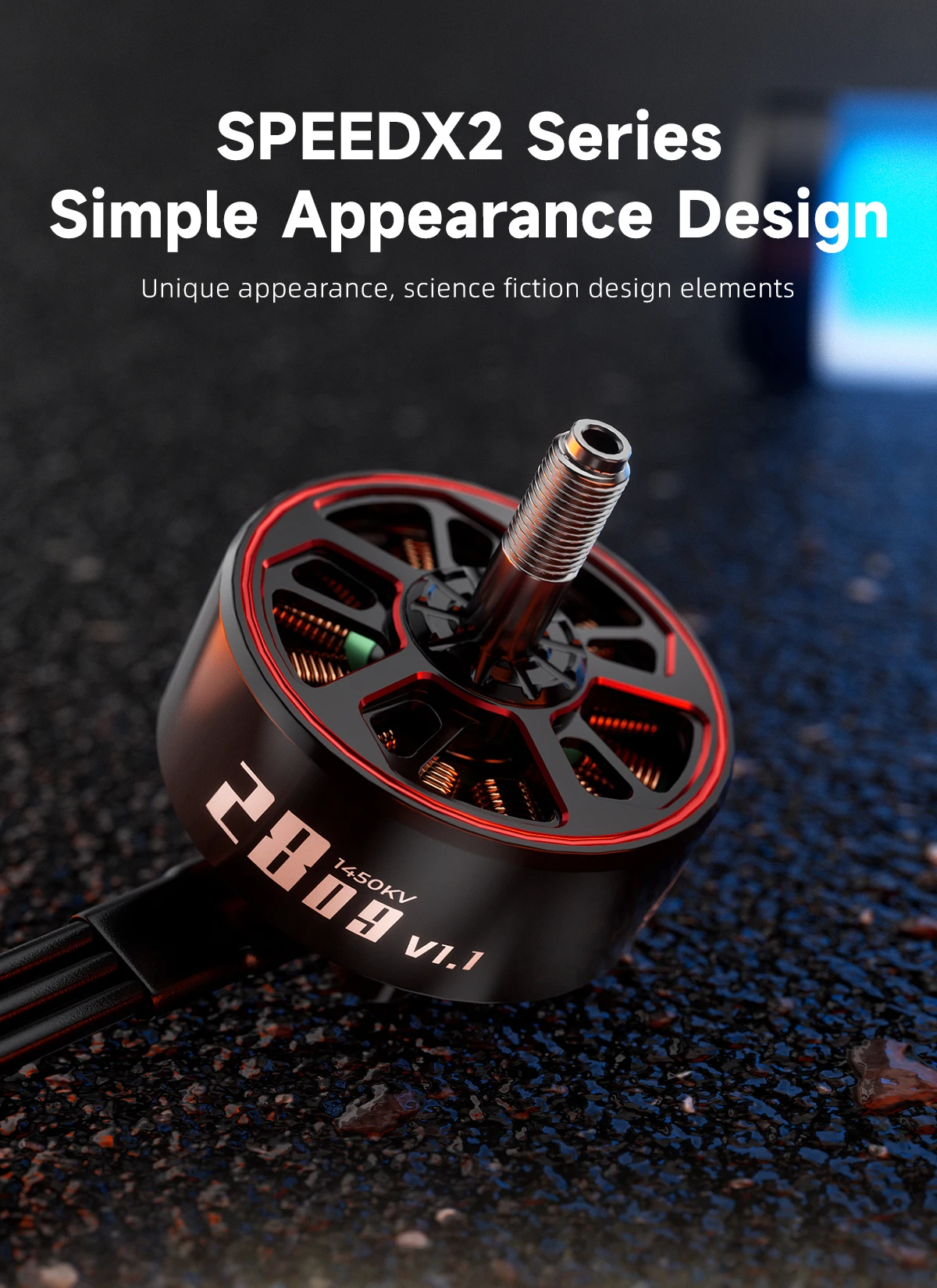

Clean black finish with red trim.
-

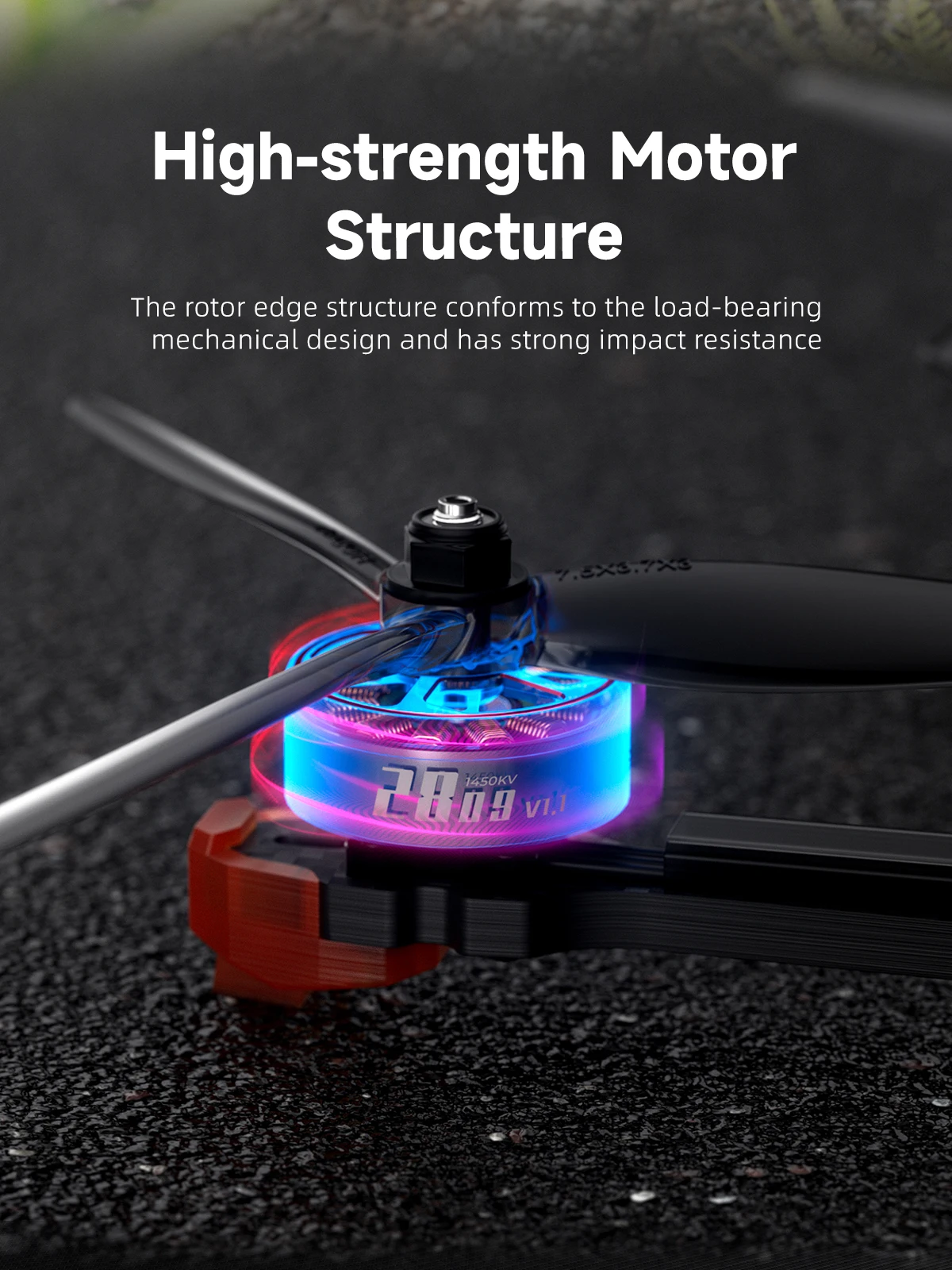

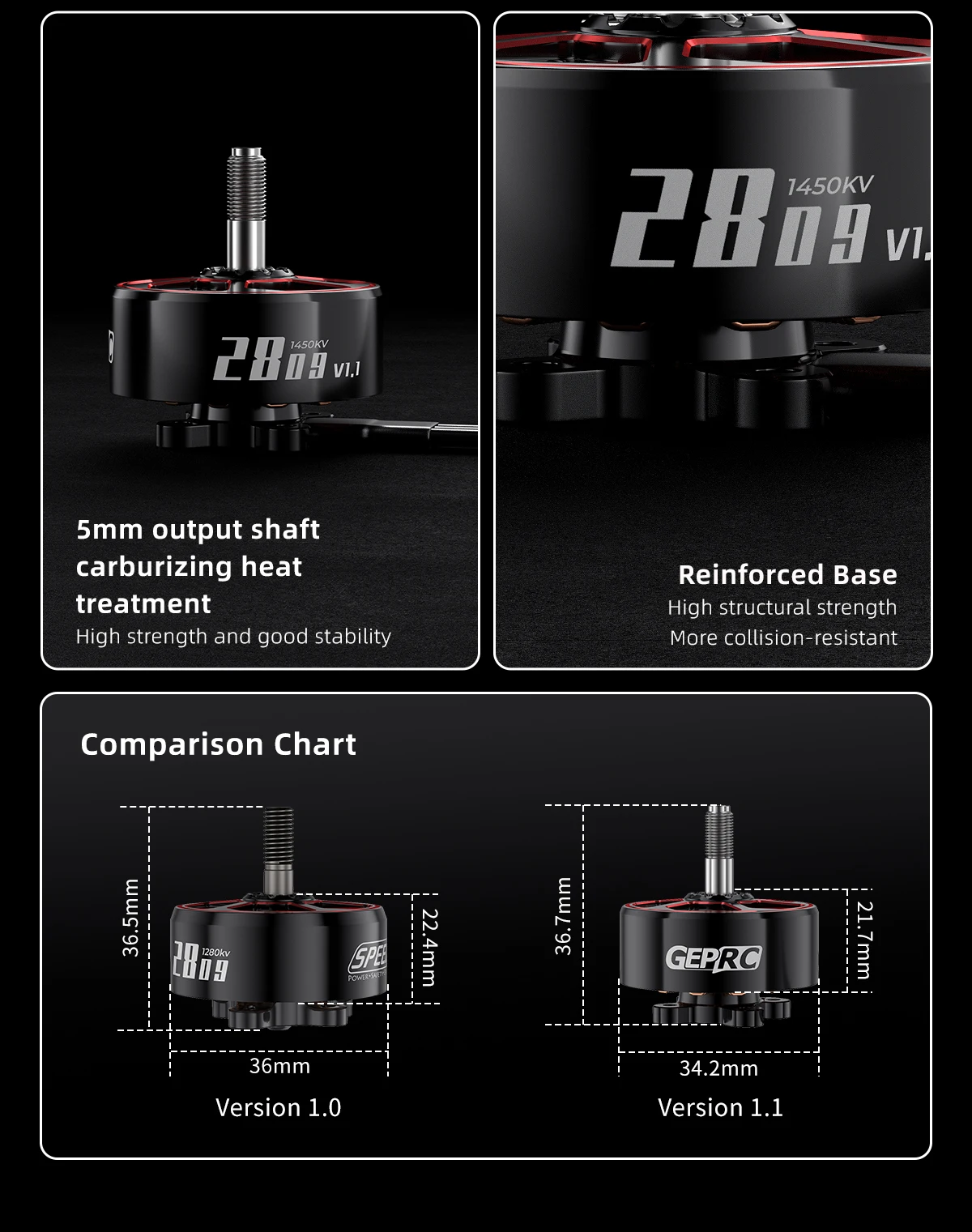

Reinforced rotor edges for better impact resistance.
-

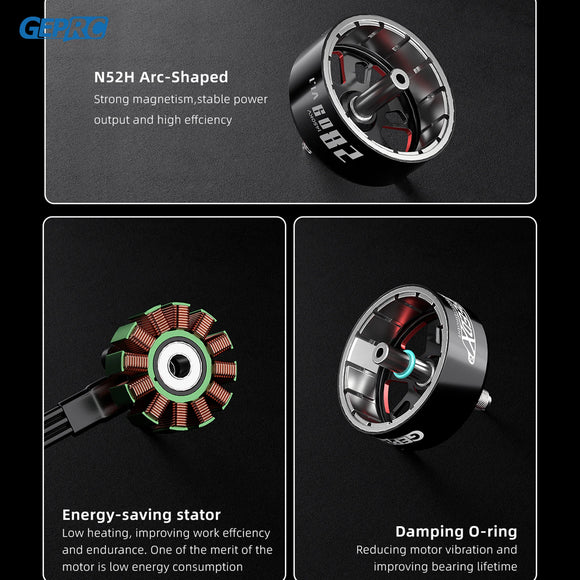

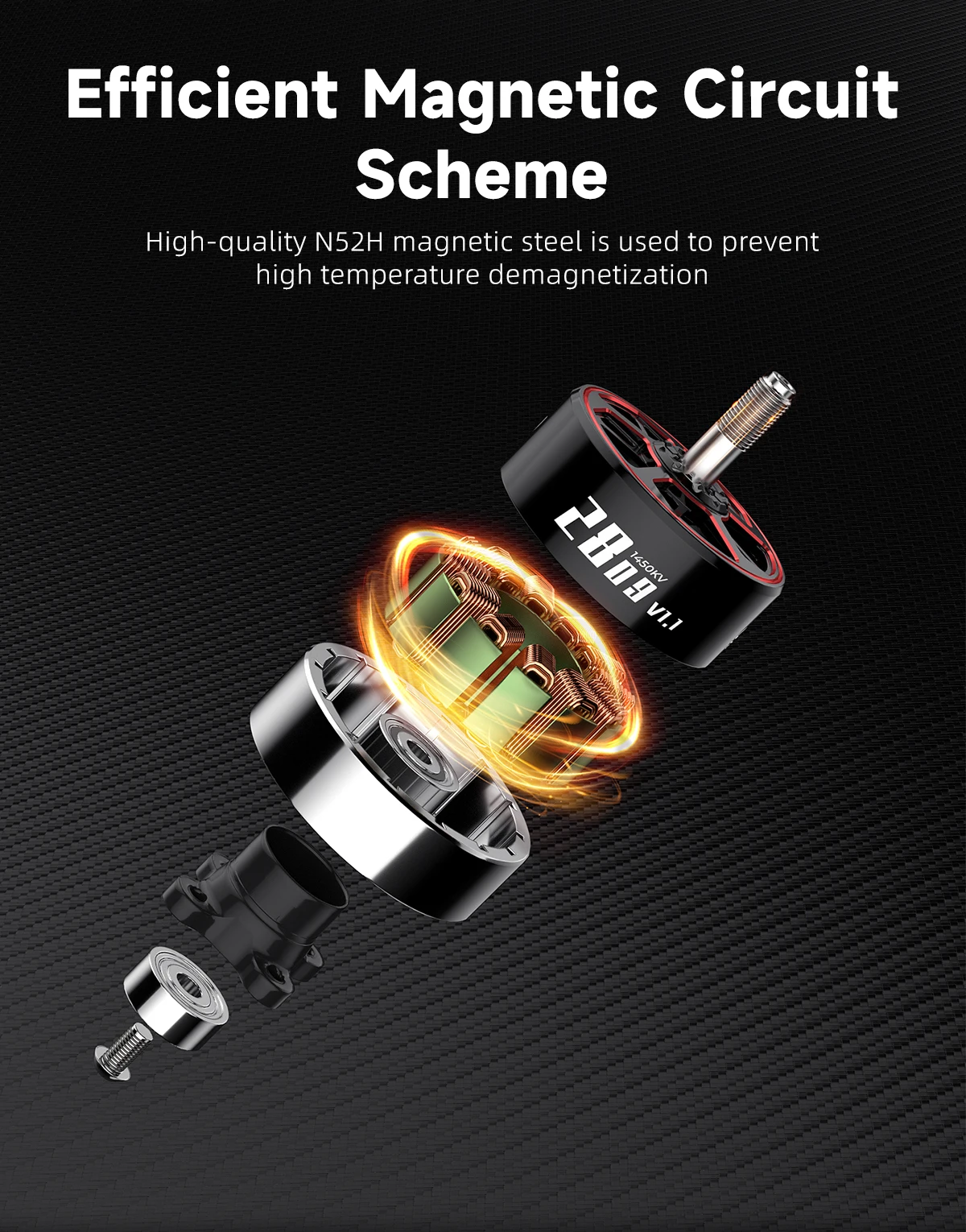

N52H magnets reduce the risk of heat-related demagnetization.

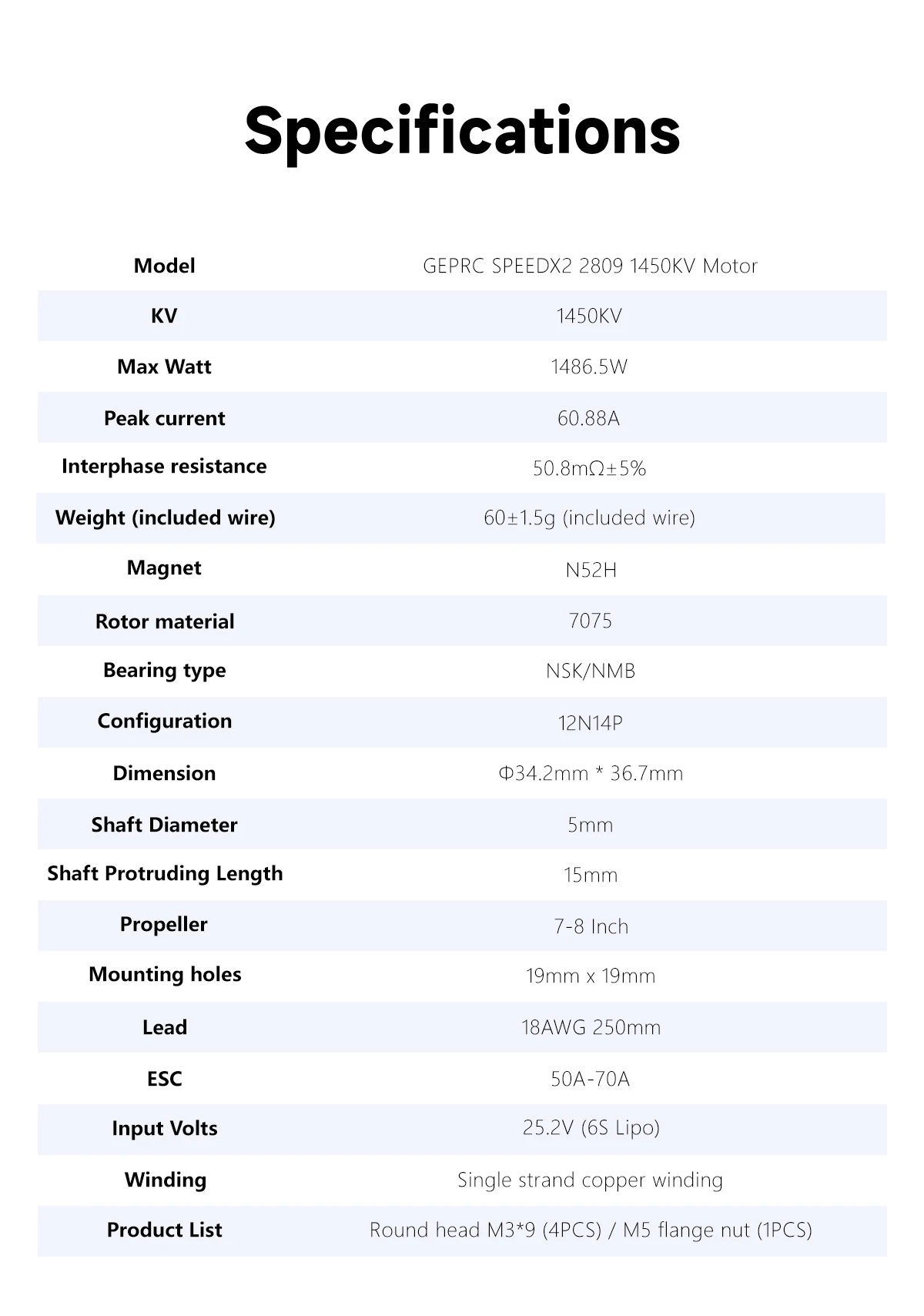

Specifications---1450KV
-
Model: GEPRC SPEEDX2 2809 1450KV Motor
-
KV: 1450KV
-
Magnets: N52H
-
Rotor Material: 7075-T6 aerospace-grade aluminum
-
Stator Diameter: 28mm
-
Stator Height: 9mm
-
Shaft Diameter: Φ5mm
-

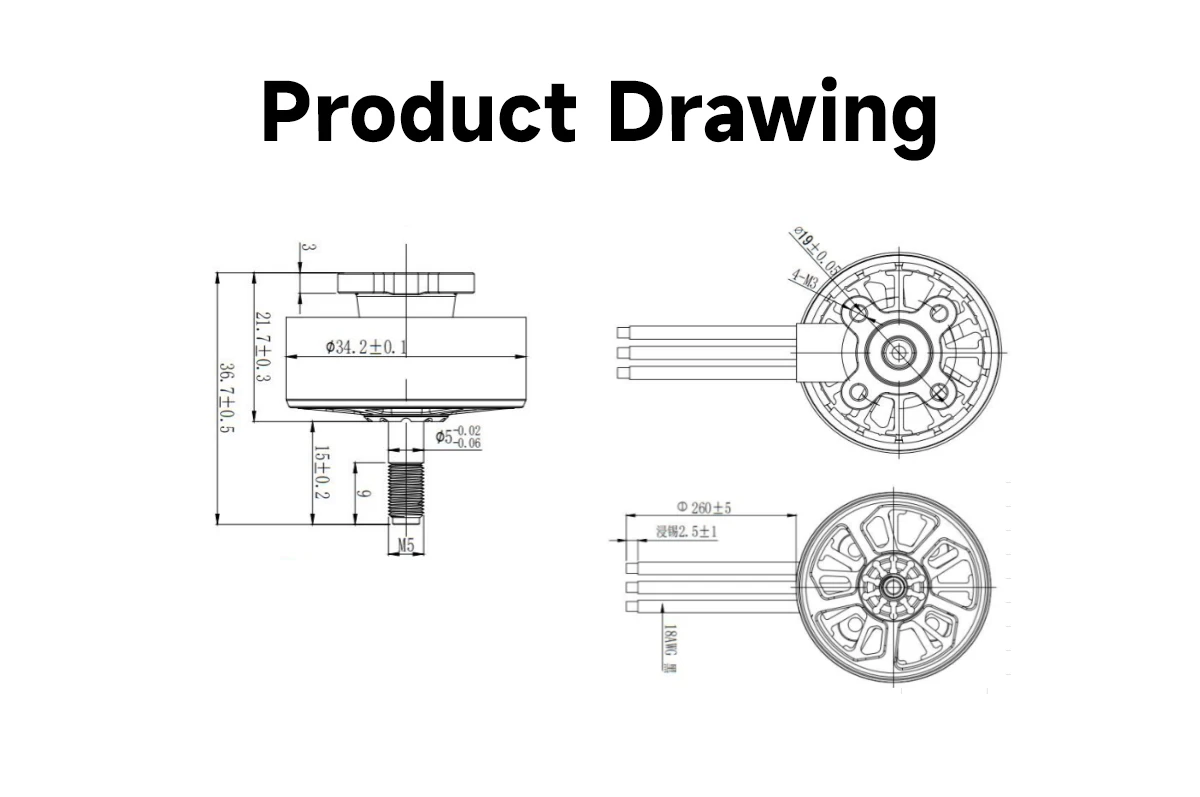

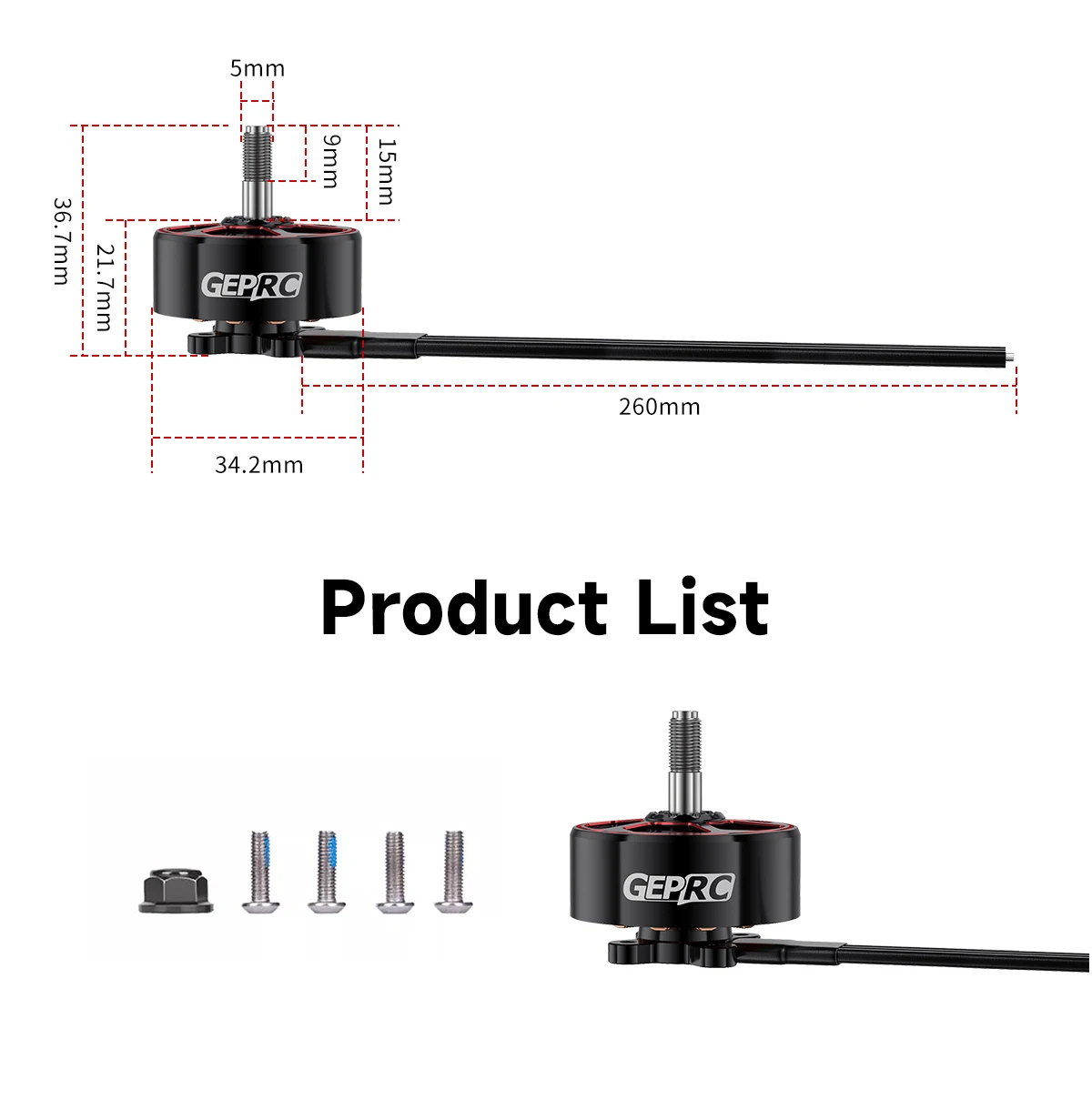

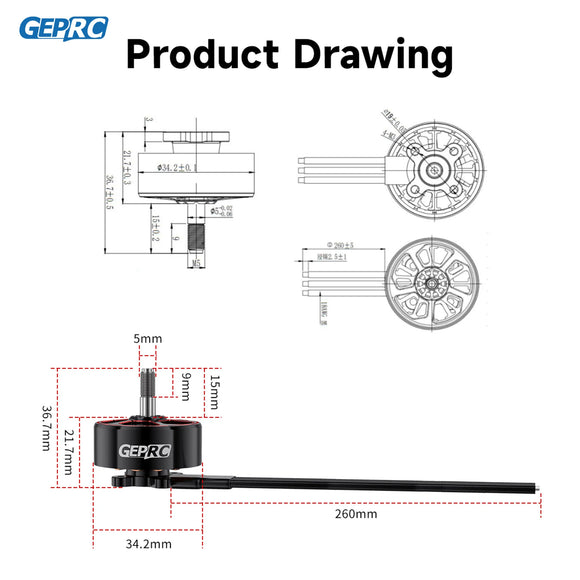

Dimensions: Φ34.2mm × 36.7mm
-
Wire: 18AWG, 250mm
-
Input Voltage: 25.2V 6S (Lipo)
-

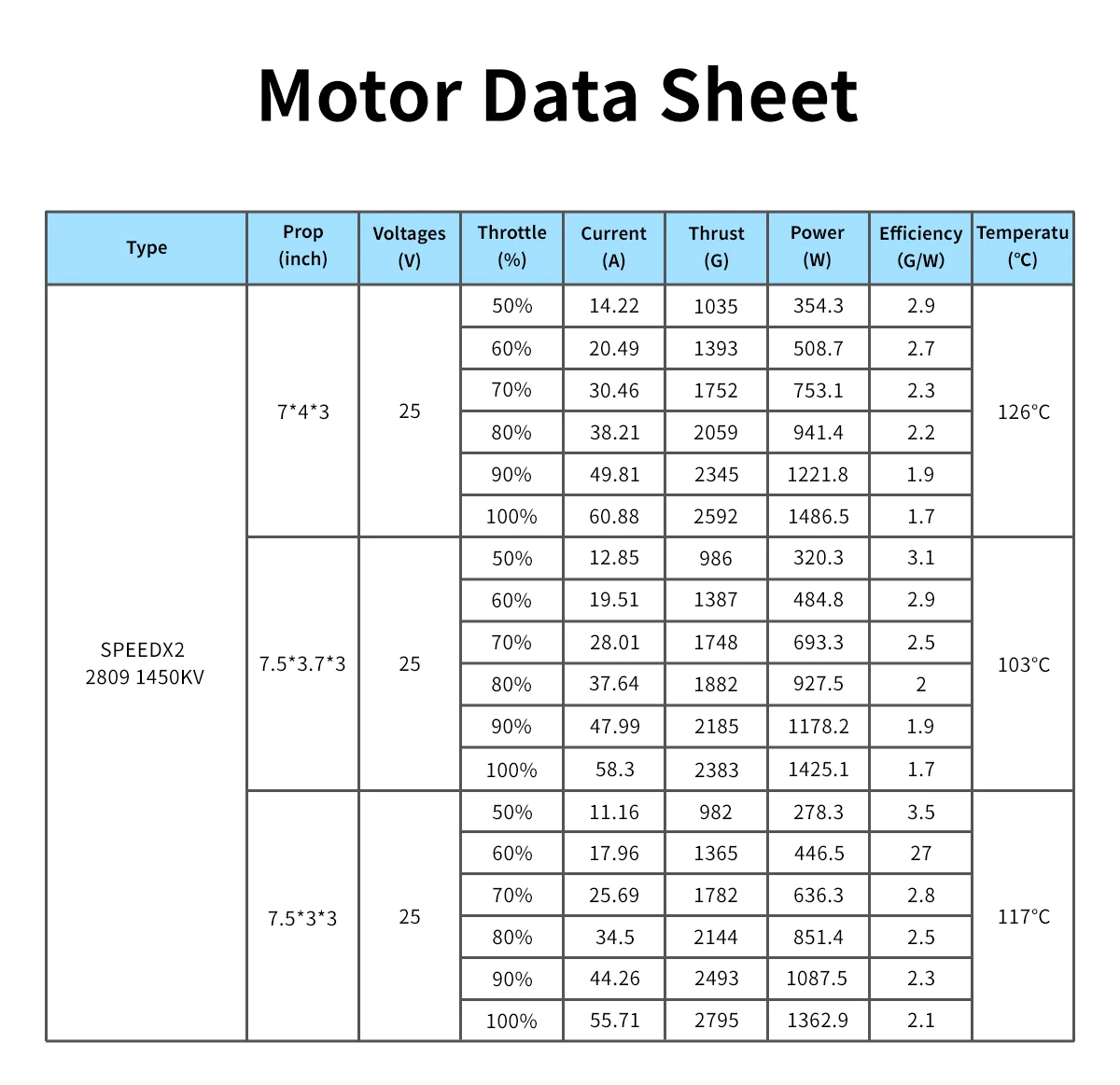

Max Power (W): ≤1455.2W
-
Max Current (A):60.88A
-
Mounting Pattern: 19×19mm (M3)
-
Color: reddish black
-
Weight: 60.1g (with wire)
-
Compatible Models: 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds
Specifications----1280KV
-
Model: GEPRC SPEEDX2 2809 1280KV Motor
-
KV: 1280KV
-
Magnets: N52H
-
Rotor Material: 7075-T6 aerospace-grade aluminum
-
Stator Diameter: 28mm
-
Stator Height: 9mm
-
Shaft Diameter: Φ5mm
-
Dimensions: Φ34.2mm * 36.7mm
-
Wire: 18AWG, 250mm
-
Input Voltage: 25.2V 6S (Lipo)
-
Max Power (W): ≤1486.5W
-
Max Current (A): 59.06A
-
Mounting Pattern: 19×19mm (M3)
-
Color: Reddish black
-
Weight: 60.1g (with wire)
-
Compatible Models: 7–8 inch long-range FPV drones / 7–8 inch X8 builds

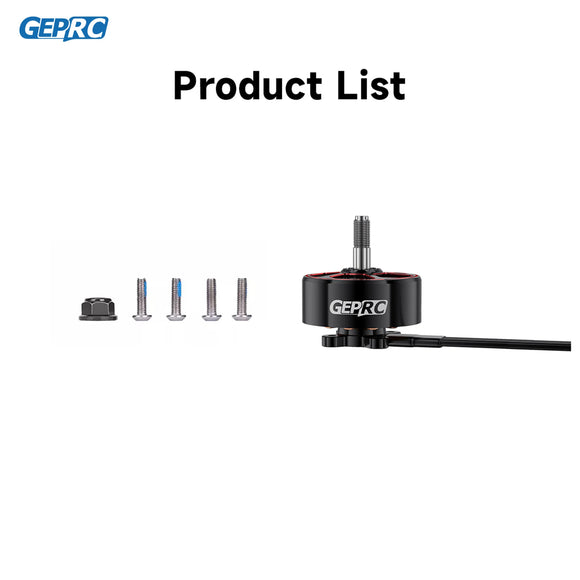

Product List
1 x GEPRC SPEEDX2 2809 motor
4 x M3*9 half-round head screws
1 x M5 anti-slip mut
