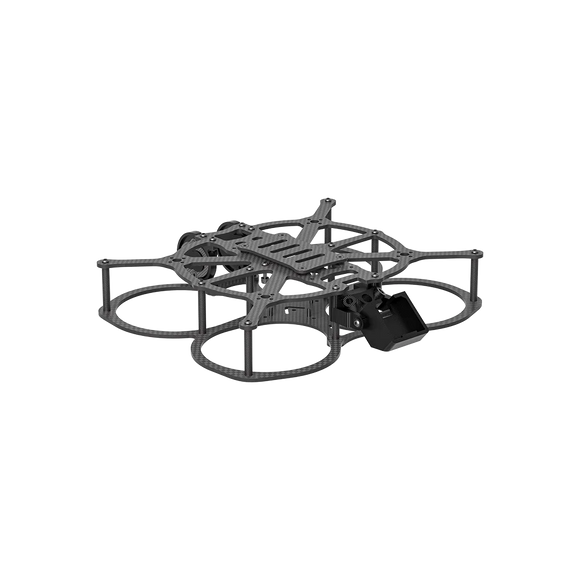

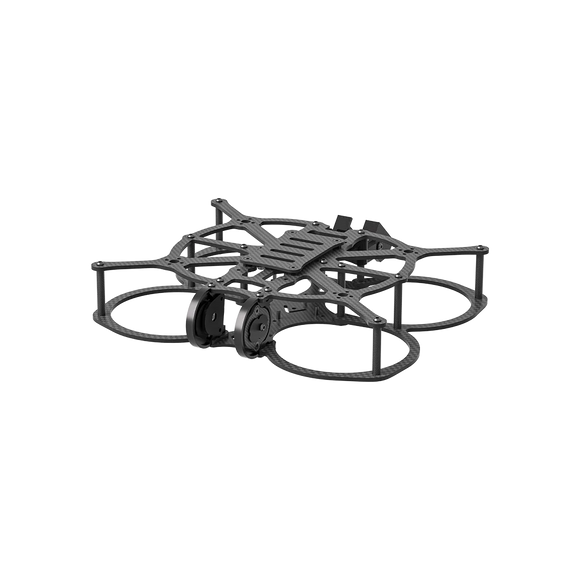

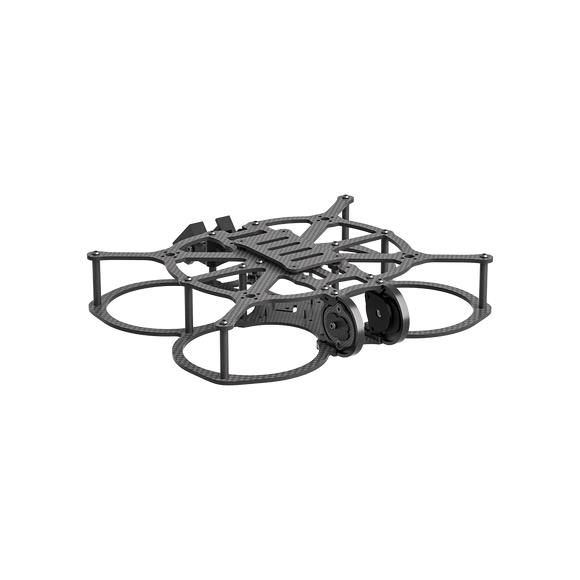

The AOS Cine25 V5 strikes the perfect balance between compact size and enhanced flight performance, supporting up to 2.5" props.
Features
Front and rear GoPro mounting
The AOS Cine25 V5 supports both forward and reverse camera mounting so you can record the road ahead as well as capture the perfect chase shot with the same drone.
Lightweight, Durable Prop Protection
The AOS Cine25 V5 features integrated carbon fiber prop guards, providing durable yet lightweight protection. Reinforced screw holes eliminate weak points in the structure, and the airflow around the propeller is optimized for maximum efficiency.
Durable and Versatile 7075 Aluminum Camera Cage
Protecting your camera, the 7075 aluminum camera cage accommodates all 19-20mm cameras, ensuring broad compatibility with various camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and O4 camera, complete with full ND filter support. For users with different FPV systems, the frame supports hard mounting for all popular camera options, including Analog, WS Avatar, HDZero, and DJI. Additionally, 14mm cameras are supported with a 3D-printed mount (STL file available under 3D Prints).
Immersive 155° FPV Experience
Enjoy a 155-degree field of view (FOV) with no props in view, perfect for DJI O3 and O4 users. This feature offers an immersive flight experience, ensuring you capture stunning, unobstructed footage.
Flexible battery mounting
With multiple options for lengthwise or toilet tank battery mounting, it’s easier than ever to balance your drone’s center of mass, regardless of the camera setup. Captive battery straps ensure quick and easy battery swaps, so you can spend more time flying.
Specifications:
-
Product Name: AOS Cine25 V5 Frame Kit
-
Frame wheelbase: 120mm
-
Frame Dimension: L171*W147*H34 mm
-
Top Plate Thickness: 2mm
-
Bottom Plate Thickness: 1.5mm
-
Battery Plate Thickness: 1.5mm
-
Max Flight Stack Height: 25mm
-
Max VTX Height: 25mm
-
Flight Stack Mounting: 20*20 Φ2mm / 25.5*25.5/Φ2mm
-
VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm
-
Motor Mounting: 9x9mm -φ2
-
Weight: 88g
-
Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX
NOTE: Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Packing List
-
1 x AOS Cine25 V5 Frame Kit
-
1 x TPU Parts
-
1 x Screw Bag
-
2 x Battery Strap
-
2 x Anti-slip Battery Pad
