Product Category: Step-Down Module
Specifications: Mini BEC
Static Model: Yes
Multi-Function: No
Cartoon Characters: No
Applicable Age: Youth (15-35 years)
Input Voltage: 2-6S LiPo Battery

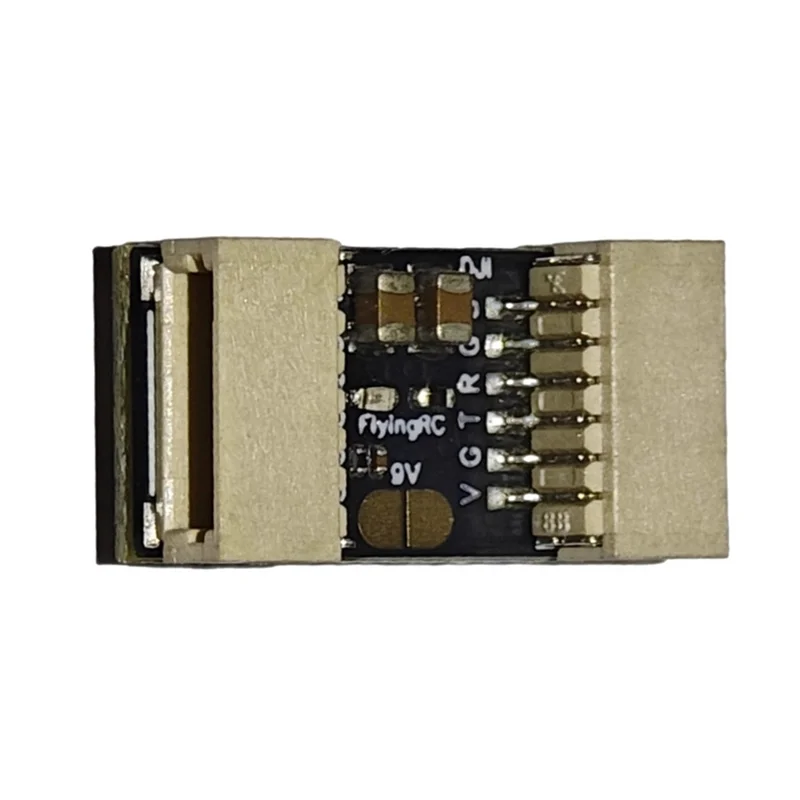

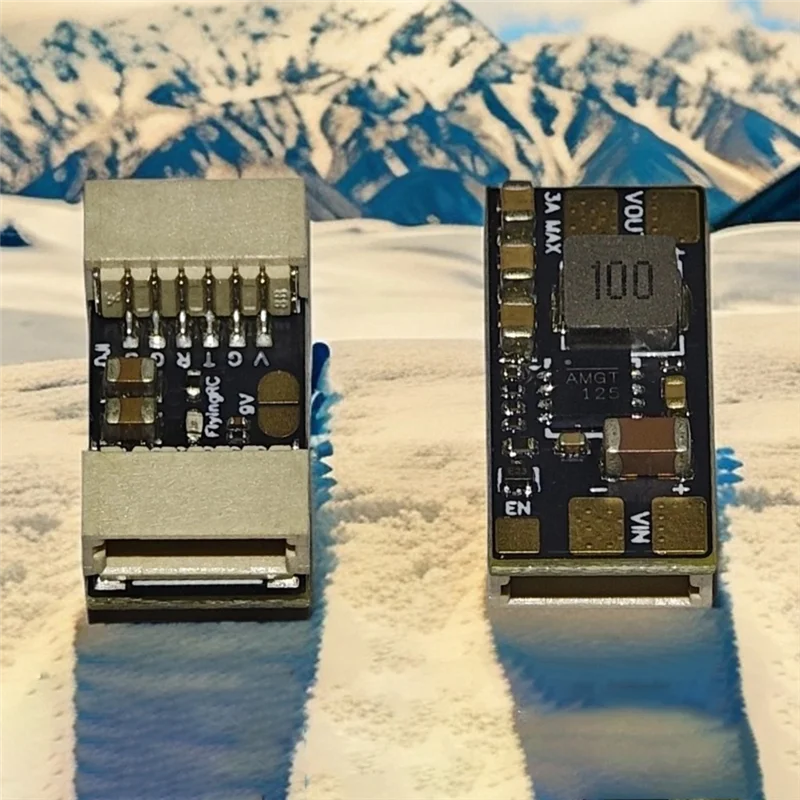

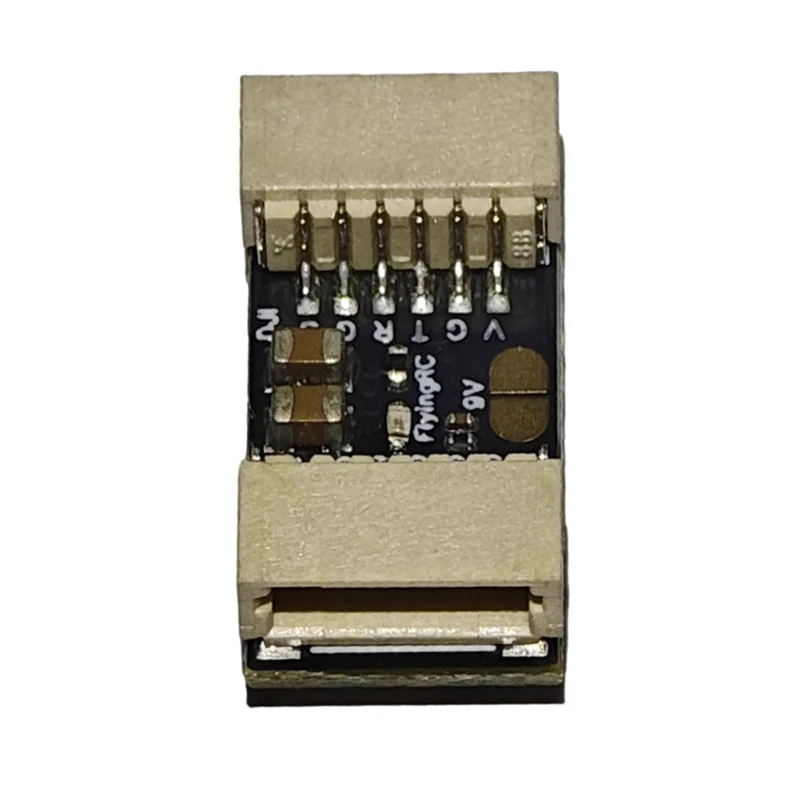

Output Voltage: 5V/2A; 9V/2A. Default output: 5V; solder jumper output: 9V.
Dimensions: 8.4 x 17.1 x 6.3mm
Weight: 1g

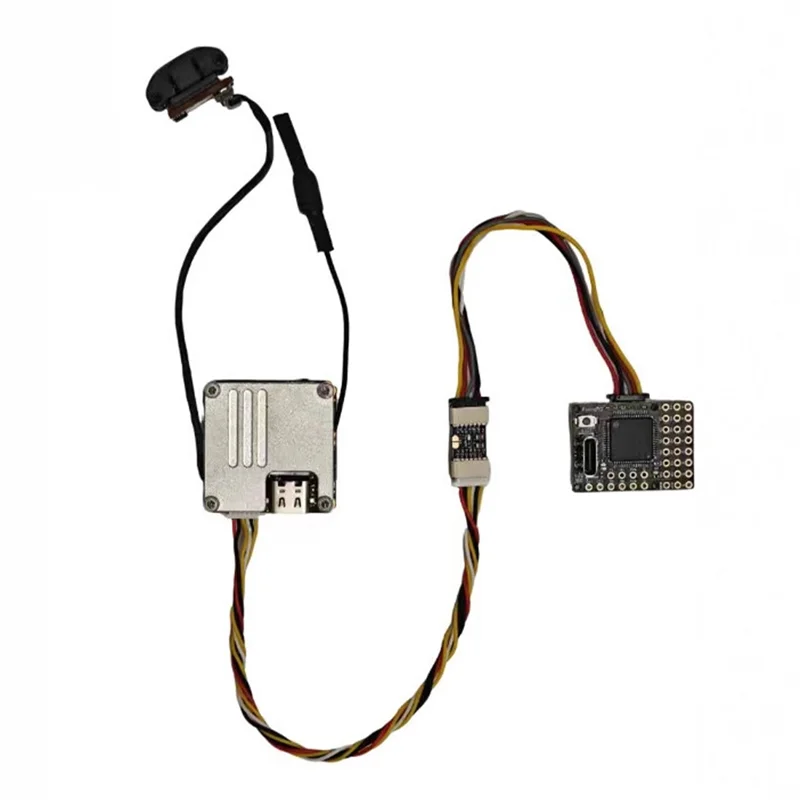

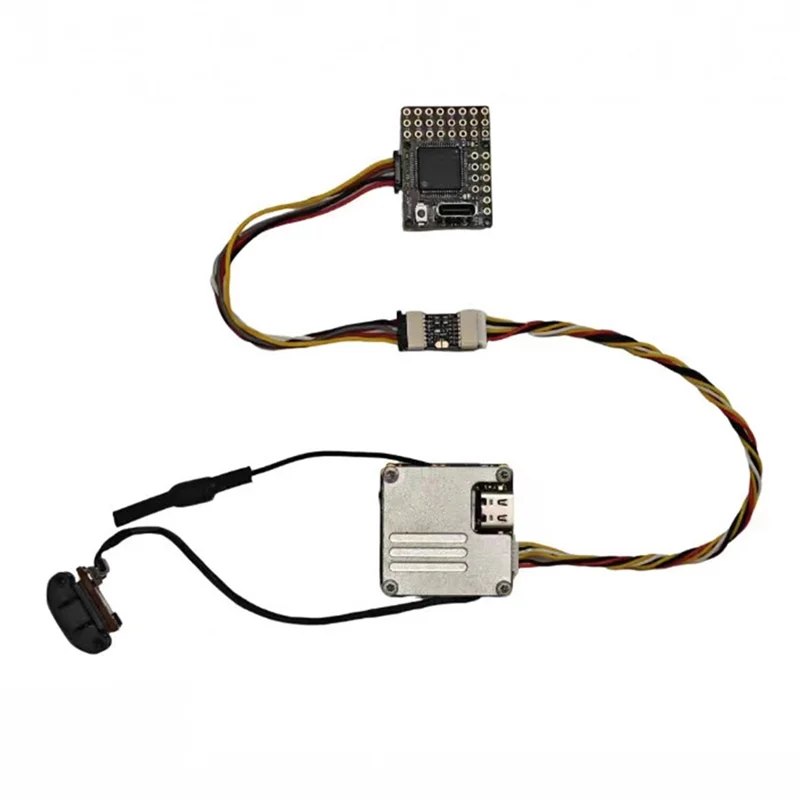

Direct-connect, plug-and-play with wiring! Compatible with for DJI .04/04.PR0/03 digital image transmission modules.
Input Voltage: 7-26V, 2-6S LiPo (Input voltage must be higher than the set output voltage by +0.8V; otherwise, the output voltage will be -0.8V.)
Output Voltage: 5V, 9V selectable. Default output: 5V; 9V selectable via a jumper.
Output current (continuous): 5V/2A; 9V/2A
Color: As Shown
Material: PCB
Package Contents:
1 * Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
